Brainboxes CC-525, PCI, DB9, 89 g, 184 g, 5V

Item no.: [430260] | Manufacturer: Brainboxes | Model no.: CC-525 | EAN: 0837324000603

out of stock

The item is not in stock. More info

Varen er ikke på lager.

Brug funktionen ”Giv mig besked..." herunder for opdateringer.

Shipping @price - GLS

12,00

EUR 619,72

Incl. VAT 774,65

Total incl. delivery 789,65

Notify me when the item is in stock again

Read further specifications and description

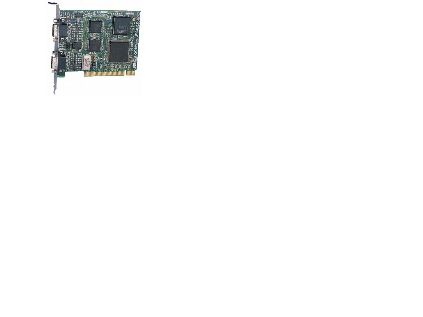

This PCI card can run at an amazing speed of up to 18,000,000 baud. It provides 2 industry standard RS422/485 serial ports for PC compatibles in a single PCI slot. The card has on-board zener diodes giving transient spike protection to the inputs - making it ideal for factory automation installations. Includes drivers for all Windows 32 bit and 64 bit Operating Systems, including Windows 7.

Produktbeskrivelse	Brainboxes CC-525 - seriel adapter
Enhedstype	Seriel adapter
Model	Indstikskort
Grænseflade (bus) type	PCI
PCI-specifikationsrevision	PCI 2.3
Porte	RS-422/485 x 2
Dimensioner (B x D x H)	1.8 cm x 13.5 cm x 12 cm
Vægt	91 g
Dataforbindelsesprotokol	RS-422, RS-485
Dataoverførselshastighed	18 Mbps
Processor	1 Oxford Semiconductor
Systemkrav	Microsoft DOS, Microsoft Windows 3.x, Microsoft Windows 95, Microsoft Windows 98, IBM OS/2, Microsoft Windows NT 4.0, Linux, Microsoft Windows 2000, Microsoft Windows Millennium Edition, Microsoft Windows Vista (32/64 bits), Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits), Microsoft Windows Server 2008 (32/64-bits), Microsoft Windows Server 2003 (32/64-bits)
Producentgaranti	3 års garanti

Generelt
Enhedstype	Seriel adapter
Model	Indstikskort
Grænseflade (bus) type	PCI
PCI-specifikationsrevision	PCI 2.3
Netværk
Porte	RS-422/485 x 2
Forbindelsesteknologi	Kabling
Dataforbindelsesprotokol	RS-422, RS-485
Dataoverførselshastighed	18 Mbps
Egenskaber	Datatransport, komplet duplex ydeevne
Processor / Hukommelse
Processor	1 - Oxford Semiconductor
Ekspansion / Konnektivitet
Interface	2 x RS-422/485 - 9-pin D-Sub (DB-9)
Diverse
Overensstemmelsesstandarder	ISO 9001, ISO 14001, EMC, RoHS
Medfølgende programmer / Systemkrav
OS nødvendig	Microsoft DOS, Microsoft Windows 3.x, Microsoft Windows 95, Microsoft Windows 98, IBM OS/2, Microsoft Windows NT 4.0, Linux, Microsoft Windows 2000, Microsoft Windows Millennium Edition, Microsoft Windows Vista (32/64 bits), Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits), Microsoft Windows Server 2008 (32/64-bits), Microsoft Windows Server 2003 (32/64-bits)
Mål og vægt
Bredde	1.8 cm
Dybde	13.5 cm
Højde	12 cm
Vægt	91 g
Producentgaranti
Service & Support	3 års garanti
Detaljer om service & support	Begrænset garanti - 3 år

The item is known under the following item numbers in our system

EAN:	0837324000603
UPC:	837324000603
SKU:	CC-525
