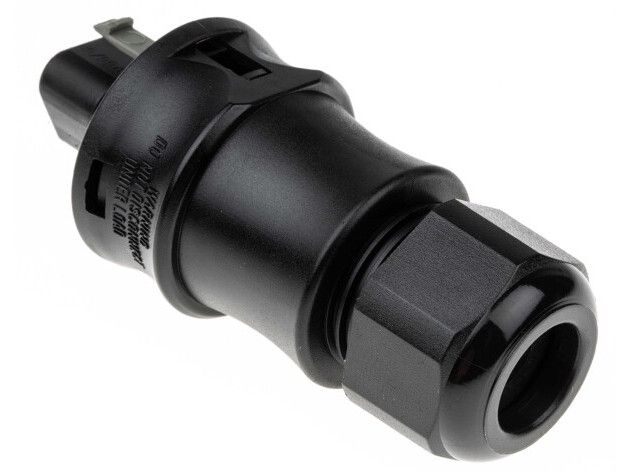

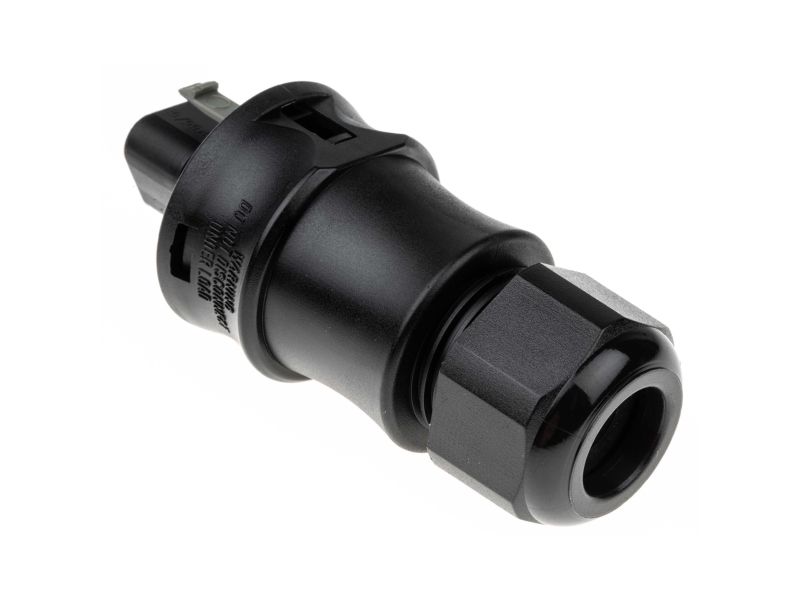

Wieland Electric RST20i3 Series Circular Connector, 3-Pole, Male, Cable Mount, 20A, IP68
Item no.: [4365054] | Manufacturer: WIELAND | Model no.: 96.032.0053.1 | EAN: 4015573848610
Remote stock (4-5 days)
The item is in a remote warehouse, delivery time is 3-4 business days. More info
Delivery options - Select at checkout
Shipping @price - GLS
12,00
EUR
14,82
Incl. VAT 18,52
Total incl. delivery
33,52
The function requires that you are logged in. Create a user and use our smart list system to keep track of future purchases, regular purchases or wish lists.
Create user
Login
Create user
Login
Send på mail
Wieland RST Lighting Connector
The RST Series by Wieland has four series available, offering a complete electrical installation system to meet different requirements. All connectors are fitter-friendly and offer flexible and easy installation, to minimise incorrect connections. The RST classic series has a modular design for a range of standard applications.
Features and Benefits
The RST Classic series offers four variants including three versions for standard voltage ratings of 250/400V and one version for extra low voltages of ?€?50/120V
Connectors are cable mount with 1 connection for each pole
Connectors are mechanically coded meaning only associated male and female pairs will connect with the correct polarity
Connectors lock together and are self-locking
Applications and Uses:
Electrical installations
General network applications
Switching applications
Multiphase systems
Standards
IP 66/IP 68
RST20i3 Lighting Connector
Male straight angle connector
For cable diameter 6 10 mm
Solid cable wire size between 0.5 to 2.5 mm??
Stranded cable wire size between 0.5 to 1.5 mm??
Rated current of 20A and rated voltage of 250V
Three pole, turned contacts with spring clamp connection
Black coding
IP66/68 degree of protection
Dimensions: length 79.1 mm, width 34.6 mm, height 34.6 mm
