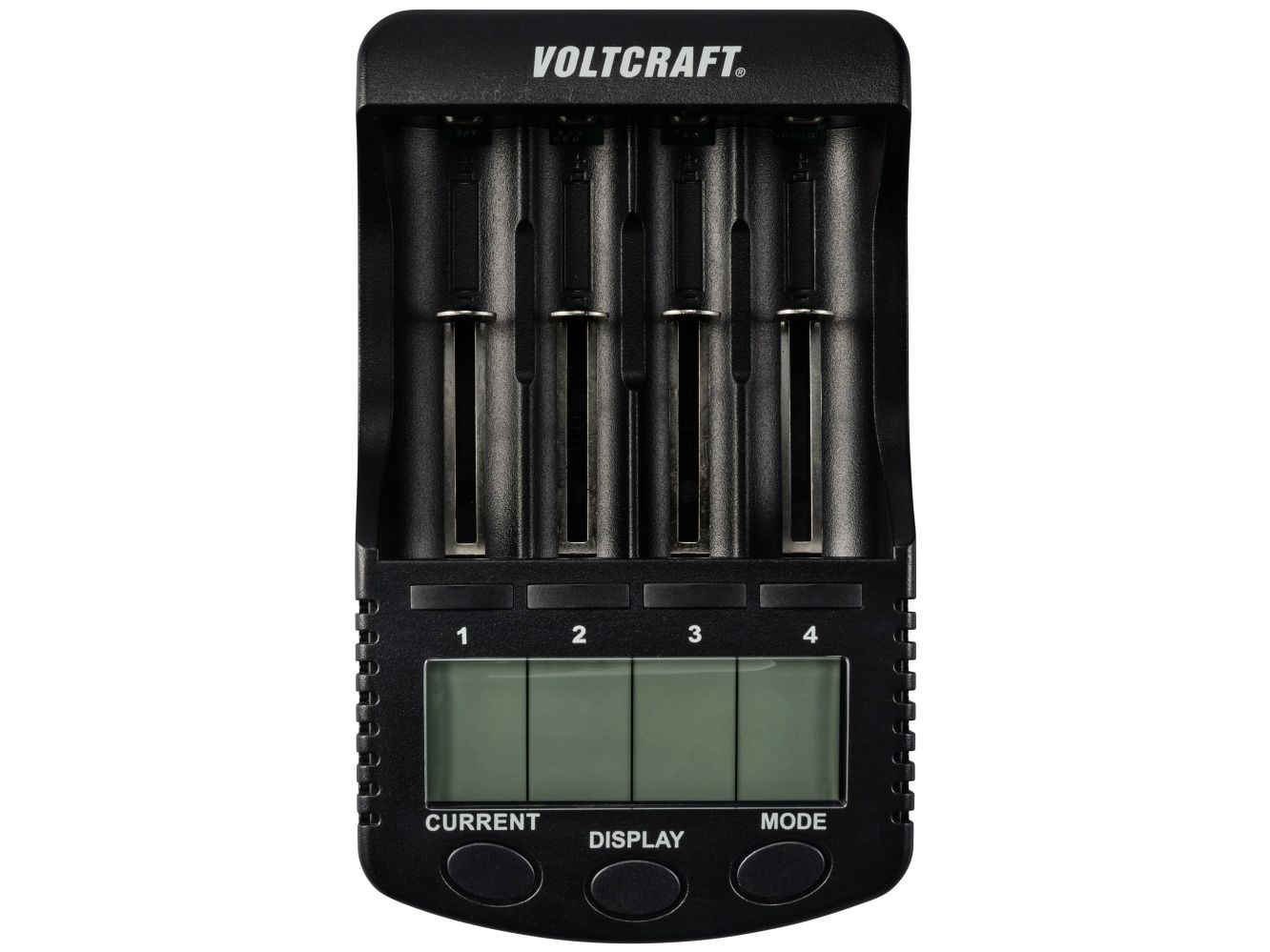

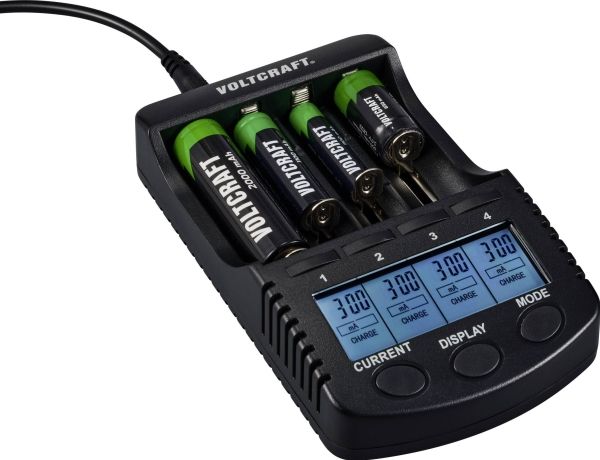

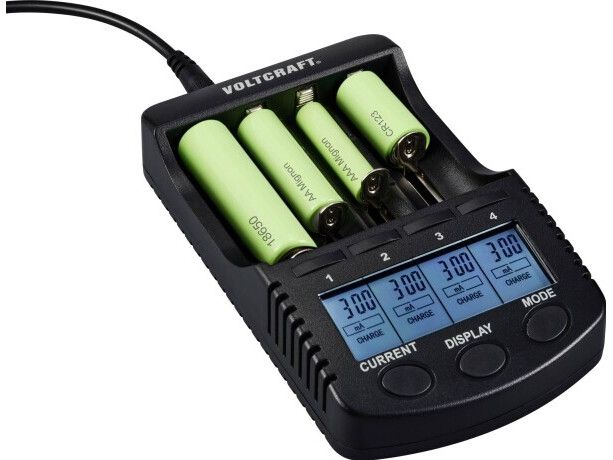

VOLTCRAFT VC-8066555

The perfect combination of charger and diagnostic station with active battery maintenance.
Thanks to the modern processor-controlled charging technology, you have three charging programs (charge, discharge, test) that you can set for each charging slot. There are 3 buttons for setting and operation. Thanks to the actual capacity measurement and automatic comparison measurement, it is no problem to detect "weak" batteries and disable them.

Technical specifications

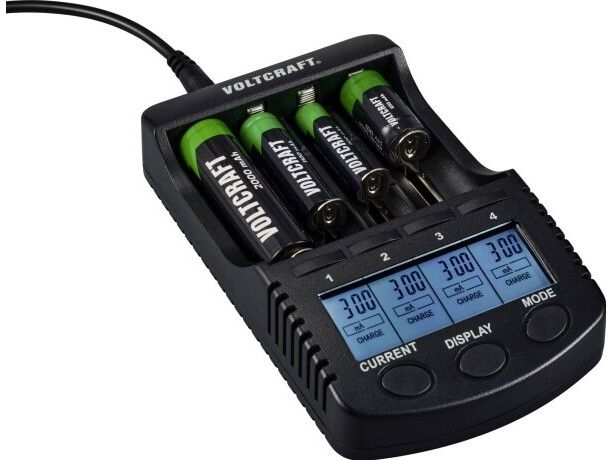

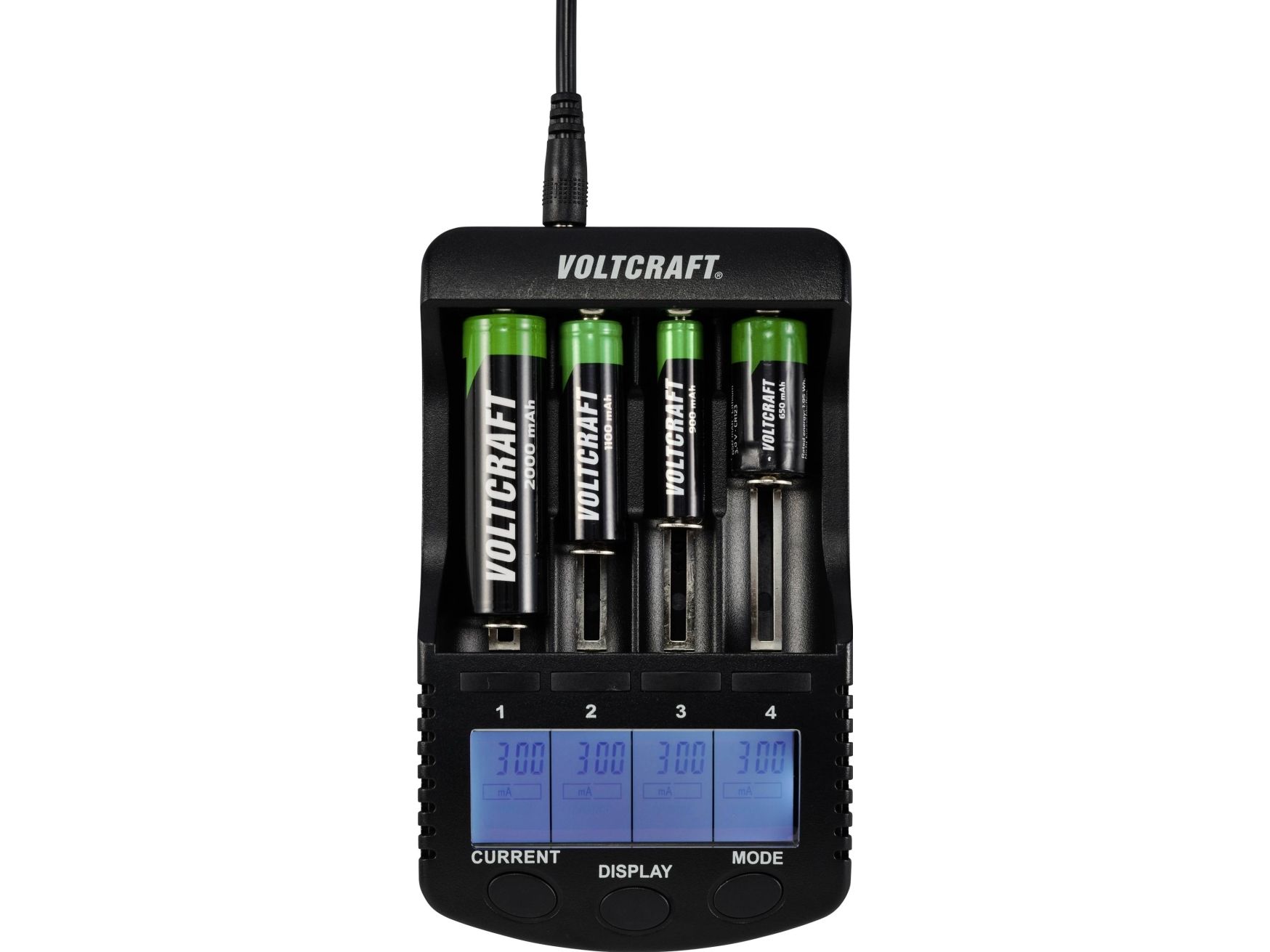

LCD display with backlight, display of charging time, voltage, current, capacity and internal resistance

Technical parameters
Suitable battery NiMH; NiCd; Li-Ion

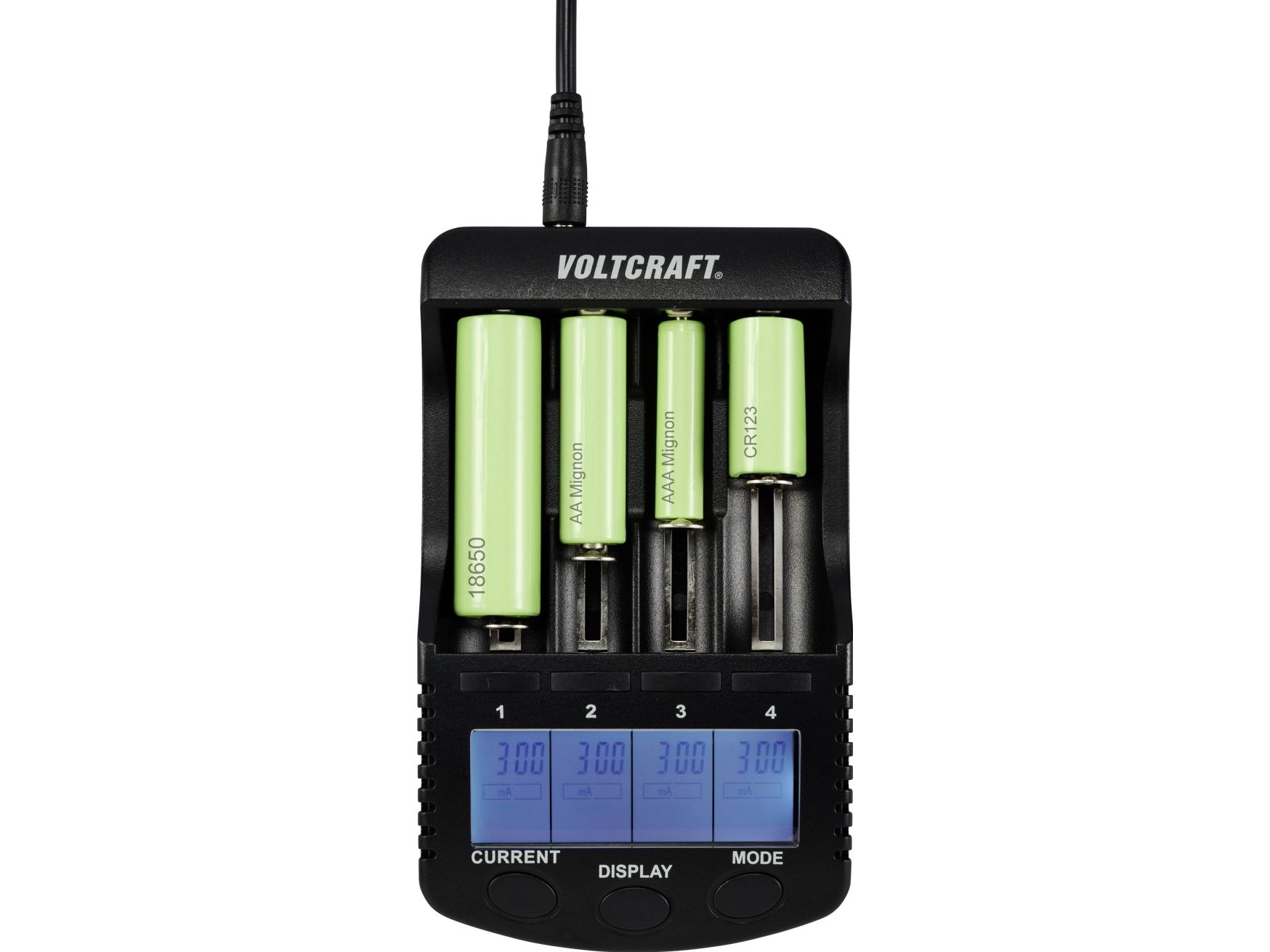

Suitable for battery size
AA
AAA
Small mono
Sub-C
26650
26500
18650
17670
18490
17500
17355
16340
14500
10440

Number of charging channels/shafts 4
Number of AAA charging channels 4
Number of AA charging chutes 4
Number of charging chutes C 2
Operating voltage 100 to 240 V/AC
Discharge current 250 / 500 mA
Max. charging current per shaft 1000 mA
Battery charging current (AAA) 1000 mA
Battery charging current (AA) 1000 mA
Battery charging current (small mono) 1000 mA
Battery charging current (Li-Ion/Li-Po) 1000 mA

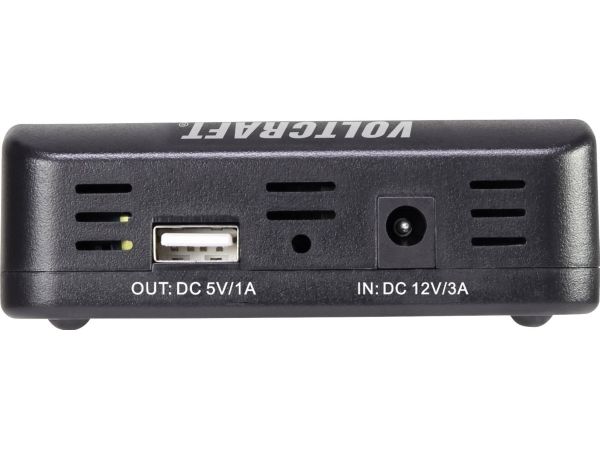

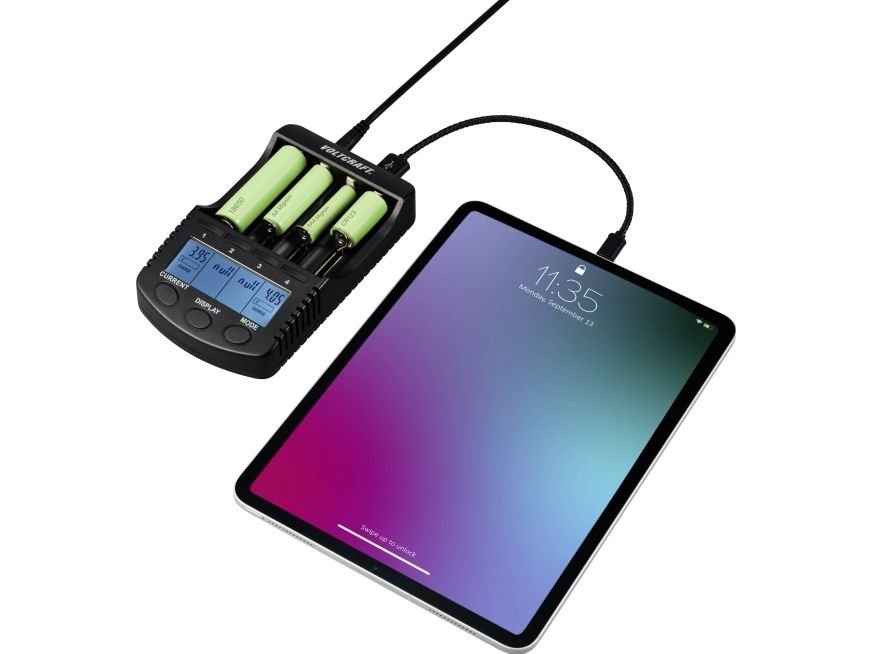

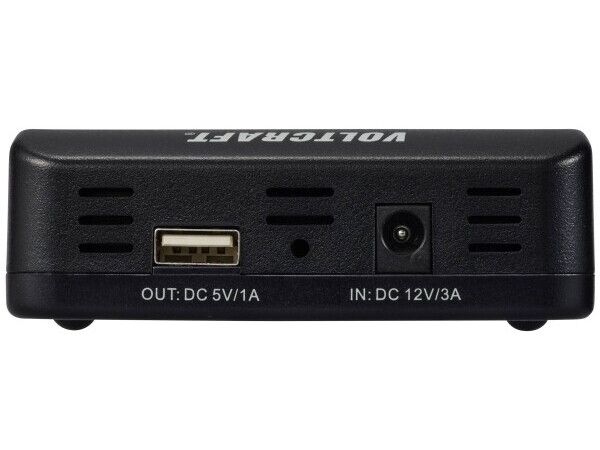

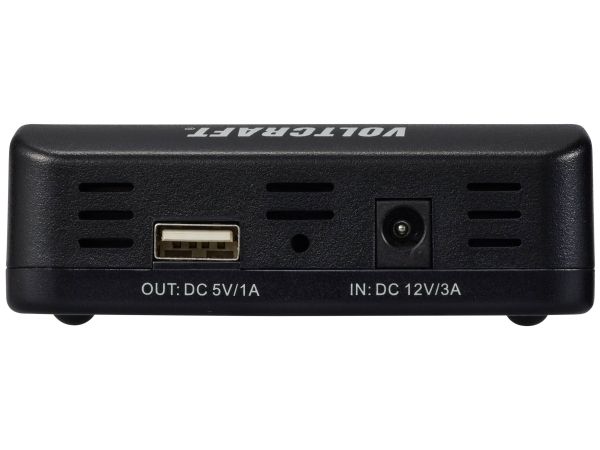

Charger features USB charging output
Typical charging time for AA battery 2000 mAh 120 min
External length 157 mm
External width 93 mm
External height 35 mm
Weight 193 g

Equipment
For NiCd, NiMH and Li-Ion batteries
Quick battery test function
Battery-friendly charging with automatic charging current selection
Test function

Features
Microprocessor control
Minus Delta U shutdown
Single slot monitoring
Adjustable charging and discharging currents
Automatic maintenance charging
Quick battery test function
Discharge function
Temperature monitoring
Recognition of badly inserted or damaged batteries
Overcharge protection
Easy operation with 4 buttons
Overload protection
Large LCD display with backlight

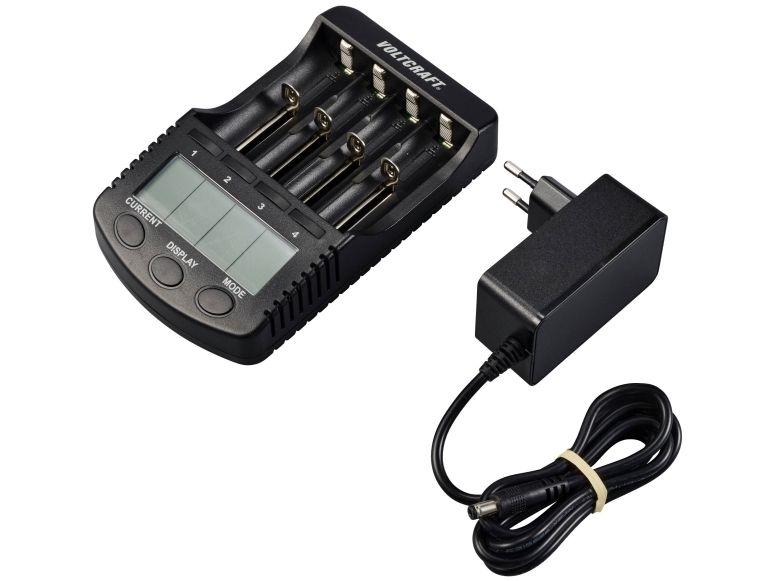

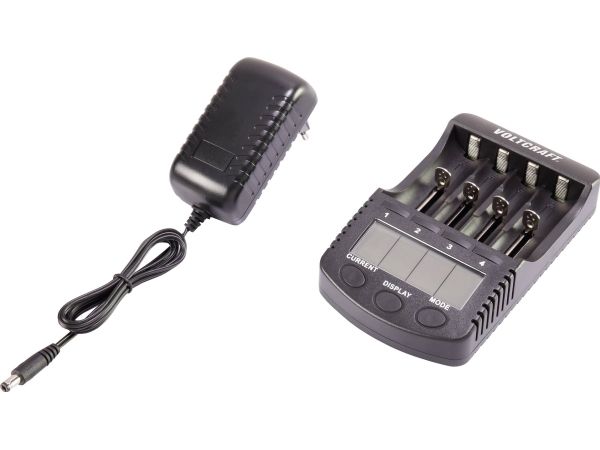

Scope of delivery
CC-2 round cell charger
Power supply (12 V, 3 A)
