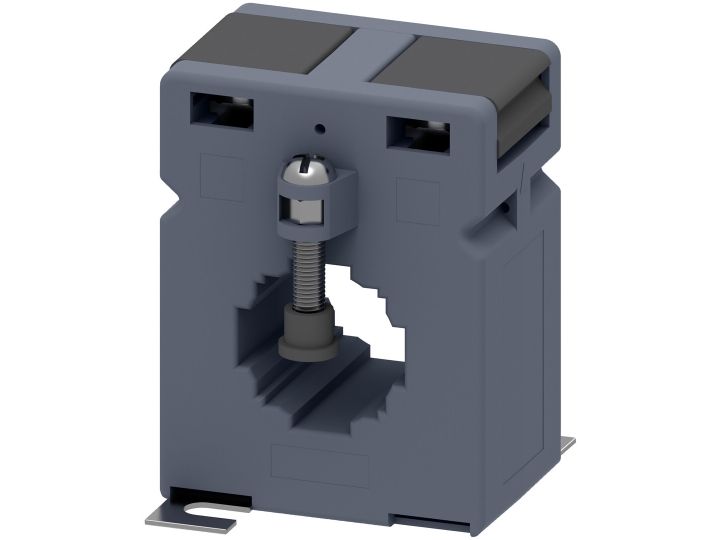

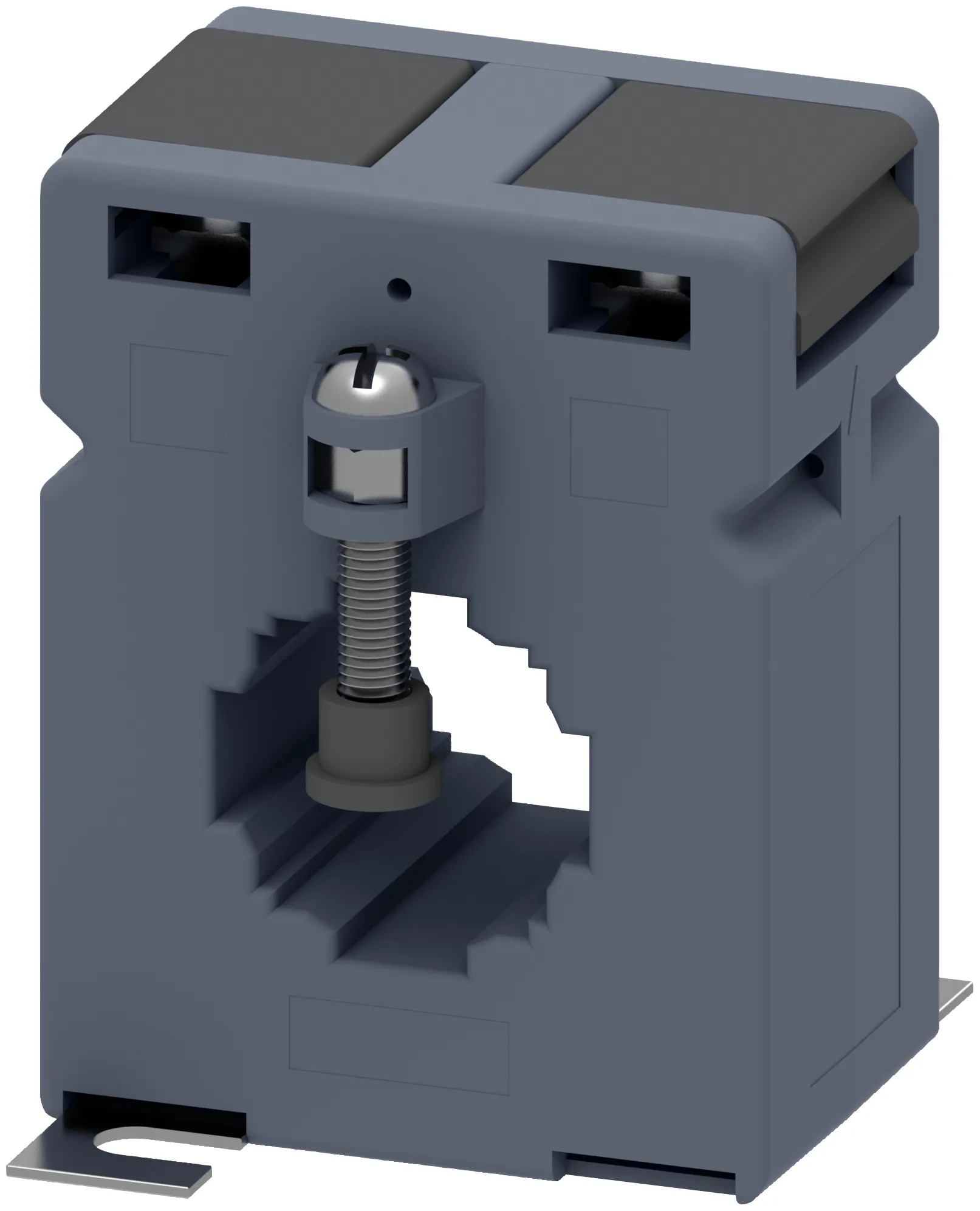

current transformer 400/5 A, 5 VA, Cl. 0.5 4NC bushing type current transformer The bushing-type current transformers are used for primary rated currents from 40 A to 3000 A, a secondary rated current 5 A or 1 A and in classes 0.2S, 0.5, and 1. They are also suitable for measurement functions with PAC and AI Energy Meter due to better accuracy and are used in mechanical engineering, especially in new plants with medium electrical power or in plant construction.
Weight
362 g
Package weight
362 g
Package depth
103 mm
Package width
67 mm
Package height
68 mm
Accuracy
0.5%
Rated current
400 A
Compliance certificates
CE, RoHS
Number of input phases
1
Factory-calibrated
No
Opening diameter
2.8 cm
Installation opening width
3 cm
Installation opening height
3 cm
Minimum order quantity
1 pc(s)
Battery included
No
Model description
Attachable current transformer
Contact protection
Yes
Rated current (secondary)
5 A
Copper rail
No
Snap mounting
No
Rated secondary apparent power
5 W
Maximum order quantity
1 pc(s)
Secondary connection
Screw connection
