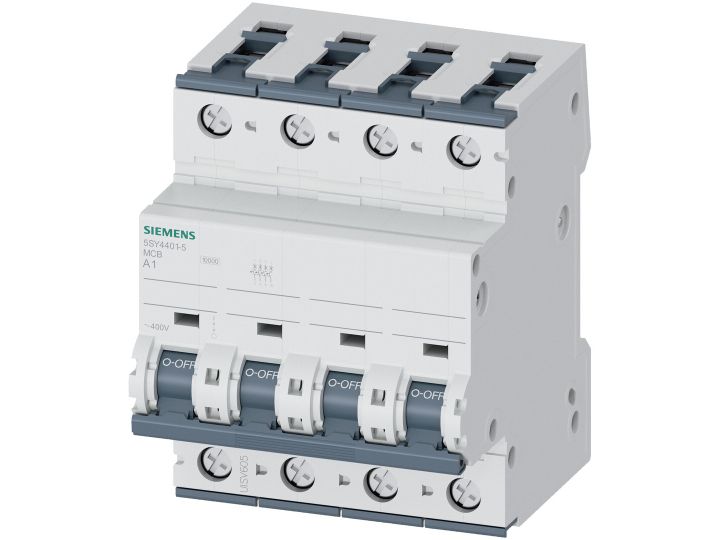

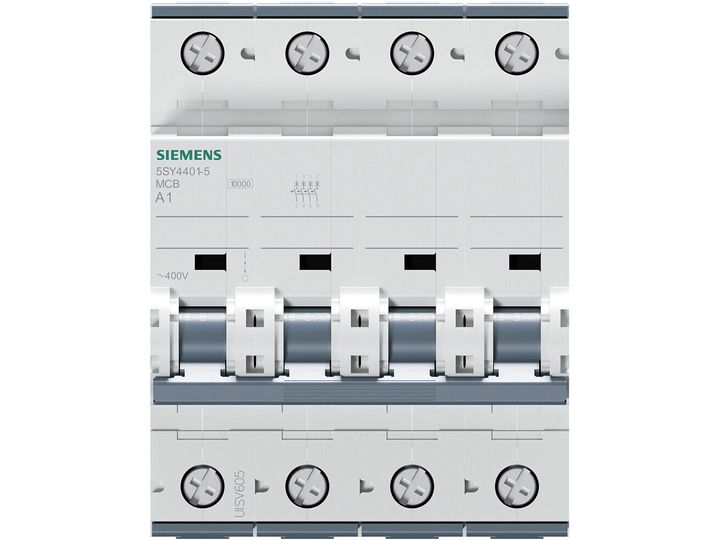

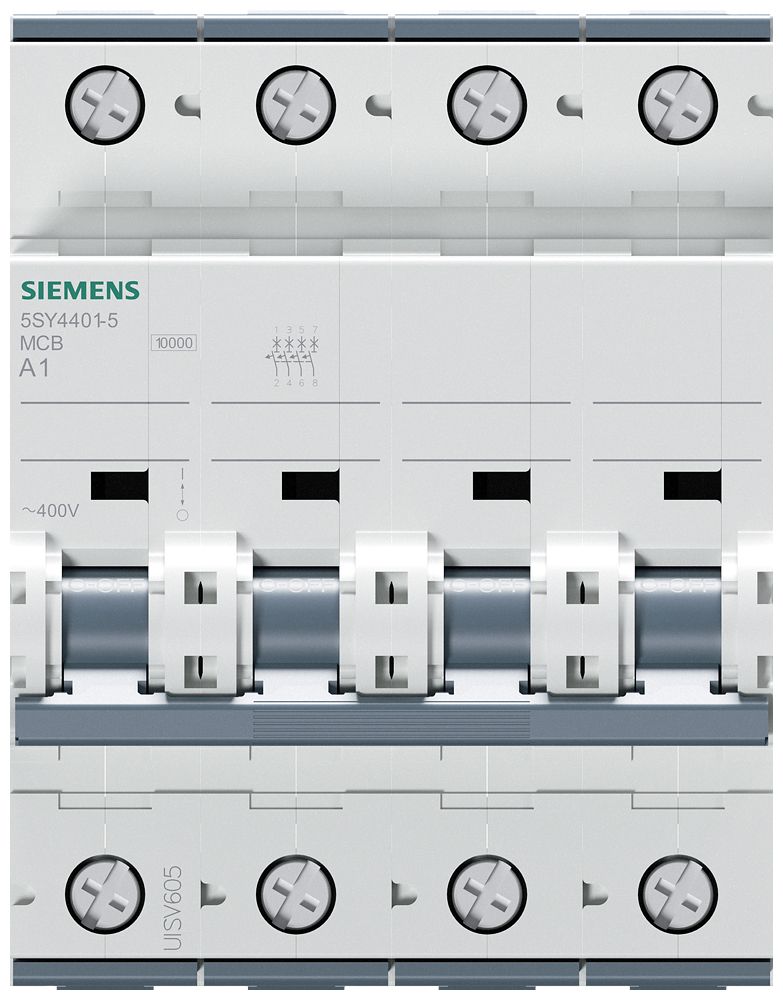

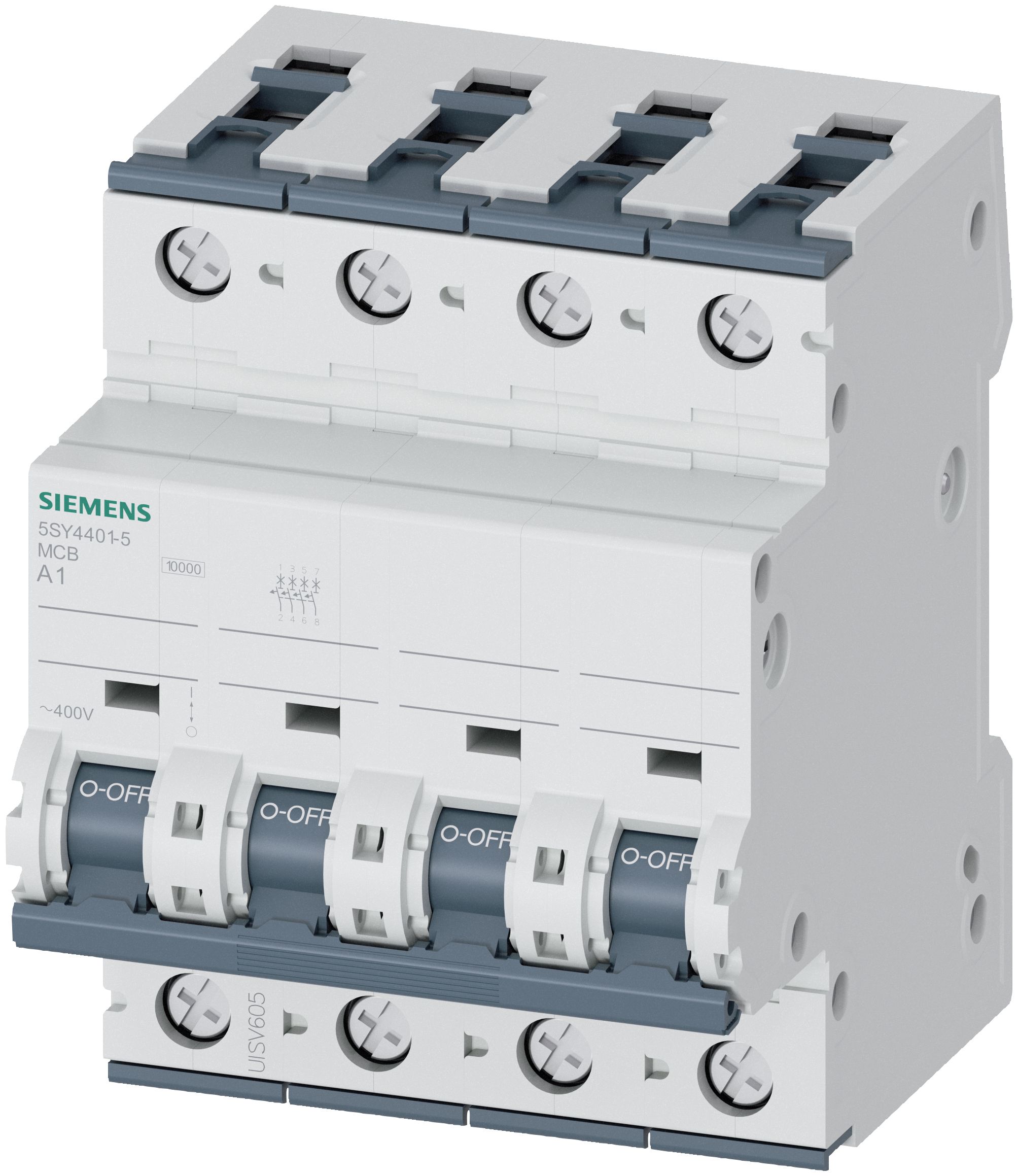

Miniature circuit breaker 400 V 10kA, 4-pole, A, 1 A, D=70 mm Miniature circuit breaker SENTRON 5SY4 for fail-safe short-circuit and overload protection for residential and non-residential buildings and special industrial applications. Assembly and disassembly of the device without tools using a double slide. Any combination of conductors and busbars thanks to dual-chamber terminals. Simple wiring of the infeed through the rear busbar. The 5SY miniature circuit breakers are available in 1-, 2-, 3-, 4-pole and 1+N- and 3+N-pole versions. All accessories can be used asstandard for all 5SY miniature circuit breakers. Simply safe with the protection devices from SENTRON.
Rated current
1 A
Input frequency
50 Hz
Rated voltage
400 V
Total power loss
8.4 W
Number of poles
4
International Protection (IP) code
IP20
Pollution degree
3
Package width
75 mm
Package depth
95 mm
Package height
83 mm
Package weight
649 g
Compliance certificates
CE, RoHS, REACH
Number of modular spacings
4
Voltage type
AC
Mounting depth
7 cm
Ambient temperature range
40 - 70 °C
Release characteristic
A
Connectable solid conductor cross-section
0.75 - 35 mm²
Connectable stranded conductor cross-section
0.75 - 35 mm²
Switching neutral conductor
No
Overvoltage category
CAT III
Rated insulation voltage (Ui)
440 V
Rated short-circuit breaking capacity (Icn, EN 60898, 230V)
10 kA
Rated short-circuit breaking capacity (Icn, EN 60898, 400V)
