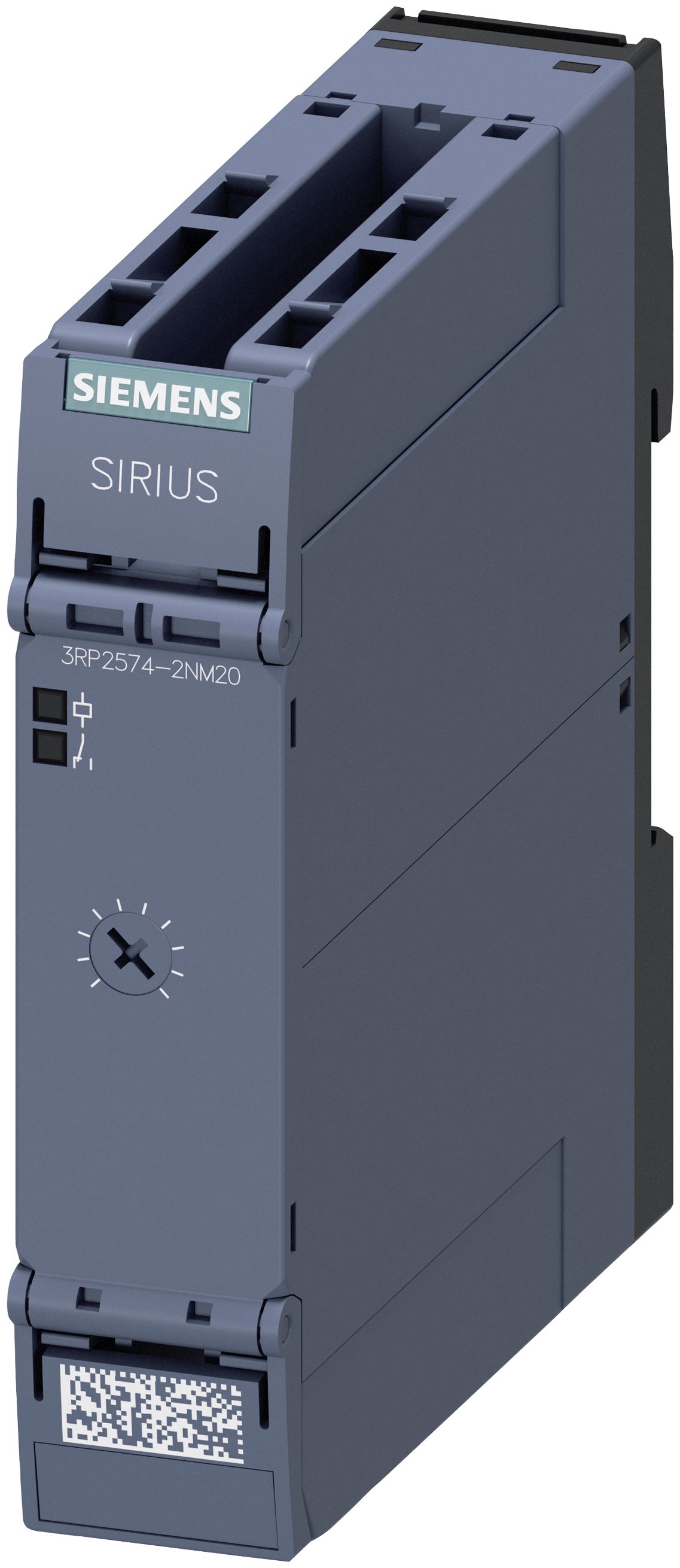

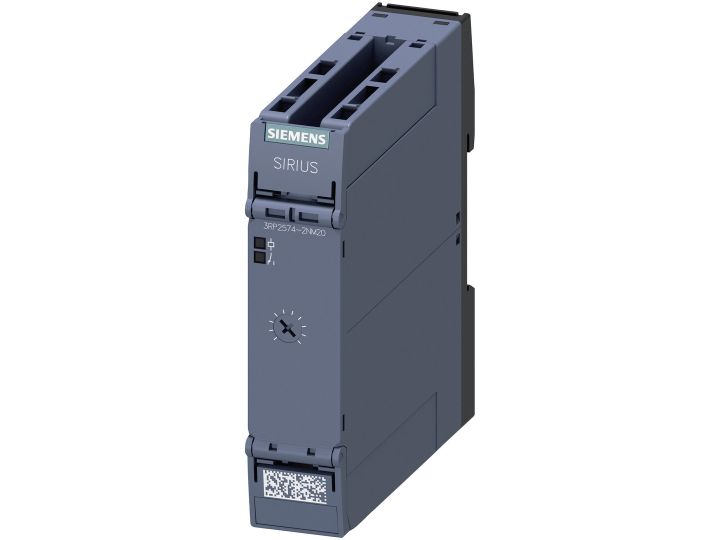

Siemens 3RP25742NM20 3RP2574-2NM20 timer relay 1 pc time range: 1–20 s Single
Height
100 mm
Package width
36 mm
Package depth
109 mm
Package height
126 mm
Package weight
147 g
Compliance certificates
CE, RoHS, REACH
Timer duration (minimum)
1 s
Timer duration (maximum)
20 s
Actuating voltage type
AC
Electrical connection type
Spring clamp connection
Rated control supply voltage (AC 50Hz)
200 - 240 V
Rated control supply voltage (AC 60Hz)
200 - 240 V
Minimum order quantity
1 pc(s)
Battery included
No
Pluggable on auxiliary contact block
No
Semiconductor output
No
Function star-delta
Yes
Number of outputs (delayed, change-over contact)
0
Function floating contact on energization
No
Function delay on de-energization
No
Function floating contact on de-energization
No
Number of outputs (undelayed, normally open contact)
1
Function pulse shaping
No
Number of outputs (undelayed, normally closed contact)
0
Number of outputs (delayed, normally closed contact)
0
Number of outputs (undelayed, change-over contact)
0
Number of outputs (delayed, normally open contact)
1
Remote operation possible
No
Suitable as remote control
No
Function flashing (starting with pause, fixed time)
No
Function flashing (starting with pulse, fixed time)
No
Clock function (starting with pause, variable)
No
Clock function (starting with pulse, variable)
No
Outputs (reversible delayed/undelayed)
No
Maximum order quantity
1 pc(s)
The item is known under the following item numbers in our system
EAN:
4011209944381
SKU:
3RP25742NM20
