Siemens 3RV2011-1FA20, IP20
Item no.: [4689496] | Manufacturer: Siemens | Model no.: 3RV20111FA20 | EAN: 4011209724303 | UNSPSC.: 39121644 | EL-nr.: 7822405750
Remote stock (1-2 days)
The item is in a remote warehouse, delivery time is 1-2 business days. More info
Delivery options - Select at checkout
Shipping @price - GLS
12,00
EUR
62,92
Incl. VAT 78,65
Total incl. delivery
93,65
The function requires that you are logged in. Create a user and use our smart list system to keep track of future purchases, regular purchases or wish lists.
Create user
Login
Create user
Login
Send på mail

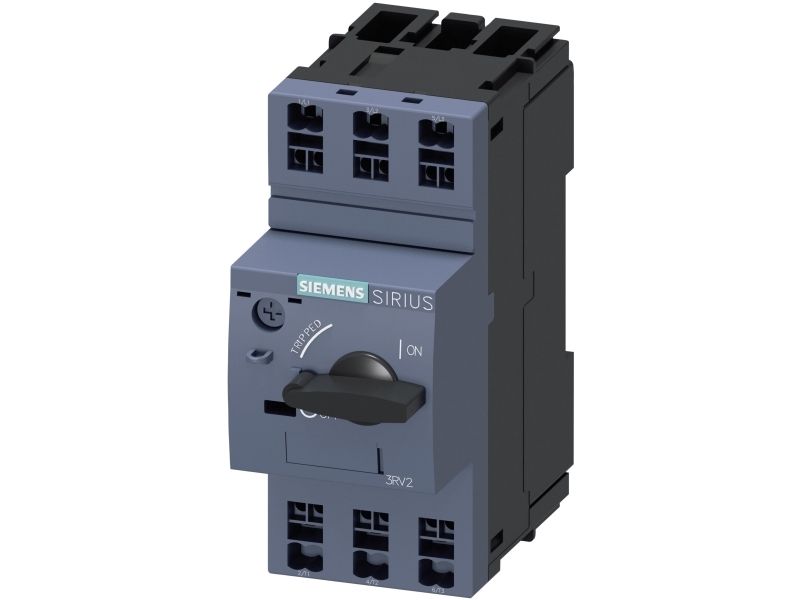

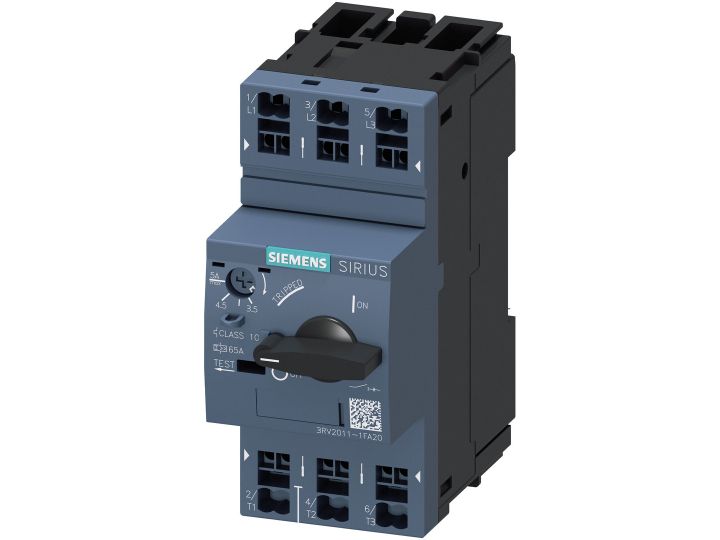

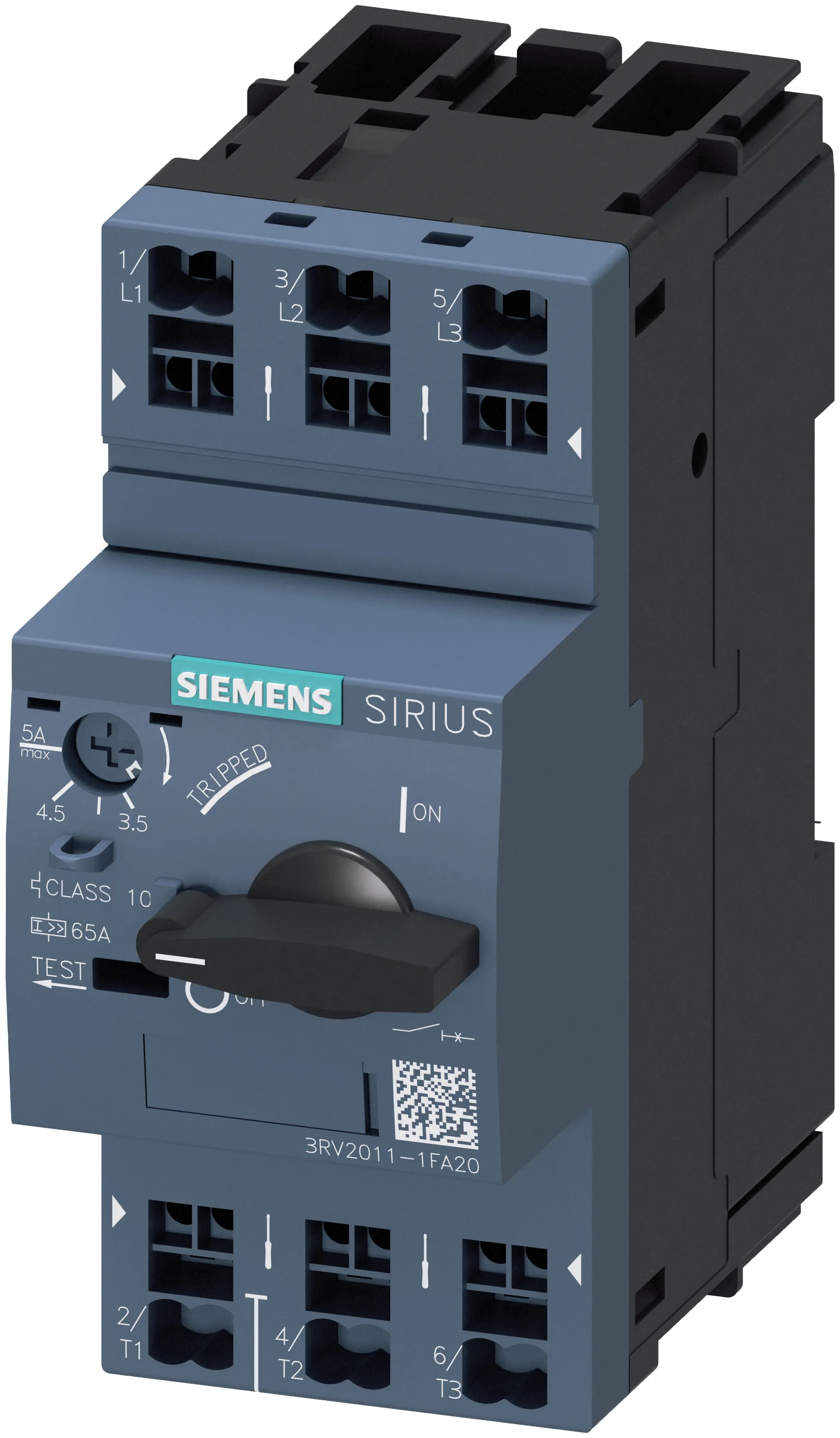

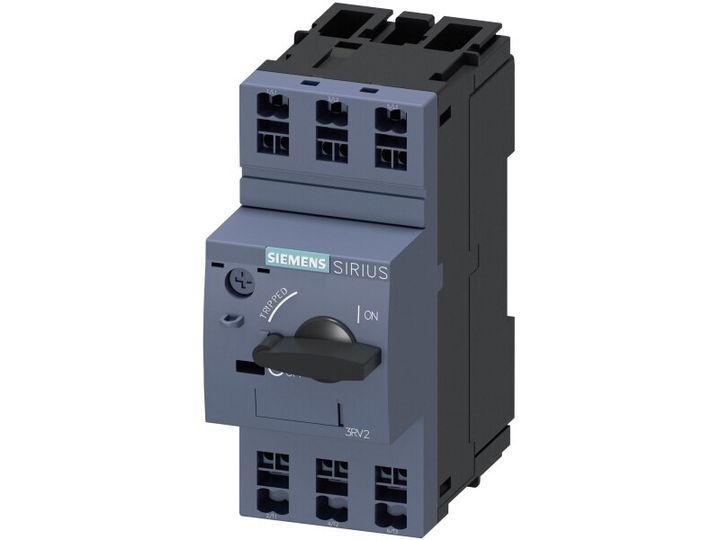

Siemens SIRIUS Innovation Motor Protection Circuit Breaker, 3.5 to 5A Current Rating - 3RV2 Series - 3RV2011-1FA20

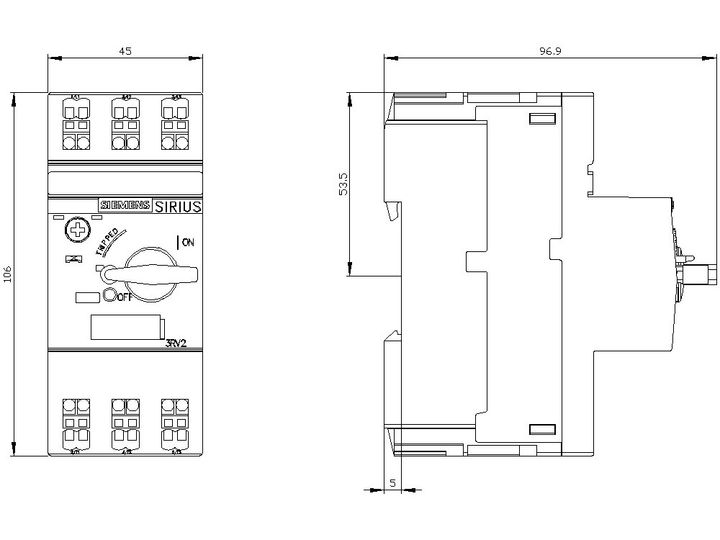

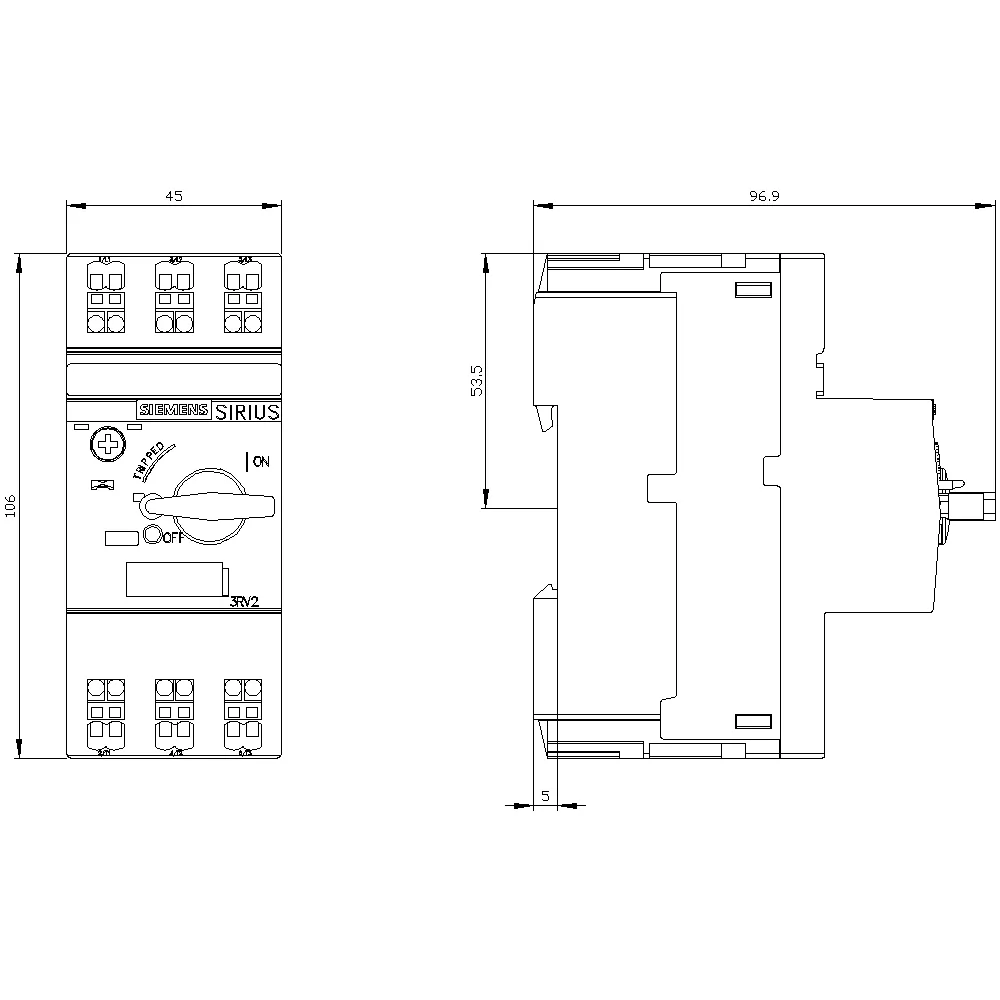

For reliable motor protection, opt for this 5-amp circuit breaker from Siemens. It's fitted with a state-of-the-art current monitoring relay located directly in the main circuit, as well as phase disturbance recognition for faster response times. As part of the Sirius Innovation modular system, the unit is designed to work with other items in the range. You can combine it with SIRIUS soft starters for a torque-restricting and current-limiting startup process that's both safe and efficient. It screws and snaps onto a standard DIN rail, and with a width of just 45mm, it can fit into units where space is tight.
- Current rating of 3.5 to 5A for standard use
- Spring-loaded terminals provide an easy connection to the main current circuit
- Thermomagnetic design of both overcurrent release and short-circuit release for dependable reliability
What does the unit's trip class of 10 indicate?
Class 10 tripping means that at six times the maximum thermal current rating, the breaker will trip in 10 seconds or less. This quick response time improves safety and limits damage to motors and connected components.
For reliable motor protection, opt for this 5-amp circuit breaker from Siemens. It's fitted with a state-of-the-art current monitoring relay located directly in the main circuit, as well as phase disturbance recognition for faster response times. As part of the Sirius Innovation modular system, the unit is designed to work with other items in the range. You can combine it with SIRIUS soft starters for a torque-restricting and current-limiting startup process that's both safe and efficient. It screws and snaps onto a standard DIN rail, and with a width of just 45mm, it can fit into units where space is tight.
- Current rating of 3.5 to 5A for standard use
- Spring-loaded terminals provide an easy connection to the main current circuit
- Thermomagnetic design of both overcurrent release and short-circuit release for dependable reliability
What does the unit's trip class of 10 indicate?
Class 10 tripping means that at six times the maximum thermal current rating, the breaker will trip in 10 seconds or less. This quick response time improves safety and limits damage to motors and connected components.
