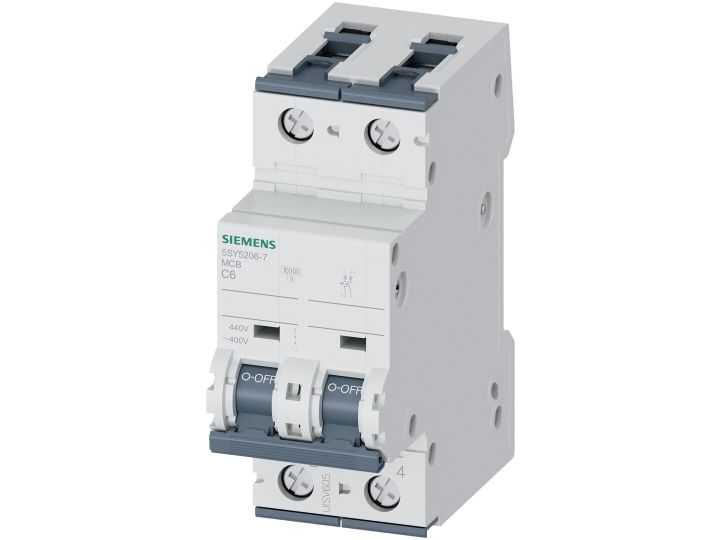

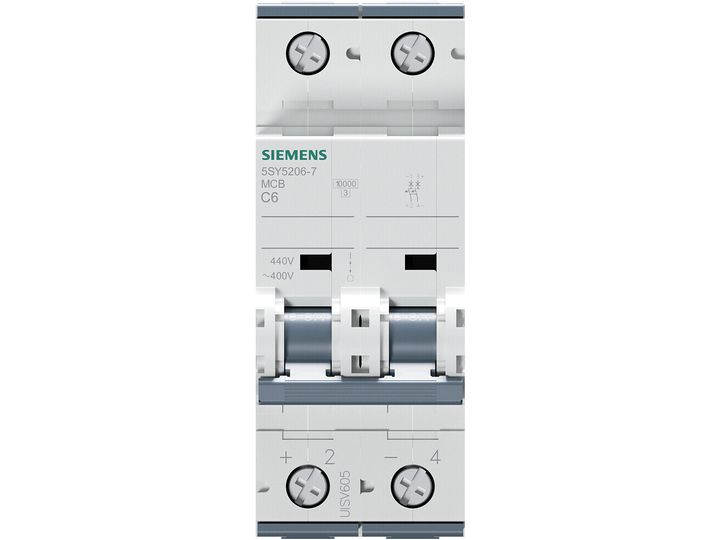

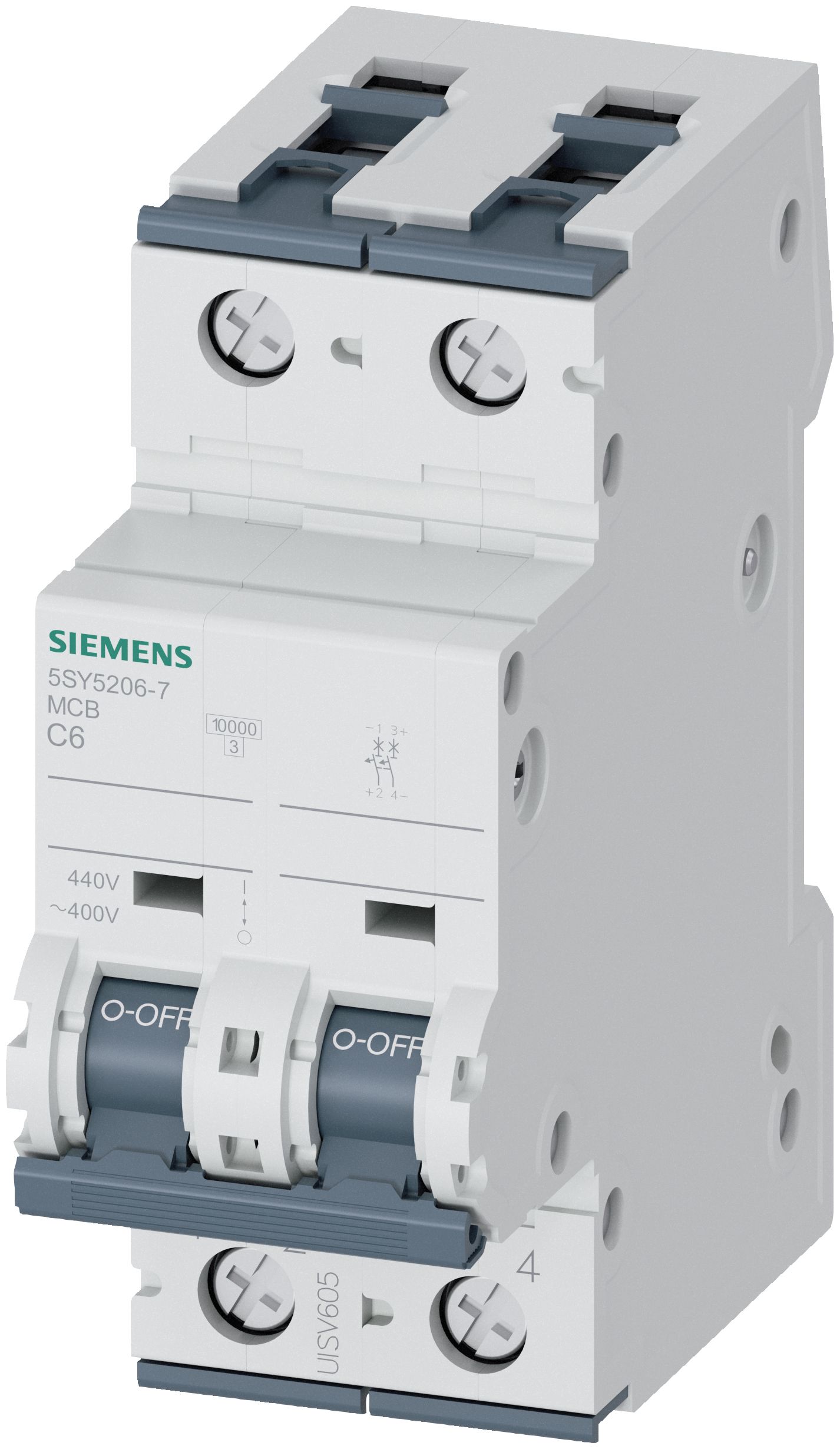

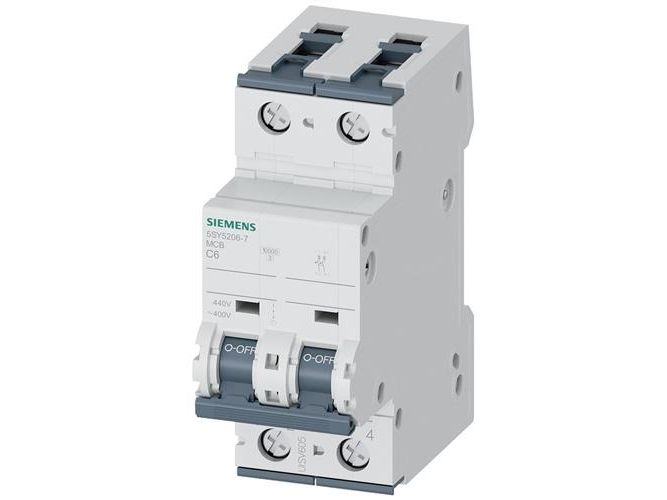

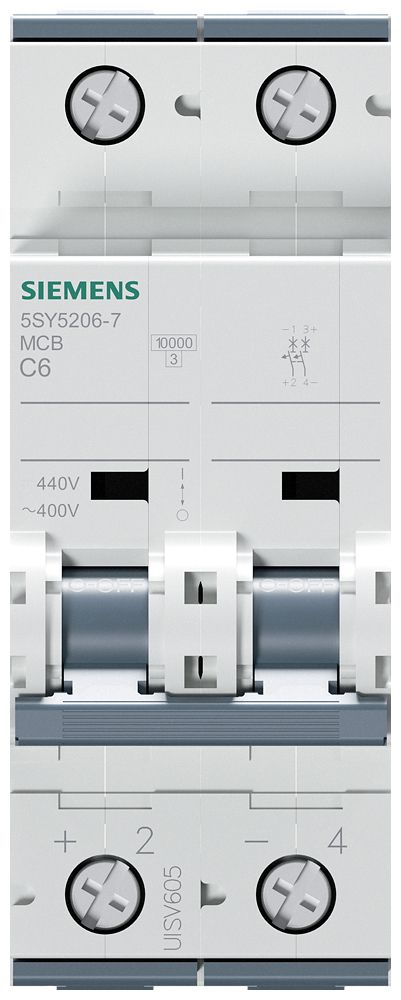

Circuit breaker Universal current 440 V DC 400 V AC 10kA, 2-pole, C, 6A Miniature circuit breaker SENTRON 5SY5 for fail-safe short-circuit and overload protection for residential and non-residential buildings and special industrial applications. Assembly and disassembly of the device without tools using a double slide. Any combination of conductors and busbars thanks to dual-chamber terminals. Simple wiring of the infeed through the rear busbar. The 5SY miniature circuit breakers are available in 1-, 2-, 3-, 4-pole and 1+N- and 3+N-pole versions. All accessories can be used asstandard for all 5SY miniature circuit breakers. Simply safe with the protection devices from SENTRON.
Rated current
6 A
Input frequency
50 Hz
Rated voltage
400 V
Total power loss
3.2 W
Number of poles
2
International Protection (IP) code
IP20
Pollution degree
3
Package width
40 mm
Package depth
92 mm
Package height
84 mm
Package weight
310 g
Compliance certificates
CE, RoHS, REACH
Number of modular spacings
2
Voltage type
AC/DC
Mounting depth
7 cm
Ambient temperature range
40 - 70 °C
Release characteristic
C
Connectable solid conductor cross-section
0.75 - 35 mm²
Connectable stranded conductor cross-section
0.75 - 35 mm²
Switching neutral conductor
No
Overvoltage category
CAT III
Rated insulation voltage (Ui)
440 V
Rated short-circuit breaking capacity (Icn, EN 60898, 230V)
10 kA
Rated short-circuit breaking capacity (Icn, EN 60898, 400V)
10 kA
Number of protected poles
2
Current limiting class
Class 3
Rated impulse withstand voltage (Uimp)
4 kV
Battery included
No
Additional equipment
Yes
Explosion-proof
No
Minimum order quantity
1 pc(s)
Maximum order quantity
1 pc(s)
