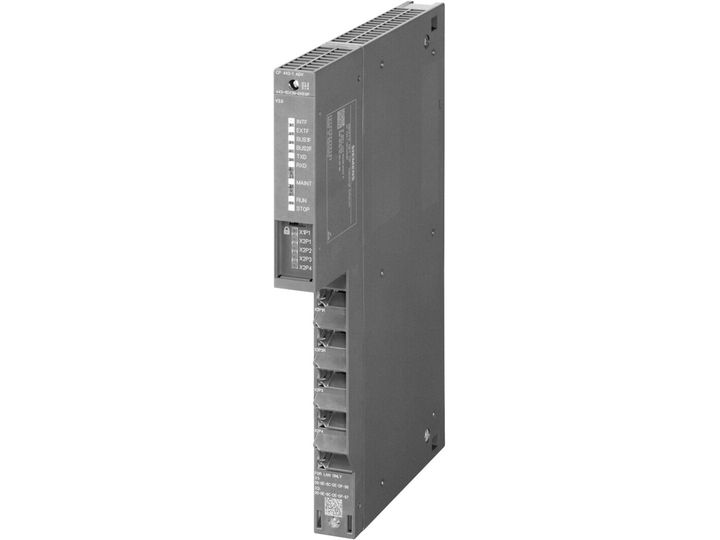

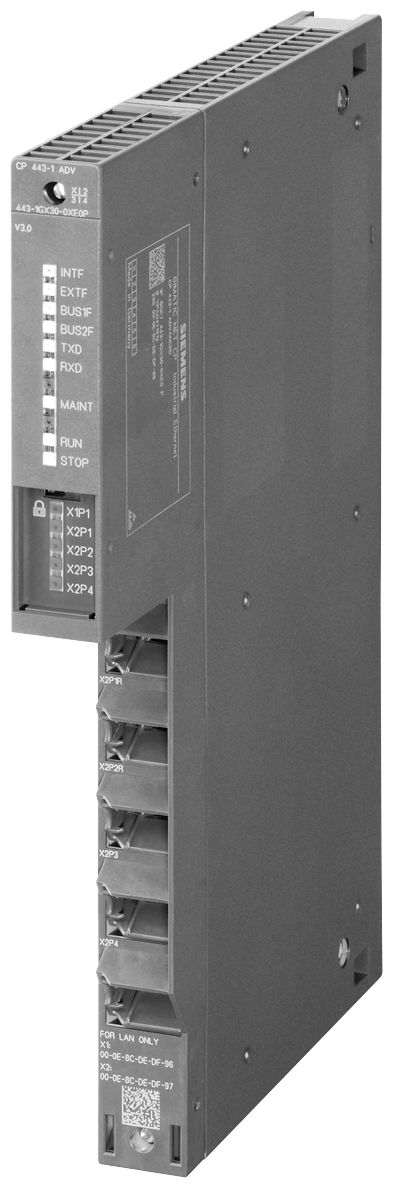

Communications processor CP 443-1 Advanced 1x 10/100/1000 Mbps, 4x 10/100 Mbps (IE switch) RJ45 ports; ISO; TCP; UDP; PROFINET IO controller; S7 communication; Open communication (send/receive) S7 routing; IP configuration via DHCP/block; IP access control list; time-of-day synchronization; extended web diagnostics; Fast Startup; PROFIenergy support; IP routing; FTP; Web server; email; please note SIOS ID: 109799025 Communications processor CP 443-1 Advanced 1x 10/100/1000 Mbps, 4x 10/100 Mbps (IE switch) RJ45 ports; ISO; TCP; UDP; PROFINETIO controller; S7 communication; open communication (SEND/RECEIVE); S7 routing; IP configuration via DHCP/block; IP Access Control List; time synchronization; extended web diagnostics; fast startup; PROFIenergy support; IP routing; FTP; web server; email; please note SIOS ID:109799025
Compliance certificates
CE, RoHS, REACH
Height
290 mm
Package width
35 mm
Package depth
129 mm
Package height
142 mm
Package weight
867 g
AS-i protocol support
No
INTERBUS protocol support
No
SERCOS protocol support
No
SUCOnet protocol support
No
SafetyBUS p protocol support
No
DeviceNet Safety protocol support
No
INTERBUS Safety protocol support
No
DATA-HIGHWAY protocol support
No
LON protocol support
No
DeviceNet protocol support
No
AS-i Safety at Work protocol support
No
PROFINET CBA protocol support
Yes
CAN protocol support
No
FOUNDATION Fieldbus protocol support
No
PROFIsafe protocol support
Yes
PROFIBUS protocol support
No
PROFINET IO protocol support
Yes
Suitable for safety functions
No
Modbus protocol
No
EtherNet/IP protocol support
No
KNX protocol support
No
Number of Industrial Ethernet interfaces
5
Number of USB interfaces
0
Number of RS-485 interfaces
0
Number of RS-422 interfaces
0
Number of RS-232 interfaces
0
Number of PROFINET interfaces
4
Number of serial TTY interfaces
0
Number of other interfaces
0
IO-Link master
No
Actuating operation agent (Ex ia)
No
Redundancy
No
Battery included
No
Other bus system protocol support
Yes
Number of wireless hardware interfaces
0
Minimum order quantity
1 pc(s)
Number of parallel interfaces
0
Wi-Fi
No
Bluetooth
No
Potential separation
No
Transmission rate
1000
Type of data transmission
Other
Maximum order quantity
1 pc(s)
Optical interface
No
Appendant operation agent (Ex ib)
No
Explosion safety category for dust
None
Explosion safety category for gas
None
