SIEMENS Motorstarter 3RM1 SIRIUS direkte starter 500 V 1,6-7,0 A 24 V DC skrue type tilslutningssystem
Item no.: [4720791] | Manufacturer: Siemens | Model no.: 3RM10071AA04 | EAN: 4011209914704 | UNSPSC.: 39121521 | EL-nr.: 2622799438
out of stock
The item is not in stock. More info
Udsolgt
Varen er ikke på lager.
Brug funktionen ”Giv mig besked..." herunder for opdateringer.
Delivery options - Select at checkout
159,20
EUR
146,39
Incl. VAT 182,99
Total incl. delivery
381,99
Notify me when the item is in stock again
Add to list
The function requires that you are logged in. Create a user and use our smart list system to keep track of future purchases, regular purchases or wish lists.
Send på mail
D.O.L. Motor Starter

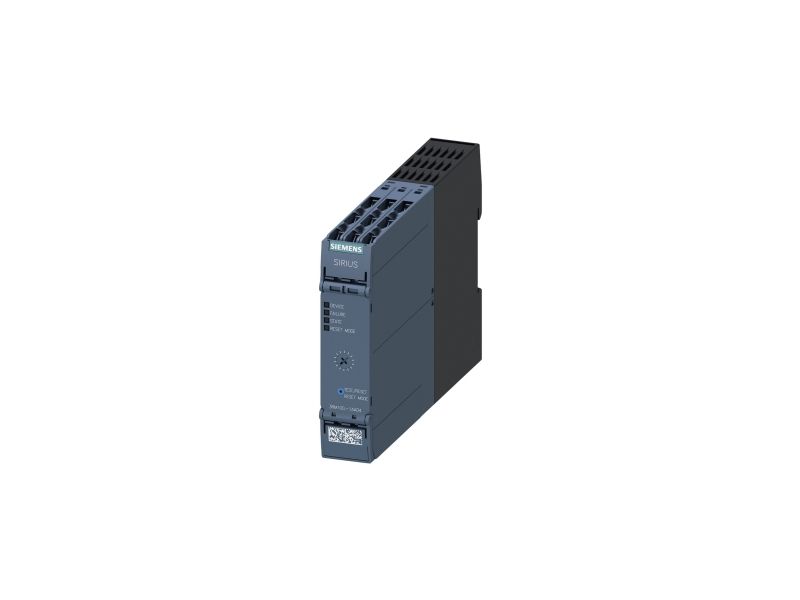

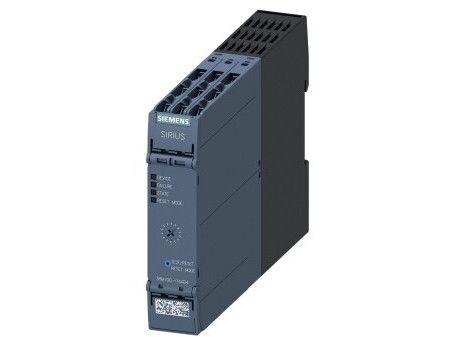

SIRIUS 3RM1 motor starters are compact devices 22.5 mm wide, combining a large number of functions in a single enclosure.
They consist of combinations of relay contacts, power semiconductors (hybrid technology), and a solid-state overload relay for switching induction under normal operating conditions.
Features and Benefits
- Direct-on-line starters
- Overload protection
- Fast diagnostics with LED
- Test/reset button
- Energy efficient
- Reduced wiring
- Simple connection
- Narrow width, 22.5 mm
Type of electrical connection
- Screw-type terminals for main and control circuits:
783-9209
,
783-9202
,
783-9206
,
783-9215
,
783-9218
,
783-9212
- Spring-type terminals (push in) for main and control circuits:
136-5249
,
136-5251
,
136-5252
,
136-5248
- Screw-type terminals for main circuit, spring-type terminals (push in) for control circuit:
136-5250
,
136-5247
,
136-5253
Standards
IEC/EN 60947-4-2, IEC 61508-1: SIL 3, ISO 13849: PLe.
Approvals
CCC, CSA, UL, EAC, ATEX.
Siemens 3RM1 Series Motor Starter, 3kW Power Rating, 500V Voltage Rating - 3RM1007-1AA04
This motor starter is intended for efficient control of electric motors in a variety of applications. Its robust construction and dependable performance make it an essential component for both automation and mechanical systems. It is compatible with single-phase and three-phase systems, accommodating voltage levels up to 500V, which provides operational flexibility for users.
Features & Benefits
- Designed for a power rating of 3kW, ensuring effective motor control
- Operates at a voltage rating of 500V, enhancing application range
- Supports a current rating of 7A, suitable for various motor sizes
- 3-pole configuration, offering suitable options for diverse installations
- IP20 rating, suitable for internal use against solid objects
- Available in screw mount and snap-on mount types for straightforward installation
Applications
- Utilised in electric motor that require efficient starting
- Ideal for automation systems in industrial settings
- Suitable for HVAC systems needing reliable motor control
- Employed in machinery that requires start-stop operations
- Used in conveyor systems for smooth production lines
What kind of motors can be used with it?
It is compatible with both single-phase and three-phase motors within the specified current rating.
How should it be installed for optimal performance?
Securing it according to the installation manual and connecting it following standard wiring practices is recommended.
Can it handle overload conditions?
An external device is necessary for overload protection, as it does not include built-in overload circuitry.
Siemens SIRIUS 3RM1
SIRIUS 3RM1 motor starters are compact devices 22.5 mm wide, combining a large number of functions in a single enclosure.
They consist of combinations of relay contacts, power semiconductors (hybrid technology), and a solid-state overload relay for switching induction under normal operating conditions.
Features and Benefits
- Direct-on-line starters
- Overload protection
- Fast diagnostics with LED
- Test/reset button
- Energy efficient
- Reduced wiring
- Simple connection
- Narrow width, 22.5 mm
Type of electrical connection
- Screw-type terminals for main and control circuits:
783-9209
,
783-9202
,
783-9206
,
783-9215
,
783-9218
,
783-9212
- Spring-type terminals (push in) for main and control circuits:
136-5249
,
136-5251
,
136-5252
,
136-5248
- Screw-type terminals for main circuit, spring-type terminals (push in) for control circuit:
136-5250
,
136-5247
,
136-5253
Standards
IEC/EN 60947-4-2, IEC 61508-1: SIL 3, ISO 13849: PLe.
Approvals
CCC, CSA, UL, EAC, ATEX.
Siemens 3RM1 Series Motor Starter, 3kW Power Rating, 500V Voltage Rating - 3RM1007-1AA04
This motor starter is intended for efficient control of electric motors in a variety of applications. Its robust construction and dependable performance make it an essential component for both automation and mechanical systems. It is compatible with single-phase and three-phase systems, accommodating voltage levels up to 500V, which provides operational flexibility for users.
Features & Benefits
- Designed for a power rating of 3kW, ensuring effective motor control
- Operates at a voltage rating of 500V, enhancing application range
- Supports a current rating of 7A, suitable for various motor sizes
- 3-pole configuration, offering suitable options for diverse installations
- IP20 rating, suitable for internal use against solid objects
- Available in screw mount and snap-on mount types for straightforward installation
Applications
- Utilised in electric motor that require efficient starting
- Ideal for automation systems in industrial settings
- Suitable for HVAC systems needing reliable motor control
- Employed in machinery that requires start-stop operations
- Used in conveyor systems for smooth production lines
What kind of motors can be used with it?
It is compatible with both single-phase and three-phase motors within the specified current rating.
How should it be installed for optimal performance?
Securing it according to the installation manual and connecting it following standard wiring practices is recommended.
Can it handle overload conditions?
An external device is necessary for overload protection, as it does not include built-in overload circuitry.
Siemens SIRIUS 3RM1
