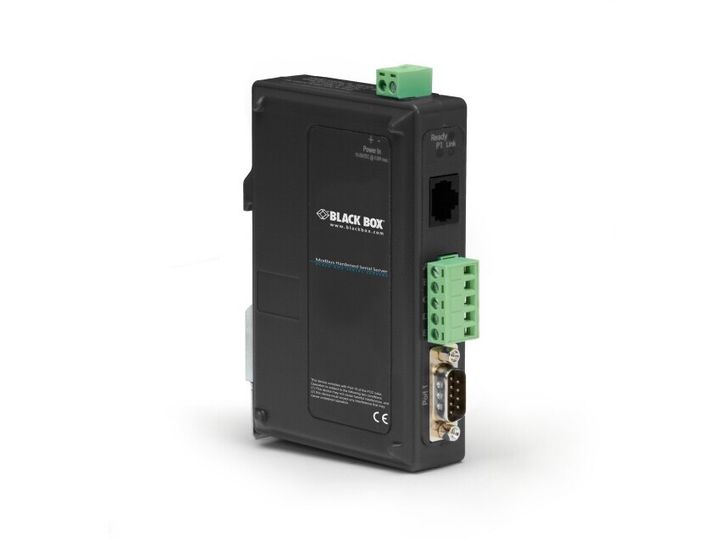

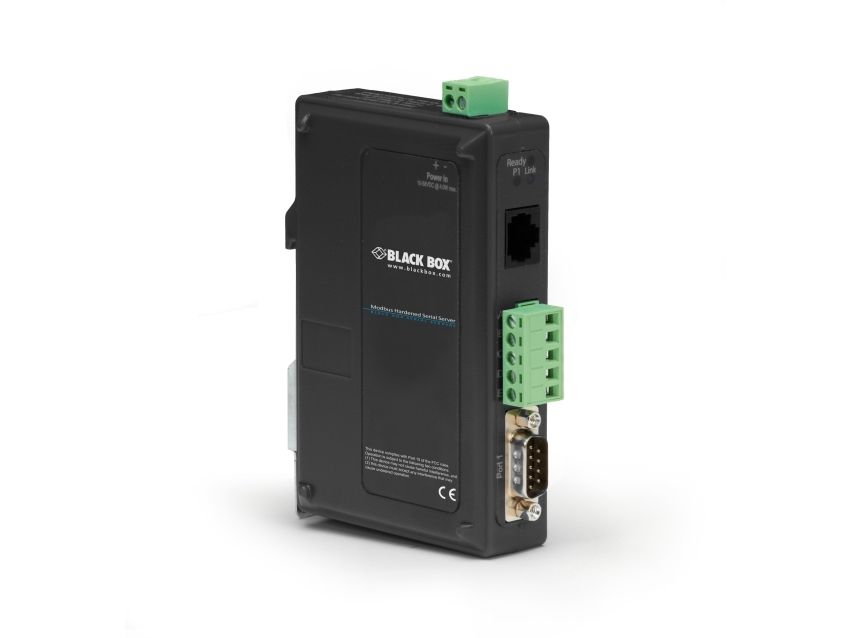

Black Box LES431A, 10/100Base-T(X), 10 - 58 V, 4000 mA, TCP, IPv4, UDP, ARP, HTTP 1.0, ICMP/PING, DHCP/BOOTP, DHCP,, TCP, Windows 7, Windows Vista, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows..., Windows Server 2003, Windows Server 2008

Remote access to serial devices across your LAN/WAN. NEMA TS-2 rated for use in transportation applications. Routes Modbus traffic based on Modbus ID and remaps conflicting Modbus IDs. Offers Modbus messaging priority control selectable by source or function code. Features a built-in Web server and easy-to-use management software. It can be easily integrated into most Modbus network configurations. Converts ASCII to RTU as well as ASCII or RTU to Modbus TCP. Features a DB9 port and terminal block for serial connections. Equipped with a 10-/100-Mbps port for TCP connectivity. Boasts high throughput with low latency. Slim IP30 enclosure saves you on DIN rail space. Includes a DIN mounting clip and spring. Easily integrate an older serial Modbus device into your Ethernet Modbus network. This rugged serial server gives you a simple way to migrate to an Ethernet-based industrial control system- without having to replace the older Modbus equipment you've already invested in. Translating older and newer protocols the 1-Port Modbus Hardened Serial Server converts mismatched serial baud rates and settings enabling the serial Modbus device to become a node on your Ethernet network. Older PLCs can then talk to newer sensors meters scales and other industrial monitoring and automation instruments. Configuration can be done through a direct serial connection or via the network so you can improve productivity and cut down on the amount of time required to troubleshoot a serial device on a factory floor or in a remote location. Configure devices upgrade firmware and more- all this from the comfort of your office. A simple-to-install user-friendly software application enables programming. No time-consuming setup is required. The software also features Modbus messaging priority control and allows management through multiple TCP/IP client sessions. The serial server can be configured for TCP client or server operation. A built-in traffic monitor provides instant verification of a successfUL(r) installation and you can view the serial server's operational status in real-time. The 1-Port Modbus Hardened Serial Server has a standard DB9 serial port for RS-232 device connections and a removable terminal block for an RS-422 or RS-485 device connection. It also has an autodetecting 10BASE-T/100BASE-TX port for the Ethernet network connection. Either device on either side can be a Modbus master or slave customizable to your application. A serial master can be configured to control an IP slave for instance. Also a serial slave device can be accessed over a LAN or WAN by up to 16 simultaneous Modbus TCP masters.
