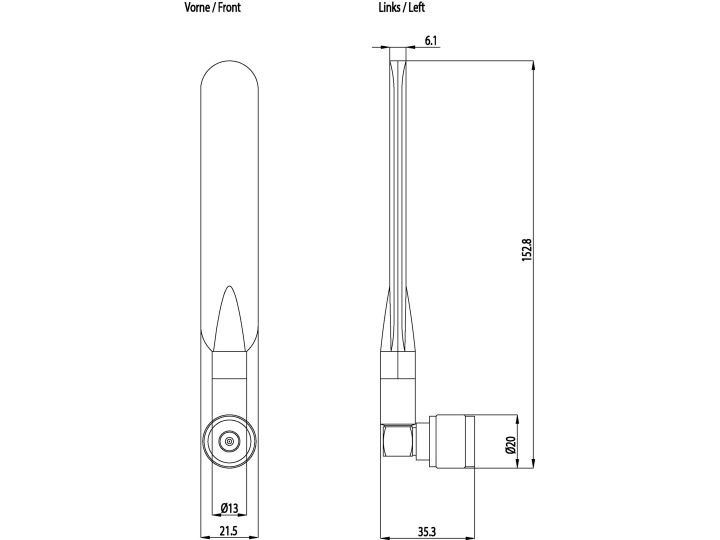

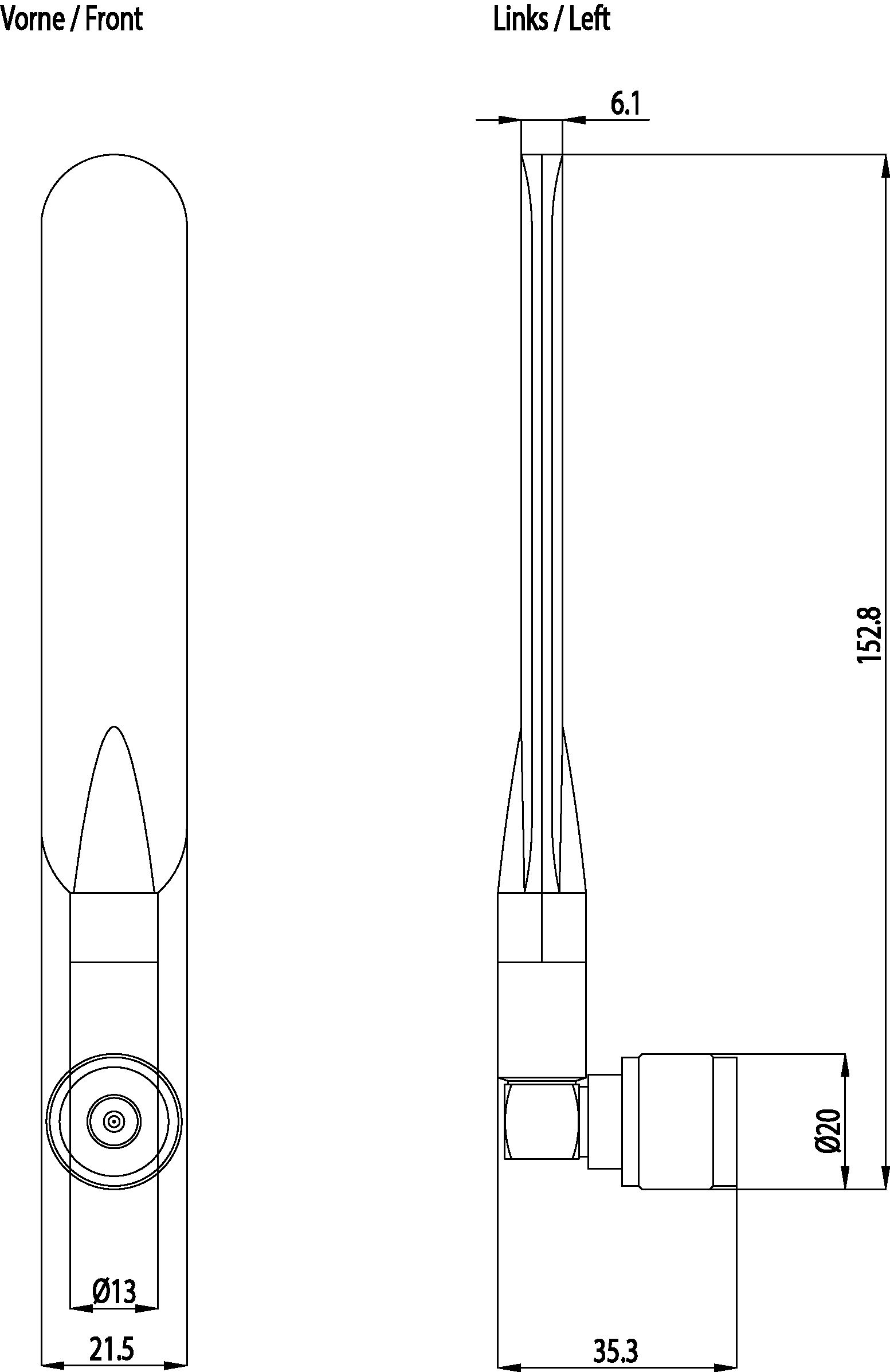

Siemens Antenna ANT795-4MD, IWLAN, IP65, RoHS, REACH, 160 mm, 160 mm, 35 mm, 13 mm

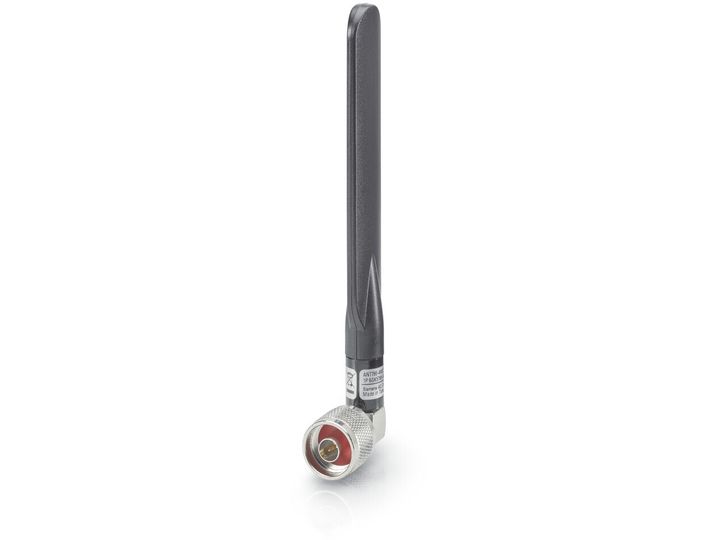

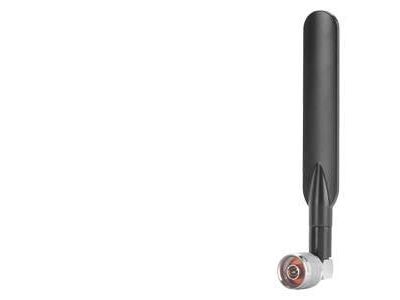

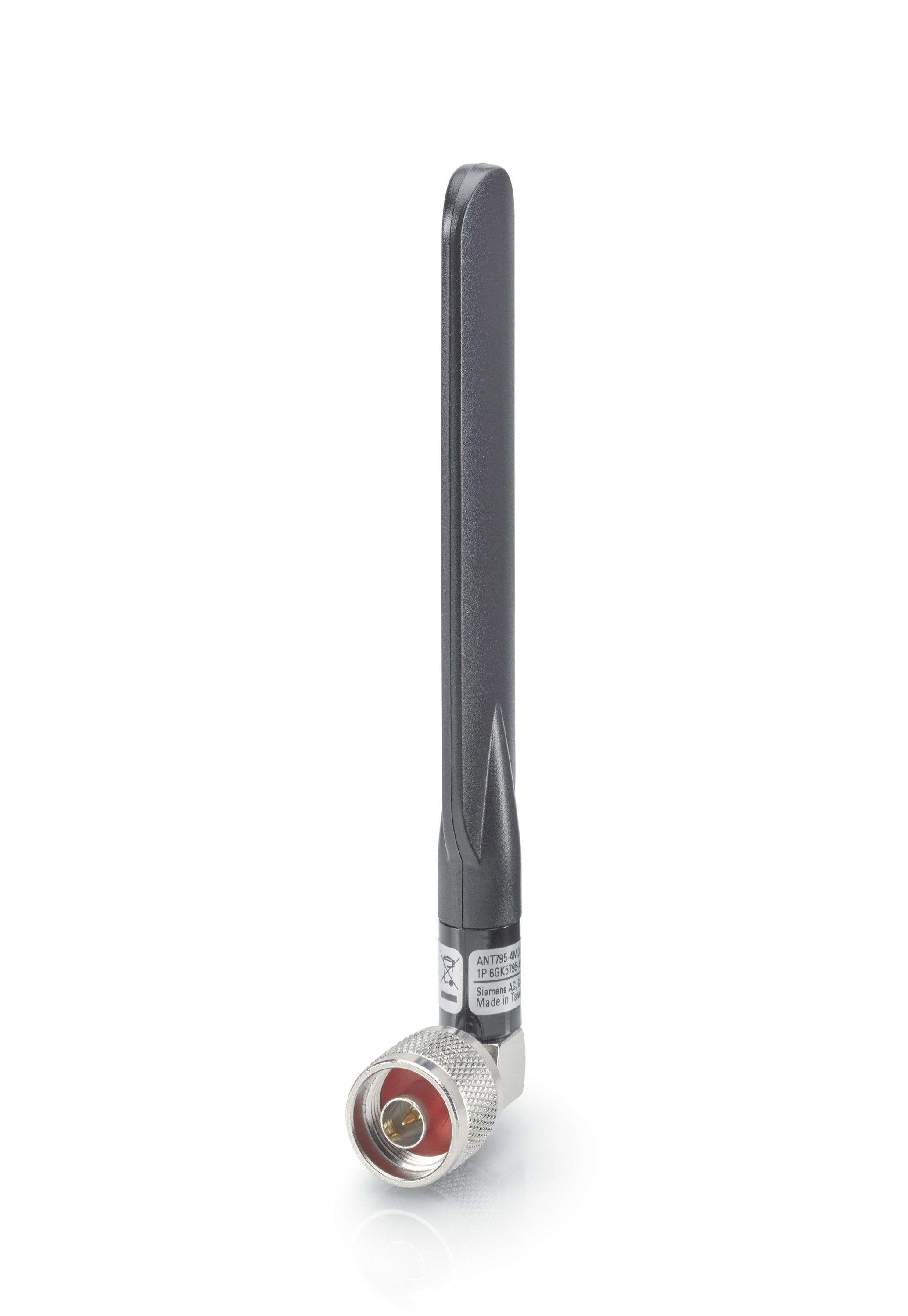

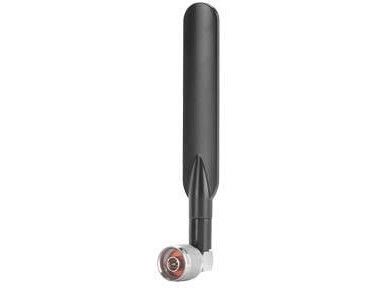

ANT795-4MD IWLAN antenna with omnidirectional Characteristic; including N-Connect male plug with fixed 90° angle; 3/5 dBi; IP65 (-20-+60 °C), 2.4/5GHz; Wi-Fi compliance and observe national approvals; direct mounting on SCALANCE W with N-Connect connection system; scope of delivery: 1x ANT795-4MD, compact instructions as hard copy German/English. SCALANCEAntennaAntenna ANT795-4MDUse in Industrial Wireless LAN (IWLAN) and WLAN in accordance with IEEE 802.11 at 2.4 GHz and 5 GHz with data rates of up to 450 Mbps to optimize sending and receiving conditions. Direct mounting on the N-Connect socket of the access point or client. Application examples: Installation of devices with an antenna on automated guided vehicle systems for reliable data exchange with the vehicles, coverage of an area, comprehensive coverage of a production cell or a robot station.Concentration of the radio field around the antenna improves the quality of the connection. Investment security through compliance with the globally recognized IEEE 802.11 standard. Cost-effective connection to devices in remote, difficult-to-access or aggressive environments.
