Microchip’s PD-3501G singleport PoE midspan offers a compact and cost effective, IEEE 802.3af compliant solution for powering IP phones, WLAN access points, network cameras and other IP terminal devices. The compact and affordable PD3501G provides reliable power over standard Ethernet cables, leaving existing network infrastructure completely unaltered. With plug-and-play installation, the PD-3501G can be easily and cost effectively implemented leveraging the existing Ethernet infrastructure while at the same time providing the assurance of a future proof network.
Produktbeskrivelse

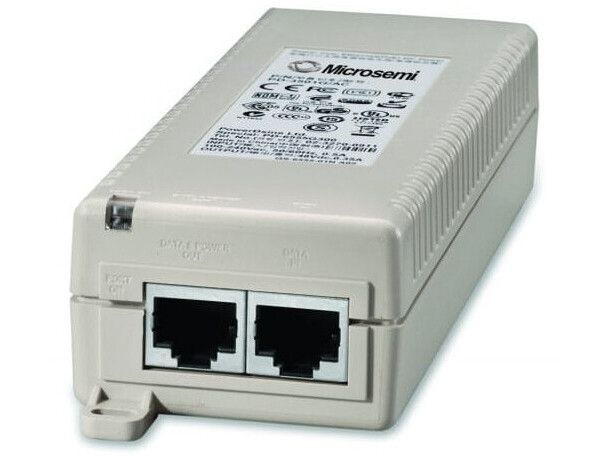

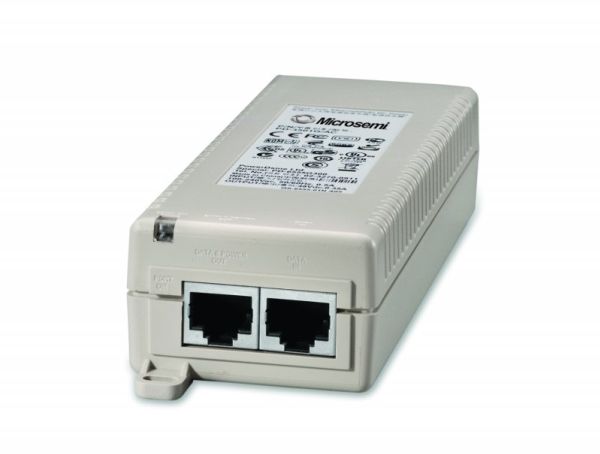

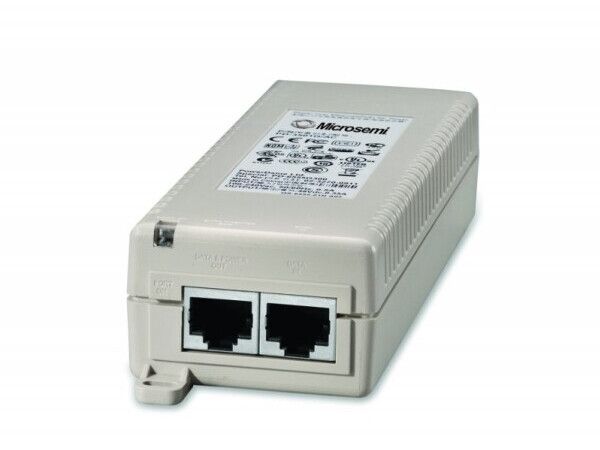

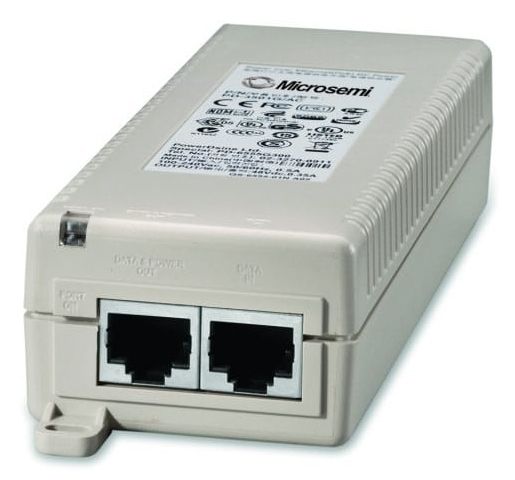

Microchip PD-3501G - strøminjektor - 15.4 Watt
Enhedstype
Strøminjektor - ekstern
Power Over Ethernet (PoE)
PoE
Vægt
200 g
Lokalisering
United Kingdom
Indgangspænding
AC 110-240 V
Udgangspænding
DC 48 V
Strømkapacitet
15.4 Watt
Output-stikforbindelser
1 x RJ-45
Dimensioner (B x D x H)
5.18 cm x 16.05 cm x 3.48 cm
Producentgaranti
1 års garanti
Generelt
Enhedstype
Strøminjektor - ekstern
Power Over Ethernet (PoE)
PoE (IEEE 802.3af)
Lokalisering
United Kingdom
Strømenhed
Indgangspænding
AC 110-240 V
Nødvendig frekvens
50 - 60 Hz
Detaljer om strømudgangskonnektorer
1 x RJ-45
Udgangspænding
DC 48 V
Strømkapacitet
15.4 Watt
Ekspansion / Konnektivitet
Interface
1 x Gigabit LAN - RJ-45
Diverse
MTBF (forventet tid mellem fejl)
100,000 timer
Egenskaber
LED-indikatorer
Overensstemmelsesstandarder
IEEE 802.3af, UL, VCCI, EN55024, FCC Part 15 B, RoHS, WEEE, IEC 60950-1 Second Edition, EN 55032 Class B, EN
Producentgaranti
Service & Support
Begrænset garanti - 1 år
Miljømæssige parametre
Min. driftstemperatur
0 °C
Maks. driftstemperatur
40 °C
Fugtighedsgrad ved brug
0 - 90% (ikke-kondenserende)
Mål og vægt
Bredde
5.18 cm
Dybde
16.05 cm
Højde
3.48 cm
Vægt
200 g
