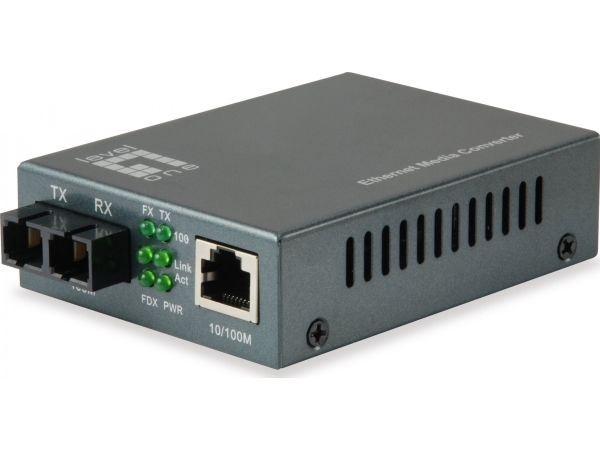

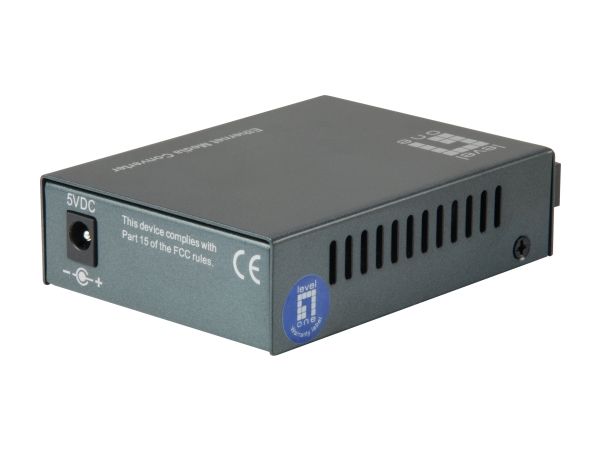

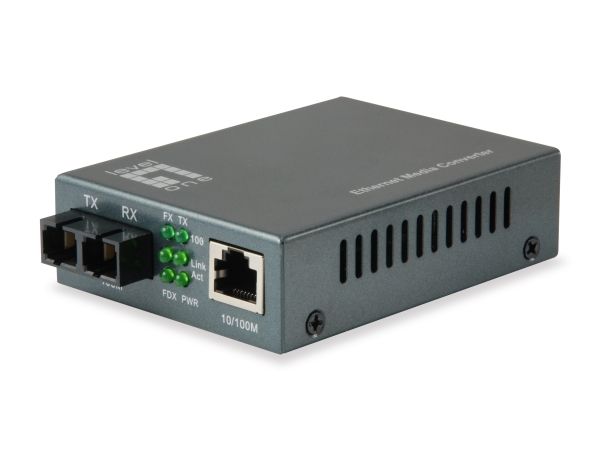

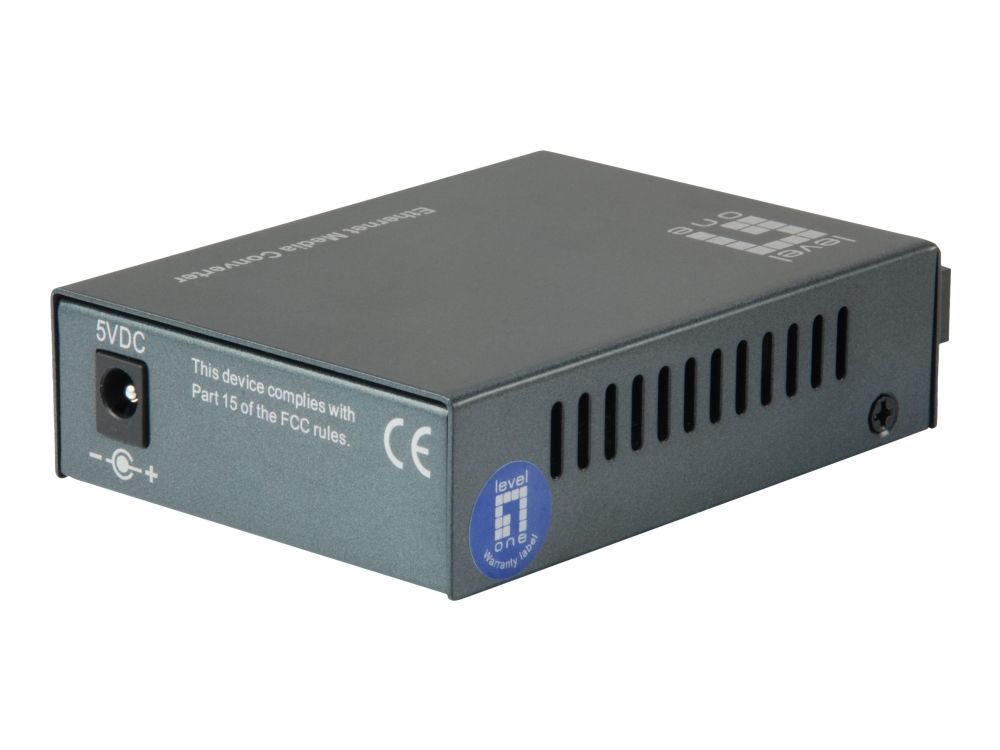

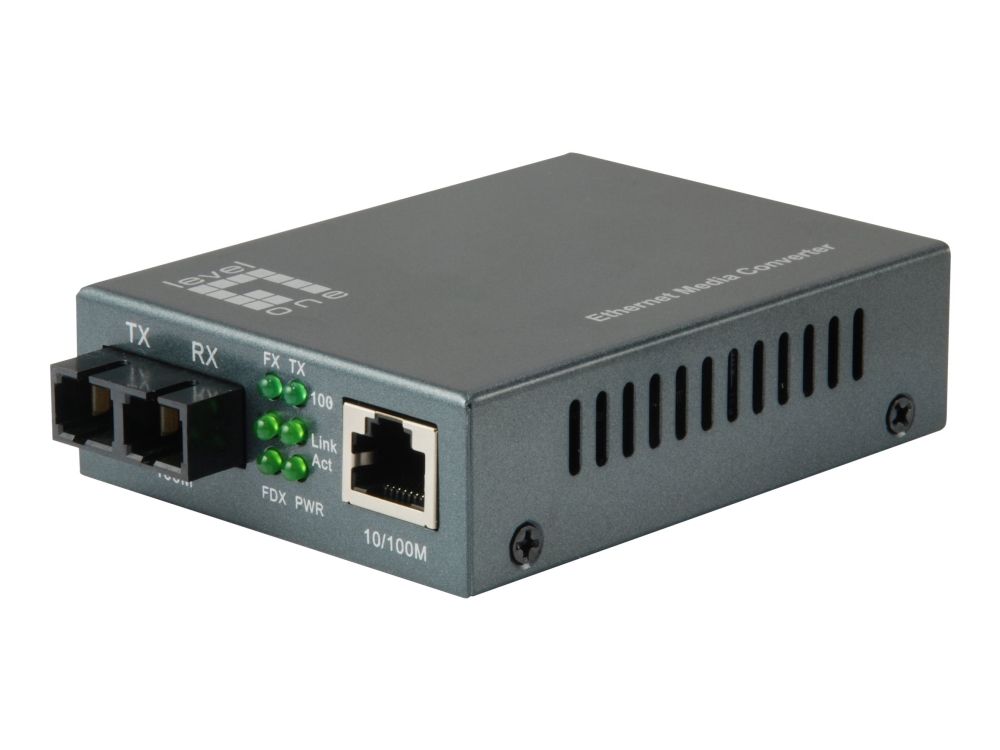

The Digital Data Communications LevelOne FVT-1101 Fiber Media Converter facilitates connectivity between various network types. This external device converts Ethernet signals to fiber optic and vice versa, providing high-speed data transfer rates of up to 100 Mbps. With two connectors, including an RJ-45 for Ethernet and an SC multi-mode for fiber, the FVT-1101 integrates into existing network infrastructures. It operates efficiently within a temperature range from 0°C to 50°C and complies with industry standards, such as FCC and RoHS, ensuring reliability and safety in diverse environments.
This media converter supports full duplex capability to enhance data transmission efficiency. Additionally, the maximum transfer distance of 2 km is suitable for extending connections in various settings. The device includes multiple status indicators, providing real-time feedback on power, link activity, collision status, and port transmission speed, enabling users to monitor network health effortlessly.
Produktbeskrivelse
LevelOne FVT-1101 - fibermedieomformer - 10Mb LAN, 100Mb LAN
Enhedstype
Fibermedieomformer - RJ-45 / SC multimodus
Model
Ekstern
Kabeltype
10Base-T, 100Base-FX, 100Base-TX
Dataoverførselshastighed
100 Mbps
Optisk bølgelængde
1310 nm
Dataforbindelsesprotokol
10Mb LAN, 100Mb LAN
Maks. overføringsafstand
2 km
Dimensioner (B x D x H)
7.1 cm x 9.4 cm x 2.6 cm
Vægt
420 g
Generelt
Enhedstype
Fibermedieomformer
Model
Ekstern
Netværk
Forbindelsesteknologi
Kablet
Kabeltype
10Base-T, 100Base-FX, 100Base-TX
Dataforbindelsesprotokol
10Mb LAN, 100Mb LAN
Dataoverførselshastighed
100 Mbps
Optisk bølgelængde
1310 nm
Maks. overføringsafstand
2 km
Statusindikatorer
Kollisionsstatus, ports transmissionshastighed, dupleksmodus for port, strøm, link/aktivitet
Egenskaber
Komplet duplex ydeevne
Overensstemmelsesstandarder
IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Ekspansion / Konnektivitet
Interface
1 x Ethernet 10Base-T/100Base-TX - RJ-45 hun 1 x Ethernet 100Base-FX - SC multi-mode hun x 2
Diverse
MTBF (forventet tid mellem fejl)
100,000 timer
Overensstemmelsesstandarder
RoHS, FCC
Effekt
Strømenhed
Ekstern strømforsyning
Mål og vægt
Bredde
7.1 cm
Dybde
9.4 cm
Højde
2.6 cm
Vægt
420 g
Miljømæssige parametre
Min. driftstemperatur
0 °C
Maks. driftstemperatur
50 °C
Fugtighedsgrad ved brug
10 - 90 % (ikke-kondenserende)
