Finder PCB Mount Power Relay, 12V dc Coil, 8A Switching Current, DPDT
Item no.: [5226841] | Manufacturer: FINDER | Model no.: 40.52.7.012.0000 | EAN: 8012823240015
Remote stock (4-5 days)
The item is in a remote warehouse, delivery time is 3-4 business days. More info
Delivery options - Select at checkout
Shipping @price - GLS
12,00
EUR
6,38
Incl. VAT 7,98
Total incl. delivery
22,98
The function requires that you are logged in. Create a user and use our smart list system to keep track of future purchases, regular purchases or wish lists.
Create user
Login
Create user
Login
Send på mail

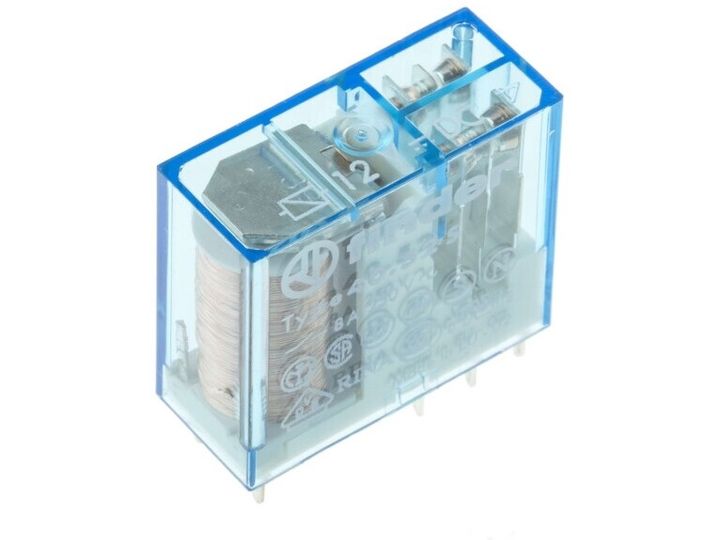

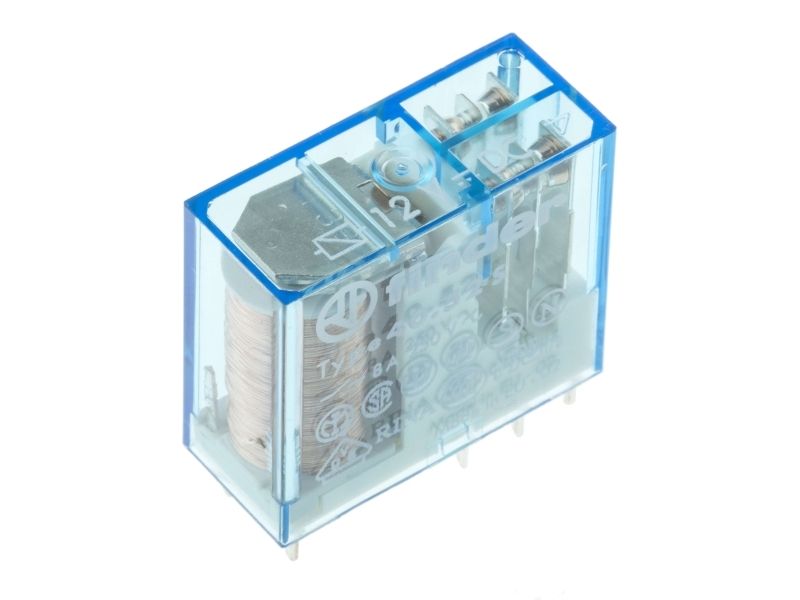

Finder DPDT Miniature PCB Relay
The Finder 40 series PCB mount non-latching relay has a contact configuration of DPDT. It is actuated with a 12VDC coil voltage and 8A switching current.
Features and Benefits
Insulation coil to contact is 6kV
Coil power is 500mW
Coil resistance is 300ohm
Pin pitch is 5mm
Pin length is 3.5mm
Cadmium-free contact material
8mm creepage and clearance
Operating temperature ranging between -40°C and 85°C
Through hole terminal type
Applications
Automation for blinds, grilles and shutters
Door and gate openers
Electronic circuit boards
Medical and dentistry control panels
Panels for electrical distribution
Toys
Vending machines
Certifications
CSA certified
GOST approved
IMQ approved
RINA approved
SEV approved
UL approved
US approved
VDE approved
RT II (Flux proof)
