The Akyga AK-T1-250 TFX power supply 250W is an advanced, compact power adapter dedicated to mini and media PC systems. It supports all the latest construction standards, ensuring high performance and stability.

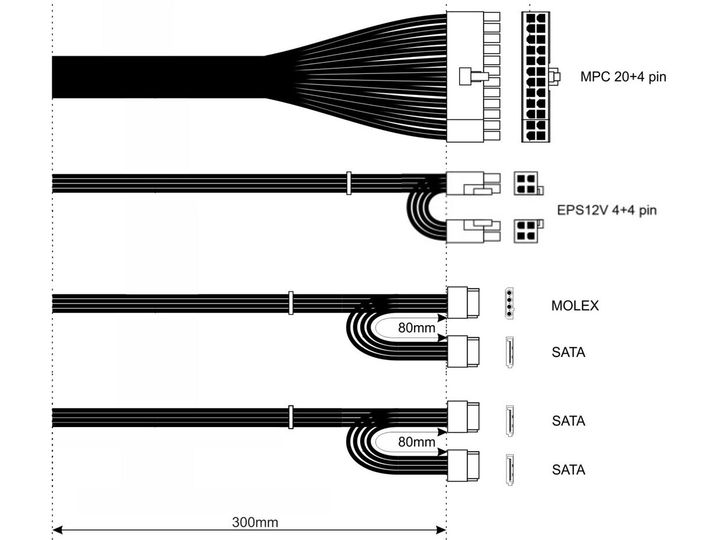

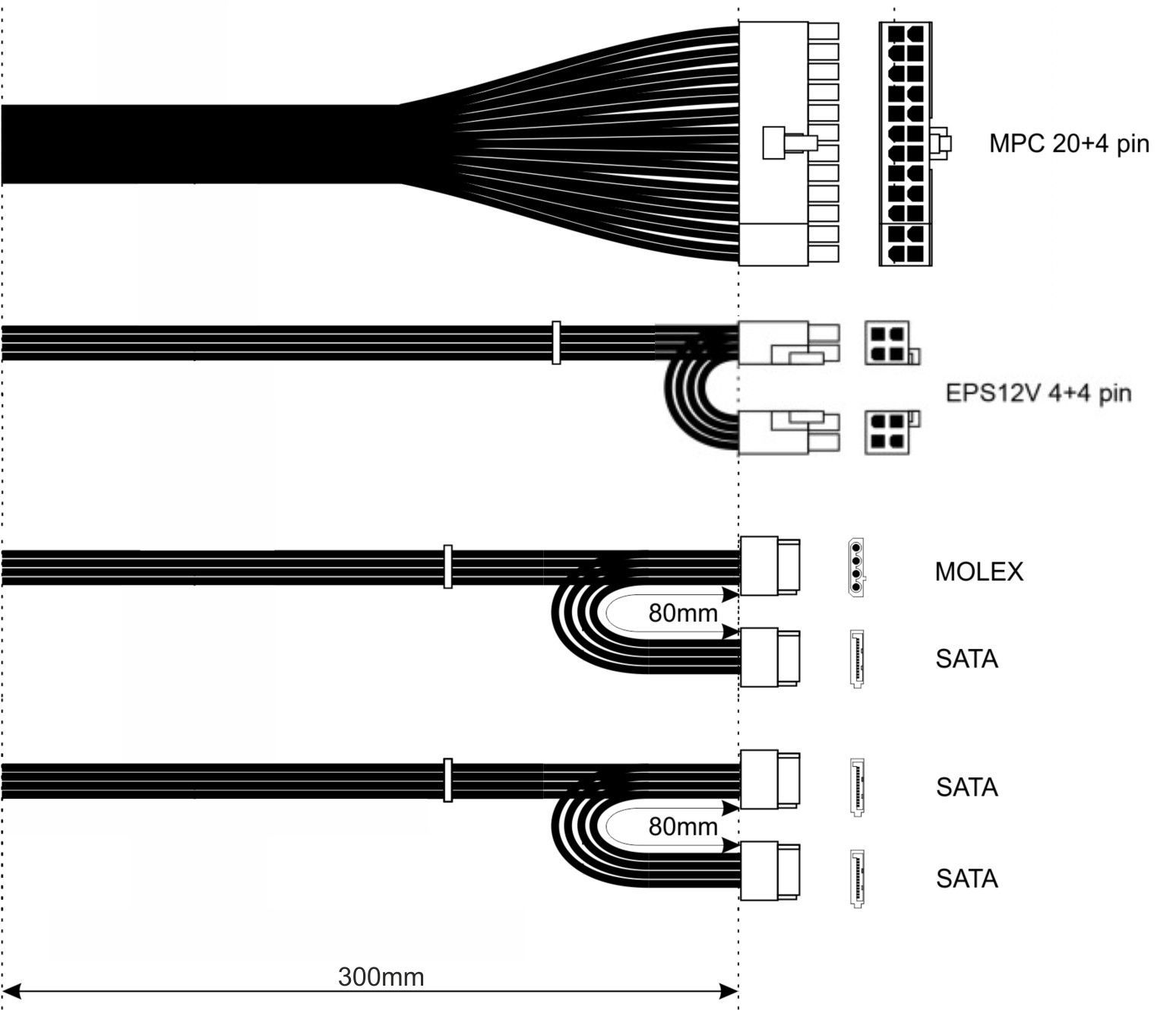

The power supply features a 4-pin connector, MOLEX connector, 3 x SATA connector and universal 24-pin motherboard connector. A guarantee of high efficiency is the 80 PLUS® compatibility which ensures that at least 80% of energy provided by the power supply is received by computer’s components and a maximum of 20% of energy is lost in the form of heat. High efficiency allows effective supplying and so the stable operation of the power supply affects the reliability of all components of the computer. Effective cooling is provided by efficient, silent fan of 8 cm diameter. The power supply is ideal for small and medium-sized cases thanks to optimized 36 cm long set of cables. Product is made of durable galvanized steel.
An important aspect is the presence of several important protectors (OVP, OCP, OPP, OTP, SCP, UVP) and active PFC filter that protects and prevents motherboard, processor and other parts from damage and stabilize the operation of the power supply so that it works without any unwanted interference. The TFX AK-T1-250 power supply is a high quality product that meets the current requirements and corresponds to modern standards.
Produktbeskrivelse
Akyga Ultimate Series AK-T1-250 - strømforsyning - 250 watt
Enhedstype
Strømforsyning - aktiv Power Factor Correction (PFC) - intern
Specifikationsoverensstemmelse
TFX12V
80 PLUS certificering
80 PLUS Gold
Vægt
836.4 g
Indgangspænding
AC 230 V
Udgangspænding
+3.3, +5, +12 V
Strømkapacitet
250 watt
Output Current
+3.3V - 15 A +5V - 15 A +12V - 16 A
Input-stik
1 x strøm IEC 60320 C14
Output-stikforbindelser
1 x strøm 24 pin ATX 1 x strøm 8 pin EPS12 V med aftagelig 4 pin ATX12V sektion 3 x 15 pin Serial ATA strøm
Kølesystem
80 mm ventilator
Farve
Grå
Dimensioner (B x D x H)
8.5 cm x 17.5 cm x 6.5 cm
Producentgaranti
2 års garanti
Generelt
Enhedstype
Strømforsyning - aktiv Power Factor Correction (PFC) - intern
Specifikationsoverensstemmelse
TFX12V
PSU formfaktor
TFX
Farve
Grå
Strømenhed
Indgangspænding
AC 230 V
Input-stik
1 x strøm IEC 60320 C14
Detaljer om strømudgangskonnektorer
1 x strøm 24 pin ATX 1 x strøm 8 pin EPS12 V med aftagelig 4 pin ATX12V sektion 3 x 15 pin Serial ATA strøm
Udgangspænding
+3.3, +5, +12 V
Strømkapacitet
250 watt
Output Current
+3.3V - 15 A +5V - 15 A +12V - 16 A
Effektivitet
80%+
80 PLUS certificering
80 PLUS Gold
Diverse
Medfølgende ledninger
Strømkabel - ekstern - 1 m
MTBF (forventet tid mellem fejl)
100,000 timer
Kølesystem
80 mm ventilator
Egenskaber
Overspændingsbeskyttelse, beskyttelse mod overstrøm, overbelastningsbeskyttelse, beskyttelse mod overophedning, kortslutnings beskyttelse, beskyttelse mod underspænding
Overensstemmelsesstandarder
RoHS, REACH
Producentgaranti
Service & Support
Begrænset garanti - 2 år
Miljømæssige parametre
Min. driftstemperatur
5 °C
Maks. driftstemperatur
50 °C
Mål og vægt
Bredde
8.5 cm
Dybde
17.5 cm
Højde
6.5 cm
Vægt
836.4 g
Mål & vægt (forsendelse)
Bredde ved forsendelse
11 cm
Dybde ved forsendelse
25.2 cm
Højde ved forsendelse
6.8 cm
Vægt ved forsendelse
846.4 g
