Axis 01680-001, 1920 x 1080 pixels, 30 fps, AVC, H.264, H.265, HEVC, MPEG4, 720x480 pixels, 720x576 pixels, 4 channels

Item no.: [5813079] | Manufacturer: Axis Communications | Model no.: 01680-001 | EAN: 7331021066403

Remote stock (4-5 days)

The item is in a remote warehouse, delivery time is 3-4 business days. More info

Shipping @price - GLS

12,00

EUR 511,89

Incl. VAT 639,86

Total incl. delivery 654,86

Read further specifications and description

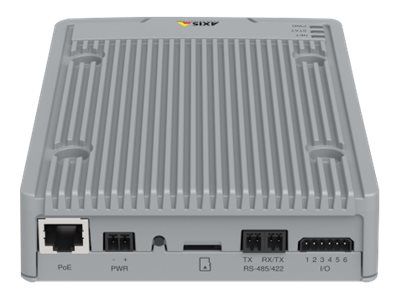

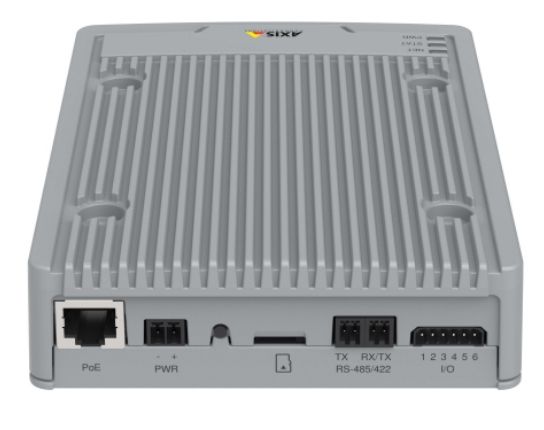

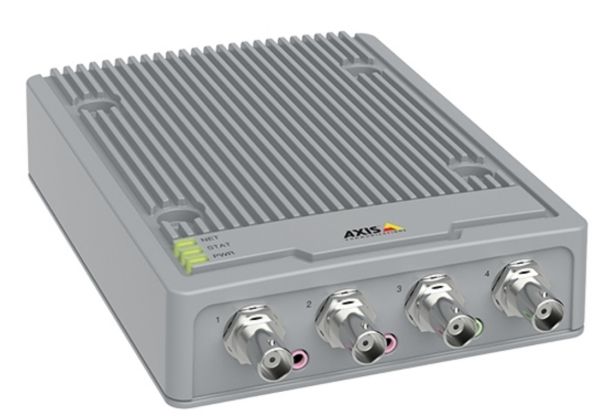

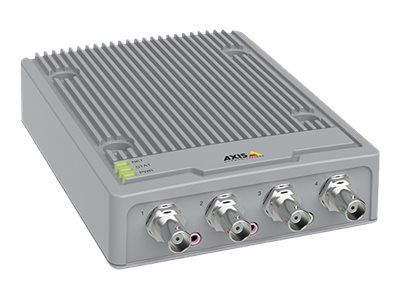

With AXIS P7304 Video Encoder you can migrate to IP surveillance at your own pace.

Produktbeskrivelse	AXIS P7304 Video Encoder - videoserver - 4 kanaler
Enhedstype	Videoserver - 4 kanaler
Komprimerings Format	H.264, H.265, MPEG-4, AVC, HEVC, AAC, G.711, PCM, G.726, ADPCM
TV System	NTSC/PAL
Billed Opløsning	176x120 (NTSC), 176x144 (PAL), 720x480 (NTSC), 720x576 (PAL), 1280x720, 1920x1080
Spænding	8 - 28 V
Dimensioner (B x D x H)	18.7 cm x 3.7 cm
Vægt	650 g
Producentgaranti	3 år

Generelt
Enhedstype	Videoserver
Video Kanaler	4
Audio Kanaler	1
TV System	NTSC/PAL
Billed Opløsning	176x120 (NTSC), 176x144 (PAL), 720x480 (NTSC), 720x576 (PAL), 1280x720, 1920x1080
Komprimerings Format	H.264, H.265, MPEG-4, AVC, HEVC, AAC, G.711, PCM, G.726, ADPCM
Pakke Indhold	Input-stik, 6-pin I/O-stik, 2 x 2-pin RS485/RS422 stik
Inkluderet Software (Y)	Windows afkoder 1-brugerlicens
Overensstemmelsesstandarder	IEEE 802.1x, IP30, IEEE 802.3af, IEEE 802.3at, EN 55032 Class A, EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 B Class A, ICES-003 Klasse A, VCCI Class A, RCM, AS/NZS CISPR 32 Class A, KC, KN32 Class A, KN35, EN 62368-1, IEC 62368-1, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, NIST, NIST SP500-267
Garanti	3 år
Video Server
Ramme Rate	30 fps
RAM	1 GB
Flash Hukommelse	512 MB
Funktioner	Zipstream, understøttelse til tovejs audio, microSD/SDHC/SDXC hukommelseskortåbning
Netværk
DDNS Support	Ja
Web Server	Ja
Netværks Grænseflade	Ethernet 10Base-T/100Base-TX/1000Base-T
Understøttede Protokoller	IPv4, IPv6, USGv6, HTTP, HTTPS, SSL, TLS, QOS, FTP, SFTP, CIFS, SMB, SMTP, Bonjour, UPnP, SNMP 1, SNMP 2c, SNMP 3, DNS, DDNS, NTP, RTSP, RTP, SRTP, TCP/IP, UDP/IP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH
Egenskaber	DiffServ understøttet
Tilslutninger
Video Input Porte	BNC x 4
Audio Input Porte	Mini-telefon 3,5 mm x 2
Audio Output Porte	Mini-telefon 3,5 mm x 1
Kamera Kontrol Grænseflade (PTZ)	RS-422/485
Netværk Port	10/100/1000Base-T (PoE+)
Kraft
Spænding	8 - 28 V
Strøm Forbrug	8.2 Watt
Mål og vægt
Bredde	18.7 cm
Dybde	3.7 cm
Vægt	650 g
Miljømæssige parametre
Min. driftstemperatur	0 °C
Maks. driftstemperatur	50 °C
Fugtighedsgrad ved brug	10 - 85 % (ikke-kondenserende)

The item is known under the following item numbers in our system

EAN:	7331021066403
SKU:	01680-001

Why do I find that the same product is available on different item numbers?

Manufacturers often release the same product with different item numbers, typically just different versions of the packaging. For example, the packaging may be targeted at different countries. We try our best to unify the products, but it can happen that the same product appears on different item numbers in our system.
