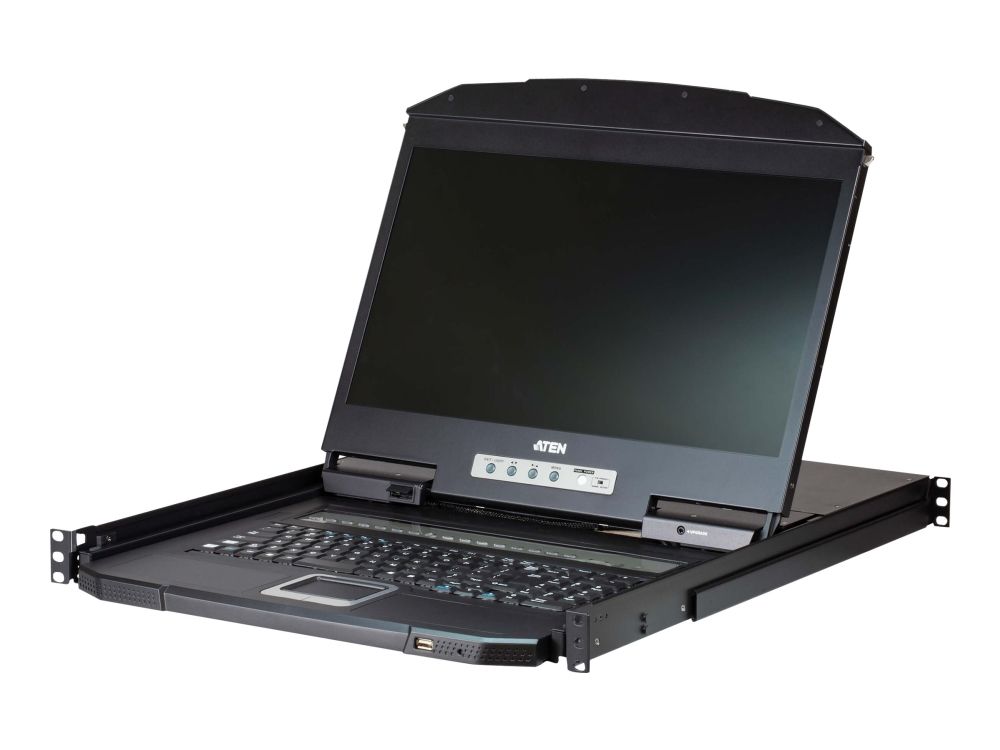

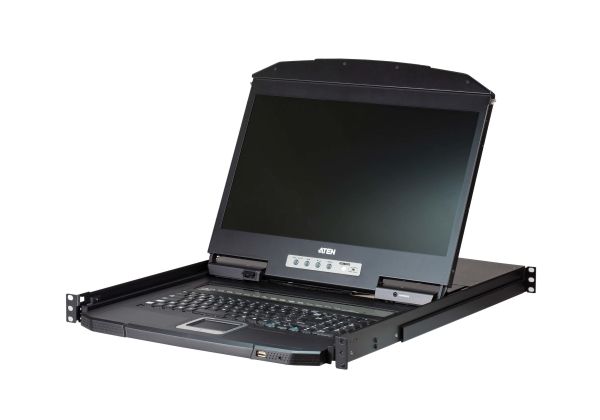

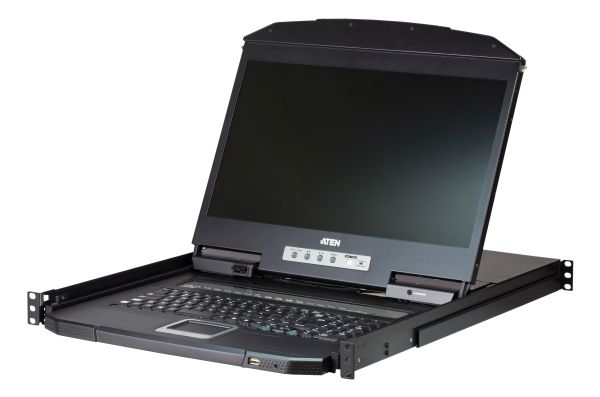

The ATEN CL3116 LCD KVM Switch offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, 18.5" LED-backlit LCD monitor, and a touchpad in a 1U rack-mountable sliding housing. The short-depth design maximizes space utility for equipping rack-mounting devices in narrow spaces. In addition, its exclusive LED illumination light provides users with proper visibility when working in low-light conditions.
The CL3116 can control up to 16 computers; when 16 additional KVM switches are cascaded, a single CL3116 LCD KVM Switch can control up to 256 computers. To achieve greater operational efficiency, the CL3116 offers Broadcast mode, which the console spreads out the commands to all computers to perform operations simultaneously. Besides, the Auto scan mode fulfills the needs for continuous monitoring a specific group of computers, and establishing a reliable working environment for users.
To enhance information safety, the CL3116 provides two-level password security which restricts unauthorized users from viewing and controlling the computers. For added convenience, the CL3116 comes with an additional hot-pluggable USB mouse port that only supports HID device for keyboard and mouse.
As a feature-rich LCD KVM Switch, the CL3116 is aimed not just to achieve but exceed the requirements for space utility optimization, superior video quality, adaptive deployment, and operational versatility, and thus is ideal for control rooms with limited space in any industry.
Produktbeskrivelse
ATEN CL3116NX - KVM-konsol - 18.5"
Enhedstype
KVM-konsol - 18.5"
KVM Switch
PS/2, USB - 16 porte
Egenskaber
Tastatur, touchpad, KVM-switch med 16 tilslutninger
Standard opløsning
1366 x 768 ved 60 Hz
Pixel Pitch
0.3 mm
Lysstyrke
250 cd/m²
Kontrastforhold
1000:1
Responstid
5 ms
Farve support
16,7 millioner farver
Spænding
AC 120/240 V (50/60 Hz)
Dimensioner (B x D x H)
48.6 cm x 63.17 cm x 4.28 cm
Højde (rackenheder)
1U
Vægt
10.6 kg
Overensstemmelsesstandarder
RoHS, WEEE
Generelt
Skærmtype
KVM-konsol / TFT aktiv matriks
Diagonal størrelse
18.5"
Indbygget udstyr
KVM-switch med 16 tilslutninger
Standard opløsning
1366 x 768 ved 60 Hz
Pixel Pitch
0.3 mm
Lysstyrke
250 cd/m²
Kontrastforhold
1000:1
Farve support
16,7 millioner farver
Responstid
5 ms
Vandret synsvinkel
170
Lodret synsvinkel
160
Backlight-teknologi
LED baglys
OSD sprog
Ungarsk, Kinesisk (traditionelt), Tysk, Fransk, Italiensk, Svensk, Russisk, Spansk, Græsk, Japansk, Koreansk, UK English, Amk. engelsk
Dimensioner (B x D x H)
48.6 cm x 63.17 cm x 4.28 cm
Højde (rackenheder)
1U
Vægt
10.6 kg
Input
Type
Tastatur, touchpad
KVM
Type
KVM switch - 16 porte
Tastatur / Musse Grænseflade
PS/2, USB
Maksimum opløsning
1920 x 1200 @ 60 Hz
Max kaskadedybde
256
Forbindelse
Interface

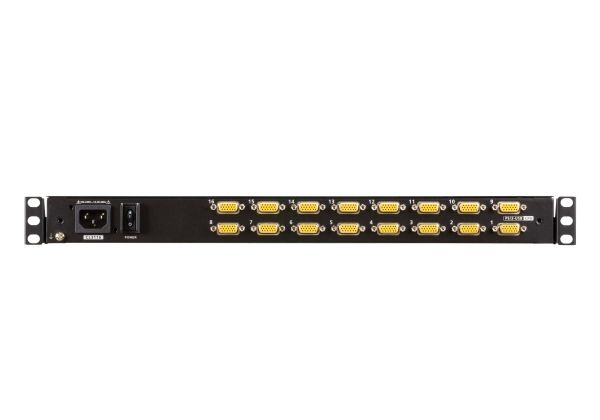

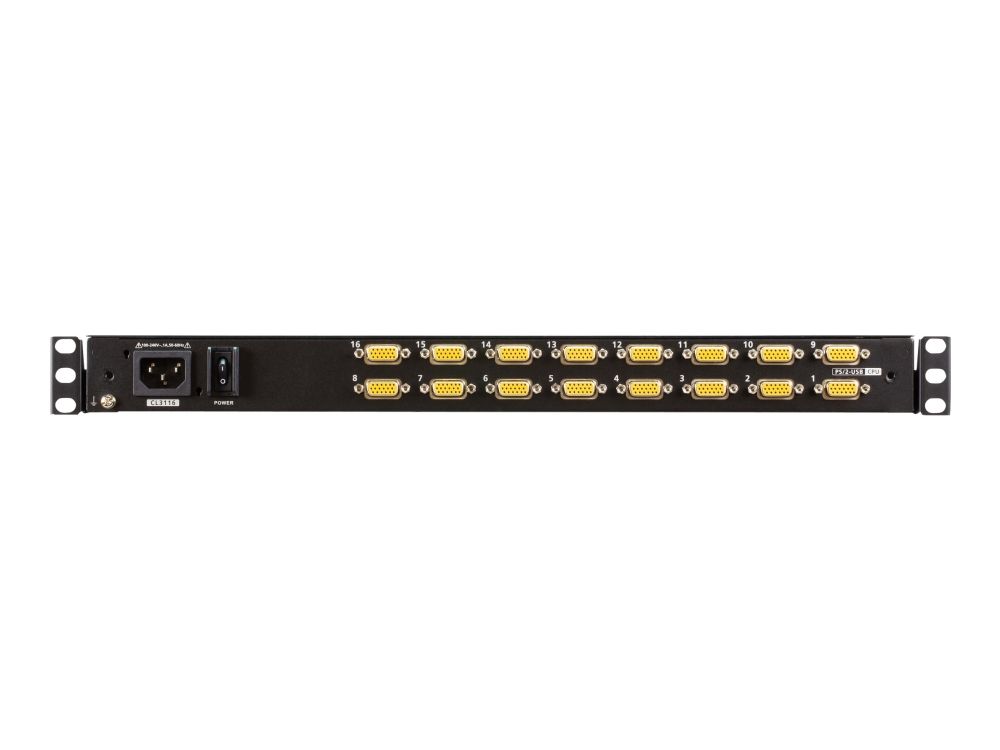

16 x KVM (SPHD-18) Tastatur (PS/2) Mus (USB) (mini-jackstik)
Diverse
Egenskaber
LED indikator, enkelt skinne
Medfølgende ledninger
2 x tastatur- / mus- / videokabel - 1.8 m 1 x strømkabel 1 x konsolkabel
Rackmonteringspakke
Inkluderet
Overensstemmelsesstandarder
RoHS, WEEE
Effekt
Indgangspænding
AC 120/240 V (50/60 Hz)
Til/Fra-kontakt
Ja
Miljømæssige parametre
Min. driftstemperatur
0 °C
Maks. driftstemperatur
40 °C
Fugtighedsgrad ved brug
0 - 80 % (ikke-kondenserende)
