Switches between 4 HDMI source devices and 2 HDMI displays connected simultaneously Supports resolutions up to 4K 60Hz, with additional support for HDR Extract audio from HDMI to Toslink (Optical) and 3.5mm audio Supports ARC as well as a Downscaler-Function via HDMI Out B 2 year warranty
Please note that two versions of this item exist with different connectors.
Please refer to the manuals to find out which version you have.

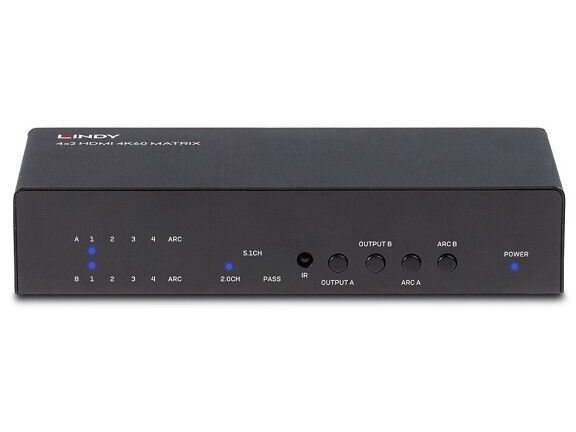

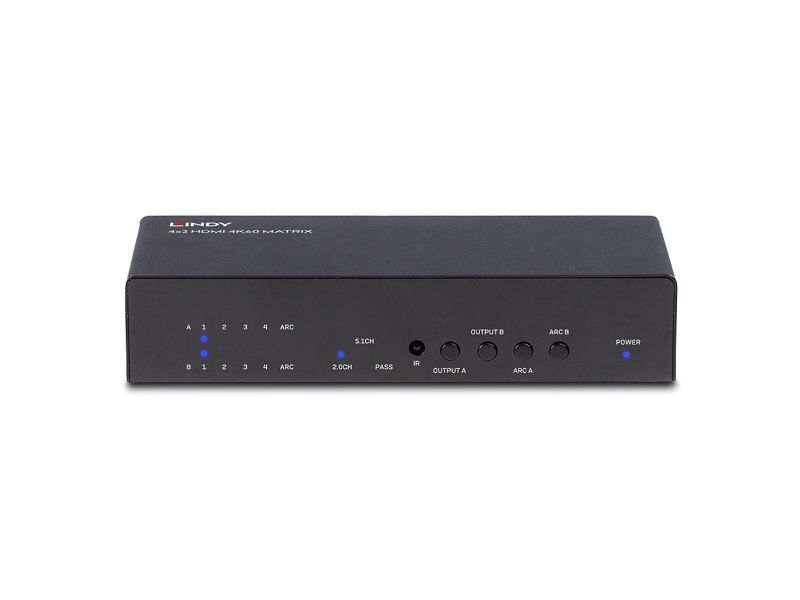

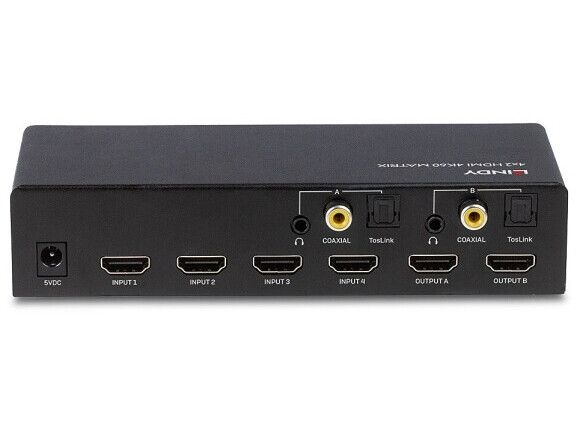

The Lindy 4x2 HDMI 4K60 Matrix Switch is a high performance solution for distributing content from multiple source devices to two displays.
Supporting HDMI 2.0 18G signals, this matrix allows for the transmission of clear 4K Ultra HD 60Hz resolutions, while additional support for High Dynamic Range ensures video content can be seen with enhanced brightness, greater contrasts and a much wider colour gamut, perfect for digital signage displays in retail or hospitality or creating engaging educational setups. HDCP 2.2 support ensures there are no issues with a variety of 4K content when connected to source devices including set top boxes, Blu-Ray players and 4K HDR media players.
As well as HDMI audio pass-through, a 3.5mm audio port allows for a separate connection of both analogue speaker systems, and optical audio devices such as soundbars and amplifiers, for creating immersive audio experiences to compliment the video on screen.
This matrix can be easily controlled via push button switching on the unit, while the included remote control also allows the user to have better control over multiple videos and displays, great for trade shows, training presentations or sales demonstrations.
Product type
AV matrix switcher
Maximum resolution
3840 x 2160 pixels
Bandwidth
18 Gbit/s
HDCP
Yes
HDCP version
2.2
Extended display identification data (EDID)
Yes
Housing colour
Black
Housing material
Metal
Built-in display
No
HDMI input ports quantity
4
HDMI output ports quantity
2
Digital audio optical out
1
USB ports quantity
1
Audio (L/R) out
1
DC-in jack
Yes
Output current
1000 mA
Output voltage
5 V
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
20 - 60 °C
Operating relative humidity (H-H)
20 - 90%
Harmonized System (HS) code
85299097
Width
125 mm
Depth
95 mm
Height
25 mm
Weight
510 g
Package width
220 mm
Package depth
73 mm
Package height
154 mm
Package weight
636 g
Manual
Yes
Mounting brackets included
Yes
AC adapter included
Yes
