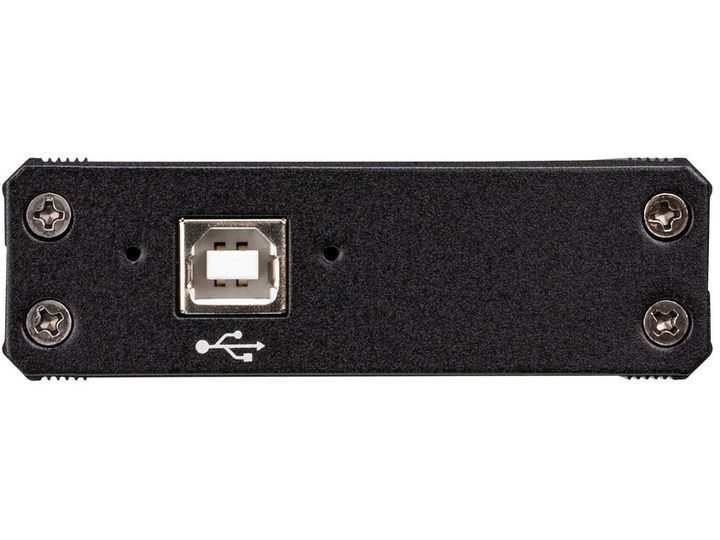

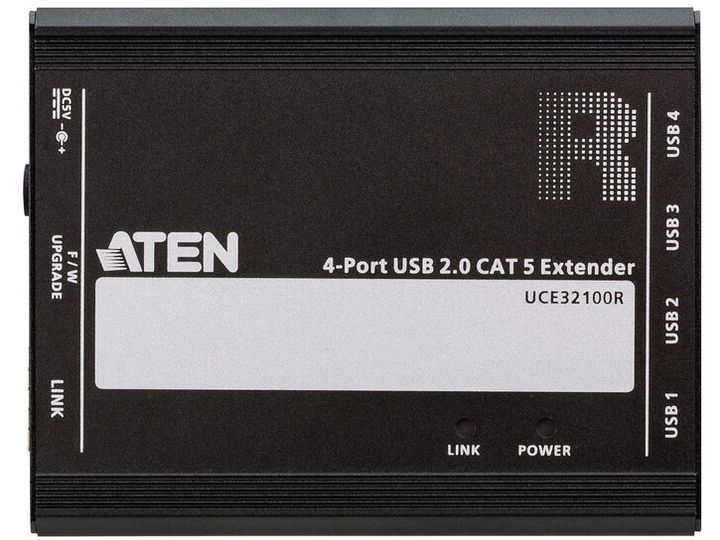

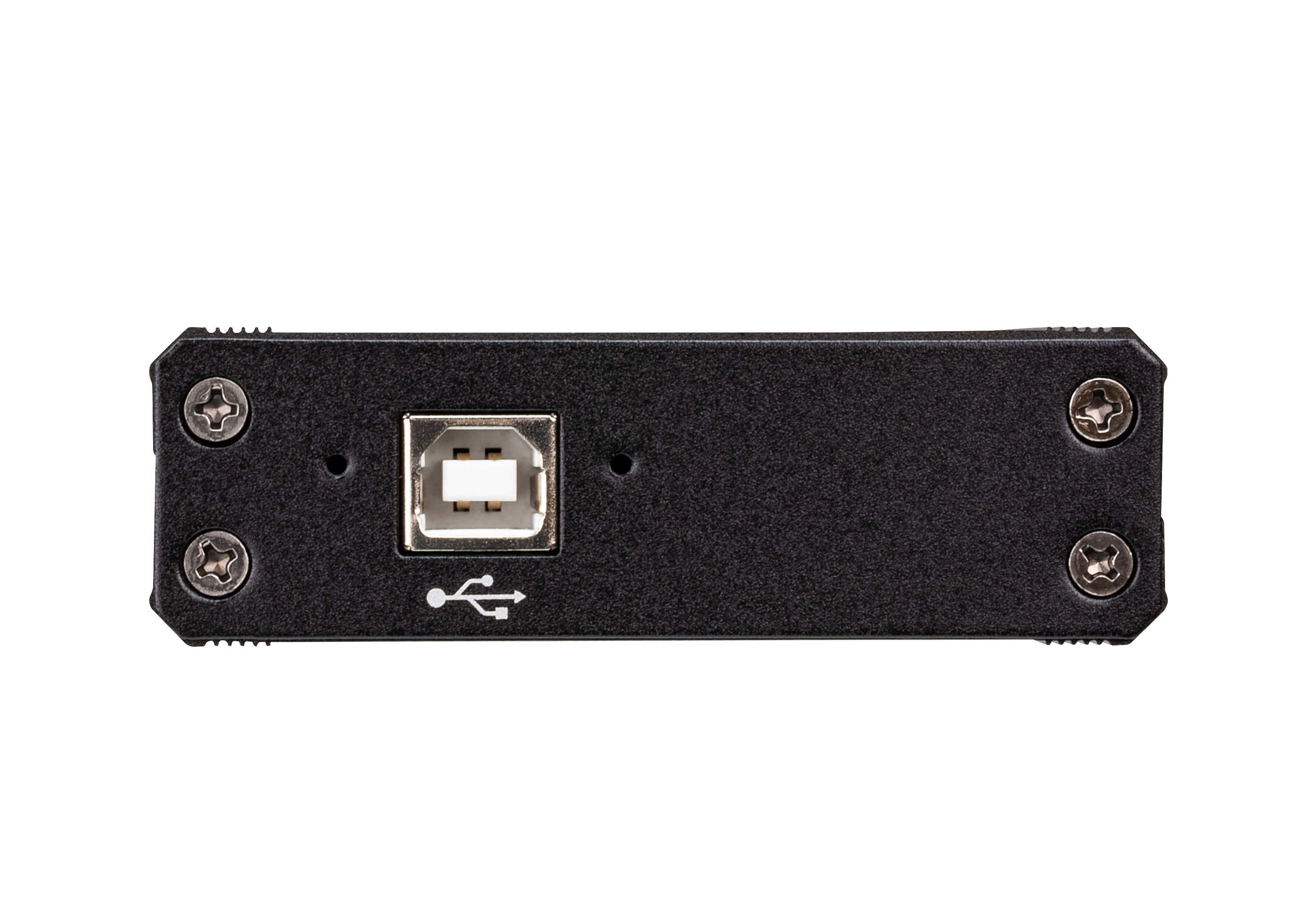

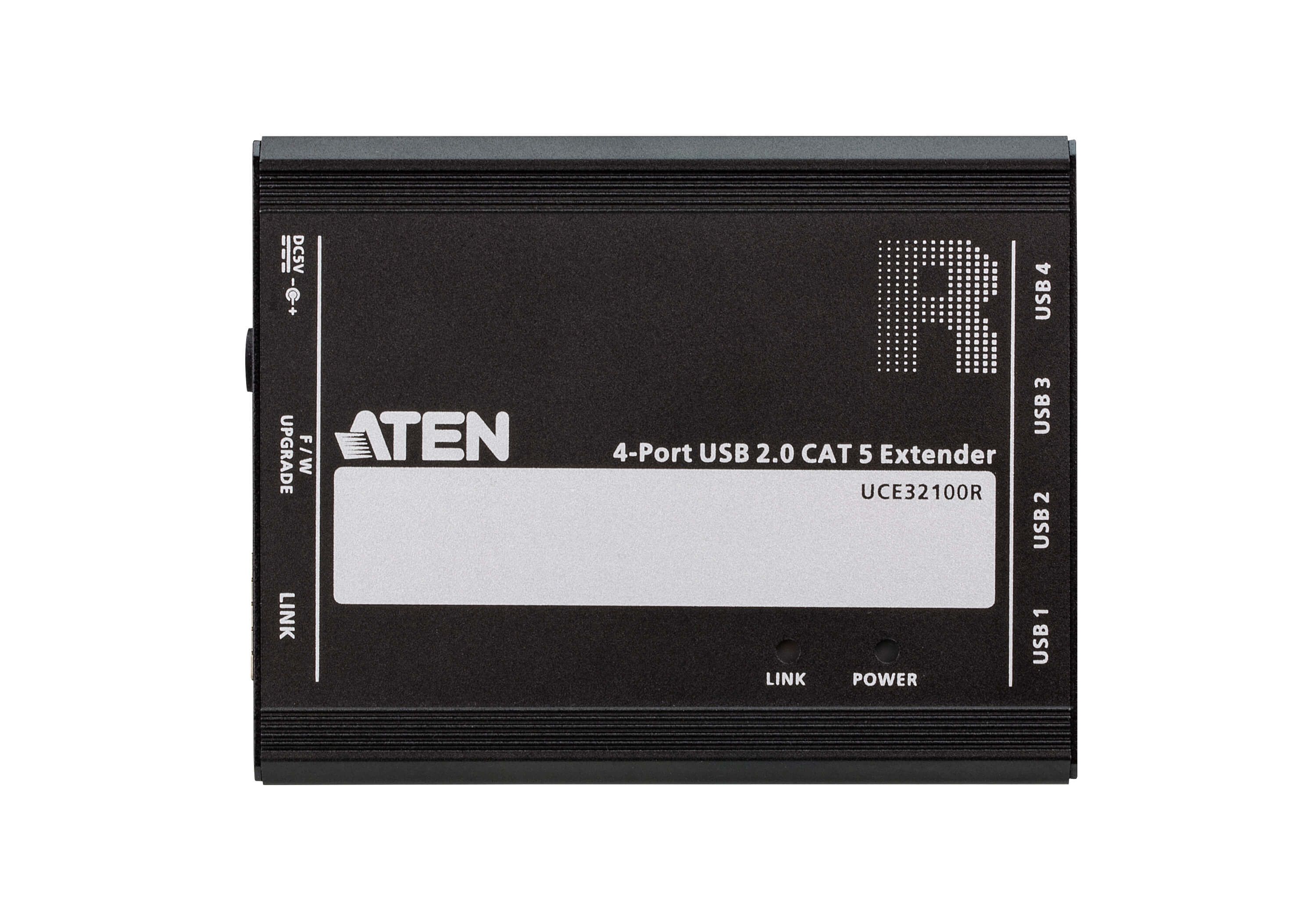

The UCE32100 is a 4-port USB 2.0 CAT 5 Extender is a two-unit device that serves as a Transmitter and a Receiver. It provides a durable, high quality connection that harnesses the full capability of the USB 2.0 standard, to ensure reliable data communication.
The UCE32100 can extend the USB transmission distance of up to 100 meters from your computer via a Cat 5 Ethernet cable. The power supply at the receiver UCE32100 unit helps provide sufficient power to any type of USB device, such as POS, flash drives, webcams, scanners, or printers, etc.
A true plug-and-play solution, the UCE32100 is compatible with all leading operating systems. With its durable metal housing, this high-quality USB extender provides a fast and flexible solution for industrial applications. In addition, the compact size with wall mounting and din rail included enables space-saving installation. 1x UCE32100T USB 2.0 CAT 5 Transmitter 1x UCE32100R USB 2.0 CAT 5 Receiver 1x LIN6-04U1-V1BG USB 2.0 Type-A Male to Type-B Male Cable 1x 0AD8-8005-0MA Power Adapter 1x LIN2-418K-E12G Power Cord 4x Mounting Kit 2x Din Rail 2x DC Jack Lock Kit 2x Rubber Feet Sets 1x User Instructions
Produktbeskrivelse
ATEN UCE32100 - sender og modtager - USB-forlængerkabel
Enhedstype
USB-forlængerkabel
Antal porte
4
Model
Ekstern
Maks. overføringsafstand
100 m
Generelt
Enhedstype
USB-forlængerkabel
Model
Ekstern
Netværk
Antal porte
4
Forbindelsesteknologi
Kablet
Maks. overføringsafstand
100 m
Statusindikatorer
Status
Egenskaber
Firmware kan opgraderes, metalkabinet
Overensstemmelsesstandarder
USB 2.0
Ekspansion / Konnektivitet
Interface
1 x USB 2.0 (lokal enhed) - Type B 4 x USB 2.0 (fjernenhed) - Type A 2 x micro-USB
Diverse
Inkluderet tilbehør
Gummifødder, DIN-skinnebøjle, monteringssæt
Medfølgende ledninger
1 x USB-kabel
Overensstemmelsesstandarder
Plug and Play
Effekt
Strømenhed
Ekstern strømforsyning
Mål og vægt
Dimensioner (B x D x H) / Vægt detaljer
Sender: 7.9 cm x 10.15 cm x 2.44 cm / 210 g Modtager: 7.9 cm x 10.15 cm x 2.44 cm / 210 g
Miljømæssige parametre
Min. driftstemperatur
0 °C
Maks. driftstemperatur
50 °C
Fugtighedsgrad ved brug
0 - 80 % (ikke-kondenserende)
