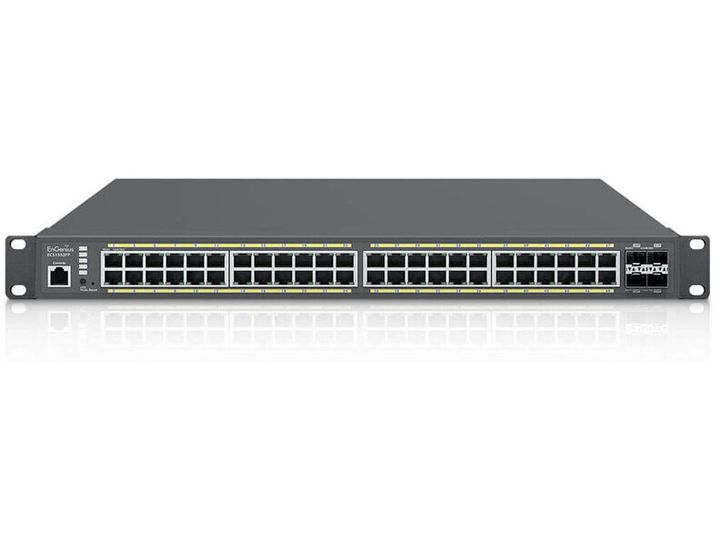

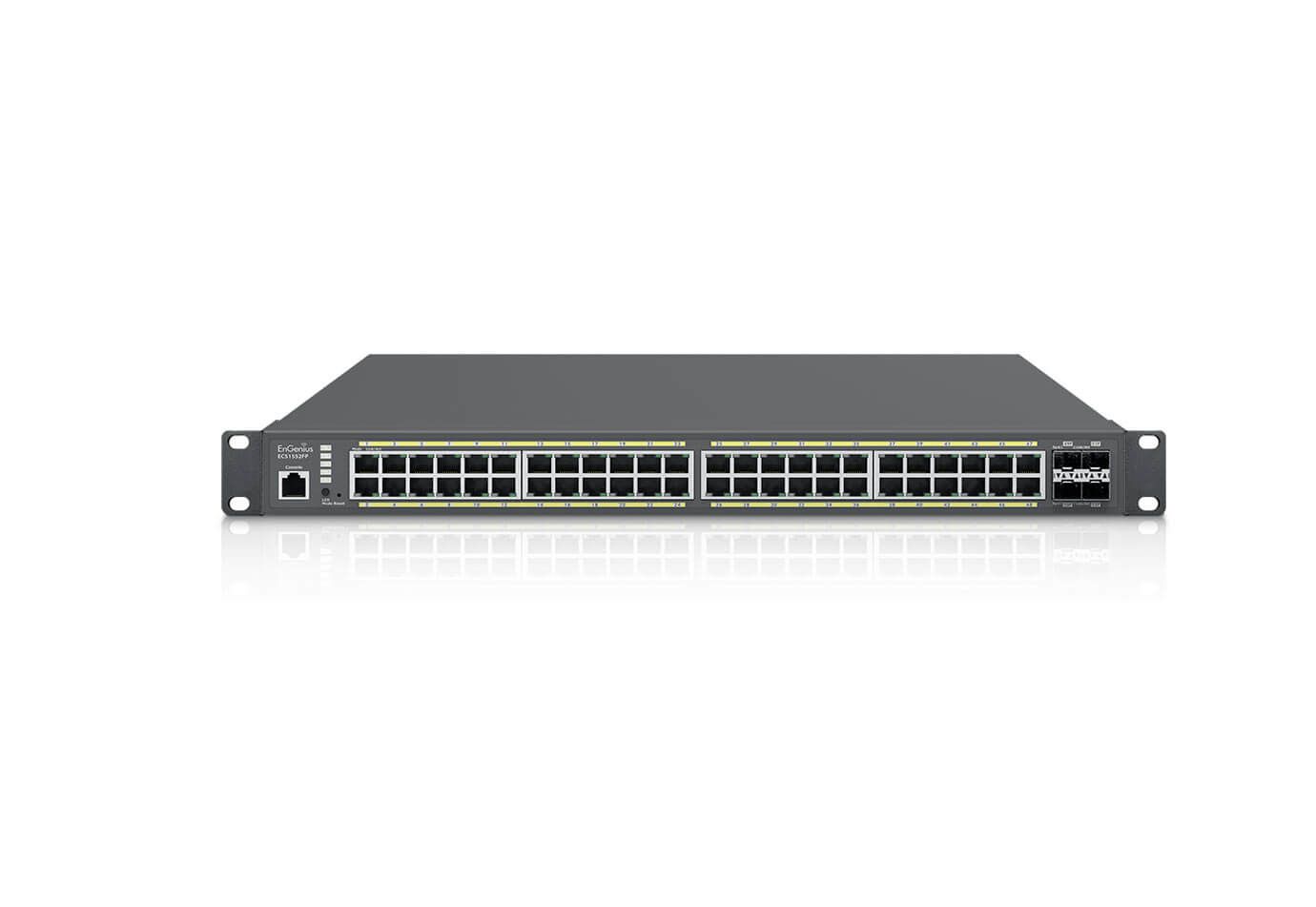

EnGenius Cloud Managed Switch 48-port GbE PoE.af/at(+) 740W 4x10Gb SFP+ L2+ 19i, Managed, L2, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, 1U

Item no.: [5906956] | Manufacturer: EnGenius | Model no.: ECS1552FP | EAN: 4713361935008

out of stock

The item is not in stock. More info

Varen er ikke på lager.

Brug funktionen ”Giv mig besked..." herunder for opdateringer.

Shipping @price - GLS

12,00

EUR 1.557,41

Incl. VAT 1.946,76

Total incl. delivery 1.961,76

Notify me when the item is in stock again

Read further specifications and description

EnGenius Cloud Managed Layer 2+ Switch ECS1552FP offers 48 Gigabit PoE+ ports, 4 10G SFP+ uplink ports, and a 740W budget, ideal for SMBs. It supports zero-touch provisioning and centralized cloud management. With advanced security features, Voice-VLAN, and PoE Extended Mode, it optimizes network efficiency for quality voice and video traffic, enabling peak performance for SMBs

Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Yes
Web-based management	Yes
ARP inspection	Yes
Configuring Location Settings (CLI)	Yes
System event log	Yes
Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	48
SFP+ module slots quantity	4
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z
10G support	Yes
Copper ethernet cabling technology	10BASE-T, 10GBASE-T, 100BASE-TX, 1000BASE-T
Full duplex	Yes
Flow control support	Yes
Link aggregation	Yes
Spanning tree protocol	Yes
VLAN support	Yes
Virtual LAN features	Port-based VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
MAC address table	32000 entries
Switching capacity	176 Gbit/s
Number of queues	8
Static route	Yes
Number of static routes	63
Number of IP interfaces	20
Jumbo frames support	Yes
Jumbo frames	9000
DHCP features	DHCP relay, DHCP snooping
Access Control List (ACL)	Yes
IGMP snooping	Yes
Security algorithms	802.1x RADIUS, SSH, SSL/TLS
Authentication	Port-based authentication
Authentication type	IEEE 802.1x, RADIUS
Queue scheduling algorithms	Strict Priority Queue (SPQ), SP, WRR+SP, Weighted Round Robin (WRR)
Multicast support	Yes
Multicast features	Multicast forwarding
Number of multicast groups filtered	256
Multicast Listener Discovery (MLD) snooping	v1
Management protocols	SNMP v1/v2c/v3
Rack mounting	Yes
Form factor	1U
Product colour	Black
LED indicators	Yes
Internal memory	512 MB
Flash memory	128 MB
Firmware upgradeable	Yes
Power supply included	Yes
Redundant power supply (RPS) support	No
Number of power supply units	1
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	48
Total Power over Ethernet (PoE) budget	740 W
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	5 - 95%
Width	440 mm
Depth	310 mm
Height	44 mm
Weight	4.75 kg
Cables included	AC
Quick start guide	Yes
Rack mount kit	Yes
Package type	Box
Package width	550 mm
Package depth	430 mm
Package height	105 mm
Package weight	5.7 kg
Master (outer) case net weight	11.4 kg
Master (outer) case width	230 mm
Master (outer) case length	570 mm
Master (outer) case height	550 mm
Harmonized System (HS) code	85176990
Master (outer) case gross weight	12.7 kg
Master (outer) case volume	720000 cm³
Products per master (outer) case	2 pc(s)

The item is known under the following item numbers in our system

EAN:	4713361935008
SKU:	ECS1552FP

Why do I find that the same product is available on different item numbers?

Manufacturers often release the same product with different item numbers, typically just different versions of the packaging. For example, the packaging may be targeted at different countries. We try our best to unify the products, but it can happen that the same product appears on different item numbers in our system.
