Blackmagic Design DeckLink Mini Monitor 4K, Green, Grey, PCIe, 4K DCI, Indonesia, NTSC, PAL, 525i, 625i, 720p, 1080i, 1080p, 2160p

Item no.: [5916672] | Manufacturer: Blackmagic | Model no.: BDLKMINIMON4K | EAN: 9338716004359

out of stock

The item is not in stock. More info

Varen er ikke på lager.

Brug funktionen ”Giv mig besked..." herunder for opdateringer.

Shipping @price - GLS

12,00

EUR 179,18

Incl. VAT 223,98

Total incl. delivery 238,98

Notify me when the item is in stock again

Read further specifications and description

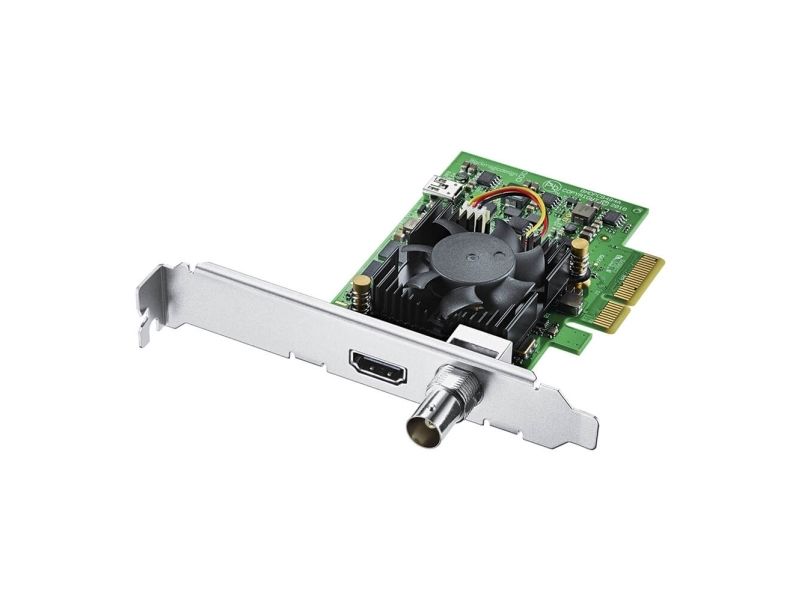

DeckLink Mini Monitor 4K is a low profile PCI Express playback card, featuring 6G-SDI and the latest HDMI 2.0a connections so you can monitor all formats up to 2160p30 from your computer! The SDI and HDMI outputs let you connect to any television or monitor and automatically detect and switch between all video formats. You even get high dynamic range playback and metadata over HDMI. You can even develop your own custom playback solutions using the Blackmagic Desktop Video SDK for Mac OS, Windows and Linux! Includes two PCI Express shields for both full height and low profile slots.

Produktbeskrivelse	Blackmagic DeckLink Mini Monitor 4K - videooptagelsesadapter - PCIe 2.0 x4 lavprofil
Enhedstype	Videooptagelsesadapter - lavprofil
Grænsefladetype	PCIe 2.0 x4
Dimensioner (B x D x H)	12.2 cm
Vægt	89.9 g
Med indgangsadaptertilbehør	Simpelt beslag
Videoindgang	HDMI-udgang, 6G-SDI output
Video Modes	1080/24p, 1080/24PsF, 1080/25p, 1080/25PsF, 1080/29.87p, 1080/30p, 1080/50p, 1080/59.94p, 1080/60p, 720/50p, 720/59.94p, 720/60p, 1080/23.98p, 1080/23.98PsF, 1080/29.97PsF, 1080/30PsF, 1080/50i, 1080/59.94i, 1080/60i, 2160/24p, 2160/25p, 2160/30p, 2160/23.98p, 2160/29.97p
Komprimeret video format	YUV 4:2:2
OS nødvendig	Apple MacOS X 10.10, Apple MacOS X 10.11 eller nyere, Microsoft Windows 7 / 8.1 / 10 (64 bit), Linux
Producentgaranti	3 års garanti

Generelt
Enhedstype	Videooptagelsesadapter - lavprofil
Grænsefladetype	PCIe 2.0 x4
Dybde	12.2 cm
Vægt	89.9 g
Video
Grænsefladetype	HDMI-udgang, 6G-SDI output
Video Modes	1080/24p, 1080/24PsF, 1080/25p, 1080/25PsF, 1080/29.87p, 1080/30p, 1080/50p, 1080/59.94p, 1080/60p, 720/50p, 720/59.94p, 720/60p, 1080/23.98p, 1080/23.98PsF, 1080/29.97PsF, 1080/30PsF, 1080/50i, 1080/59.94i, 1080/60i, 2160/24p, 2160/25p, 2160/30p, 2160/23.98p, 2160/29.97p
Komprimeret video format	YUV 4:2:2
Audio Sampling Format	Stereo 24-bit / 48 kHz
Ekspansion / Konnektivitet
Interface	1 x audio / video - 6G-SDI output 1 x audio / video - HDMI-udgang - 19 pin HDMI Type A
Kompatible åbninger	1 x PCI Express 2.0 x4 - low-profile
Diverse
Udstyr inkluderet	Simpelt beslag
Overensstemmelsesstandarder	FCC, C-Tick
Programmer / Systemkrav
Med software	Drivers & Utilities
OS nødvendig	Apple MacOS X 10.10, Apple MacOS X 10.11 eller nyere, Microsoft Windows 7 / 8.1 / 10 (64 bit), Linux
Producentgaranti
Service & Support	Begrænset garanti - 3 år
Miljømæssige parametre
Min. driftstemperatur	5 °C
Maks. driftstemperatur	40 °C
Fugtighedsgrad ved brug	0 - 90% (ikke-kondenserende)

The item is known under the following item numbers in our system

EAN:	9338716004359
SKU:	BDLKMINIMON4K

Why do I find that the same product is available on different item numbers?

Manufacturers often release the same product with different item numbers, typically just different versions of the packaging. For example, the packaging may be targeted at different countries. We try our best to unify the products, but it can happen that the same product appears on different item numbers in our system.
