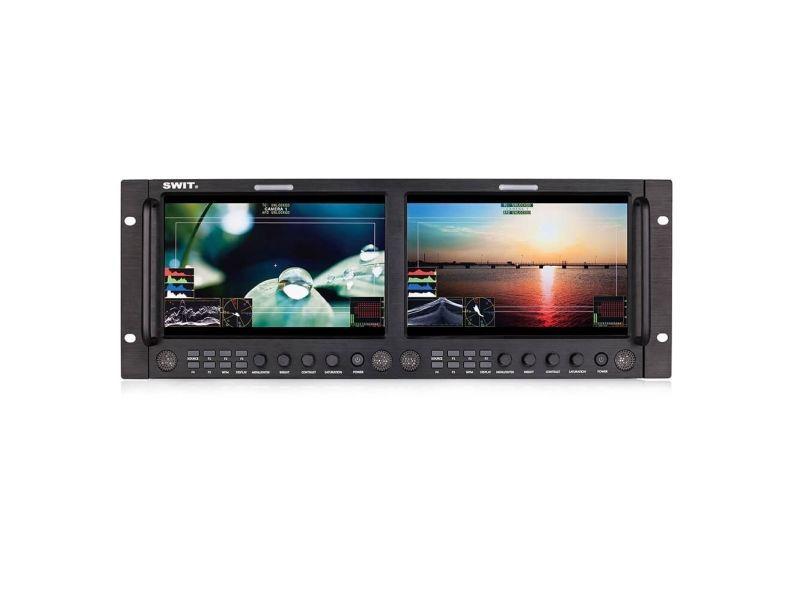

SWIT M-1093F, 22.9 cm (9"), 1920 x 1200 pixels, 16:9, 16.78 million colours, 450 cd/m², 170°
Item no.: [6032575] | Manufacturer: SWIT | Model no.: M-1093F | EAN: 6948193502953
out of stock
The item is not in stock. More info
Udsolgt
Varen er ikke på lager.
Brug funktionen ”Giv mig besked..." herunder for opdateringer.
Delivery options - Select at checkout
Shipping @price - GLS
12,00
EUR
2.210,39
Incl. VAT 2.762,99
Total incl. delivery
2.777,99
Notify me when the item is in stock again
The function requires that you are logged in. Create a user and use our smart list system to keep track of future purchases, regular purchases or wish lists.
Create user
Login
Create user
Login
Send på mail
9-inch IPS LCD
IPS panel with LED backlight
The M-1093F adopts 2× 9-inch IPS (In-Plane Switching) LCD panels, with Full HD 1920×1200 resolution and LED backlight, 800:1 contrast. The viewing angle is Horizontal: 170° / Vertical: 170°
Video Analysis Assistant Pattern
Waveform / Vector scope / Histogram
M-1093F supports video analysis assistant patterns includes: Waveform (Y/Pb/Pr/R/G/B), Vector scope, Histogram (R/G/B/Y), to convert the digital video quality info (Luma, Color, Saturation, etc) to patterns, and the patterns can be switched on/off individually, select display position (Up/Down/Left/Right), size, color, and translucence.
UMD and Text-Tally Display
TSL 3.1 / 4.0 Protocol
M-1093F supports UMD and Text-Tally display of TSL 3.1/4.0 protocol, with 1-126 TSL address selection, and Max 8 letters displayed. The UMD/TALLY signal inputs via RJ45(RS485) port on the rear panel of the monitor.
USB Firmware Upgrade
The monitor provides a standard USB port on the rear panel, for firmware upgrade. Users can download the latest firmware file to a USB stick, and directly insert into M-1093F monitor to upgrade, without PC connection.
3-color TALLY Light
RJ45(RS485) input signal
There are front TALLY lights of Red, Green and Yellow colors on each screen, and users can define the pins of RJ45 port to control the TALLY lights.
Power Supply
M-1093F provides a 4-pin XLR socket of DC 6.5-24V power input, for the both 2 screens, and an AC-DC adaptor is attached on the rear panel of the monitor.
Installation
M-1093F is standard 19” rack mount fixing, occupies 4U height. The monitor is ±30° up and down rotatable when installed on racks.
