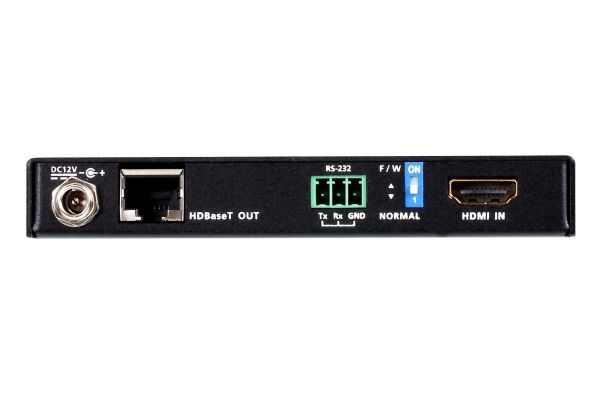

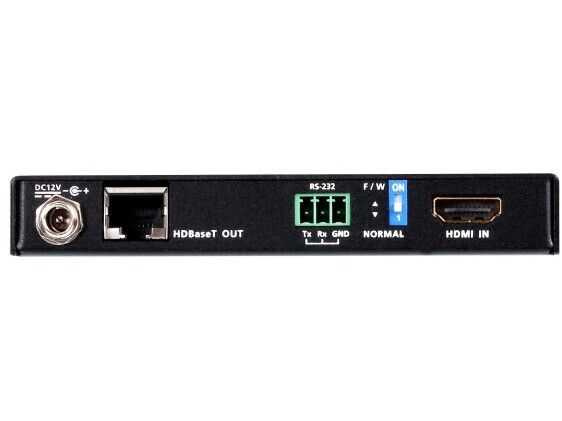

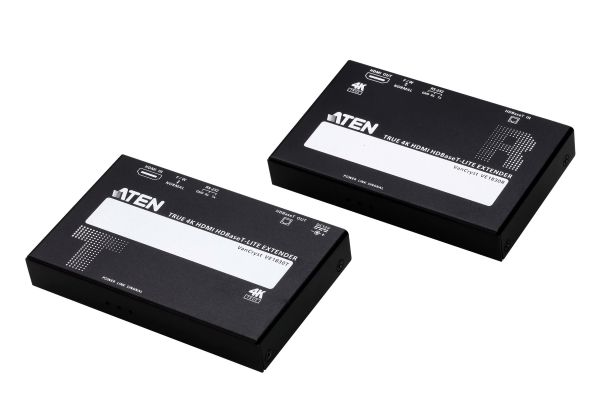

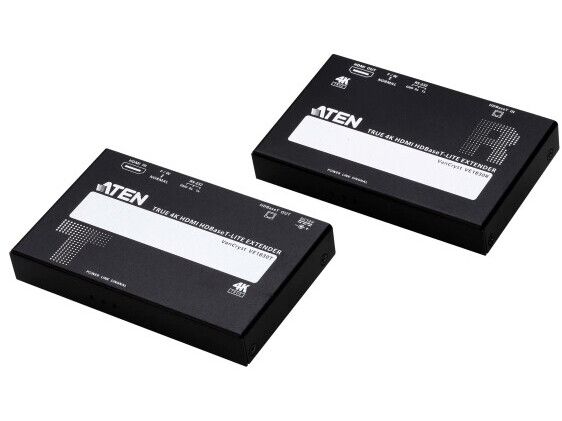

The VE1830 True 4K HDMI HDBaseT-Lite Extender provides great flexibility in professional A/V installation with its high-quality transmitter VE1830T and receiver VE1830R. Powered by HDBaseT technology, the VE1830 transmits True 4K HDMI signals up to 35m using a single Cat 5e/6 cable. This HDBaseT-Lite Extender supports HDCP 2.2 and meets the HDMI 2.0a specifications (3D, Deep Color, 4k) to ensure visually lossless high quality video and image. In addition, it features PoC (Power over Cable) which can power the receiver unit from the transmitter side with power supply. The VE1830 offers an easy-to-use and cost-effective solution for professional A/V installations that require superior HDMI video quality, such as in digital classrooms, video conference rooms and home theater.
Produktbeskrivelse
ATEN VanCryst VE1830 - sender og modtager - video/audio/serie forlænger - RS-232, HDMI, HDBaseT Lite
Enhedstype
Video/audio/serie forlænger
Model
Ekstern
Dataforbindelsesprotokol
RS-232, HDMI, HDBaseT Lite
Maks. overføringsafstand
70 m
Dimensioner (B x D x H)
11.86 cm x 7.19 cm x 1.68 cm
Vægt
130 g
Generelt
Enhedstype
Video/audio/serie forlænger
Model
Ekstern
Netværk
Forbindelsesteknologi
Kablet
Dataforbindelsesprotokol
RS-232, HDMI, HDBaseT Lite
Maksimum opløsning
4096 x 2160 @ 60 Hz
Maksimal videobåndbredde
340 MHz
Maks. overføringsafstand
70 m
Egenskaber
3D-support, 4K opløsningssupport, HDR10 support, HDBaseT Class B-teknologi
Ekspansion / Konnektivitet
Interface
1 x HDMI - 19-pin HDMI Type A 1 x RS-232 - 3 pin terminalblok
Diverse
Inkluderet tilbehør
2 x RS-232 terminalblokke, monteringssæt
Effekt
Strømenhed
Ekstern strømforsyning
Mål og vægt
Bredde
11.86 cm
Dybde
7.19 cm
Højde
1.68 cm
Vægt
130 g
Miljømæssige parametre
Min. driftstemperatur
0 °C
Maks. driftstemperatur
40 °C
Fugtighedsgrad ved brug
0 - 80 % (ikke-kondenserende)
