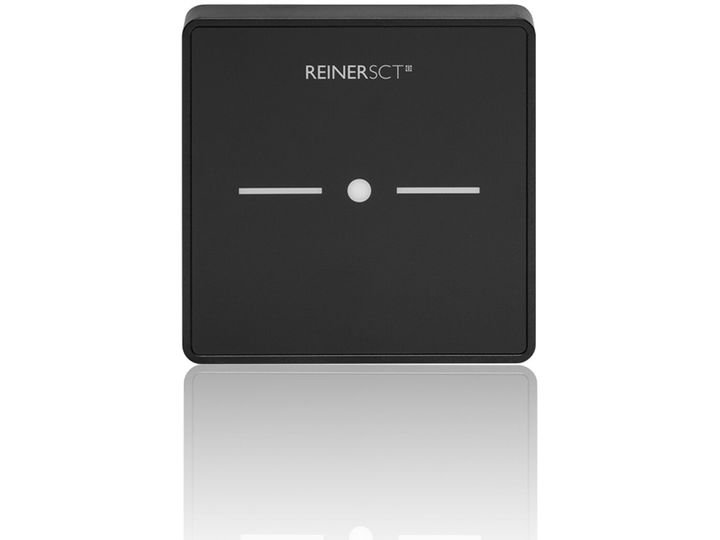

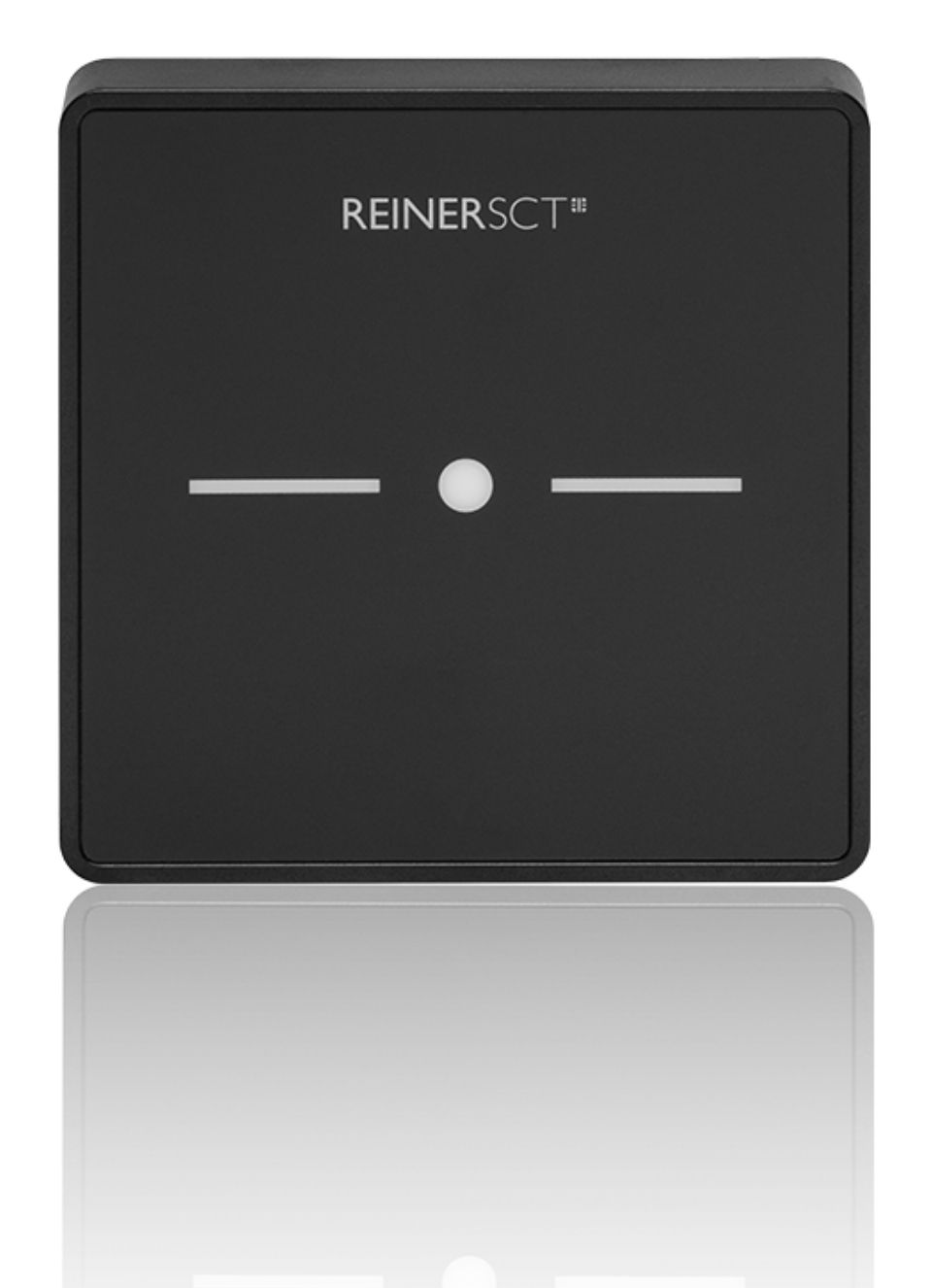

timeCard external RFID reader V3 for access control
The external RFID reader V3 for the timeCard access control is an RFID wall reader that can read both timeCard ID cards as well as timeCard transponders. It can be installed both indoors and in protected outdoor areas using surface mounting.
Product description timeCardexternal RFID reader V3 for access control
The innovative design of the product enables quick and easy installation thanks to the two-part housing construction. The integrated snap-in terminal strip in the rear case ensures a convenient connection. During installation, the front case with the electronics is simply snapped onto the pre-wired rear case and secured with two stainless steel screws. An injected special seal ensures that the housing is sealed. Thanks to the advanced circuit design, transponders or RFID cards are detected and read early and reliably, supported by a four-color backlight and acoustic signaling. The external RFID reader V3 can be connected to the following terminals:
timeCard Terminal 3 timecard accessbox timeCard Multiterminal RFID (DES) – since 01.06.2020 EOL!
Produktbeskrivelse
ReinerSCT timeCard V3 - RFID-læser - RS-422
Enhedstype
RFID-læser
Grænsefladetype
RS-422
Frekvens
13.56 MHz
Dimensioner (B x D x H)
9.1 cm x 9.1 cm x 2.2 cm
Vægt
100 g
Farve
Antracit (sort)
Producentgaranti
2 års garanti
Generelt
Enhedstype
RFID-læser
Grænsefladetype
RS-422
Frekvens
13.56 MHz
Bredde
9.1 cm
Dybde
9.1 cm
Højde
2.2 cm
Vægt
100 g
Farve
Antracit (sort)
Ekspansion / Konnektivitet
Tilslutninger
1 x seriel - RS-422
Diverse
OK meddelelse
Bipper, LED-indikator
Overensstemmelsesstandarder
WEEE, IEC 60068-2-6, IP54, IEC 60068-2-31, RoHS2, EN 60068-2-6
Mål & vægt (forsendelse)
Bredde ved forsendelse
20.1 cm
Dybde ved forsendelse
14.9 cm
Højde ved forsendelse
4.7 cm
Vægt ved forsendelse
200 g
Producentgaranti
Service & Support
Begrænset garanti - 2 år
Miljømæssige parametre
Min. driftstemperatur
-10 °C
Maks. driftstemperatur
50 °C
Fugtighedsgrad ved brug
0 - 90% (ikke-kondenserende)
The item is known under the following item numbers in our system
SKU:
2716050-103
EAN:
4011170084376
Why do I find that the same product is available on different item numbers?
Manufacturers often release the same product with different item numbers, typically just different versions of the packaging. For example, the packaging may be targeted at different countries.
We try our best to unify the products, but it can happen that the same product appears on different item numbers in our system.
