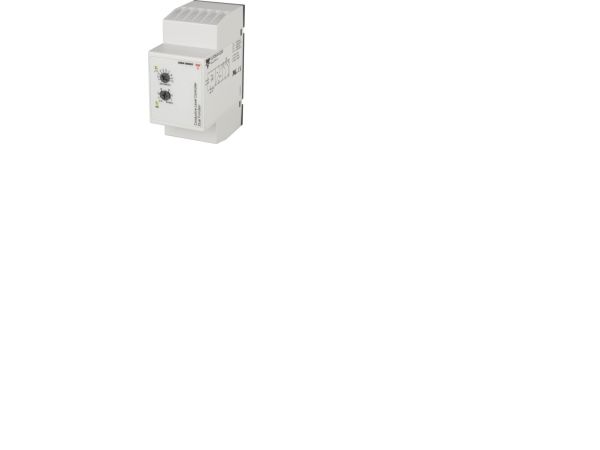

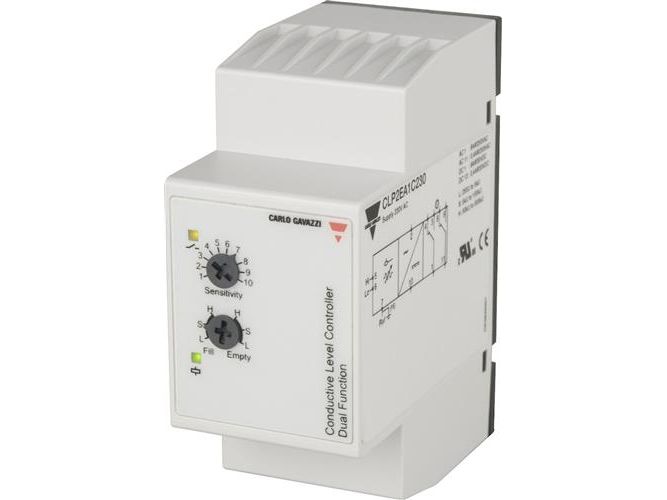

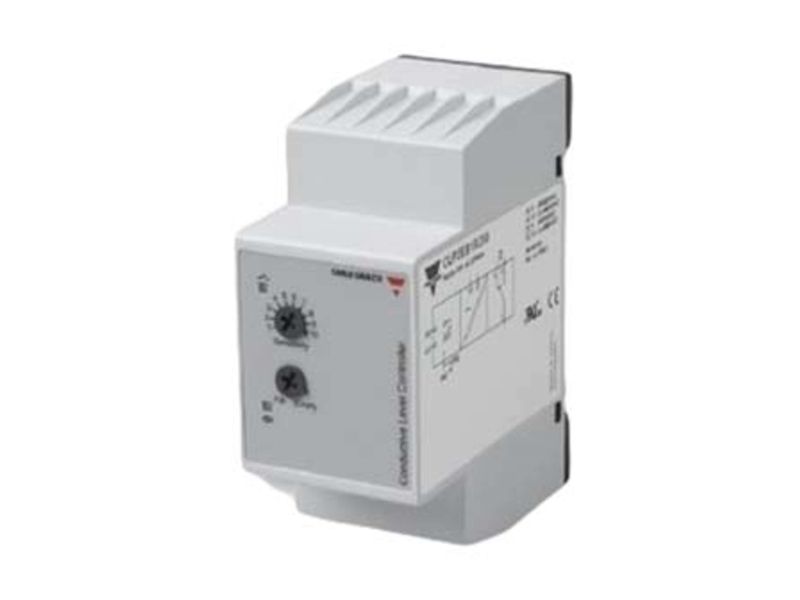

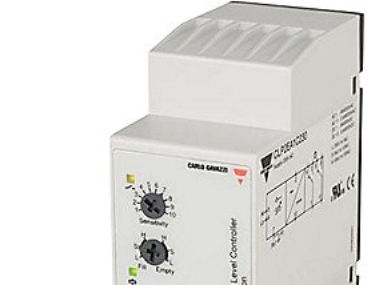

Carlo Gavazzi Automation Level Controller
Item no.: [6187846] | Manufacturer: CARLO GAVAZZI | Model no.: CLP2EA1C230 | EAN: 5709870381374 | VVS-nr.: 9624381374 | UNSPSC.: 39122308 | EL-nr.: 9624017522
Remote stock (1-2 days)
The item is in a remote warehouse, delivery time is 1-2 business days. More info
Delivery options - Select at checkout
Shipping @price - GLS
12,00
EUR
94,04
Incl. VAT 117,55
Total incl. delivery
132,55
The function requires that you are logged in. Create a user and use our smart list system to keep track of future purchases, regular purchases or wish lists.
Create user
Login
Create user
Login
Send på mail
Carlo Gavazzi Level Controller
The Carlo Gavazzi conductive microprocessor-based level controller is designed for liquids with a wide sensitivity range (like sewage water, chemicals, saltwater etc.). This controller has a separate output for alarm indication in case of a tank running dry or if an overflow condition occurs. Liquid level relays are used to monitor the levels of conductive liquids and are available in Up/Down, Minimum, Maximum, and Fill/Empty variations. Liquid level relays are straightforward to install and safe to use. It has a supply voltage of 230VAC.
Features and Benefits
Conductive level controller
Adjustment of sensitivity
Low-voltage AC electrodes
Output 2x8A/250 VAC DPDT relay
LED indication for output ON and power ON
Sensitivity adjustment from 250ohm to 500Kohm
Easy installation on DIN rails or with an 11-pin circular plug
11-pin circular plug mount
Relay output is 0.5Hz
Applications
Liquid level relays (conductive level sensors) are used in a wide variety of applications, including wastewater management and the monitoring and management of corrosive liquid media.
Designed specifically to provide monitoring and control of liquid levels, Protection of pumps against dry running, ability to detect liquid leaks in a system, control of media mixing ratios and control of liquid levels.
Certifications
CE certified
CSA certified
