High quality components High quality made in Japan 105°C capacitor guarantees Stability at high temperatures, frequencies and currents.
High quality components Powerful and highly reliable DC-DC module
Active PFC Built-in Active PFC circuit provides high power factor and efficiency
Single Rail +12V DC output Single +12V DC output design for stabilized voltage supply
Secondary Protection IC Heavy-duty protection circuitry of Over Current, Over Power, Over Voltage, Under Voltage, Over Temperature and Short-Circuit Protection.
Modular cable type Neatly organized DC output modular cable help to increase air flow inside the case.
Ultra quiet 135mm for smart cooling Smart Fan control system optimizes thermal control while minimizing noise levels.
Produktbeskrivelse

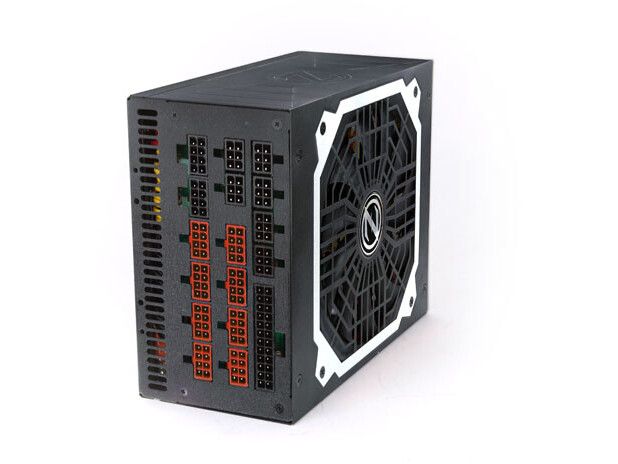

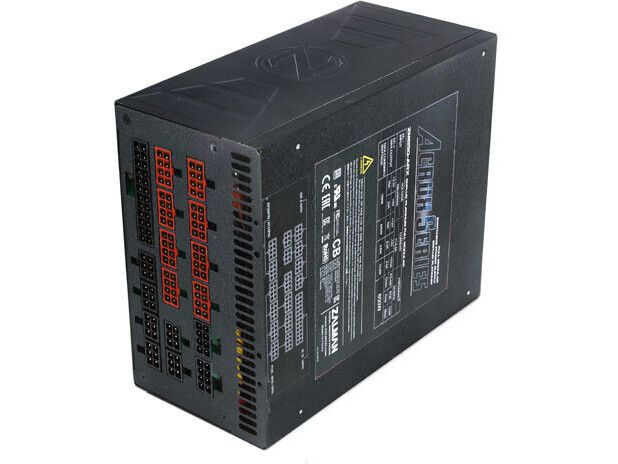

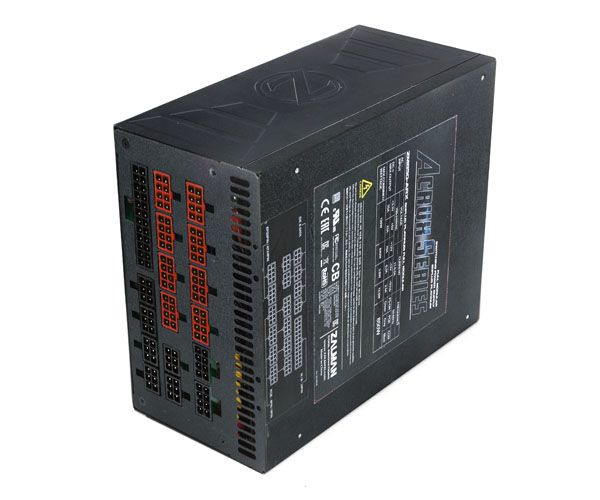

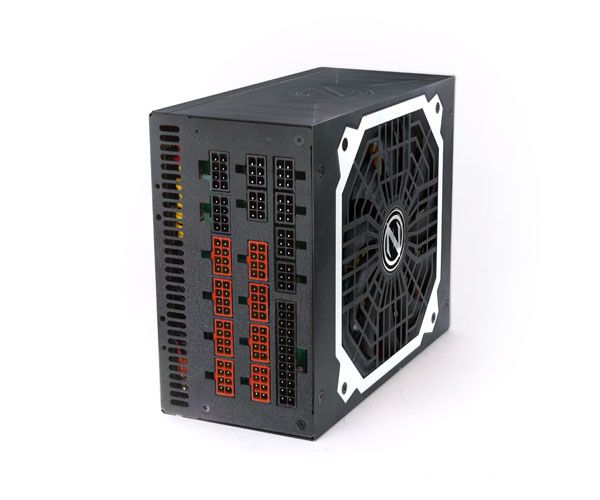

ZALMAN ZM850-ARX - strømforsyning - 850 watt
Enhedstype
Strømforsyning - aktiv Power Factor Correction (PFC) - intern
Specifikationsoverensstemmelse
ATX12V 2.3/ EPS12V 2.92
80 PLUS certificering
80 PLUS Platinum
Vægt
2.95 g
Indgangspænding
AC 100-240 V
Udgangspænding
+3.3, +5, ±12 V
Strømkapacitet
850 watt
Output Current
+3.3V - 25 A / 0.1 A +5V - 22 A / 0.2 A +12V - 70 A / 0.2 A -12V - 0.3 A / 0 A +5VSB - 2.5 A / 0 A
Output-stikforbindelser
1 x strøm 24 pin ATX med aftagelig 4 pin sektion 1 x strøm 8 pin EPS12 V 1 x effekt ATX12V 4-pin stik 6 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion 12 x 15 pin Serial ATA strøm 8 x 4-PIN intern strøm 1 x 4-PIN mini-strømforsyningsforbinder
Modulær Kabel Administration
Ja
Kølesystem
135 mm ventilator
Udstyr inkluderet
Kabelbånd, skruer, kabelpose
Dimensioner (B x D x H)
15 cm x 18 cm x 8.6 cm
Generelt
Enhedstype
Strømforsyning - aktiv Power Factor Correction (PFC) - intern
Specifikationsoverensstemmelse
ATX12V 2.3/ EPS12V 2.92
PSU formfaktor
ATX
Strømenhed
Indgangspænding
AC 100-240 V
Nødvendig frekvens
50 - 60 Hz
Detaljer om strømudgangskonnektorer
1 x strøm 24 pin ATX med aftagelig 4 pin sektion 1 x strøm 8 pin EPS12 V 1 x effekt ATX12V 4-pin stik 6 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion 12 x 15 pin Serial ATA strøm 8 x 4-PIN intern strøm 1 x 4-PIN mini-strømforsyningsforbinder
Udgangspænding
+3.3, +5, ±12 V
Strømkapacitet
850 watt
Output Current
+3.3V - 25 A / 0.1 A +5V - 22 A / 0.2 A +12V - 70 A / 0.2 A -12V - 0.3 A / 0 A +5VSB - 2.5 A / 0 A
Effektivitet
94% (230VAC)
Strømfaktor (PF)
0.99
Modulær Kabel Administration
Ja
80 PLUS certificering
80 PLUS Platinum
Diverse
Udstyr inkluderet
Kabelbånd, skruer, kabelpose
Kølesystem
135 mm ventilator
Egenskaber
Beskyttelse mod overstrøm, overspændingsbeskyttelse, beskyttelse mod underspænding, kortslutnings beskyttelse, overbelastningsbeskyttelse, beskyttelse mod overophedning, DC-DC teknologi, enkelt 12V skinne, Smart Fan Control Quiet teknologi, CrossFire klar, SLI klar, fuld modulær
Overensstemmelsesstandarder
ErP Lot 6 2013 Ready, UL, FCC, CB, KC, EAC, RoHS, WEEE, IC
Miljømæssige parametre
Min. driftstemperatur
0 °C
Maks. driftstemperatur
40 °C
Fugtighedsgrad ved brug
5 - 95 % (ikke-kondenserende)
Mål og vægt
Bredde
15 cm
Dybde
18 cm
Højde
8.6 cm
Vægt
2.95 g
