The item is in a remote warehouse, delivery time is 14-21 business days. More info
Delivery options - Select at checkout
Shipping @price - GLS
12,00
EUR
40,06
Incl. VAT 50,08
Total incl. delivery
65,08
Add to list
The function requires that you are logged in. Create a user and use our smart list system to keep track of future purchases, regular purchases or wish lists.

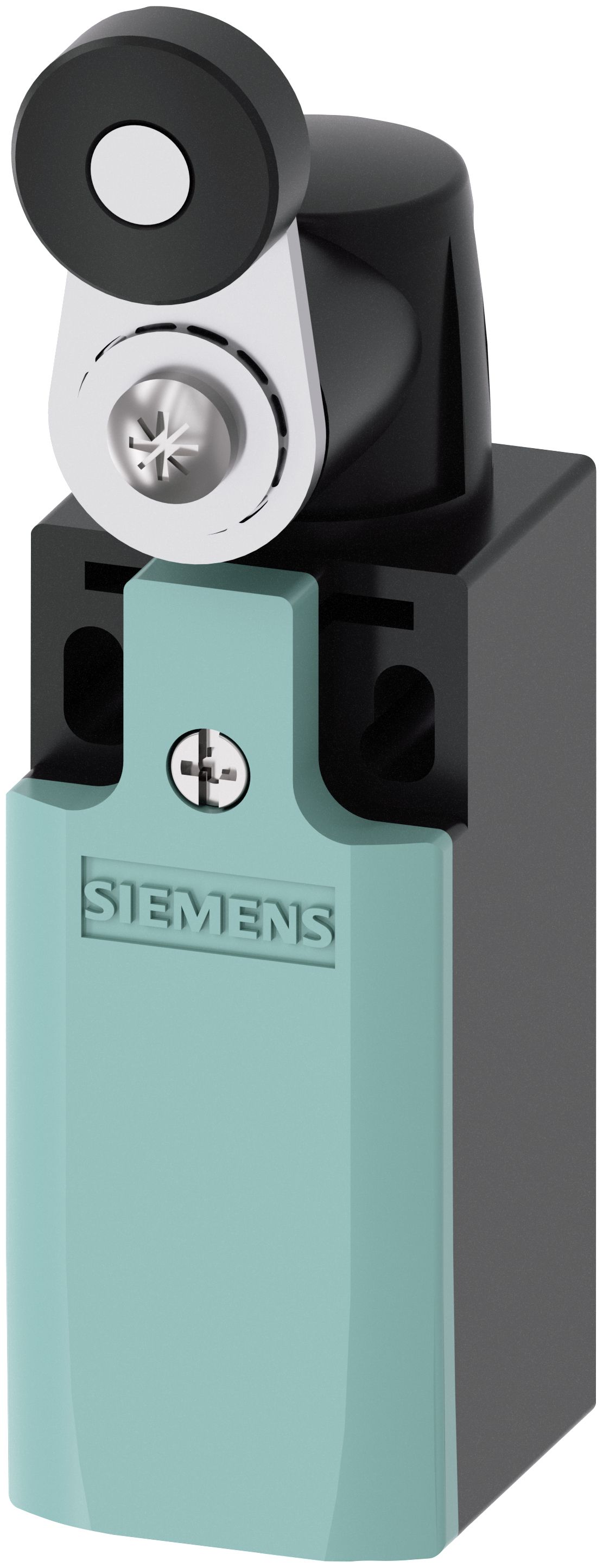

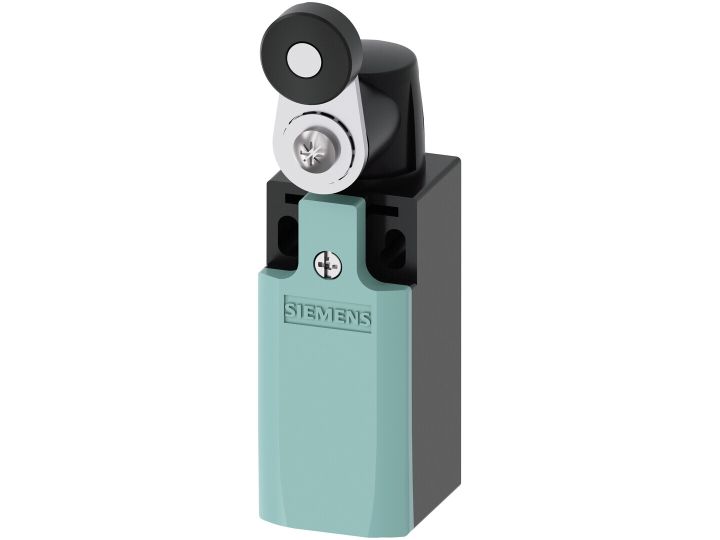

Siemens 3SE52120BK21 3SE5212-0BK21 limit switch 6 A pivot lever/actuator with metal rod, plastic roller IP66, IP67 1 pc
Housing material
Metal
International Protection (IP) code
IP66, IP67
Housing type
Cuboid
Package width
43 mm
Package depth
49 mm
Package height
127 mm
Package weight
218 g
Compliance certificates
CE, RoHS, REACH
Control element type
Rotary lever
Ambient temperature range
25 - 85 °C
Degree of protection (NEMA)
12
Electrical connection type
Other
Suitable for safety functions
Yes
Number of NO contacts
1
Number of change-over contacts
0
Number of NC contacts
1
Sensor length
11.1 cm
Sensor width
3.1 cm
Sensor height
4.63 cm
Switching function
Slow-action switch
Number of safety auxiliary contacts
1
Rated operational current (Ie at DC-13, 24V)
3 A
Rated operational current (Ie at DC-13, 125V)
0.55 A
Rated operational current (Ie at AC-15, 24V)
6 A
Forced opening
Yes
Battery included
No
Latching switching function
No
Housing coating
Lacquered
Status indication
No
Minimum order quantity
1 pc(s)
Maximum order quantity
1 pc(s)
Explosion safety category for dust
None
Explosion safety category for gas
None
The item is known under the following item numbers in our system
EAN:
4011209862470
SKU:
3SE52120BK21
Why do I find that the same product is available on different item numbers?
Manufacturers often release the same product with different item numbers, typically just different versions of the packaging. For example, the packaging may be targeted at different countries.
We try our best to unify the products, but it can happen that the same product appears on different item numbers in our system.
