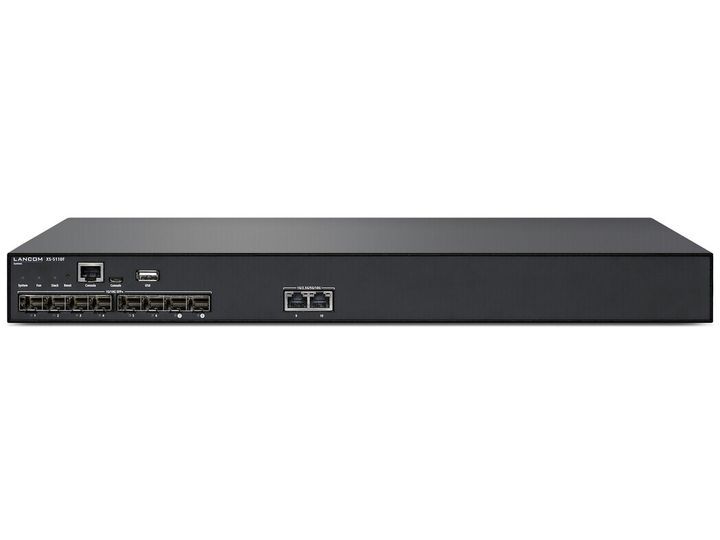

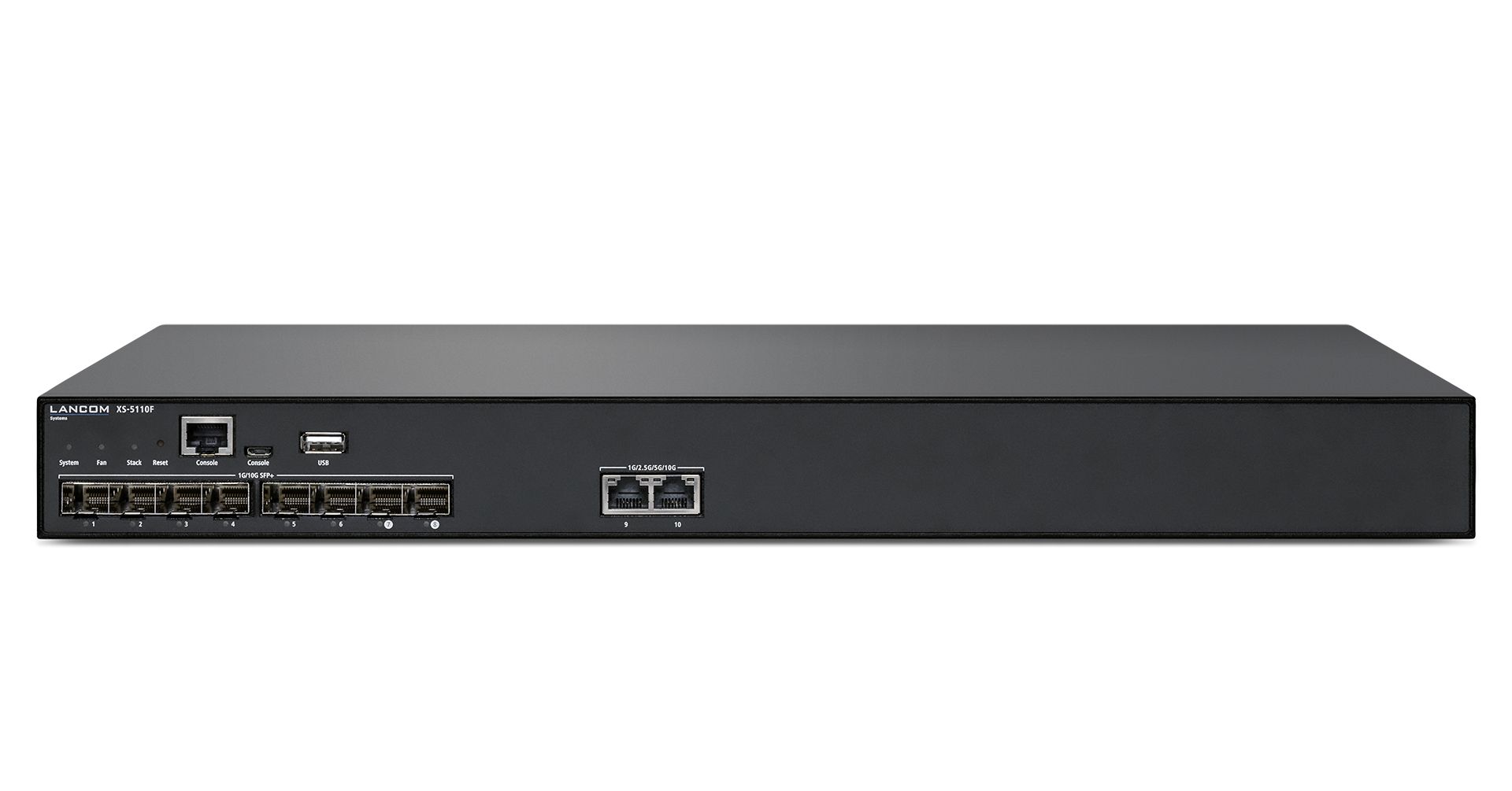

LANCOM XS-5110F, Managed, L2/L3, 10G Ethernet (100/1000/10000), Rack mounting, 1U

Item no.: [6438966] | Manufacturer: Lancom Systems | Model no.: 61858 | EAN: 4044144618581

Remote stock (2-3 days)

The item is in a remote warehouse, delivery time is 2-3 business days. More info

Shipping @price - GLS

12,00

EUR 2.277,74

Incl. VAT 2.847,18

Total incl. delivery 2.862,18

Read further specifications and description

Due to its eight future-proof fiber-optics SFP+ ports, this 10G aggregation switch acts as a superordinated instance for connecting further access switches in smaller distributed networks. Two further multi-Gigabit Ethernet ports (10/5/2,5/1G) enable a flexible and cost-efficient integration of high-performance network components. Thanks to the holistic LANCOM network management the device can be configured dynamically and automatically via the LANCOM Management Cloud (SD-LAN) or via cloud-enabled web GUI as well as via cloud-enabled CLI.

Produktbeskrivelse	LANCOM XS-5110F - switch - 10 porte - Administreret - monterbar på stativ
Enhedstype	Switch - 10 porte - L3 - Administreret - kan stables
Pakningstype	Monterbar på stativ 1U
Undertype	10 Gigabit Ethernet
Porte	8 x 1 Gigabit / 10 Gigabit SFP+ + 2 x 1/2.5/5/10GBase-T
Præstation	Forsinkelse: 4 µs Bagplanshastighed: 200 Gbps Pakkegennemløb: 148 Mpps
Kapacitet	Taggede VLANs: 4096 Aktive VLANer: 4000 IGMP multicast-grupper: 1024
MAC adresse table størrelse	32K indtastningshukommelse
Jumborammesupport	12.000 byte
Routingprotokol	IGMPv2, IGMP, IGMPv3, statisk IPv4 routing, statisk IPv6 routing, police-baseret routing (PBR), MLDv2, MLD
Protokol til fjernadministration	SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI, SCP, ICMP, DHCP
Egenskaber	Datatransport, IGMP snooping, portspejling, gem og send, Broadcast Storm Control, IPv6 understøttet, Multicast Storm Control, Unicast Storm Control, firmware kan opgraderes, SNTP-understøttet, STP support, RSTP support, MSTP support, DHCP snooping, ACL support, QoS, DHCP server, MDL snooping, DAI, Cable Diagnostics Function, UDLD, IPv4 support, LACP support, LLDP support, DHCP videresendelse, LACP, Port Security, SNMP fælde, DHCP klient, MIB, dobbelt firmware-billeder, portisolering, FEC, mærket VLAN, sFlow v5, GVRP, IGMP proxy, sky-administreret, metalkabinet, PTP, DSCP support, 2 blæsere, IP-kildebekyttelse, ICMP, MIB II, IF MIB, IGMP-forespørger, Voice VLAN, PVE, LLDP-MED, Guest VLAN, DoS protection, ARP spoofing, SD-LAN support
Overensstemmelsesstandarder	IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1v, IEEE 802.1as, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.1Qbb, IEEE 1588v2, IEEE 802.1Qat, IEEE 802.3bj, IEEE 802.1Qav
Effekt	AC 120/230 V (50/60 Hz)
Dimensioner (B x D x H)	44.2 cm x 30 cm x 4.4 cm
Vægt	4.9 kg
Producentgaranti	5 års garanti

Generelt
Enhedstype	Switch - 10 porte - L3 - Administreret - kan stables
Pakningstype	Monterbar på stativ 1U
Undertype	10 Gigabit Ethernet
Porte	8 x 1 Gigabit / 10 Gigabit SFP+ + 2 x 1/2.5/5/10GBase-T
Præstation	Forsinkelse: 4 µs Bagplanshastighed: 200 Gbps Pakkegennemløb: 148 Mpps
Kapacitet	Taggede VLANs: 4096 Aktive VLANer: 4000 IGMP multicast-grupper: 1024
MAC adresse table størrelse	32K indtastningshukommelse
Jumborammesupport	12.000 byte
Routingprotokol	IGMPv2, IGMP, IGMPv3, statisk IPv4 routing, statisk IPv6 routing, police-baseret routing (PBR), MLDv2, MLD
Protokol til fjernadministration	SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI, SCP, ICMP, DHCP
Krypterings algoritme	MD5, SSL
Autentificeringsmetode	Secure Shell (SSH), RADIUS, TACACS+
Egenskaber	Datatransport, IGMP snooping, portspejling, gem og send, Broadcast Storm Control, IPv6 understøttet, Multicast Storm Control, Unicast Storm Control, firmware kan opgraderes, SNTP-understøttet, STP support, RSTP support, MSTP support, DHCP snooping, ACL support, QoS, DHCP server, MDL snooping, DAI, Cable Diagnostics Function, UDLD, IPv4 support, LACP support, LLDP support, DHCP videresendelse, LACP, Port Security, SNMP fælde, DHCP klient, MIB, dobbelt firmware-billeder, portisolering, FEC, mærket VLAN, sFlow v5, GVRP, IGMP proxy, sky-administreret, metalkabinet, PTP, DSCP support, 2 blæsere, IP-kildebekyttelse, ICMP, MIB II, IF MIB, IGMP-forespørger, Voice VLAN, PVE, LLDP-MED, Guest VLAN, DoS protection, ARP spoofing, SD-LAN support
Overensstemmelsesstandarder	IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1v, IEEE 802.1as, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.1Qbb, IEEE 1588v2, IEEE 802.1Qat, IEEE 802.3bj, IEEE 802.1Qav
Statusindikatorer	System, link/aktivitet, blæser, stabel
Ekspansion / Konnektivitet
Interface	8 x 1/10Gbit LAN SFP+ 2 x 1/2.5/5/10GBase-T RJ-45 1 x administration (mikro-USB) 1 x administration (RS-232) RJ-45 1 x USB Type A
Effekt
Strømenhed	Intern strømforsyning
Nødvendig spænding	AC 120/230 V (50/60 Hz)
Strømforbrug ved drift	34 Watt
Strømforbrugs-stand by	20 Watt
Diverse
Medfølgende ledninger	1 x serielt kabel - 1.5 m 1 x micro-USB kabel - 1.5 m
Rackmonteringspakke	Inkluderet
Overensstemmelsesstandarder	EN55024, FCC CFR47 Part 15 A, EN 62368-1, EN 55032
Mål og vægt
Bredde	44.2 cm
Dybde	30 cm
Højde	4.4 cm
Vægt	4.9 kg
Producentgaranti
Service & Support	Begrænset garanti - 5 år
Miljømæssige parametre
Min. driftstemperatur	0 °C
Maks. driftstemperatur	40 °C
Fugtighedsgrad ved brug	10 - 90 % (ikke-kondenserende)
