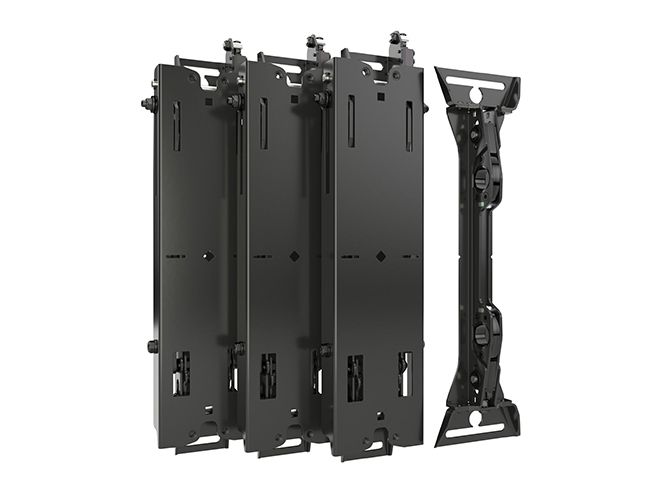

Chief FCAXV1U pull-out mount for XSM1U, Fusion Extra-Large 55"-100" 113 kg
Item no.: [6508603] | Manufacturer: Chief | Model no.: FCAXV1U | EAN: 0841872175379
In stock
In stock, order before 3 PM and we ship today (weekdays) More info
SPECIAL OFFER
There are 1 in stock
The current price is valid as long as the local stock lasts
Delivery options - Select at checkout
Shipping @price - GLS
12,00
EUR
416,97
Incl. VAT 521,21
Total incl. delivery
536,21
Add to list
The function requires that you are logged in. Create a user and use our smart list system to keep track of future purchases, regular purchases or wish lists.
Send på mail

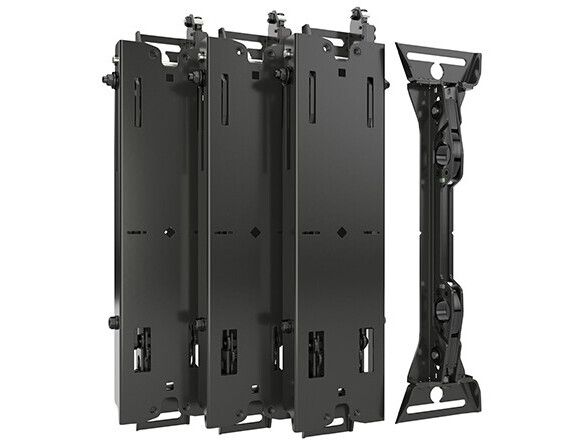

The Fusion® Extra-Large Pull Out accessory can be used with Fusion® Extra-Large Micro-Adjustable Fixed and Tilt wall mounts, to add up to 11.54" (293 mm) extension from the wall.

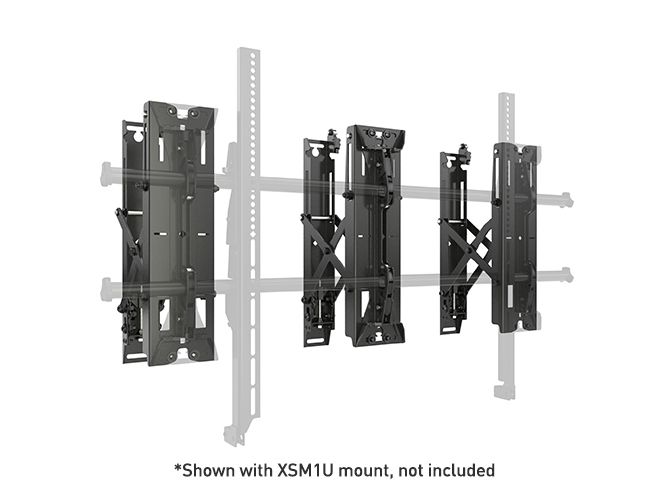

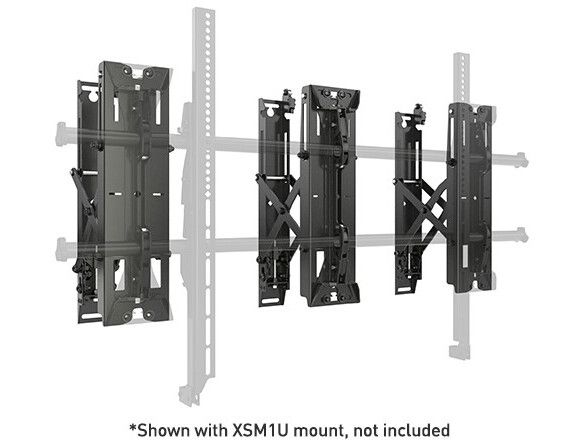

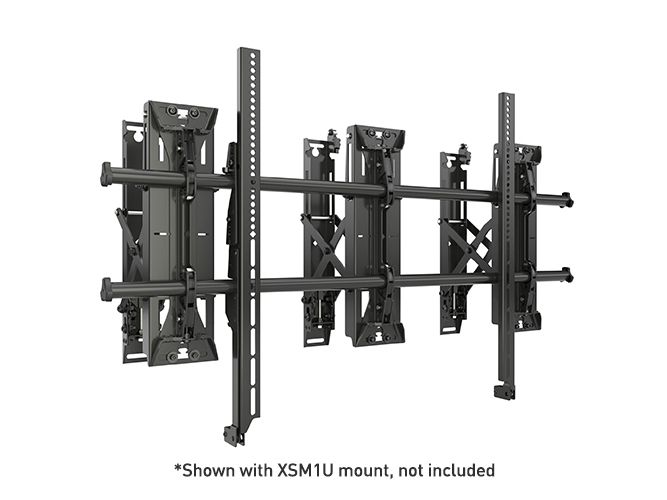

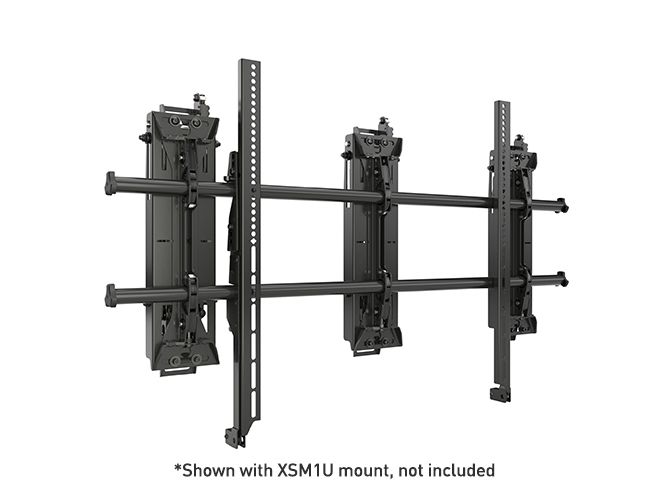

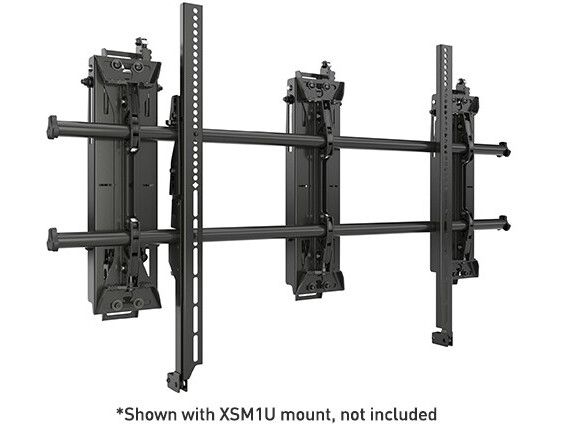

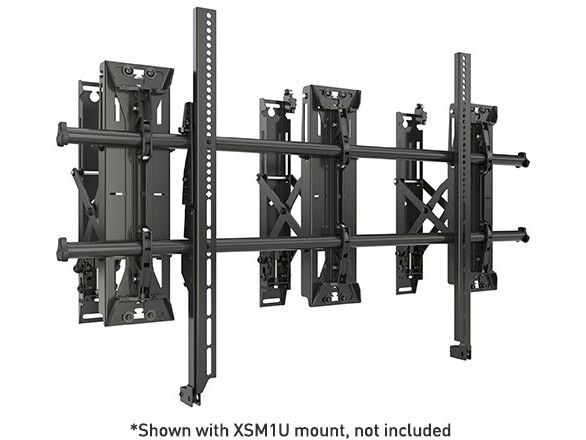

Compatible display mount models are XSM1U and XTM1U.

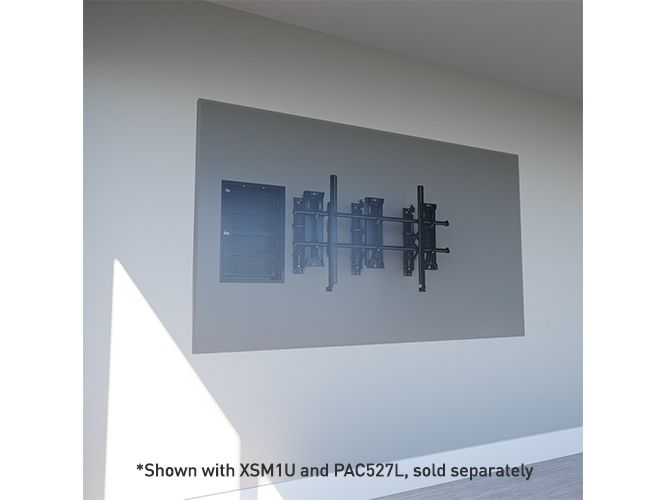

Optionally install Chief storage solutions such as the PAC526 in-wall box or on-wall CSPR component storage panel to secure AV equipment behind the display.
Up to 11.54” (293 mm) extension when combined with Fusion mount - great for recessed applications
Scissor assembly extends out up to 9.5"
Plumb adjust to keep display in line with the wall
Latch to secure mount in home position
Compatible with Fusion Extra-Large Micro-Adjustable Fixed and Tilt mounts for installation of 80”+ displays (up to 250 lb / 113 kg)
Minimum Depth: Retracted depth without mount: 1.56" (39 mm)
FCAXV1U Weight Capacity
Mounting substrate
With XTM1U (lbs)
With XSM1U (lbs)
Triple 16"" on center steel stud
200
200
Triple 16"" on center wood stud
250
200
3/4"" Plywood backed steel stud
250
200
Solid Concrete block
250
200
Hollow Concrete block
250
200
Compatible display mount models are XSM1U and XTM1U.
Optionally install Chief storage solutions such as the PAC526 in-wall box or on-wall CSPR component storage panel to secure AV equipment behind the display.
Up to 11.54” (293 mm) extension when combined with Fusion mount - great for recessed applications
Scissor assembly extends out up to 9.5"
Plumb adjust to keep display in line with the wall
Latch to secure mount in home position
Compatible with Fusion Extra-Large Micro-Adjustable Fixed and Tilt mounts for installation of 80”+ displays (up to 250 lb / 113 kg)
Minimum Depth: Retracted depth without mount: 1.56" (39 mm)
