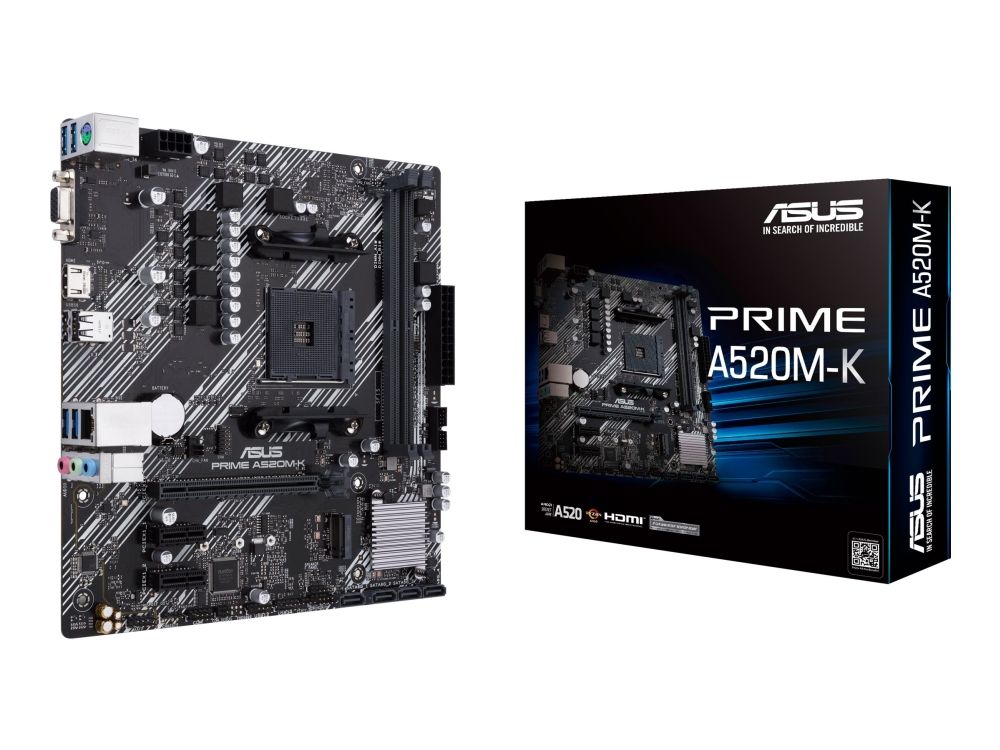

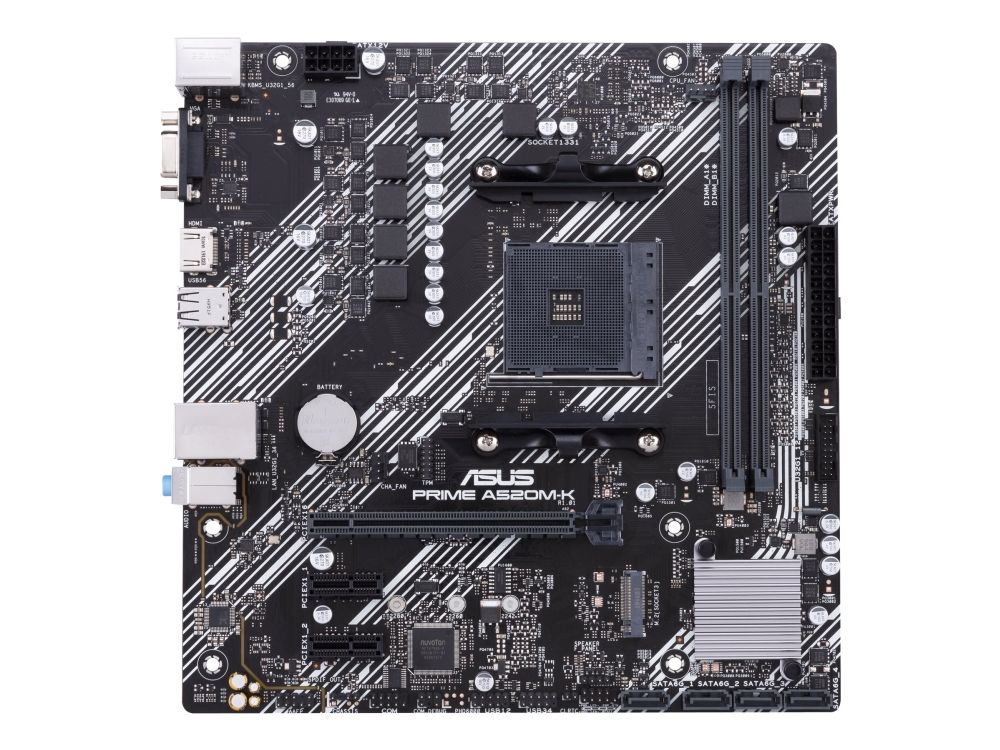

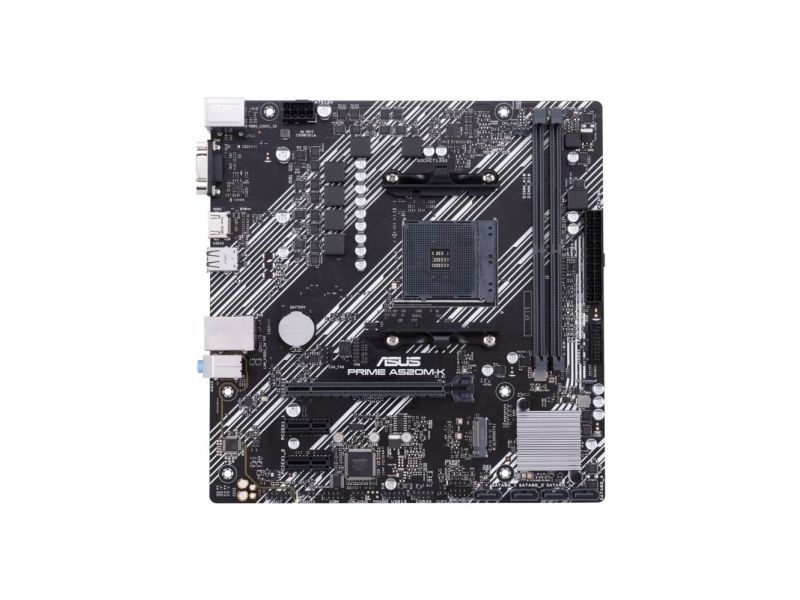

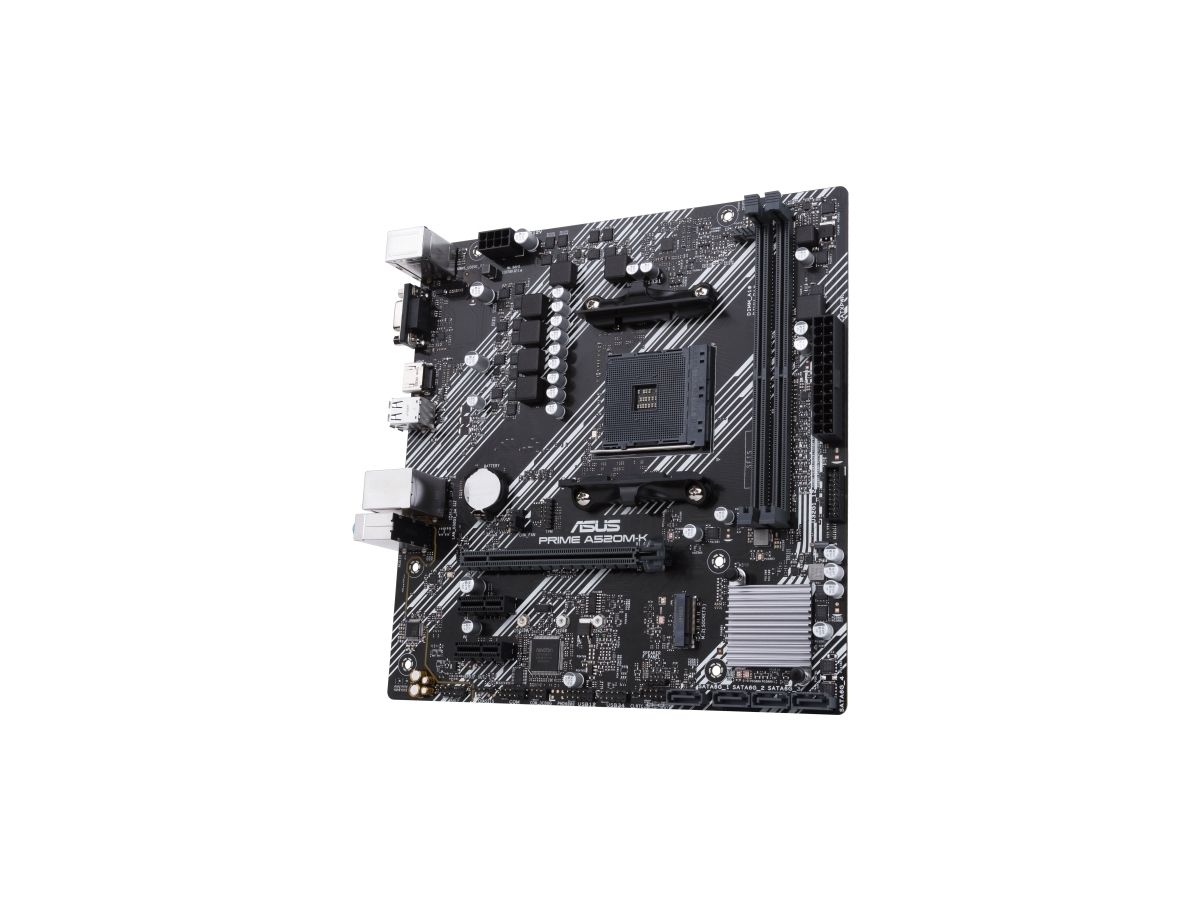

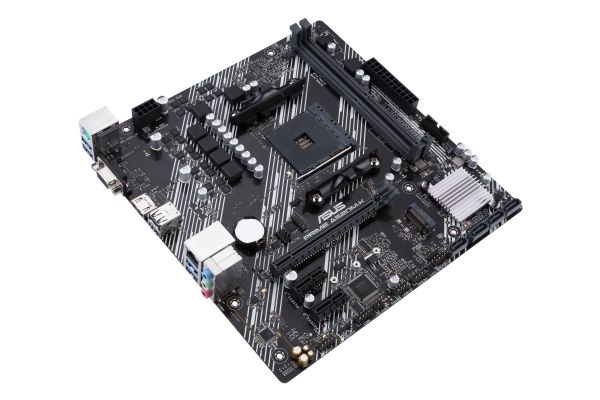

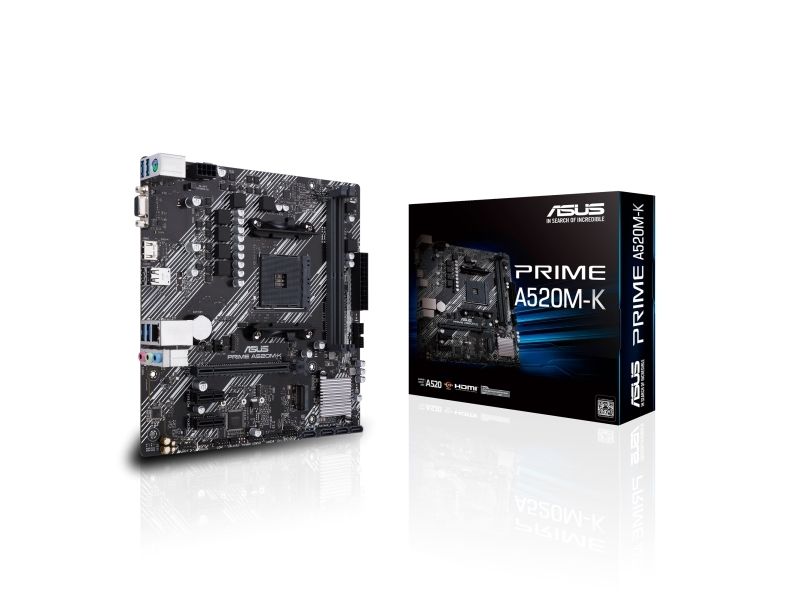

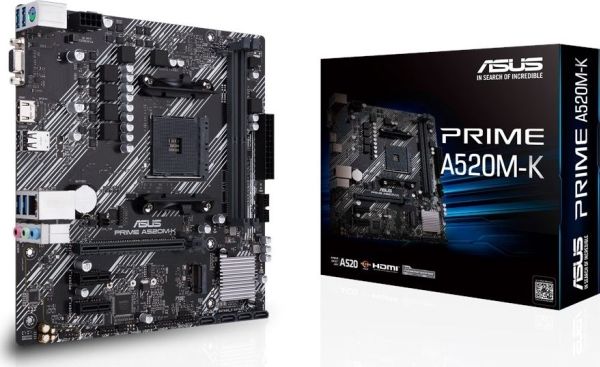

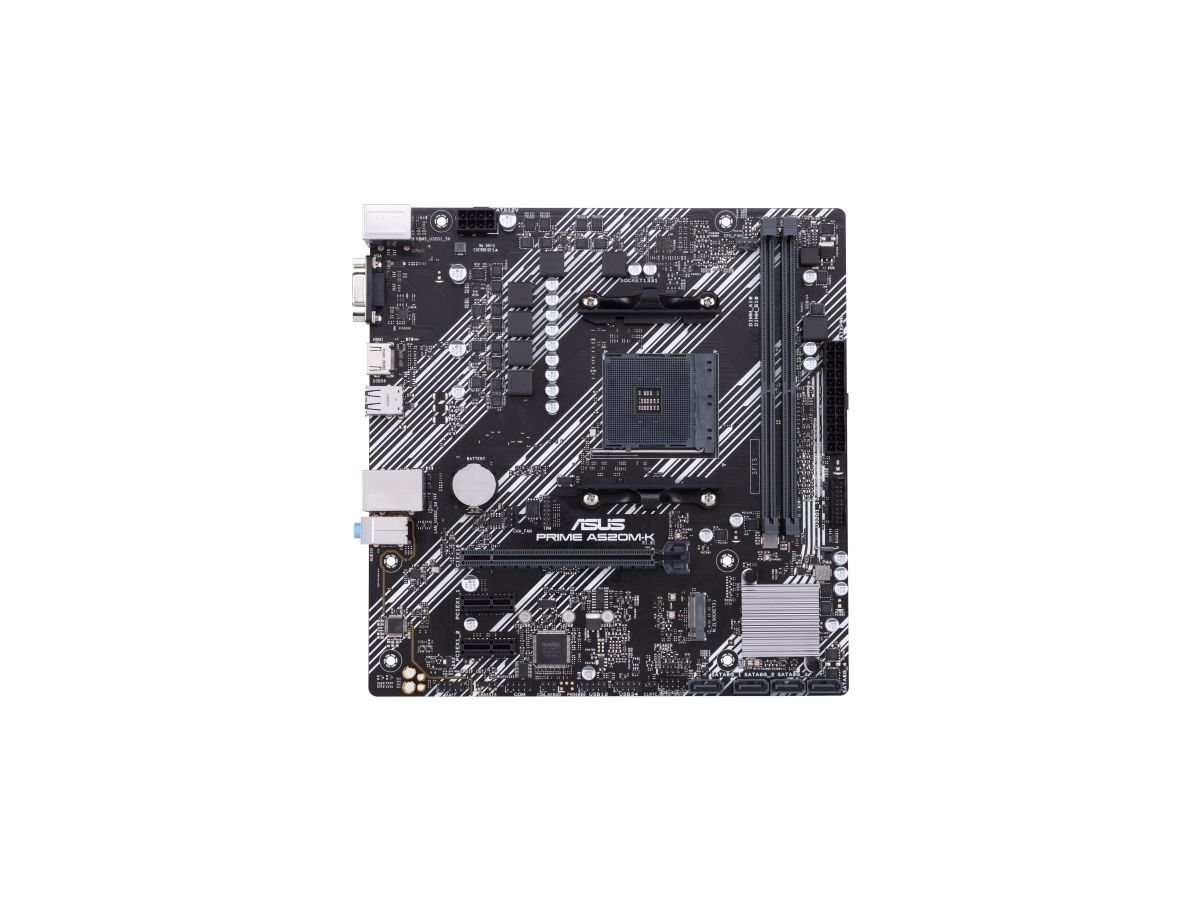

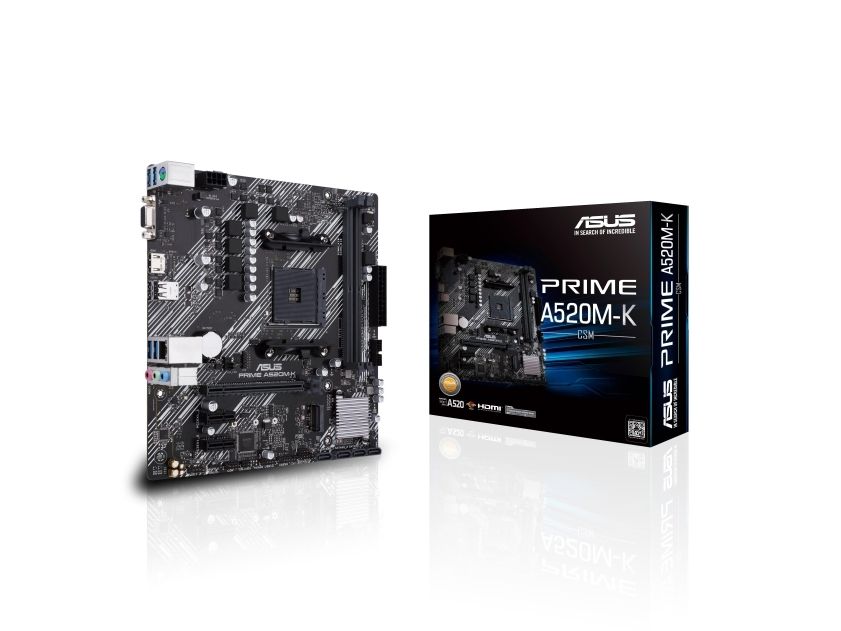

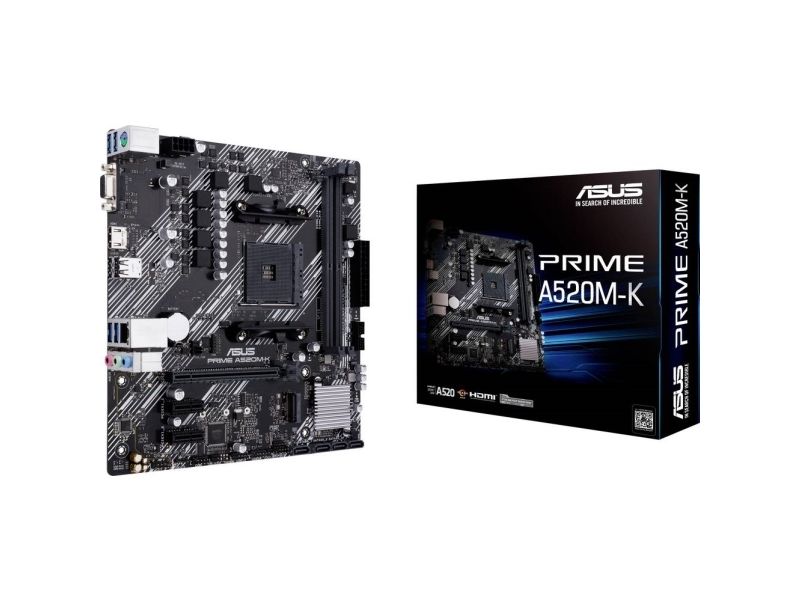

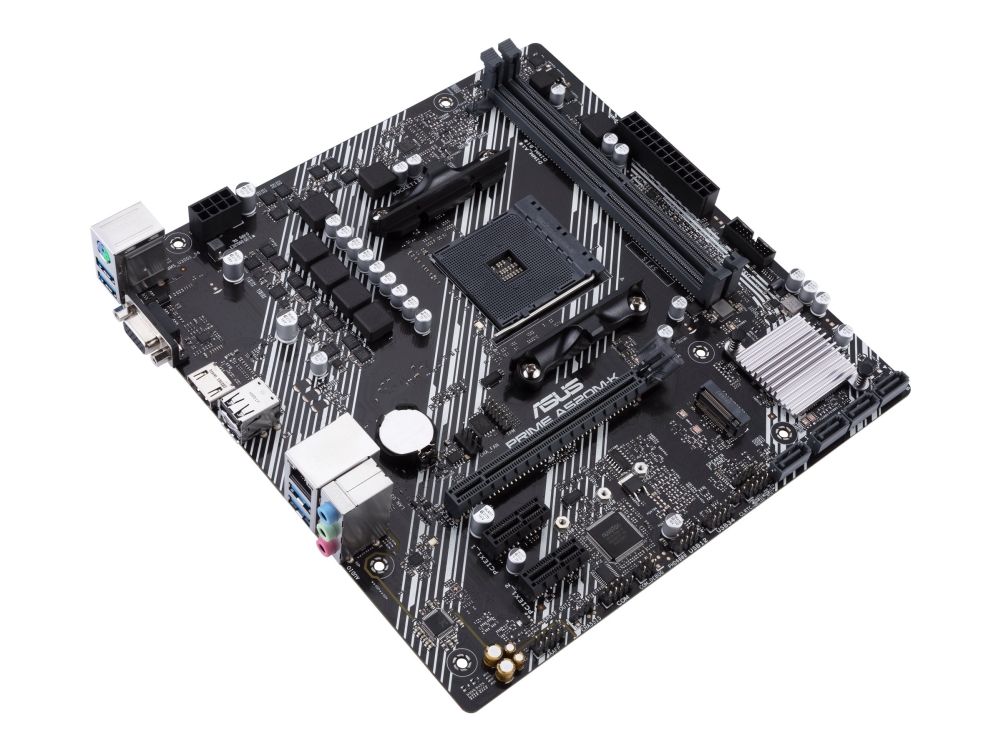

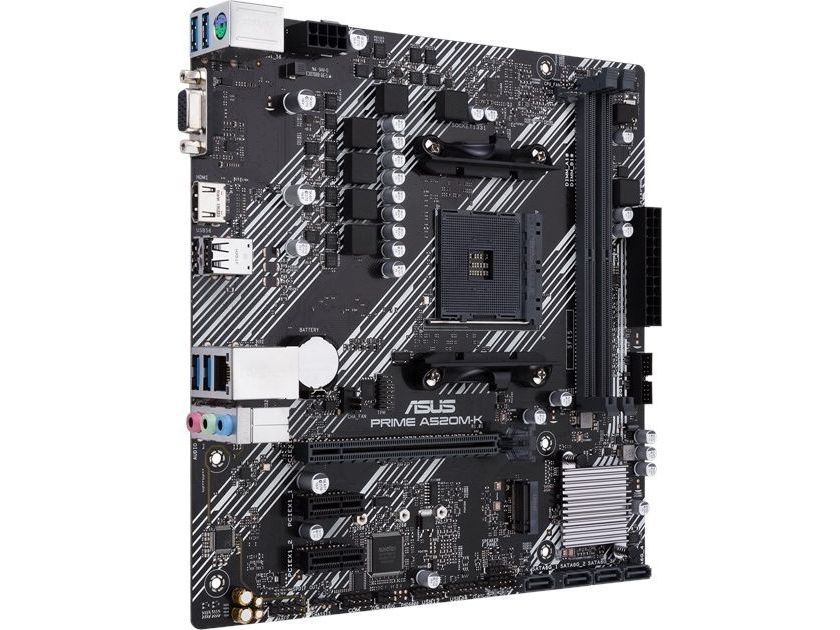

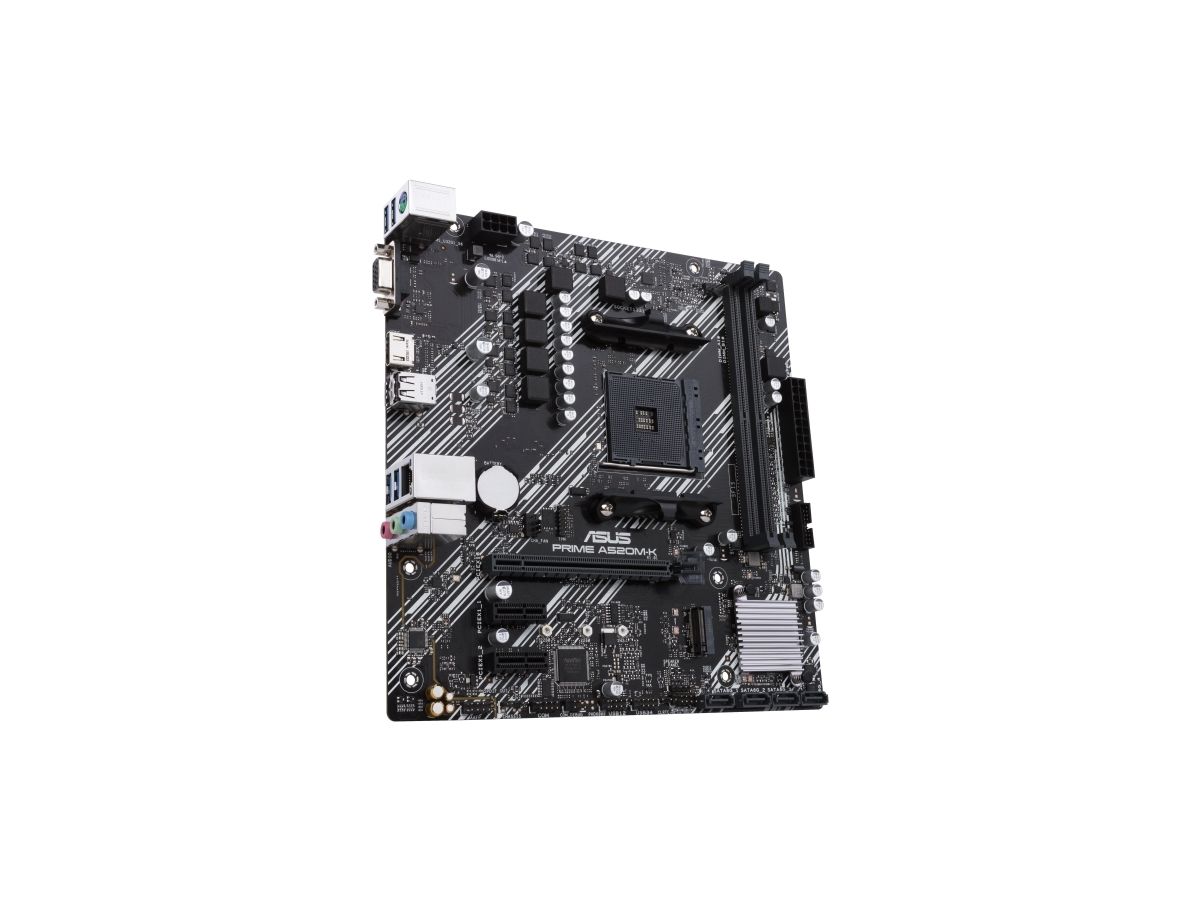

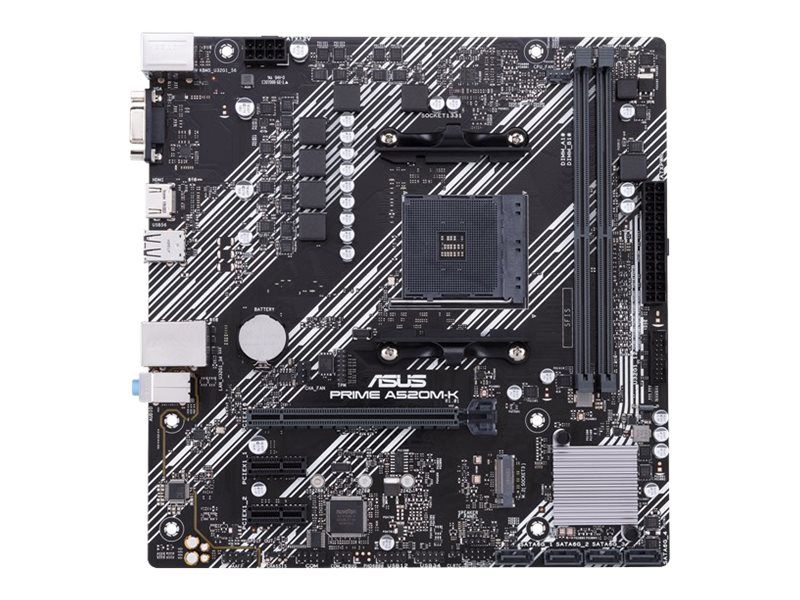

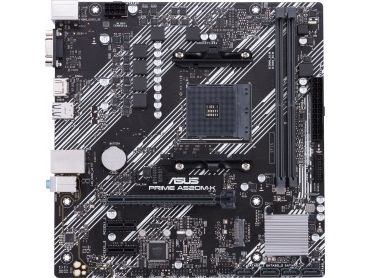

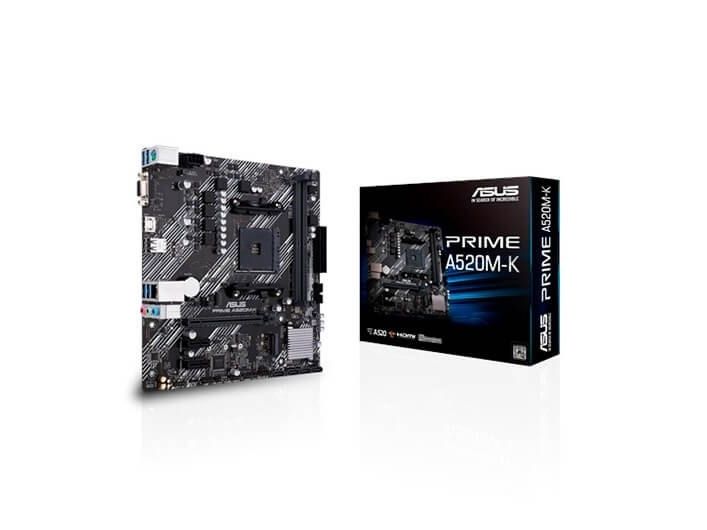

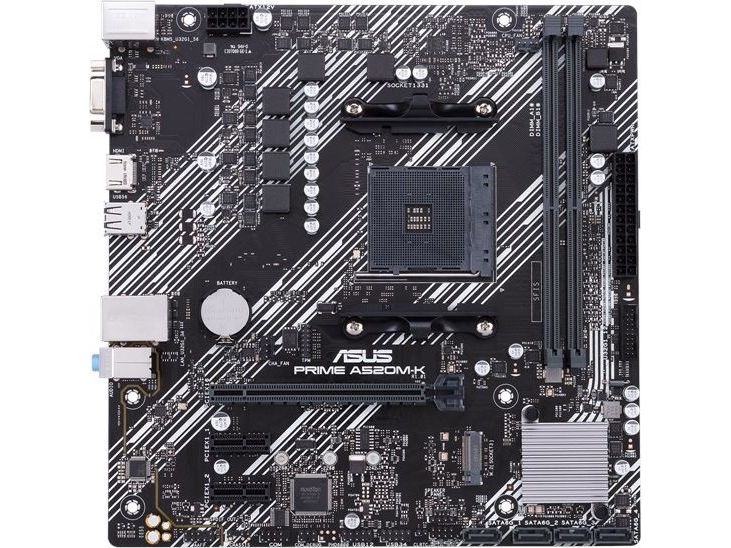

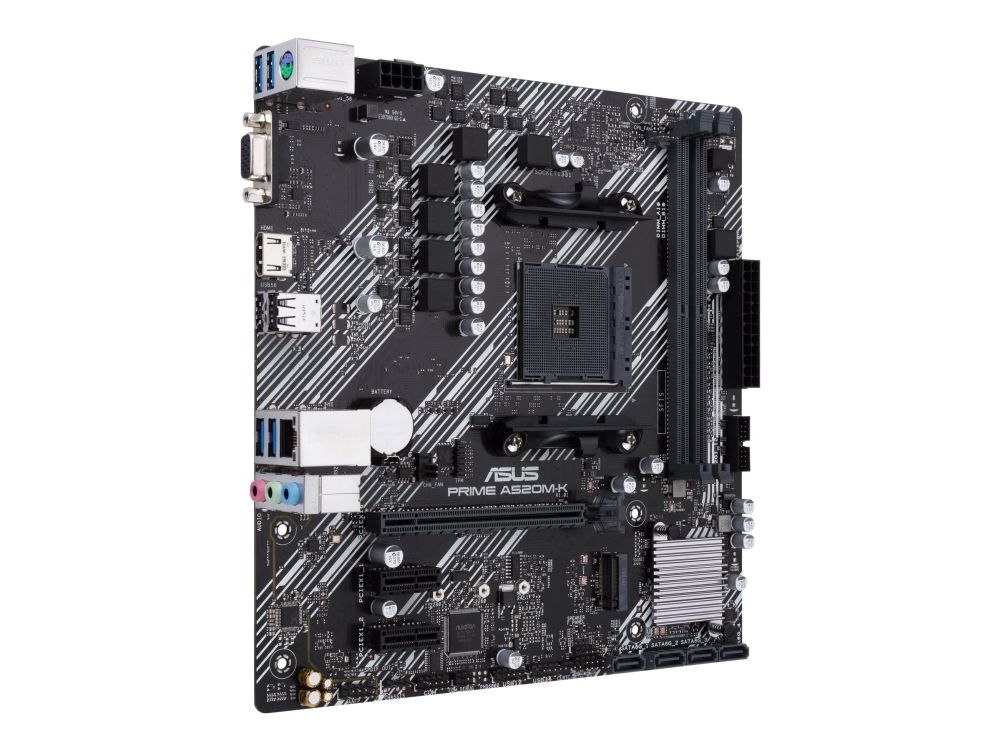

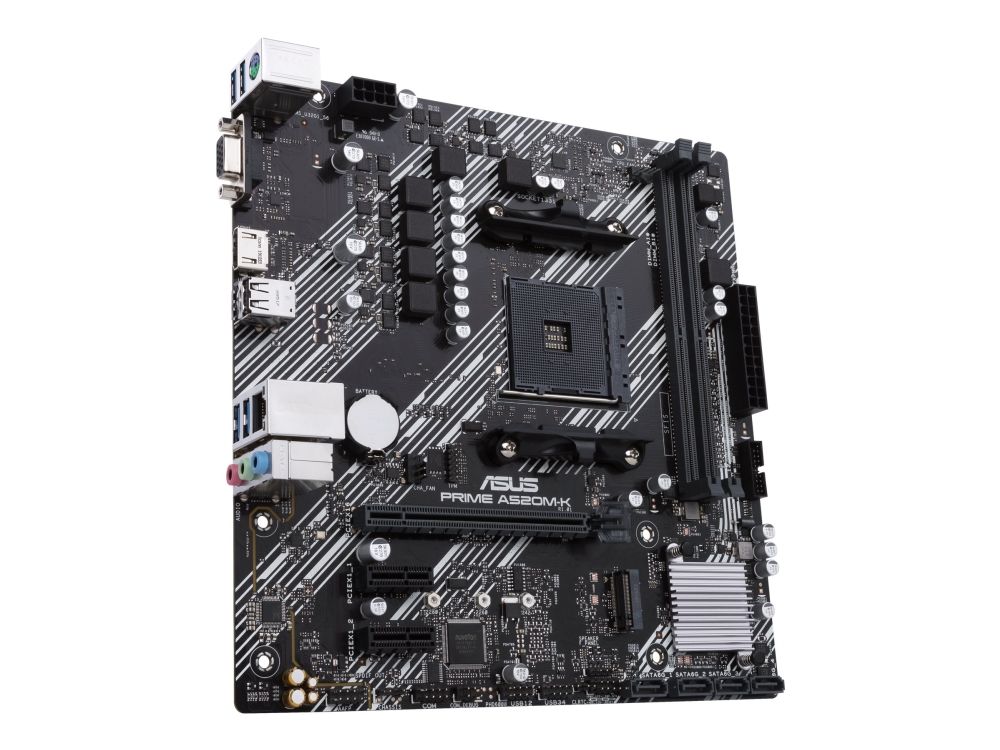

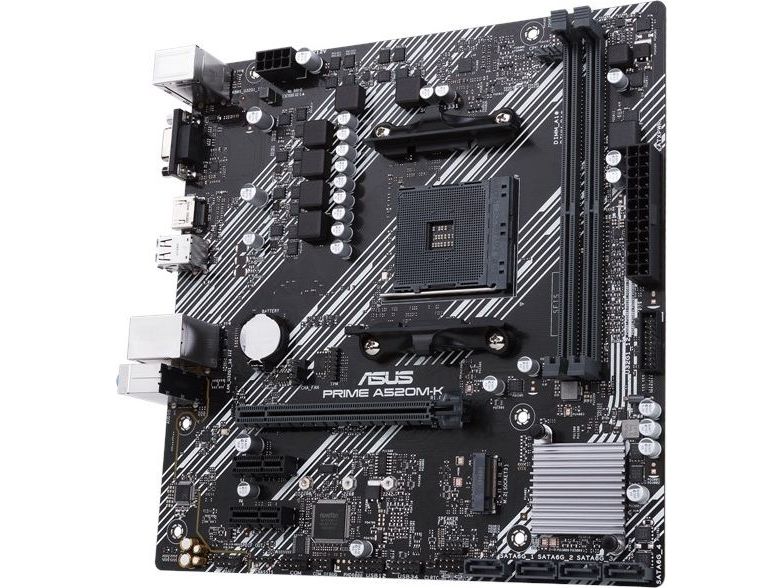

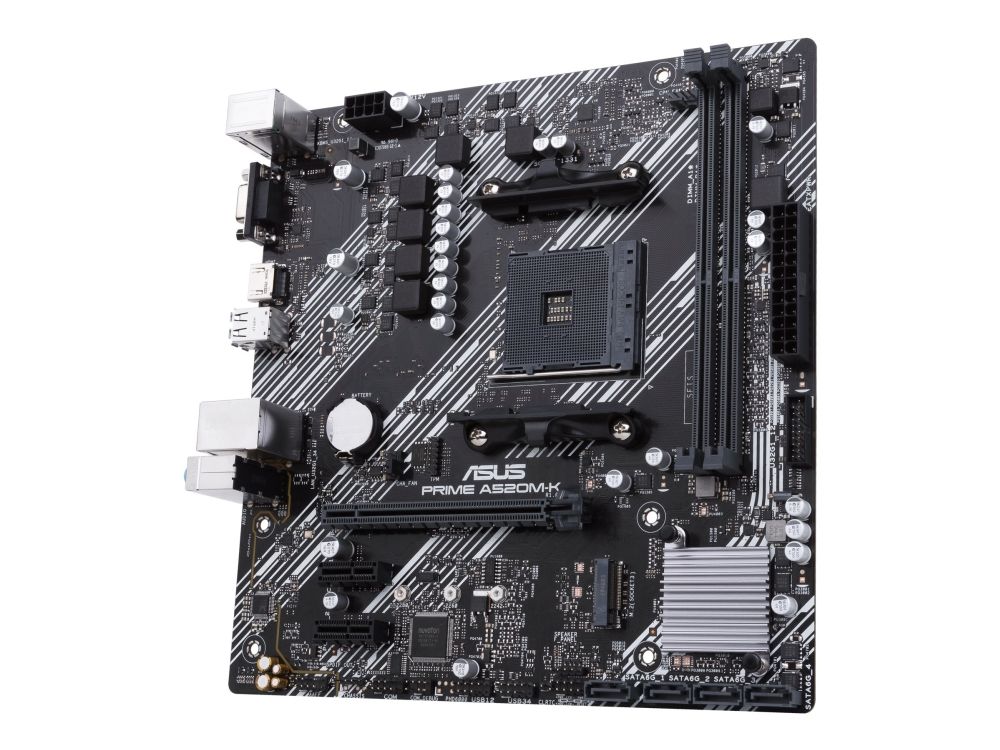

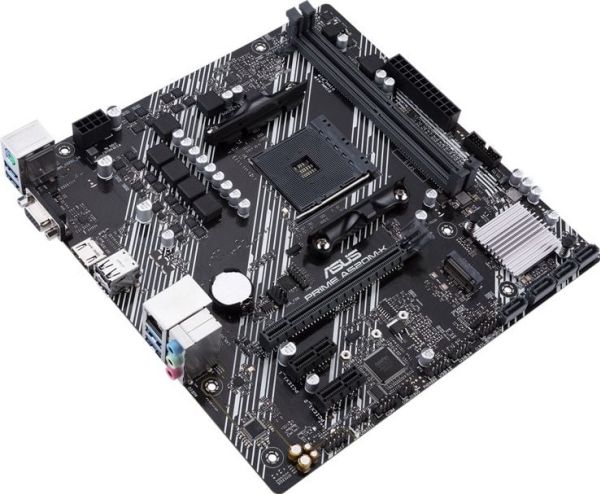

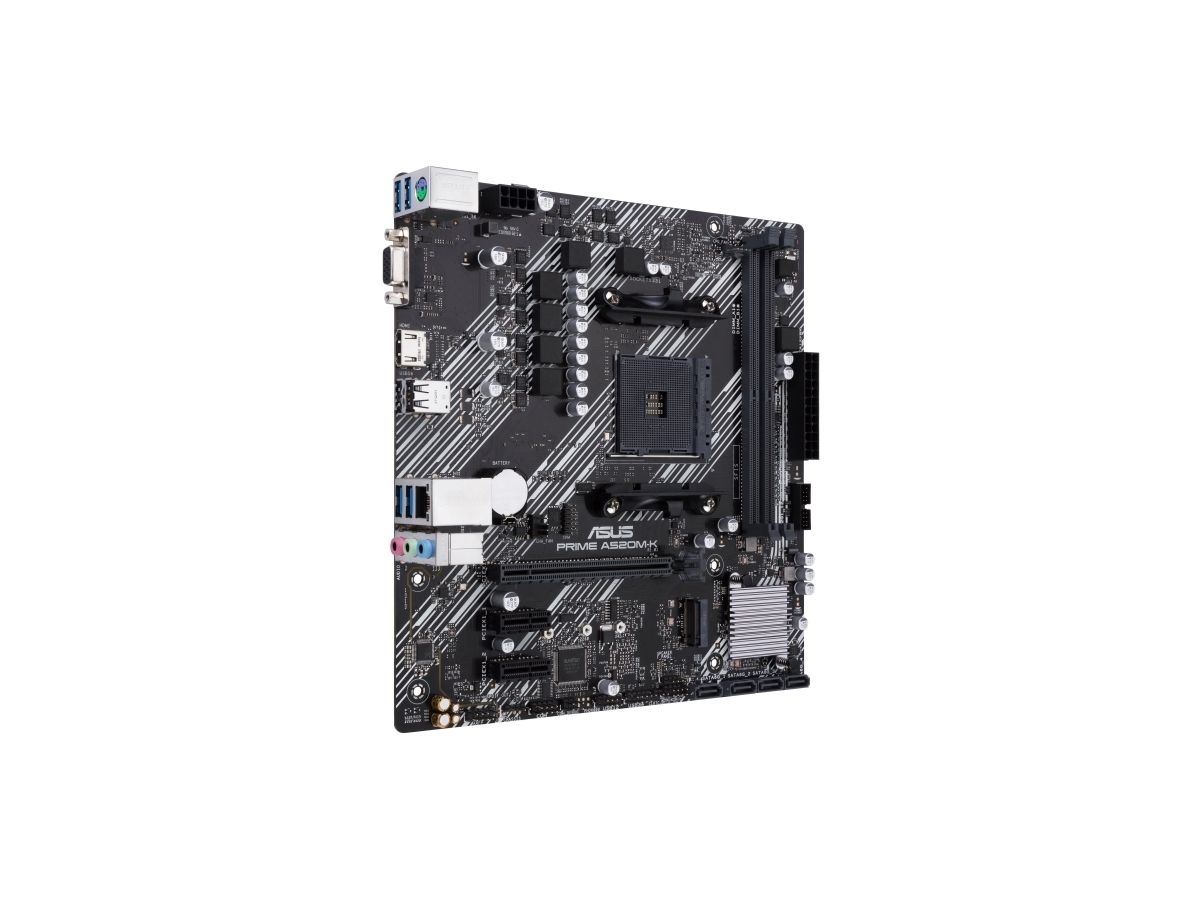

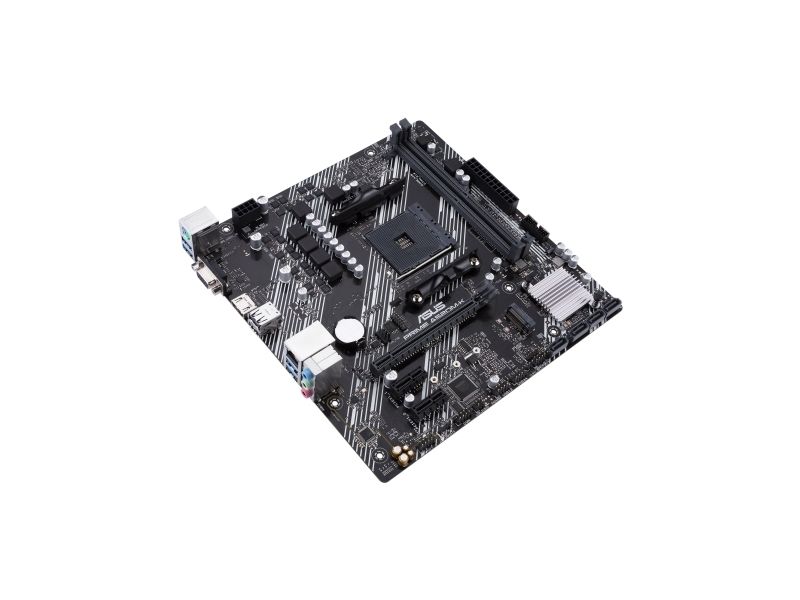

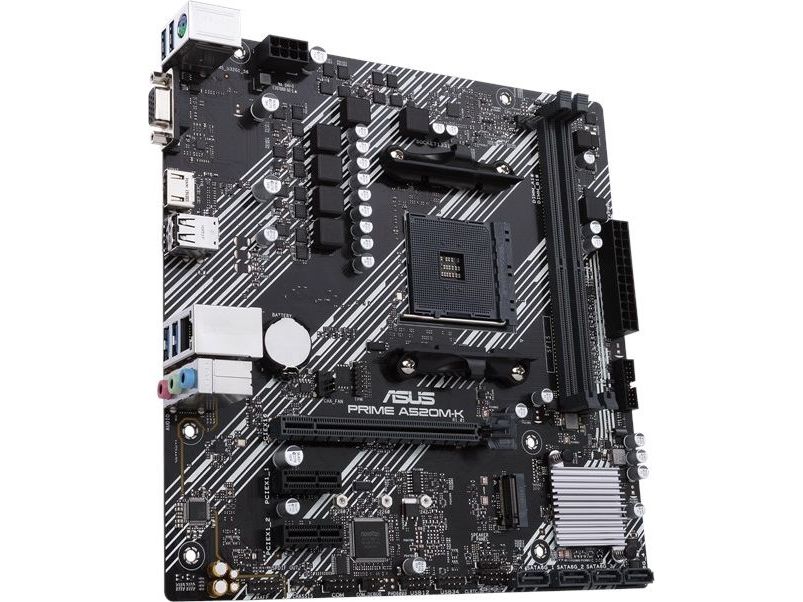

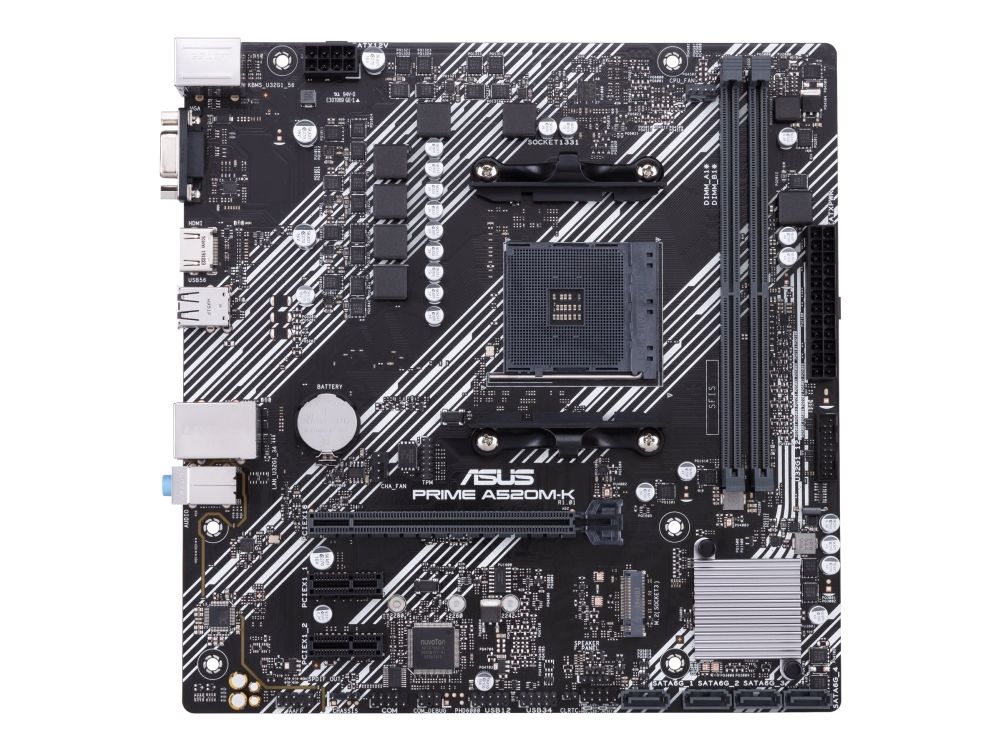

ASUS PRIME A520M-K, AMD, Socket AM4, AMD Ryzen™ 3, AMD Ryzen™ 5, AMD Ryzen™ 7, Socket AM4, DDR4-SDRAM, 64 GB

Item no.: [6572263] | Manufacturer: ASUS | Model no.: PRIME A520M-K | EAN: 4718017826921

Remote stock (3-5 days)

The item is in a remote warehouse, delivery time is 3-5 business days. More info

EUR 71,04

ex. VAT 56,83

Total incl. delivery 86,04

Read further specifications and description

Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime A520 series motherboards provide daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features.

Produktbeskrivelse	ASUS PRIME A520M-K - bundkort - micro ATX - Socket AM4 - AMD A520
Produkttype	Bundkort - micro ATX
Chipsættype	AMD A520
Processor-socket	1 x Socket AM4
Kompatible processorer	Ryzen (understøtter 3. Generation Ryzen /3. Generation Ryzen med Radeon Graphics)
Max RAM-størrelse	64 GB
RAM understøttet	2 DIMM slots - DDR4, ECC, ikke-ECC, ikke bufferet
Lagringsporte	4 x SATA-600 (RAID), 1 x M.2
USB / FireWire porte	4 x USB 3.2 Gen 1 + 2 x USB 2.0 + (2 x USB 3.2 Gen 1 + 4 x USB 2.0 via samlekasser)
Audio	HD Audio (8-kanaler)
LAN	Gigabit Ethernet

Generelt
Produkttype	Bundkort - micro ATX
Chipsættype	AMD A520
Processor-socket	Socket AM4
Max antal processorer	1
Kompatible processorer	Ryzen (understøtter 3. Generation Ryzen /3. Generation Ryzen med Radeon Graphics)
Understøttet RAM
Maks. størrelse	64 GB
Teknologi	DDR4
Bus Clock	2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 3200 MHz, 3333 MHz (O.C.), 3466 MHz (O.C.), 3600 MHz (O.C.), 3733 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4400 MHz (O.C.), 4600 MHz (O.C.)
Understøttet RAM-integritetskon	ECC, ikke-ECC
Registreret eller buffer	Ikke bufferet
Egenskaber	Dobbelt kanal hukommelses arkitektur
Audio
Type	HD Audio (8-kanaler)
Audio codec	Realtek ALC887
Overensstemmelsesstandarder	High Definition Audio
LAN
Netværk controller	Realtek RTL8111H
Netværks interfaces	Gigabit Ethernet
Ekspansion / Konnektivitet
Ekspansionsåbninger	1 x CPU 2 x DIMM 288-pins 1 x PCIe 3.0 x16 2 x PCIe 3.0 x1
Grænseflade (lagring)	SATA-600 -stikforbindelser: 4 x 7pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 SATA-600 / PCIe 3.0 -stikforbindelser: 1 x M.2

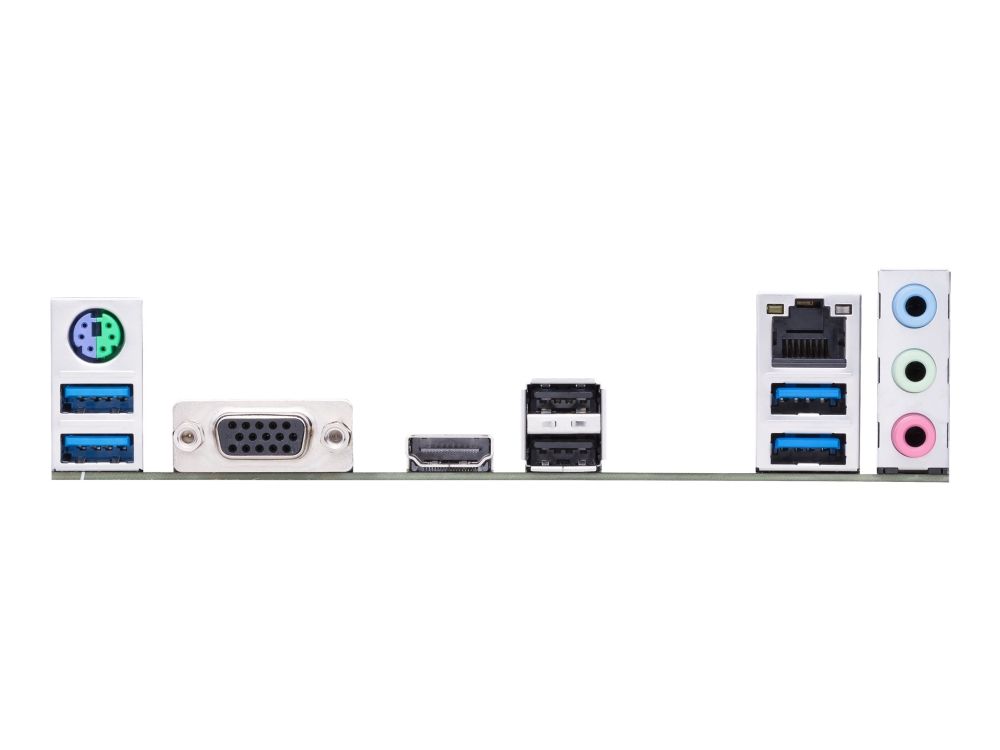

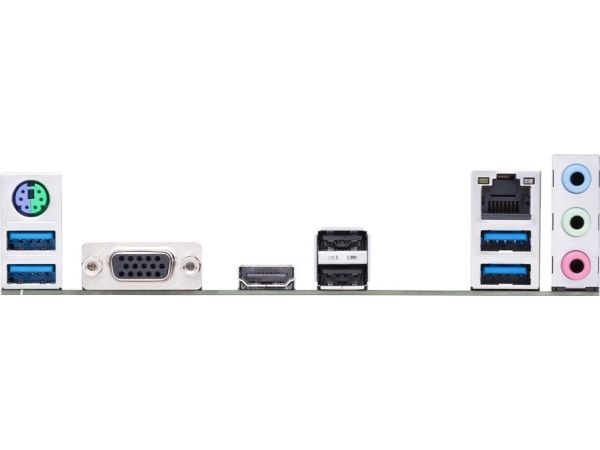

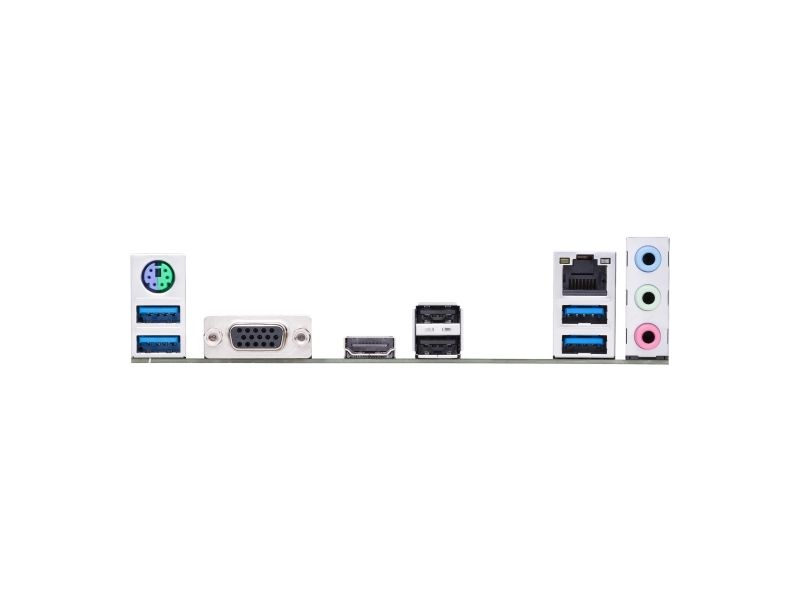

Interface	1 x VGA 4 x USB 3.2 Gen 1 1 x HDMI 1 x audio linje-ud - mini-jack 1 x mikrofon - mini-jack 1 x audio linje-ind - mini-jack 1 x PS/2-tastatur/mus 2 x USB 2.0 1 x LAN (Gigabit Ethernet)
Interne interfaces	4 x USB 2.0 - intern stik 2 x USB 3.2 Gen 1 - intern stik 1 x SPDIF ud - intern stik 1 x seriel - intern stik 1 x højttaler - intern stik 1 x audio - intern stik
Strømkontakter	24-pin hovedstrøm-konnektor, 8-pin ATX12V-kontakt
Egenskaber
BIOS-type (Basic Input/Output System)	AMI
BIOS-egenskaber	UEFI BIOS, ASUS EZ Flash 3
Sov/ Vågn	Aktivering af LAN (wake on LAN = WOL), vågn på PME
Hardware egenskaber	Preboot eXecution Environment (PXE), LANGuard, jack retasking, audio jack detektions teknologi, Armoury Crate, ASUS TurboV EVO, ASUS EPU (Energy Processing Unit), ASUS DIGI+ VRM, ASUS Fan Xpert, ASUS EZ DIY, CrashFree BIOS 3, ASUS 5X Protection III, ASUS Overvoltage Protection, ASUS Stainless Steel Back I/O, ASUS Q-Design, Q-DIMM, Q-Slot, Lighting Control, ASUS SafeSlot Core
Diverse

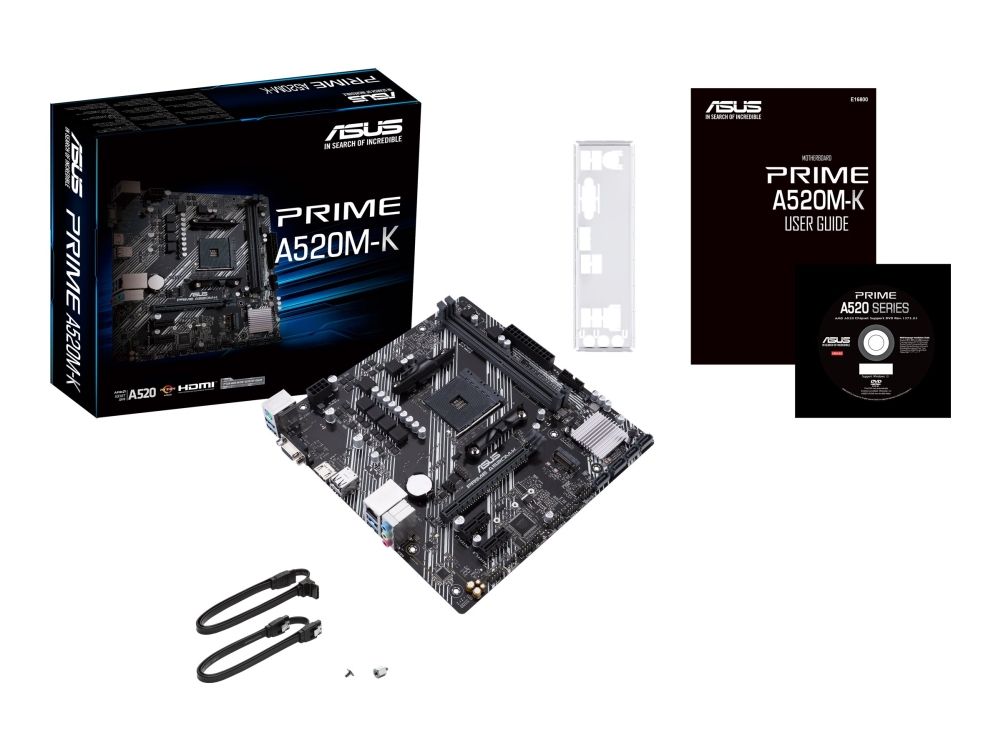

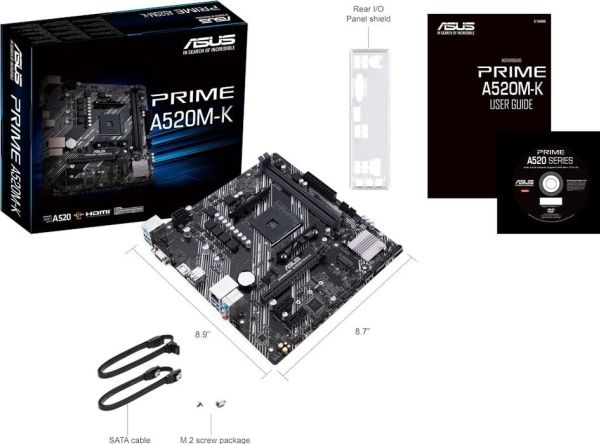

Udstyr inkluderet	I/O-bagdække, 1 x M.2 skrue
Medfølgende ledninger	2 x Seriel ATA kabel
Med software	Drivers & Utilities, ASUS AI Suite III, ASUS AI Charger, ASUS CPU-Z, DAEMON Tools, WinRAR, Norton AntiVirus (60 dages prøvetid), ASUS EZ Flash 3, ASUS EZ Update
Bredde	22.6 cm
Dybde	22.1 cm

The item is known under the following item numbers in our system

EAN:	4718017826921
SKU:	90MB1500-M0EAY0
SKU:	4718017826921
SKU:	AC90MB1500-M0EAY0
