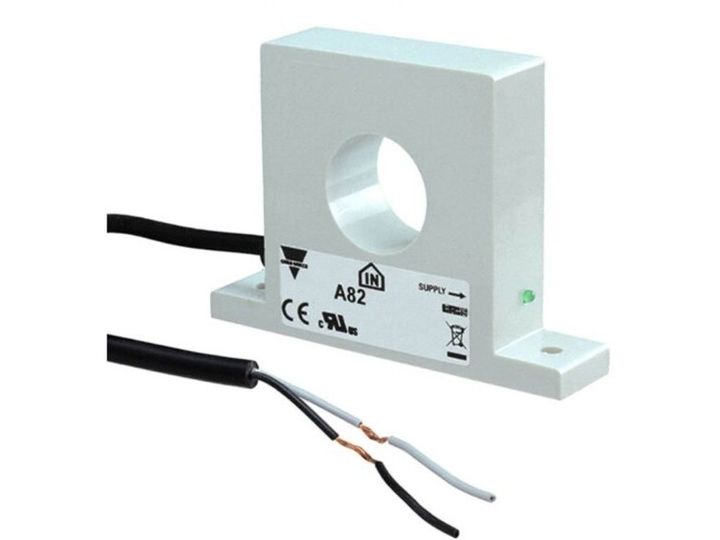

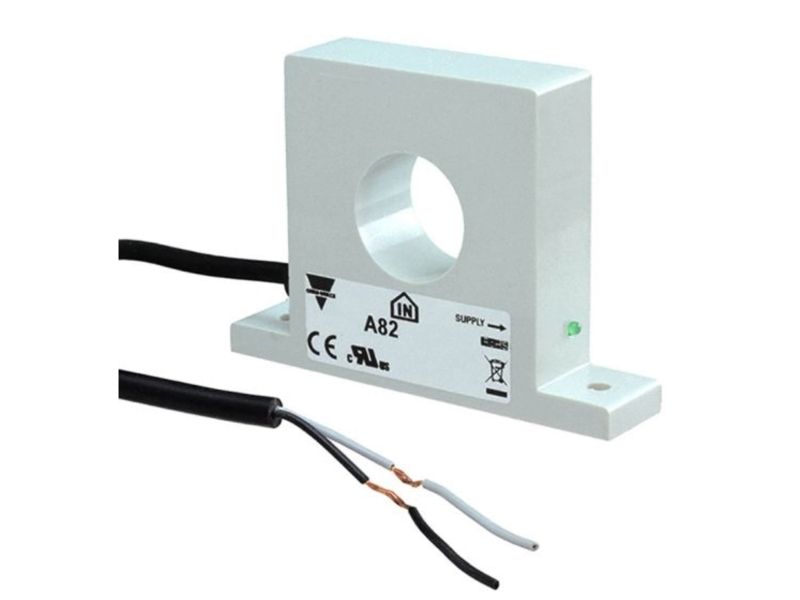

Carlo Gavazzi Automation A82 Series Current Transformer Current Transformer, 100A Input, 100A, 4 - 20 mA Output, 27mm Bore
Item no.: [6573297] | Manufacturer: CARLO GAVAZZI | Model no.: A82-20100 | EAN: 5709870048420 | EL-nr.: 7823302247
Remote stock (1-2 days)
The item is in a remote warehouse, delivery time is 1-2 business days. More info
Delivery options - Select at checkout
Shipping @price - GLS
12,00
EUR
190,68
Incl. VAT 238,35
Total incl. delivery
253,35
The function requires that you are logged in. Create a user and use our smart list system to keep track of future purchases, regular purchases or wish lists.
Create user
Login
Create user
Login
Send på mail
The Carlo Gavazzi true RMS AC current metering transformer for 250 AAC. Output current in accordance with IEC 60381-1 (A 82-10, A 82-20) or output voltage in accordance with IEC 60381-2 (A 82-30). A 82-10 and A 82-20 can be used with relays DIB01, PIB01, DIC01 or PIC01. A 82-30 can be used with DUB01, PUB01, DUB71, DUC01 or PUC01. All units can be directly connected to a PLC. Power supply ON is indicated by a green LED on the side of the housing.
5 types of input
Output areA 82-10 are 0 - 20 mADC (source), A 82-20 are 4 - 20 mADC (sink), A 82-30 are 0 - 10 VDC
Easy interface to PLC or setpoint relays
5 types of input
Output areA 82-10 are 0 - 20 mADC (source), A 82-20 are 4 - 20 mADC (sink), A 82-30 are 0 - 10 VDC
Easy interface to PLC or setpoint relays
