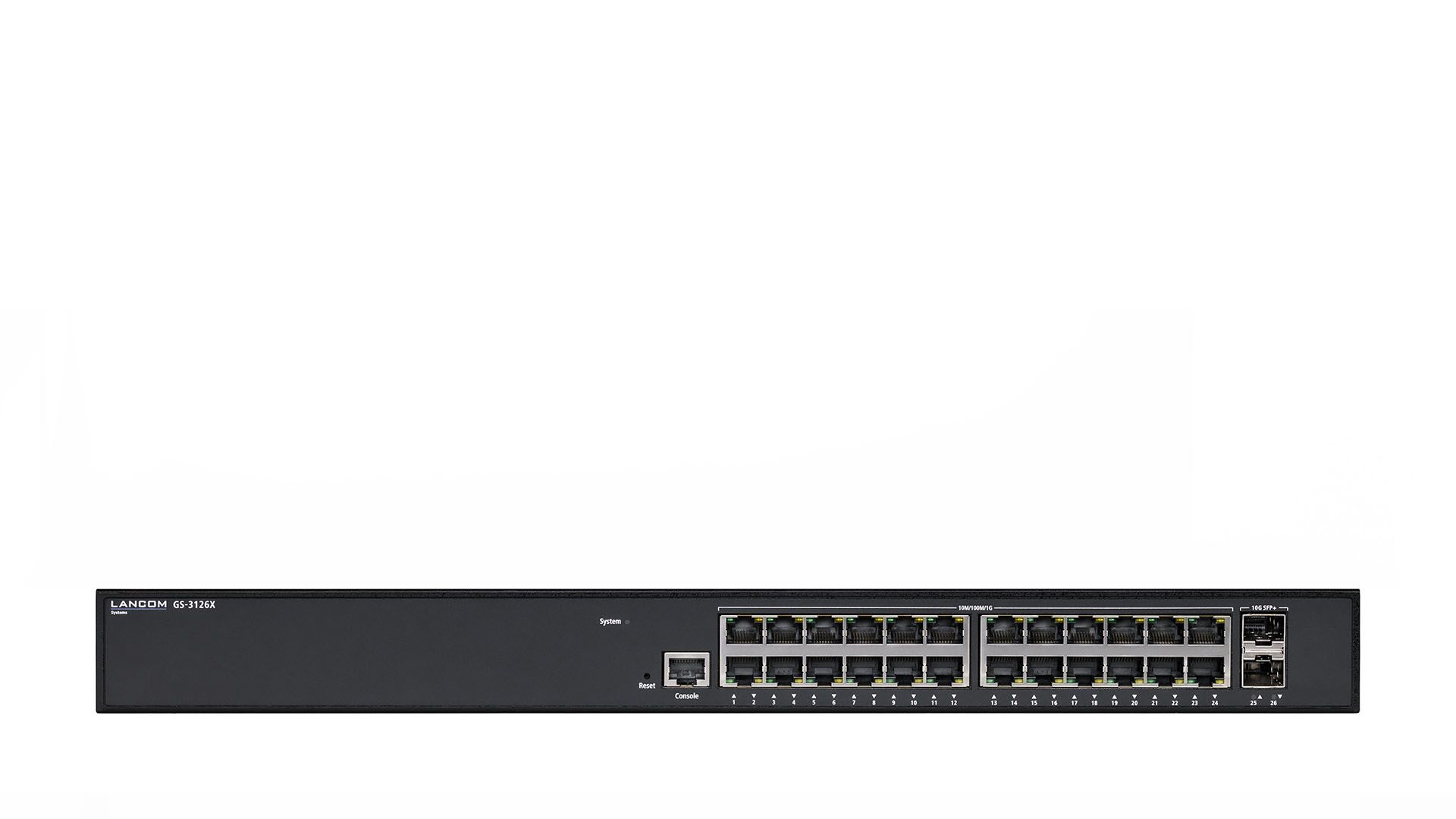

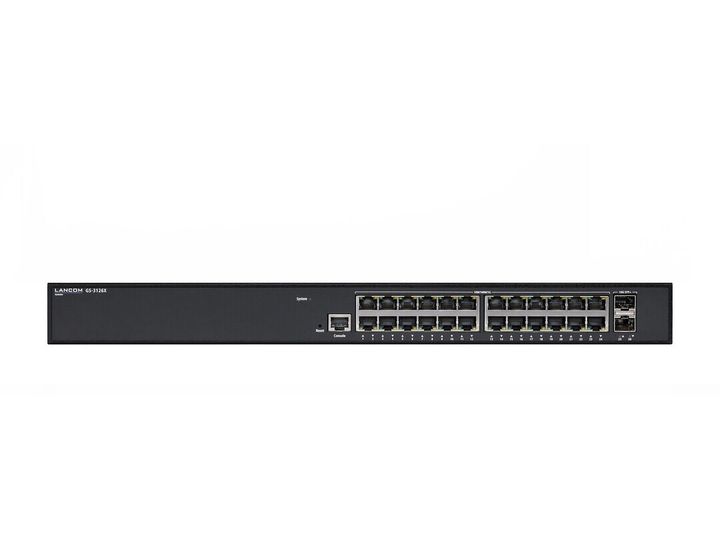

LANCOM GS-3126X, Managed, L3, Gigabit Ethernet (10/100/1000), Rack mounting, 1U

Item no.: [6577425] | Manufacturer: Lancom Systems | Model no.: 61847 | EAN: 4044144618475

Remote stock (2-3 days)

The item is in a remote warehouse, delivery time is 2-3 business days. More info

Shipping @price - GLS

12,00

EUR 772,60

Incl. VAT 965,75

Total incl. delivery 980,75

Read further specifications and description

In networking scenarios that require top performance at maximum cost efficiency, the LANCOM GS-3126X meets every demand for optimal price-performance ratio. 24 Gigabit Ethernet downlink ports paired with high-capacity 10G fiber (SFP+) uplink ports and basic layer-3 functions such as static routing and DHCP server provide intelligent management and numerous security functions in multi-component networks. Orchestrated via the LANCOM Management Cloud and SD-LAN, configuration is dynamic, automated, and efficient.

Produktbeskrivelse	LANCOM GS-3126X - switch - 24 porte - Administreret - monterbar på stativ
Enhedstype	Switch - 24 porte - L3 Lite - Administreret
Pakningstype	Monterbar på stativ 1U
Undertype	Gigabit Ethernet
Porte	24 x 10/100/1000 + 2 x 10 Gigabit SFP+ (uplink)
Præstation	Kapacitet: 88 Gbps Gennemløb (64-byte pakkestørrelse): 130 Mpps
Kapacitet	VLAN-mærkater: 4096 Aktive VLANer: 4000 IGMP multicast-grupper: 1024
MAC adresse table størrelse	32K indtastningshukommelse
Jumborammesupport	10240 byte
Routingprotokol	IGMPv2, IGMP, statisk IP routing, IGMPv3, MLD
Protokol til fjernadministration	SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SMON, SSH, CLI, ICMP
Egenskaber	Datatransport, VLAN-understøttet, portspejling, gem og send, Broadcast Storm Control, IPv6 understøttet, Multicast Storm Control, Unicast Storm Control, firmware kan opgraderes, SNTP-understøttet, sFlow, STP support, RSTP support, MSTP support, ACL support, DHCP server, MDL snooping, nulstillingsknap, IPv4 support, LLDP support, DHCP videresendelse, LACP, Port Security, portbaseret adgangsstyring, DHCP klient, Energy Efficient Ethernet, MIB, dobbelt firmware-billeder, NAC, CoS, mærket VLAN, GVRP, IGMP proxy, sky-administreret, metalkabinet, DSCP support, IP-kildebekyttelse, SCP, Link Aggregation, MIB II, IGMP-forespørger, VLAN Double Tagging (Q-in-Q), Voice VLAN, LLDP-MED, Guest VLAN
Overensstemmelsesstandarder	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1ab (LLDP), IEEE 802.3az
Effekt	AC 120/230 V (50/60 Hz)
Dimensioner (B x D x H)	44.2 cm x 21.1 cm x 4.4 cm
Vægt	2.7 kg
Producentgaranti	5 års garanti

Generelt
Enhedstype	Switch - 24 porte - L3 Lite - Administreret
Pakningstype	Monterbar på stativ 1U
Undertype	Gigabit Ethernet
Porte	24 x 10/100/1000 + 2 x 10 Gigabit SFP+ (uplink)
Præstation	Kapacitet: 88 Gbps Gennemløb (64-byte pakkestørrelse): 130 Mpps
Kapacitet	VLAN-mærkater: 4096 Aktive VLANer: 4000 IGMP multicast-grupper: 1024
MAC adresse table størrelse	32K indtastningshukommelse
Jumborammesupport	10240 byte
Routingprotokol	IGMPv2, IGMP, statisk IP routing, IGMPv3, MLD
Protokol til fjernadministration	SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SMON, SSH, CLI, ICMP
Krypterings algoritme	MD5, SSL
Autentificeringsmetode	Secure Shell (SSH), RADIUS, TACACS+
Egenskaber	Datatransport, VLAN-understøttet, portspejling, gem og send, Broadcast Storm Control, IPv6 understøttet, Multicast Storm Control, Unicast Storm Control, firmware kan opgraderes, SNTP-understøttet, sFlow, STP support, RSTP support, MSTP support, ACL support, DHCP server, MDL snooping, nulstillingsknap, IPv4 support, LLDP support, DHCP videresendelse, LACP, Port Security, portbaseret adgangsstyring, DHCP klient, Energy Efficient Ethernet, MIB, dobbelt firmware-billeder, NAC, CoS, mærket VLAN, GVRP, IGMP proxy, sky-administreret, metalkabinet, DSCP support, IP-kildebekyttelse, SCP, Link Aggregation, MIB II, IGMP-forespørger, VLAN Double Tagging (Q-in-Q), Voice VLAN, LLDP-MED, Guest VLAN
Overensstemmelsesstandarder	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1ab (LLDP), IEEE 802.3az
Statusindikatorer	System, link/aktivitet/hastighed
Ekspansion / Konnektivitet
Interface	24 x 1000Base-T RJ-45 2 x 10 Gbit LAN SFP+ uplink 1 x konsol RJ-45
Effekt
Strømenhed	Intern strømforsyning
Nødvendig spænding	AC 120/230 V (50/60 Hz)
Strømforbrug ved drift	30 Watt
Diverse
Medfølgende ledninger	1 x serielt kabel - 1.5 m
Rackmonteringspakke	Inkluderet
Overensstemmelsesstandarder	EN55022, EN55024, EN 60950-1, FCC CFR47 Part 15 A, RFC1213, RFC1493, RFC2674, RFC2460
Mål og vægt
Bredde	44.2 cm
Dybde	21.1 cm
Højde	4.4 cm
Vægt	2.7 kg
Producentgaranti
Service & Support	Begrænset garanti - 5 år
Miljømæssige parametre
Min. driftstemperatur	0 °C
Maks. driftstemperatur	40 °C
Fugtighedsgrad ved brug	10 - 90 % (ikke-kondenserende)
