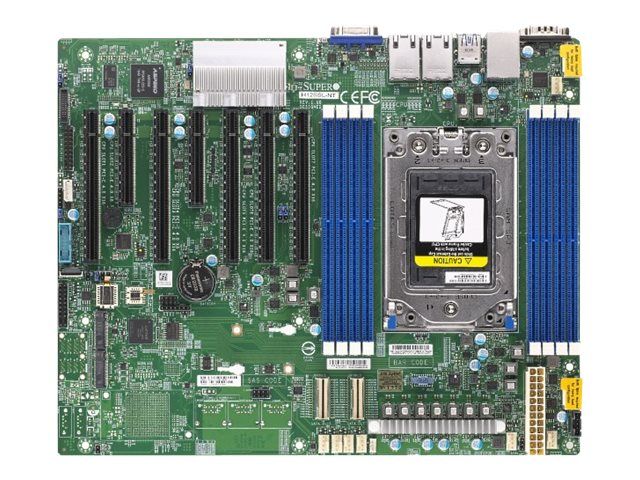

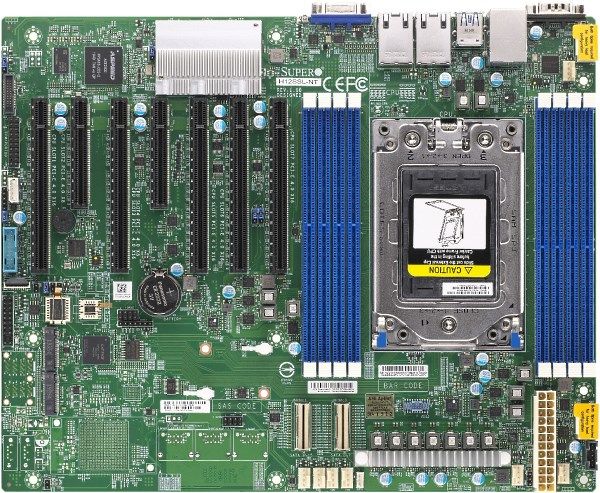

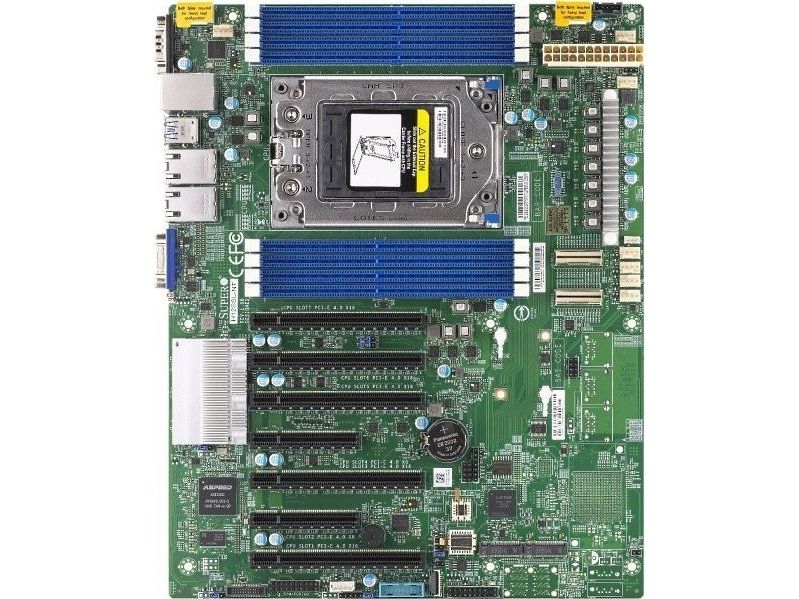

Supermicro MBD-H12SSL-NT-O, AMD, Socket SP3, AMD EPYC, DDR4-SDRAM, 2 TB, DIMM

Item no.: [6793371] | Manufacturer: SUPER MICRO Computer | Model no.: MBD-H12SSL-NT-O | EAN: 0672042423361

out of stock

The item is not in stock. More info

Varen er ikke på lager.

Brug funktionen ”Giv mig besked..." herunder for opdateringer.

Shipping @price - GLS

12,00

EUR 712,51

Incl. VAT 890,64

Total incl. delivery 905,64

Notify me when the item is in stock again

Read further specifications and description

Supermicro MBD-H12SSL-NT-O. Processor manufacturer: AMD, Processor socket: Socket SP3, Compatible processor series: AMD EPYC. Supported memory types: DDR4-SDRAM, Maximum internal memory: 2 TB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Ethernet interface type: 10 Gigabit Ethernet. Component for: Server, Motherboard form factor: ATX, Motherboard chipset family: AMD

Produktbeskrivelse	SUPERMICRO H12SSL-NT - bundkort - ATX - Socket SP3
Produkttype	Bundkort - ATX
Processor-socket	1 x Socket SP3
Kompatible processorer	EPYC 7002 series
Max RAM-størrelse	2 TB
RAM understøttet	8 DIMM åbninger - DDR4, ECC, registreret
Lagringsporte	8 x SATA-600 or 2 x NVMe port, 2 x M.2
USB / FireWire porte	4 x USB 3.0 + (2 x USB 3.0 via samlekasser)
Grafik	ASPEED AST2500
LAN	2 x 10 Gigabit Ethernet
Producentgaranti	3 års garanti

Generelt
Produkttype	Bundkort - ATX
Processor-socket	Socket SP3
Max antal processorer	1
Kompatible processorer	EPYC 7002 series
Understøttet RAM
Maks. størrelse	2 TB
Teknologi	DDR4
Bus Clock	3200 MHz
Understøttet RAM-integritetskon	ECC
Registreret eller buffer	Registreret
Egenskaber	8-kanals hukommelsesarkitektur
Grafik
Grafik controller	ASPEED AST2500
LAN
Netværk controller	Broadcom BCM57416
Netværks interfaces	2 x 10 Gigabit Ethernet
Ekspansion / Konnektivitet
Ekspansionsåbninger	1 x CPU 8 x DIMM 288-pins (1.2 V) 5 x PCIe 4.0 x16 2 x PCIe 4.0 x8
Grænseflade (lagring)	SATA-600 / PCIe -stikforbindelser: 2 x SlimSAS PCIe 4.0 -stikforbindelser: 2 x M.2
Interface	2 x LAN (10Gigabit Ethernet) 1 x VGA 4 x USB 3.0 1 x seriel 1 x administration
Interne interfaces	2 x USB 3.0 - intern stik
Egenskaber
BIOS-type (Basic Input/Output System)	AMI
BIOS-egenskaber	Genoprettelse af strømafbrud (genoprettelse af AC-tab), med DMI 2.3 understøttelse, IPMI 2.0 support, ACPI 5,1 support, SMBIOS 3.1.1 understøttet
Hardwareovervågning	CPU kernetemperatur, chassis temperatur, takometer til chassis-blæser, systemspænding, CPU kerne-spænding
Hardware egenskaber	Diagnose LED's, chassis intrusion styring
Diverse
Udstyr inkluderet	I/O-bagdække
Medfølgende ledninger	1 x Slim SAS til 8 x SATA-kabel
Overensstemmelsesstandarder	Plug and Play
Bredde	30.5 cm
Dybde	24.4 cm
Pakketype	Detailsalg
Producentgaranti
Service & Support	Begrænset garanti - reservedele - 1 år Begrænset garanti - arbejde - 3 år
