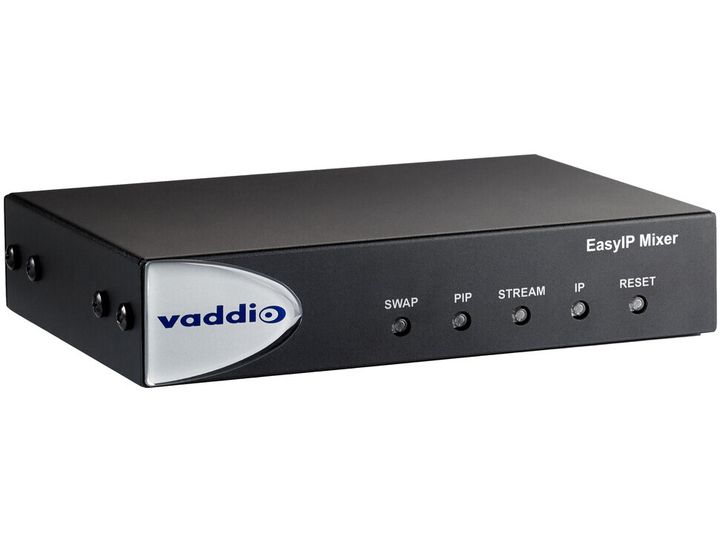

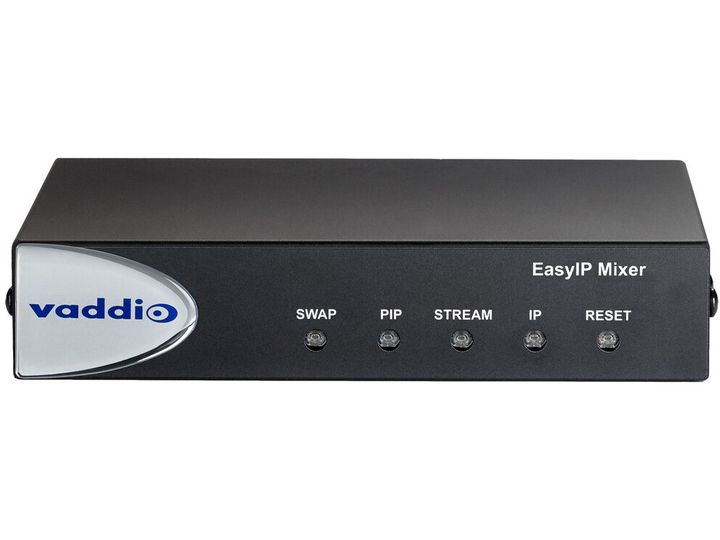

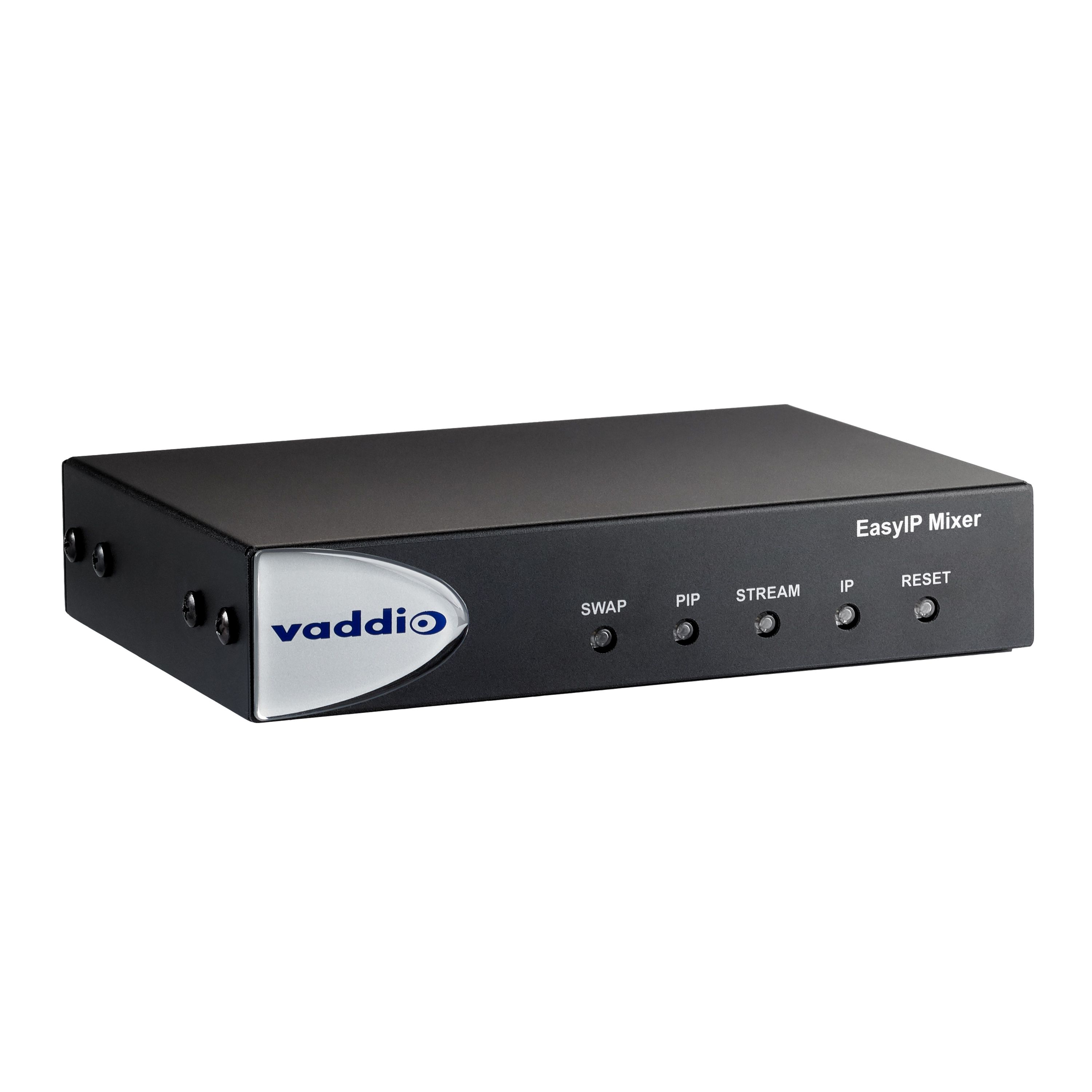

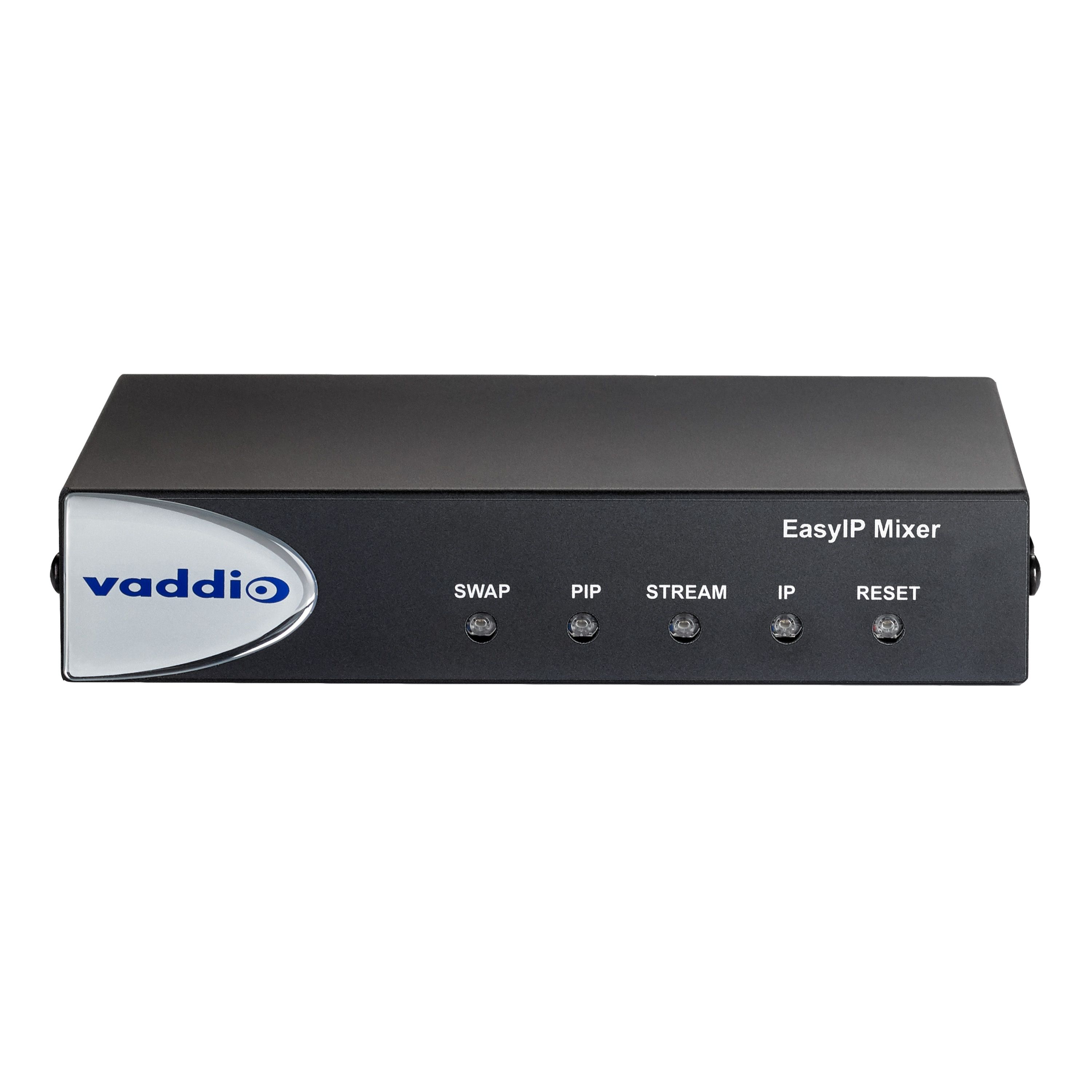

Vaddio EasyIP Mixer, 1920 x 1080 pixels, Black

Ideal for large classrooms and multi-camera applications, the EasyIP Mixer combines Dante audio sources and four Vaddio EasyIP cameras to deliver our easiest production switcher to date.
Key Features:
Compact A/V switcher supporting four EasyIP Camera video feeds plus an HDMI source
4x4 Dante Audio matrix (10x10 cross-point audio matrix)
Concurrent 1080p/60 USB 3.0 and HDMI output

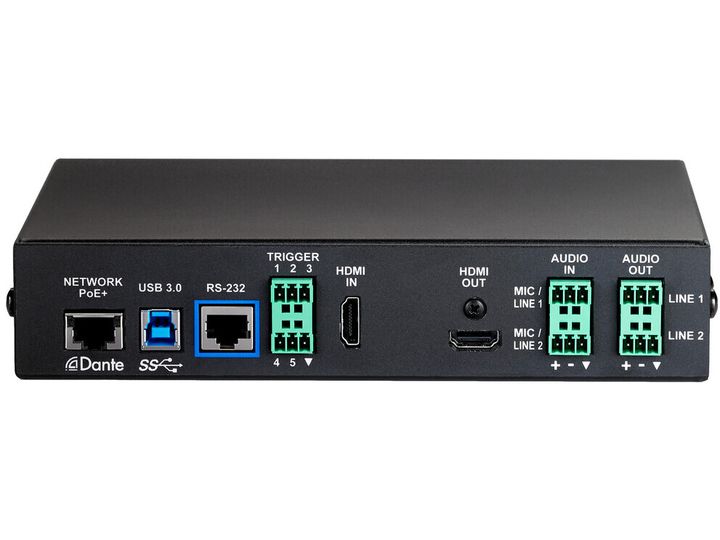

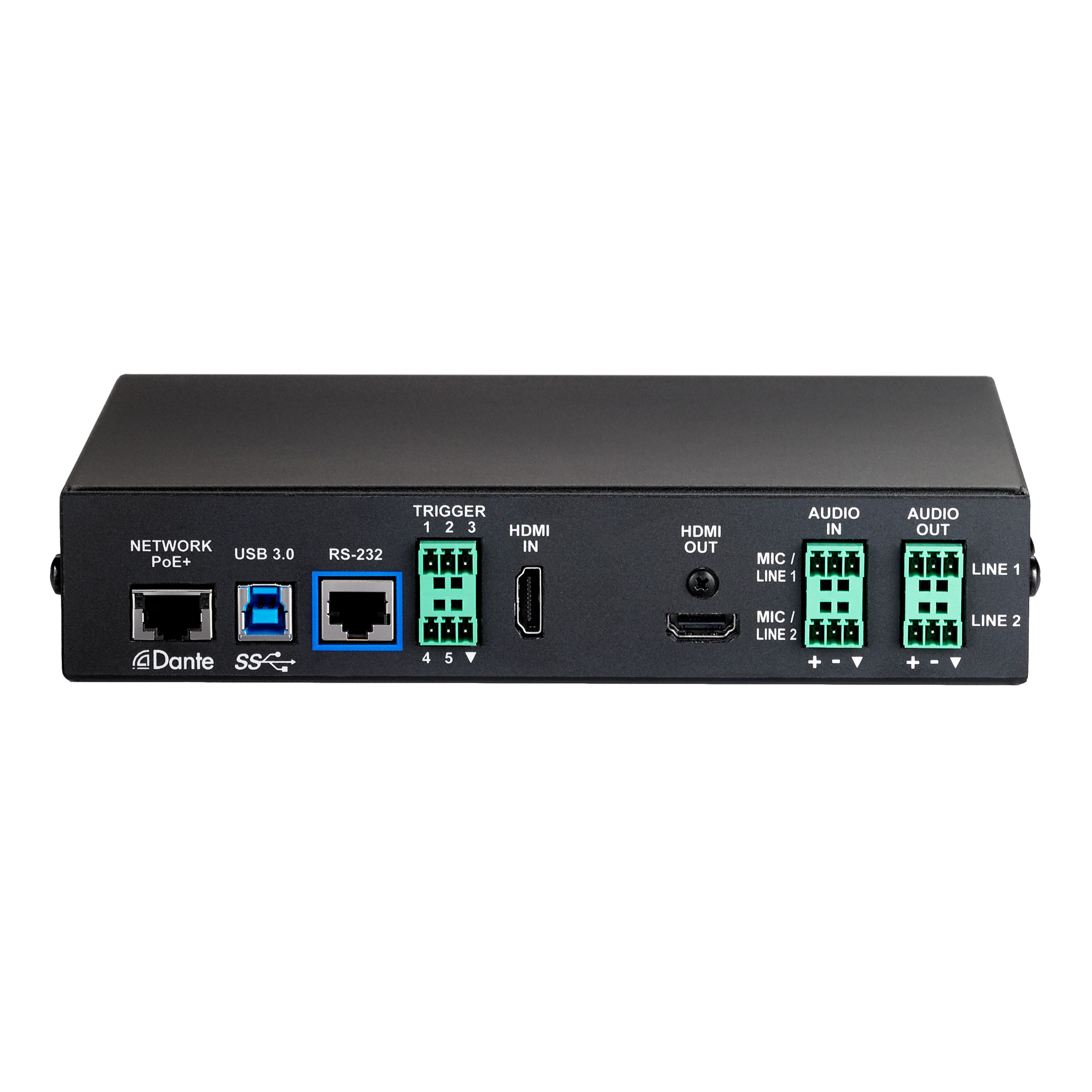

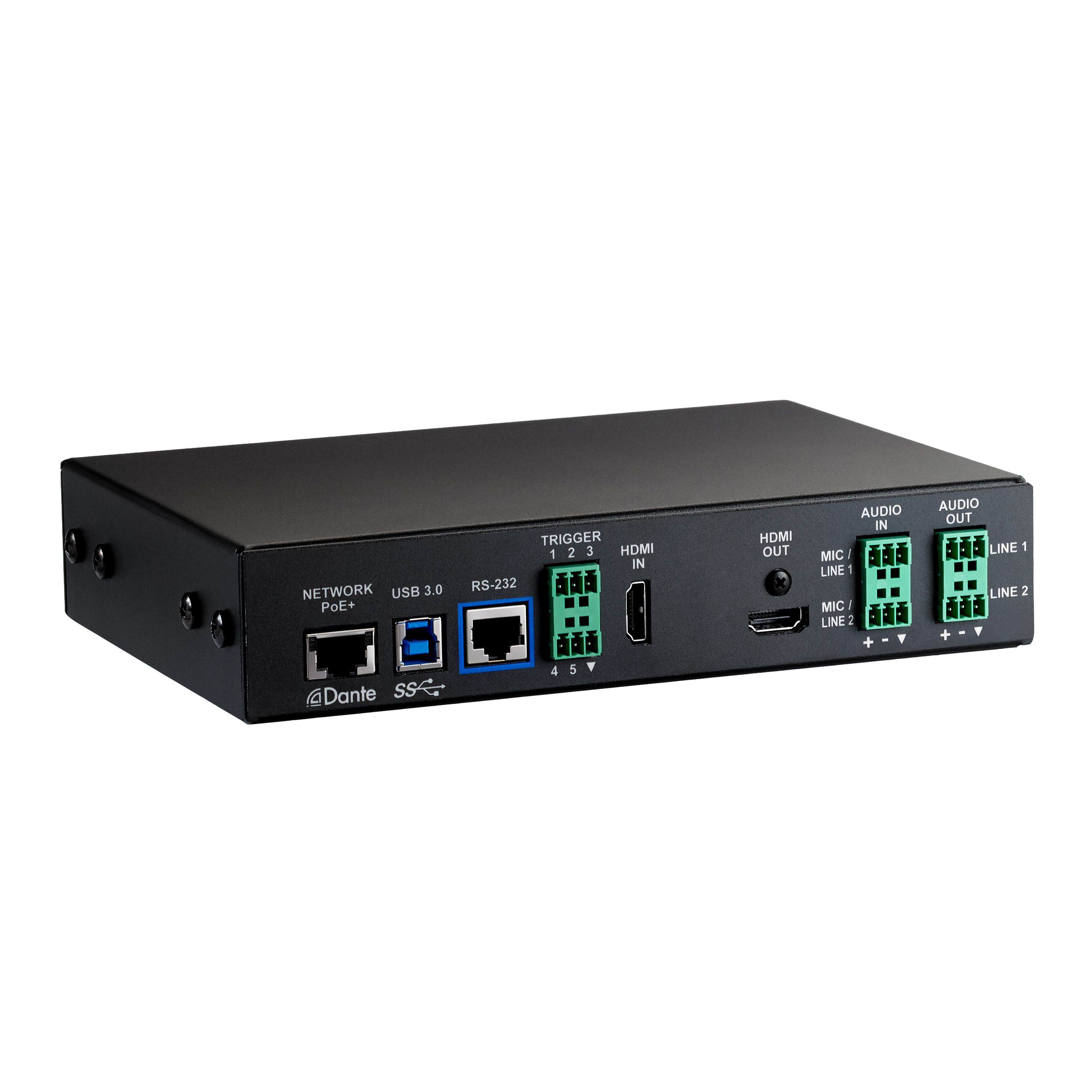

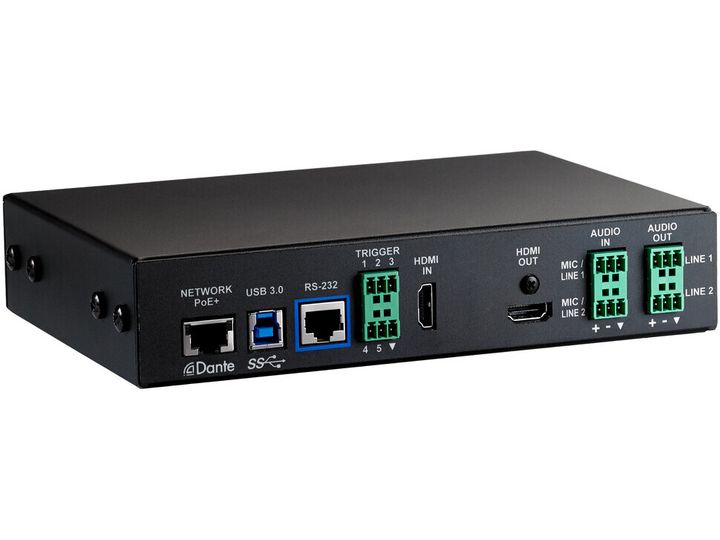

Flexible control options with serial, telnet, trigger, Vaddio Device Controller, and web control
Comparison Chart: Top Three Devices for Conferencing
See what devices are best for multi-camera needs in conferencing spaces. See the chart
The EasyIP Mixer revolutionizes the complex classroom A/V system, replacing expensive HDMI cable runs with category cables and saving precious time with simple video and audio routing in our intuitive web-based user interface.
Pair the EasyIP Mixer with up to four EasyIP cameras located on the network for exceptional room coverage. The additional HDMI input allows you to connect a PC for simple content sharing on a platform that easily switches between sources and delivers useful picture-in-picture (PIP) video streams. Simultaneous 1080p/60 USB 3.0 and HDMI outputs allow for multipurpose video distribution. Use the EasyIP Mixer to simultaneously record to a local PC and magnify the speaker video through a room projector. Or use the USB 3.0 interface with popular videoconferencing applications – including UVC control of connected cameras.
The EasyIP Mixer has robust audio mixing capabilities as well. A 4x4 Dante I/O allows for scalable networked audio to meet the needs of any application. No complicated audio routing - it’s easy to pair four EasyIP CeilingMIC D Dante microphones throughout the space. In larger rooms, select from a list of dozens of Dante audio products to select the optimal audio pickup of each event. Install the EasyIP Mixer in your existing classroom by utilizing the 2-channel analog audio I/O.
Experience worry-free presentations with the automation features built into the EasyIP Mixer. Connect Vaddio trigger devices like the StepVIEW Mat to recall a library of macros built into the web-based user interface. Control PIP settings, video sources, camera position presets, and more with intuitive API integration for third party applications and control hardware. Store graphic overlays such as a company logo or speaker name to bring production quality to everyday events.
Enjoy crystal clear audio through built-in echo cancellation, ensuring that everyone hears both sides of the conversation without annoying feedback issues common with inexpensive audio devices.
The system is based around a PoE+ network switch like the EasyIP Switch or one of Luxul’s PoE+ managed switches. This network switch provides the power and control capabilities for the EasyIP Cameras as well as the EasyIP CeilingMIC D microphones. Next, pair the EasyIP Mixer to the same network and pair the desired endpoints with the included web-based user interface. No expensive external processors, no costly management software tools – the whole system can be configured in minutes.
This Package Includes:
EasyIP Mixer
Quick-start card
3 ft (0.9 m) cat-5 cable, black
6 ft (1.8 m) USB 3.0 cable, type A to B
6 qty 3-position phoenix-style connectors
Half-Rack mounting kit (for mounting the EasyIP Mixer into a full rack space)
