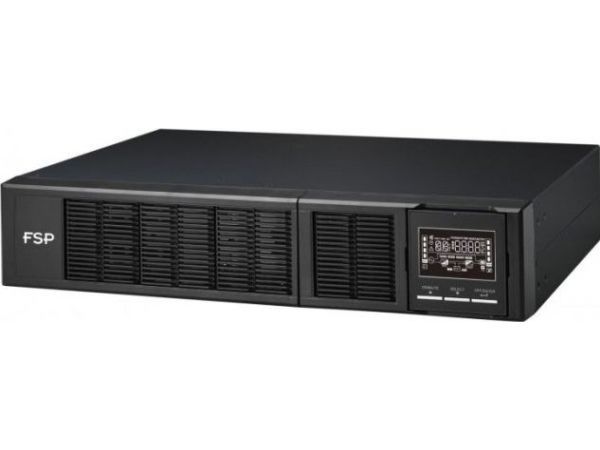

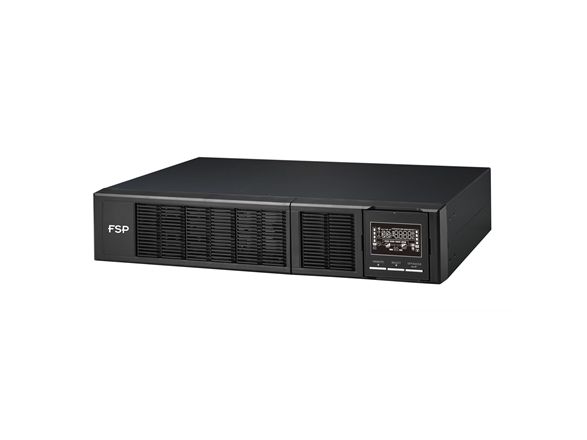

FSP/Fortron Clippers RT 3k uninterruptible power supply (UPS) Double-conversion (Online) 2000 kVA 2000 W
Item no.: [7030280] | Manufacturer: FORTRON/SOURCE EUROPE | Model no.: PPF30A0600 | EAN: 4713224524905
Remote stock (5-7 days)
The item is in a remote warehouse, delivery time is 5-7 business days. More info
Delivery options - Select at checkout
Shipping @price - GLS
12,00
EUR
713,17
Incl. VAT 891,46
Total incl. delivery
906,46
Add to list
The function requires that you are logged in. Create a user and use our smart list system to keep track of future purchases, regular purchases or wish lists.
Send på mail
The FSP Clippers series is a premium online double-conversion UPS with a Rack/Tower design and high efficiency to reduce the customer's total cost of ownership. Internal battery replaceable during operation increases system reliability and reduces MTTR, parallel function is designed for future equipment expansion. Its special firmware design can accommodate various applications such as laser printer, ultrasonic device and support long backup time with battery monitoring.
PF = 1 (1 kVA/1,000W, 2 kVA/2,000W, 3 kVA/3,000W): Higher load capacity
Super charger 12A: Backup time can be extended by unlimited connection to the battery pack
Compatible with generator
ECO mode for energy saving
Support for laser printers and ultrasonic systems
Permanent surge protection and surge protector
Clippers do not provide 100% protection against lightning strikes.
SOURCE
Output Power Capacity [W]: 3000
Output power capacity [VA]: 3000
Topology: Online with double conversion
Curve type: Pure sine wave
Rated output voltage [Vac]: 220 / 230 / 240
Output Frequency [Hz]: 46~54 or 56~64 (Synchronized Range), 50/60 (Batt. Mode)
Output connections: 8x IEC C13, 1x IEC C19
INPUT
Rated input voltage [Vac]: 220 / 230 / 240
Input frequency [Hz]: 40 ~ 70
Input voltage range [Vac]: 110 - 300
BATTERY AND RUN TIME
Battery Type: 12V / 9Ah
Pre-installed batteries: 6
Usual charging time [Hours]: 3
Charging current [A]: 8
Charging voltage [Vdc]: 82.1
COMMUNICATION AND MANAGEMENT
Interface port: USB, RS-232
Indicators: LCD display
Audio alert: Yes
PHYSICAL
Maximum height [cm]: 8.8
Maximum width [cm]: 43.8
Maximum depth [cm]: 63
Net weight [kg]: 27.5
Color: Black
Operating temperature [°C]: 0 - 40
Noise level [dB]: less than 50
BACKUP TIME with internal 6x9Ah batteries
Load 25% [Min]: 24
Load 50% [Min]: 10
Load 75% [Min]: 5
Load 100% [Min]: 3
BACKUP TIME + 1x Battery Bank BB-72/18RT (12x9Ah)
Load 25% [Min]: 90
Load 50% [Min]: 41
Load 75% [Min]: 25
Load 100% [Min]: 17
BACKUP TIME + 2x Battery Bank BB-72/18RT (24x9Ah)
Load 25% [Min]: 150
Load 50% [Min]: 79
Load 75% [Min]: 48
Load 100% [Min]: 33
UPS, Battery cable, User manual, Viewpower CD, UPS stand, USB cable
