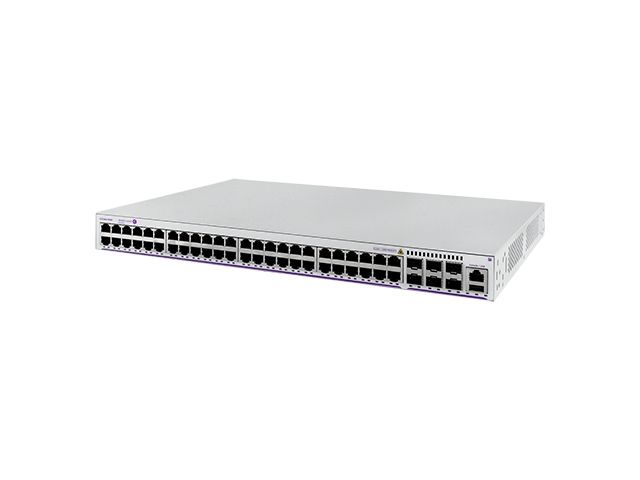

Alcatel-Lucent Enterprise OmniSwitch 2360, Managed, L2+, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting

Item no.: [7080807] | Manufacturer: Alcatel-Lucent | Model no.: OS6360-10-EU | EAN: 3326744978779

Remote stock (14-21 days)

The item is in a remote warehouse, delivery time is 14-21 business days. More info

Shipping @price - GLS

12,00

EUR 459,98

Incl. VAT 574,98

Total incl. delivery 589,98

Read further specifications and description

The Alcatel-Lucent OmniSwitch 6360 Stackable Gigabit Ethernet LAN Switch Family is an industry leading, branch, campus workgroup, and enterprise, value access solution. These are simple, flexible, and secure switches ideal for out-of-the-wiring-closet workstation, access-point, IP telephony and critical Internet of Things (IoT) deployment.

OmniSwitch 6360 operates using the field proven Alcatel-Lucent Operating System (AOS) software supporting simple device management and network management with a Command-Line Interface (CLI) in addition to an in-box web browser graphical user interface (GUI). These switches deliver enhanced network security, reliability, and operational efficiency for Small- and Medium-sized Businesses (SMB) or Enterprise edge networks.

Produktbeskrivelse	Alcatel-Lucent OmniSwitch OS6360-10 - switch - 8 porte - Administreret - monterbar på stativ
Enhedstype	Switch - 8 porte - L3 - Administreret - kan stables
Pakningstype	Monterbar på stativ 1U
Undertype	Gigabit Ethernet
Porte	8 x 10/100/1000 + 2 x 10/100/1000 (uplink) + 2 x Gigabit SFP (uplink)
Præstation	Skiftende ASIC-kapacitet: 40 Gbps Omkoblingskapacitet: 24 GB Billedrate: 35.7 Mpps Forsinkelse: < 4 µs
Kapacitet	Virtuelle grænseflader (VLANs): 4000 Pakkebufferstørrelse: 1,5 MB IPv4 ruter (statisk): 64 IPv6 ruter (statisk): 4 IPv4 interfacer: 32 IPv6 interfacer: 4
MAC adresse table størrelse	16K indtastningshukommelse
Jumborammesupport	9216 byte
Routingprotokol	IGMPv2, IGMP, IGMPv3, statisk IPv4 routing, statisk IPv6 routing, MLDv2, MLD, CIDR, MSTP, RSTP, STP
Protokol til fjernadministration	SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP, SFTP, NTP, ICMP, DHCP, IPv4, IPv6, JSON, RSTP, TACACS+, LDAP, RADIUS, XML
Egenskaber	Datatransport, auto-negotiation, understøttet af BOOTP, understøttet af ARP, auto-uplink (auto MDI/MDI-X), Syslog understøttet, portspejling, sFlow, ACL support, QoS, DHCP server, MDL snooping, Virtuel Chassis teknologi, UDLD, blæserløs, LACP support, LLDP support, DHCP videresendelse, DHCP klient, Energy Efficient Ethernet, MIB, MVRP, SPQ, NDP, CoS, sFlow v5, Loopback, 802.1x autentificering, VoIP support, DDM, politikbaseret routing, LLDP-MED, HOL-blokering, UDP, DoS protection, WRR, port mapping, VLAN Tagging, RESTful APIs, PPP, WebView-administration, RPVST+, DNS support, MED, UDP support, LPS
Overensstemmelsesstandarder	IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1ae, IEEE 802.1ab (LLDP), IEEE 802.3az, IEEE 802.1AX
Dimensioner (B x D x H)	21.7 cm x 28 cm x 4.4 cm
Vægt	1.8 kg
Lokalisering	Europa
Producentgaranti	Begrænset livtidsgaranti

Generelt
Enhedstype	Switch - 8 porte - L3 - Administreret - kan stables
Pakningstype	Monterbar på stativ 1U
Undertype	Gigabit Ethernet
Porte	8 x 10/100/1000 + 2 x 10/100/1000 (uplink) + 2 x Gigabit SFP (uplink)
Præstation	Skiftende ASIC-kapacitet: 40 Gbps Omkoblingskapacitet: 24 GB Billedrate: 35.7 Mpps Forsinkelse: < 4 µs
Kapacitet	Virtuelle grænseflader (VLANs): 4000 Pakkebufferstørrelse: 1,5 MB IPv4 ruter (statisk): 64 IPv6 ruter (statisk): 4 IPv4 interfacer: 32 IPv6 interfacer: 4
MAC adresse table størrelse	16K indtastningshukommelse
Jumborammesupport	9216 byte
Max antal enheder i en stak	4
Routingprotokol	IGMPv2, IGMP, IGMPv3, statisk IPv4 routing, statisk IPv6 routing, MLDv2, MLD, CIDR, MSTP, RSTP, STP
Protokol til fjernadministration	SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP, SFTP, NTP, ICMP, DHCP, IPv4, IPv6, JSON, RSTP, TACACS+, LDAP, RADIUS, XML
Krypterings algoritme	MD5, AES, PKI, ESP, HMAC
Autentificeringsmetode	Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2), LDAP, Extensible Authentication Protocol (EAP)
Egenskaber	Datatransport, auto-negotiation, understøttet af BOOTP, understøttet af ARP, auto-uplink (auto MDI/MDI-X), Syslog understøttet, portspejling, sFlow, ACL support, QoS, DHCP server, MDL snooping, Virtuel Chassis teknologi, UDLD, blæserløs, LACP support, LLDP support, DHCP videresendelse, DHCP klient, Energy Efficient Ethernet, MIB, MVRP, SPQ, NDP, CoS, sFlow v5, Loopback, 802.1x autentificering, VoIP support, DDM, politikbaseret routing, LLDP-MED, HOL-blokering, UDP, DoS protection, WRR, port mapping, VLAN Tagging, RESTful APIs, PPP, WebView-administration, RPVST+, DNS support, MED, UDP support, LPS
Overensstemmelsesstandarder	IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1ae, IEEE 802.1ab (LLDP), IEEE 802.3az, IEEE 802.1AX
Processor	1 x ARM: 800 MHz
RAM	1 GB
Flashhukommelse	1 GB
Statusindikatorer	Strøm, system, PoE, link/aktivitet, virtuelt chassis
Ekspansion / Konnektivitet
Interface	8 x 1000Base-T RJ-45 2 x 1000Base-T RJ-45 uplink 2 x 1000Base-X SFP uplink 1 x konsol RJ-45 1 x USB Type A administration
Effekt
Strømenhed	Intern strømforsyning
Strømforbrug ved drift	15 Watt
Diverse
Rackmonteringspakke	Valgfri
MTBF (forventet tid mellem fejl)	1,179,000 timer
Overensstemmelsesstandarder	C-Tick, BSMI, EN 61000-3-2, EN55022, EN 61000-3-3, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, CCC, EMC, EN 61000-4-5, EN 61000-4-11, RoHS, EN 61000-4-8, IEC 60950-1, UL 60950-1 Second Edition, KCC, WEEE, ANATEL, UL-AR, EN 60825-1, AS/NZS 60950, CDRH, AS/NZS, EN 60825-2, EMI, EN 50581, EAC, CU-EAC, ICT, EN 55024:2010, FCC CFR47 Part 15 B Class A, CU, IEC 62368-1, TS001, NOM-019-SCFI, CAN/CSA-C22.2 No. 60950-1-07 Second Edition, ICES-003:2012 Issue 5 Class A, IEEE 802.3, AS/NZ TS-001, UL-GS
Lokalisering	Europa
Mål og vægt
Bredde	21.7 cm
Dybde	28 cm
Højde	4.4 cm
Vægt	1.8 kg
Producentgaranti
Service & Support	Begrænset garanti - livstid
Miljømæssige parametre
Min. driftstemperatur	0 °C
Maks. driftstemperatur	45 °C
Fugtighedsgrad ved brug	5 - 95 % (ikke-kondenserende)
Min. lagertemperatur	-40 °C
Maks. Opbevaringstemperatur	85 °C

The item is known under the following item numbers in our system

EAN:	3326744978779
SKU:	OS6360-10-EU

Why do I find that the same product is available on different item numbers?

Manufacturers often release the same product with different item numbers, typically just different versions of the packaging. For example, the packaging may be targeted at different countries. We try our best to unify the products, but it can happen that the same product appears on different item numbers in our system.
