LC-Power LC6550M V2.31, 550 W, 110 - 240 V, 47 - 60 Hz, 8 A, Active, 100 W
Item no.: [7092348] | Manufacturer: LC Power | Model no.: LC6550M V2.31 | EAN: 4260070128622
Remote stock (2-3 days)
The item is in a remote warehouse, delivery time is 2-3 business days. More info
Delivery options - Select at checkout
Shipping @price - GLS
12,00
EUR
91,25
Incl. VAT 114,06
Total incl. delivery
129,06
The function requires that you are logged in. Create a user and use our smart list system to keep track of future purchases, regular purchases or wish lists. Create user Login

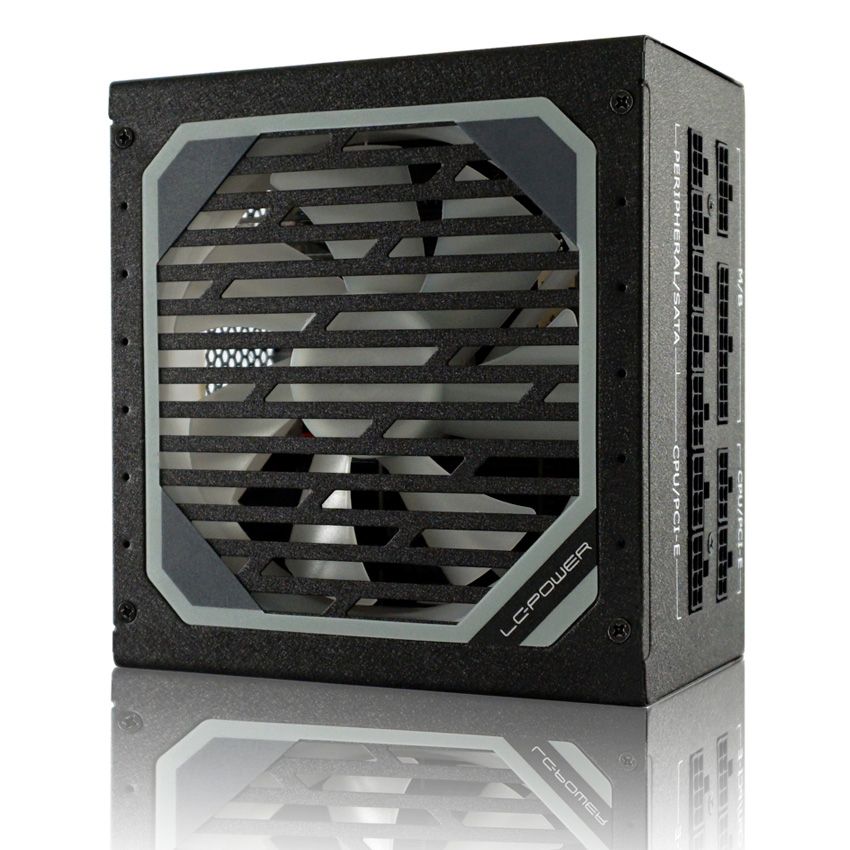

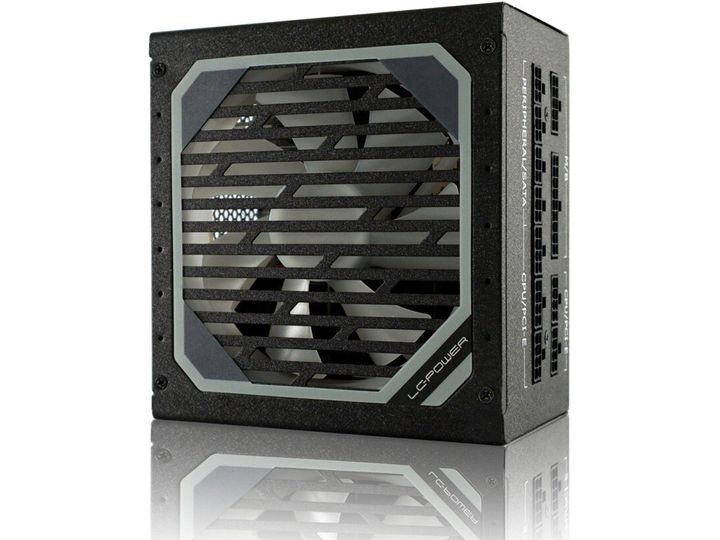

The LC Power Modular Series LC6550M V2.31 power supply offers robust performance with 550 watts of power, suitable for a variety of computing needs. Featuring a modular design, it allows for efficient cable management, leading to a cleaner and more organized system setup. The internal ATX form factor ensures seamless compatibility with many PC builds, while the 80 PLUS Gold certification highlights its energy efficiency, operating at 90% efficiency to reduce energy consumption and lower electricity bills. Safety remains a priority with multiple protection features, including overvoltage, overpower, undervoltage, and short-circuit protections, ensuring your components remain secure during operation. The durable 120 mm fan promotes effective cooling, ensuring the power supply operates quietly and maintains performance under heavy loads. With support for a wide range of input voltages and frequencies, this power supply is versatile and dependable in various environments.
Produktbeskrivelse
LC Power Super Silent Modular Series LC6550M V2.31 - strømforsyning - 550 Watt
Enhedstype
Strømforsyning - aktiv Power Factor Correction (PFC) - intern
Specifikationsoverensstemmelse
ATX12V 2.3/ EPS12V
80 PLUS certificering
80 PLUS Gold
Vægt
2.19 kg
Indgangspænding
AC 110-240 V
Udgangspænding
+3.3, +5, +12 V
Strømkapacitet
550 Watt
Output Current
+5V - 20 A +3.3V - 20 A +12V - 45 A -12V - 0.3 A +5VSB - 2.5 A
Output-stikforbindelser
1 x strøm 24 pin ATX med aftagelig 4 pin sektion 4 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion 10 x 7 pin Serial ATA 1 x strøm 8 pin +12 V med aftagelig 4 pin sektion
Modulær Kabel Administration
Ja
Kølesystem
120 mm ventilator
Farve
Hamret sort
Dimensioner (B x D x H)
8.6 cm x 15 cm x 14.2 cm
Producentgaranti
3 års garanti
Generelt
Enhedstype
Strømforsyning - aktiv Power Factor Correction (PFC) - intern
Specifikationsoverensstemmelse
ATX12V 2.3/ EPS12V
PSU formfaktor
ATX
Farve
Hamret sort
Strømenhed
Indgangspænding
AC 110-240 V
Nødvendig frekvens
47 - 60 Hz
Detaljer om strømudgangskonnektorer
1 x strøm 24 pin ATX med aftagelig 4 pin sektion 4 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion 10 x 7 pin Serial ATA 1 x strøm 8 pin +12 V med aftagelig 4 pin sektion
Udgangspænding
+3.3, +5, +12 V
Strømkapacitet
550 Watt
Output Current
+5V - 20 A +3.3V - 20 A +12V - 45 A -12V - 0.3 A +5VSB - 2.5 A
Effektivitet
90%
Modulær Kabel Administration
Ja
80 PLUS certificering
80 PLUS Gold
Diverse
Kølesystem
120 mm ventilator
Egenskaber
Overspændingsbeskyttelse, overbelastningsbeskyttelse, beskyttelse mod underspænding, kortslutnings beskyttelse, fuld modulær
Producentgaranti
Service & Support
Begrænset garanti - 3 år
Mål og vægt
Bredde
8.6 cm
Dybde
15 cm
Højde
14.2 cm
Vægt
2.19 kg
Mål & vægt (forsendelse)
Bredde ved forsendelse
11.5 cm
Dybde ved forsendelse
27 cm
Højde ved forsendelse
18.6 cm
Vægt ved forsendelse
2.47 kg
