Item no.: [7136821] | Manufacturer: SUPER MICRO Computer | Model no.: SYS-1019D-4C-RAN13TP+ | EAN: 0672042413270
Remote stock (14-21 days)
The item is in a remote warehouse, delivery time is 14-21 business days. More info
Delivery options - Select at checkout
159,20
EUR
2.238,87
Incl. VAT 2.798,59
Total incl. delivery
2.997,59
The function requires that you are logged in. Create a user and use our smart list system to keep track of future purchases, regular purchases or wish lists. Create user Login

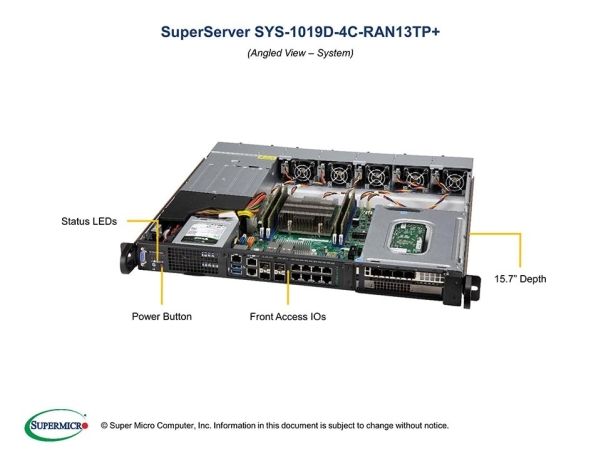

Super Micro SuperServer 1019D-4C-RAN13TP+ - server - rack-mount - 1U - single-way - 1 x Xeon D-2123IT - RAM 0GB - no HDD - AST2500 - GigE, 10 GigE - no operating system - no monitor - black (SYS-1019D-4C-RAN13TP+)
Processor family
Intel® Xeon® D
Processor manufacturer
Intel
Processor model
D-2123IT
Processor cache
8 MB
Bus type
UPI
Execute Disable Bit
Yes
Idle States
Yes
Embedded options available
Yes
Conflict-Free processor
Yes
Intelligent Platform Management Interface (IPMI) support
Yes
Internal memory type
DDR4-SDRAM
Maximum internal memory
512 GB

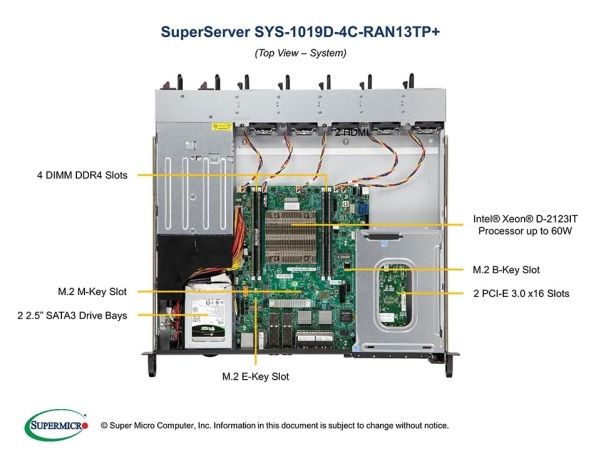

Memory slots
4
ECC
Yes
Memory clock speed
2400 MHz
RAID support
No
Optical drive type
No
SSD interface
SATA III
SSD size
2.5"
Supported SSD sizes
2.5"
Number of SSDs supported
2
On-board graphics card
Yes
On-board graphics card model
Aspeed AST2500
Wi-Fi
No
LAN controller
Intel I210, Intel® I350-AM4
Ethernet LAN
Yes
Ethernet interface type
Gigabit Ethernet

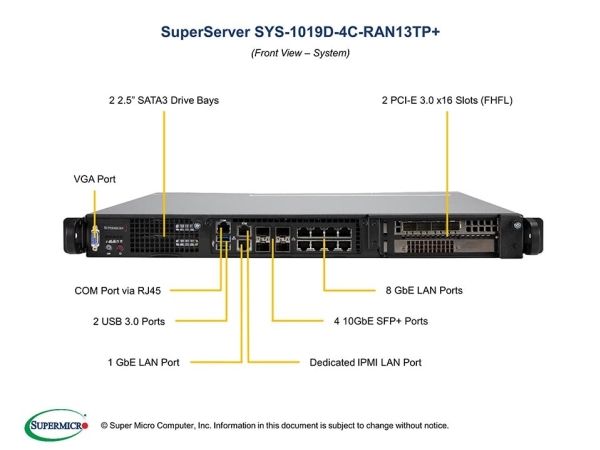

Ethernet LAN (RJ-45) ports
10
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
VGA (D-Sub) ports quantity
1
PCI Express x16 (Gen 3.x) slots
2
Chassis type
Rack (1U)
Product colour
Black
Rack mounting
Yes
BIOS type
UEFI
Trusted Platform Module (TPM)
Yes
Operating system installed
No
CPU configuration (max)
1
Enhanced Intel SpeedStep Technology
Yes
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Intel Trusted Execution Technology
Yes
Intel Enhanced Halt State
Yes
Intel VT-x with Extended Page Tables (EPT)
Yes
Intel TSX-NI
Yes
Intel Software Guard Extensions (Intel SGX)
No
Intel 64
Yes
Intel Secure Key Technology version
1.00
Intel Virtualization Technology (VT-x)
Yes
Intel TSX-NI version
1.00
Intel QuickAssist Technology
No

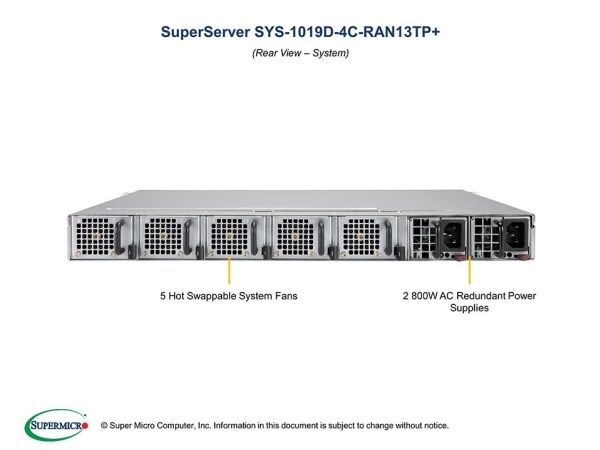

Redundant power supply (RPS) support
Yes
Power supply
800 W
Operating temperature (T-T)
0 - 45 °C
Storage temperature (T-T)
40 - 70 °C
Operating relative humidity (H-H)
8 - 90%
Storage relative humidity (H-H)
5 - 95%
Certification
80 PLUS Platinum Level Certified
Width
437 mm
Depth
399 mm
Height
43 mm
Weight
8.16 kg
Package width
685.8 mm
Package depth
609.6 mm
Package height
203.2 mm
Package weight
12.7 kg
