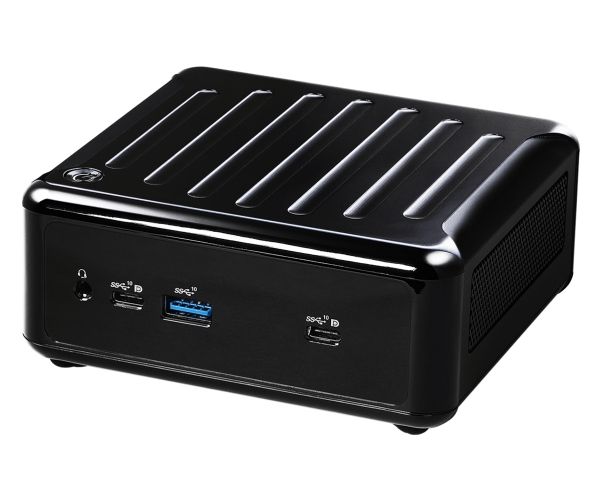

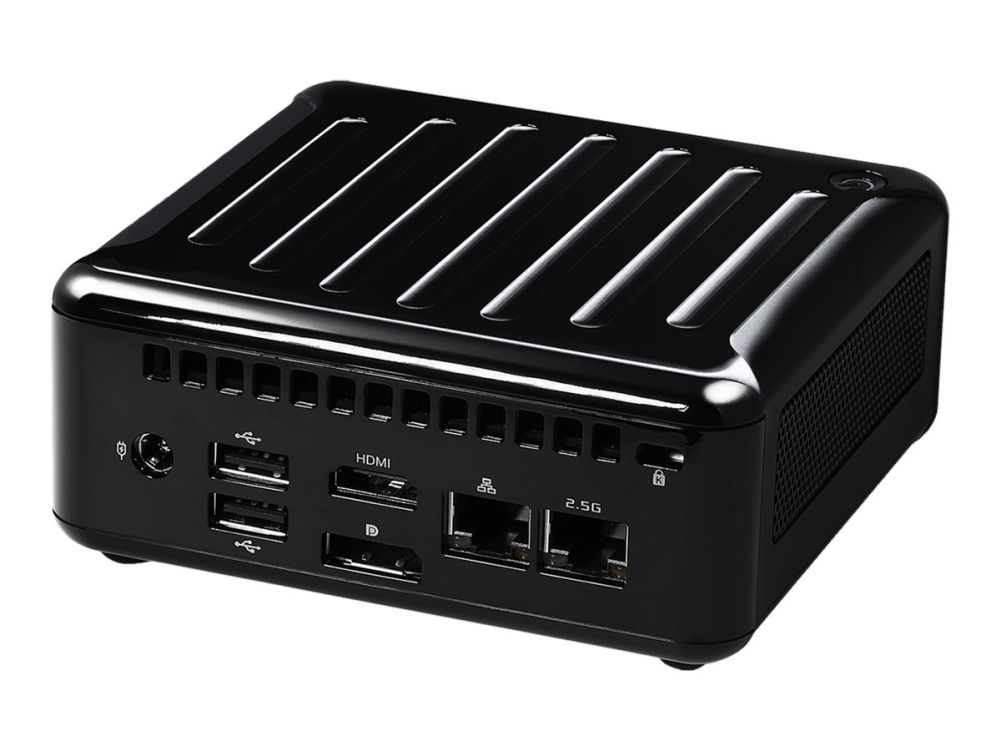

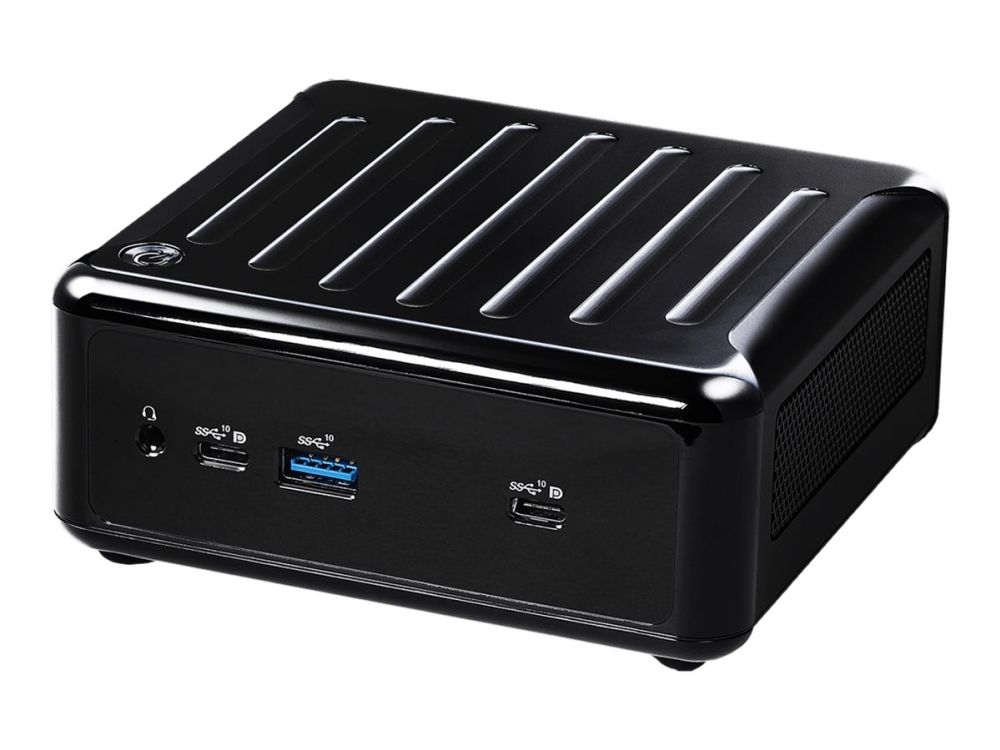

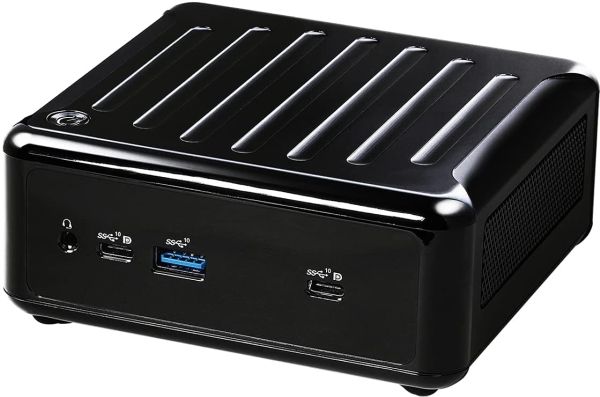

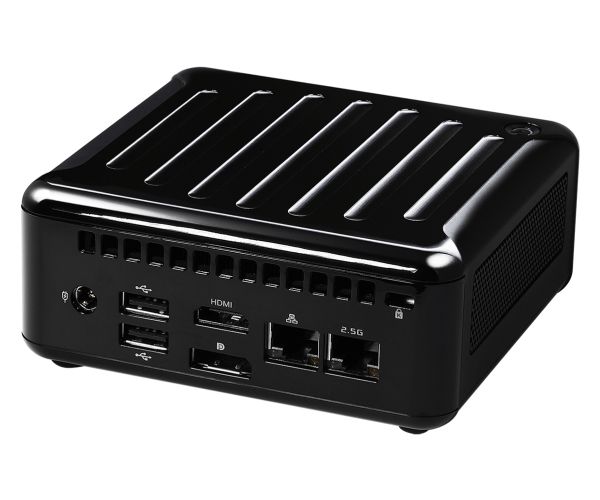

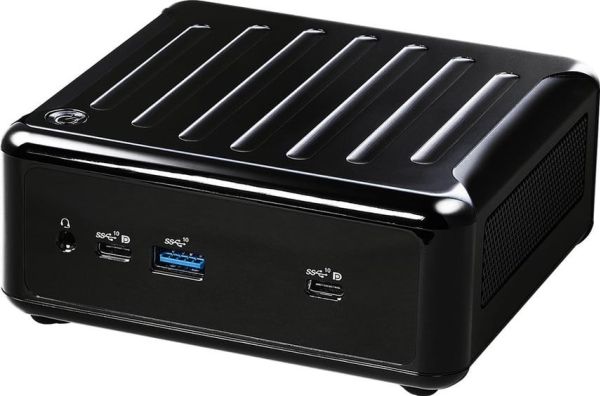

Asrock 4X4 BOX-4800U, Embedded PC barebone, DDR4-SDRAM, M.2, PCI Express, Serial ATA III, Ethernet LAN, 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)

Item no.: [7172286] | Manufacturer: ASRock | Model no.: 90PXG7K0-P0EAY100 | EAN: 4710483933516

Remote stock (2-3 days)

The item is in a remote warehouse, delivery time is 2-3 business days. More info

Shipping @price - GLS

12,00

EUR 370,29

Incl. VAT 462,86

Total incl. delivery 477,86

Read further specifications and description

The 4X4 BOX-4000 series mini PC comes in a small footprint and runs on an AMD Ryzen APU to deliver premium performance.

Produktbeskrivelse	ASRock Industrial 4X4 BOX-4800U - Embedded Box PC Ryzen 7 4800U 1.8 GHz - 0 GB - ingen HDD
Type	PC barebone - Embedded Box PC
Processor	1 x AMD Ryzen 7 4800U / 1.8 GHz (op til 4.2 GHz, (8-core)
RAM	0 GB (installeret) / 64 GB (maks.) - DDR4 SDRAM
Controller for lagring	SATA (SATA 6Gb/s)
Harddisk	Ingen HDD
Optisk lagring	Intet optisk drev
Grafik controller	AMD Radeon Graphics
Lydudgang	Stereo
Netværk	1GbE, 802.11a, 802.11b/g/n, Wi-Fi 5, 2.5GbE, 802.11ax, Bluetooth 5.2
Med OS	Intet operativt system
Dimensioner (B x D x H)	11 cm x 11.75 cm x 4.785 cm
Vægt	1 kg

Generelt
Type	PC barebone
Produktmodel	Embedded Box PC
Embedded Security	Trusted Platform Module (TPM) Security Chip
Processor / Chipset
CPU	AMD Ryzen 7 4800U
Clock-frekvens	1.8 GHz
Max Turbo Speed	4.2 GHz
Antal kerner	8-core
Antal CPU'er	1
Maks. antal CPU'er	1
RAM
Installeret størrelse	0 GB (installeret) / 64 GB (maks.)
Teknologi	DDR4 SDRAM
Model	SO DIMM 260-PIN
Holdere	2 (Total) / 2 (ubrugt)
Egenskaber	Dobbelt kanal hukommelses arkitektur
Harddisk
Type	Ingen HDD
Controller for lagring
Type	1 x SATA
Controller-grænsefladetype	SATA 6Gb/s
Optisk lagring
Type	Intet optisk drev
Monitor
Monitortype	Ingen.
Grafik controller
Grafik-processor	AMD Radeon Graphics
Video-interfaces	DisplayPort, HDMI, USB-C
Maks. antal understøttede monitorer	4
Lydudgang
Lydudgangsmodus	Stereo
Netværk
Ethernet Ports	1 x 2.5 Gigabit Ethernet, 1 x Gigabit Ethernet
Ethernet Controller	Realtek RTL8125BG, RTL8111FPV
Trådløs LAN understøttelse	Ja
Trådløs NIC	Intel Wi-Fi 6 AX 200
Dataforbindelsesprotokol	Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 2.5 Gigabit Ethernet, 802.11ax, Bluetooth 5.2
Ekspansion / Konnektivitet
Holdere	1 (total) / 1 (fri) x M.2 Card - 2242/2260/2280 (Key M) 1 (total) / 0 (fri) x M.2 Card (Key E)

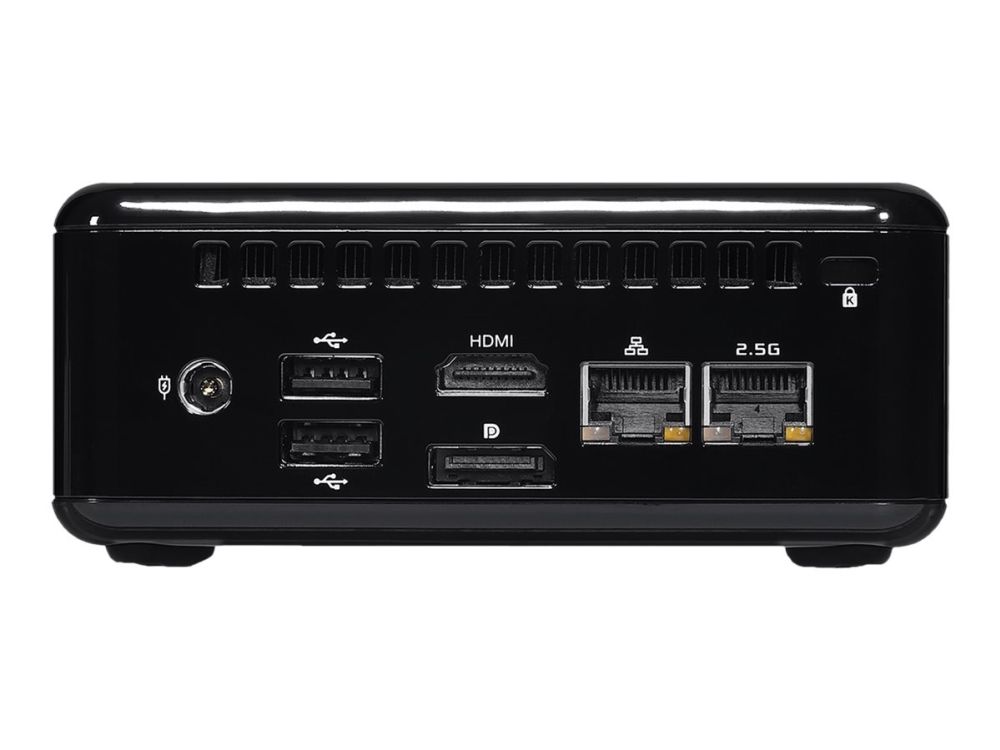

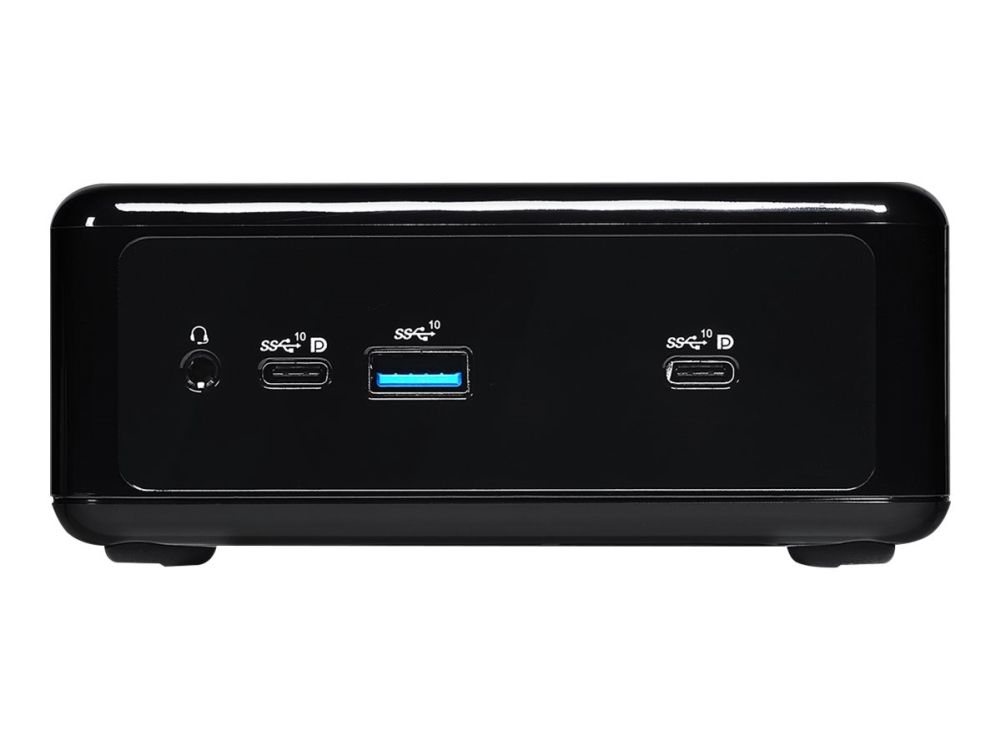

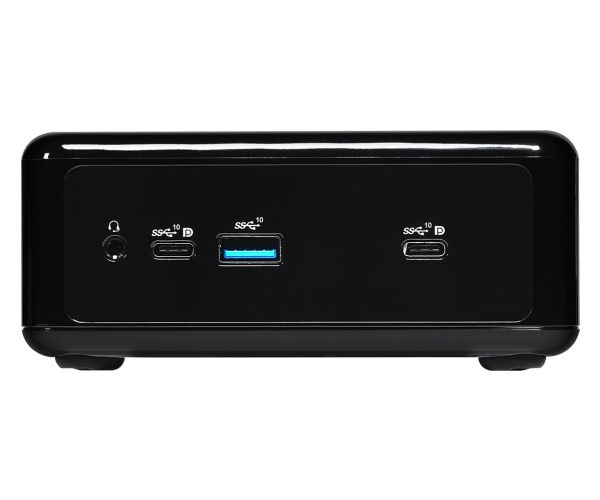

Interface	1 x USB 3.2 Gen 2 (1 foran) 1 x LAN (Gigabit Ethernet) 1 x hovedtelefoner/mikrofon (1 foran) 2 x USB 2.0 1 x HDMI 1 x DisplayPort 2 x DisplayPort/USB-C 3.2 Gen 2 (2 foran) 1 x LAN (2.5Gigabit Ethernet)
Diverse
Udstyr inkluderet	VESA monteringssæt, skruesæt
Tyveri/Indtrængningsbeskyttelse	Sikkerhedslåseåbning (kabellåse solgt separat)
Sikkerhedsåbningstype	Kensington-sikkerhedsåbning
VESA-monteringsinterface	Ja
Overensstemmelsesstandarder	FCC Klasse A certificeret
Effekt
Enhedstype	Strømforsyningsadapter
Strømforsyning	90 watt
Operativsystem / Programmer
Med OS	Intet operativt system
Mål og vægt
Bredde	11 cm
Dybde	11.75 cm
Højde	4.785 cm
Vægt	1 kg
Miljømæssige parametre
Min. driftstemperatur	0 °C
Maks. driftstemperatur	40 °C
Fugtighedsgrad ved brug	5 - 90%

The item is known under the following item numbers in our system

EAN:	4710483933516
SKU:	90PXG7K0-P0EAY100

Why do I find that the same product is available on different item numbers?

Manufacturers often release the same product with different item numbers, typically just different versions of the packaging. For example, the packaging may be targeted at different countries. We try our best to unify the products, but it can happen that the same product appears on different item numbers in our system.
