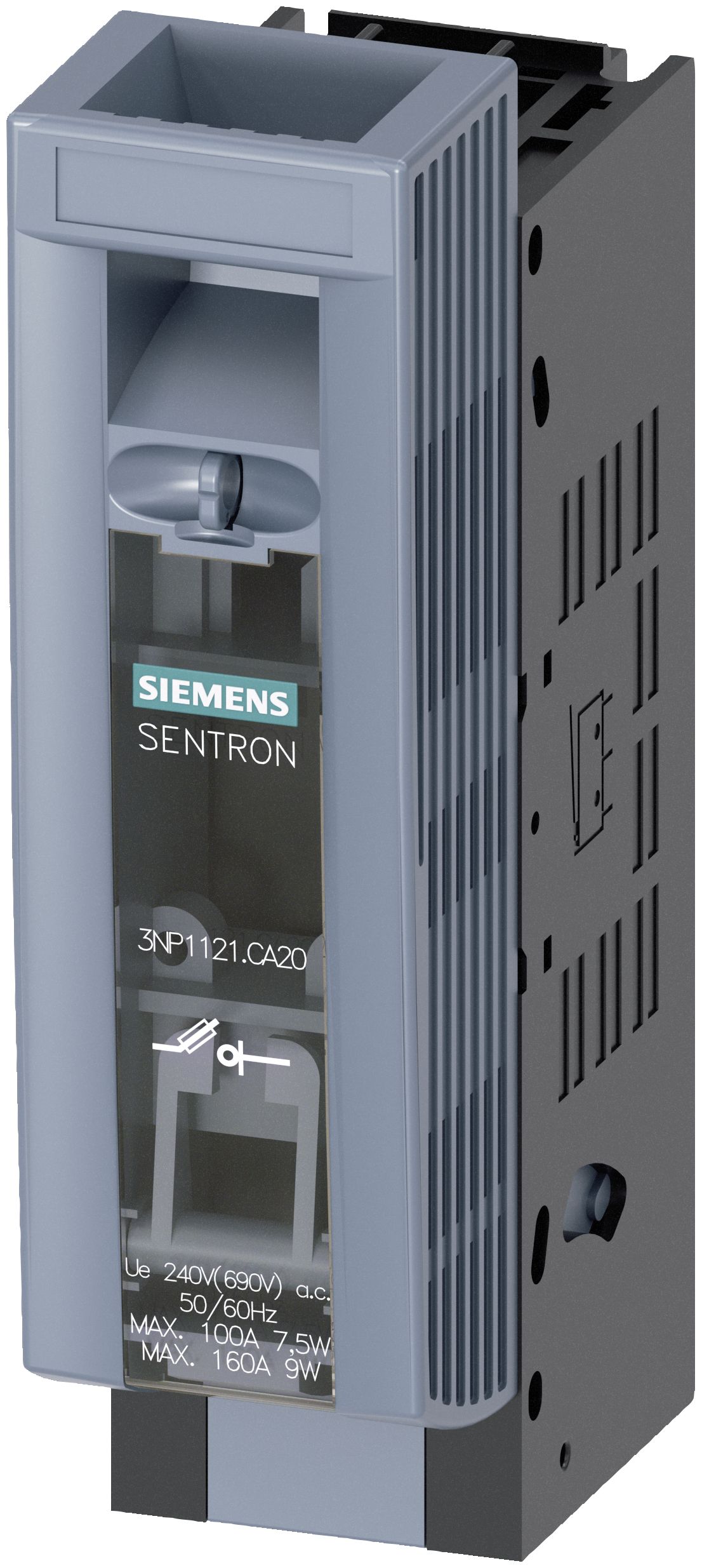

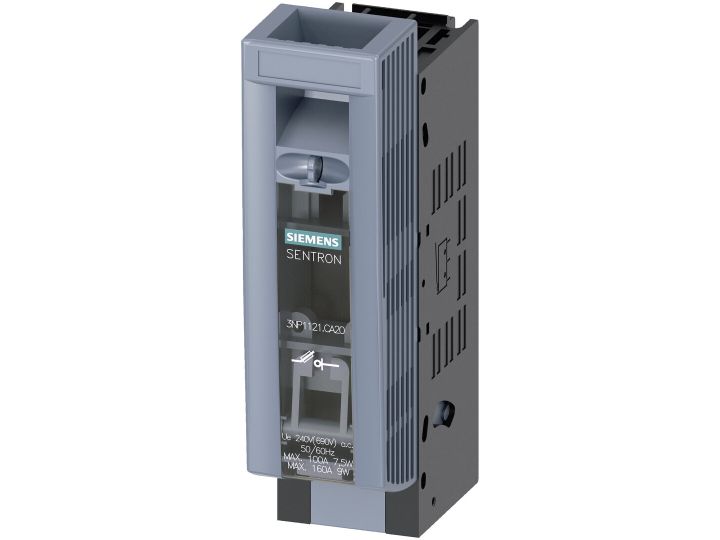

Siemens Fuse switch disconnector 3NP1, IP40, 1 pc(s), 249.5 g, 143 mm, 122 mm, 43 mm

Item no.: [7192600] | Manufacturer: Siemens | Model no.: 3NP1121-1CA20 | EAN: 4001869564357
Remote stock (14-21 days)
The item is in a remote warehouse, delivery time is 14-21 business days. More info
Delivery options  - Select at checkout
Shipping @price - GLS
12,00
EUR 34,16
Incl. VAT 42,70
Total incl. delivery 57,70
Read further specifications and description
SENTRON, fuse switch disconnector 3NP1, 1-pole, NH000, 160 A, for assembly and installation on mounting plate, box terminal, cover level 45 mm Fuse switch disconnector SENTRON 3NP1 3NP fuse switch disconnector up to 630 A with enhanced protection for personnel and plants and user-friendly connection system.. The fuse switch disconnectors have an electronic fuse monitoring function that enables optional line monitoring. Flexible switching times of the auxiliary switch are possible. The reach-round and touch protection incorporated as standard in the new SENTRON 3NP1 series prevents users from touching current conducting parts when mounting on a busbar system, even when accessing at the rear. 3NP1 fuse switch disconnectors are available in 1-, 3- and 4-pole versions for currents from 125 A to 630 A up to degree of protection IP40. Optimized technology for your safety - only from Siemens.
