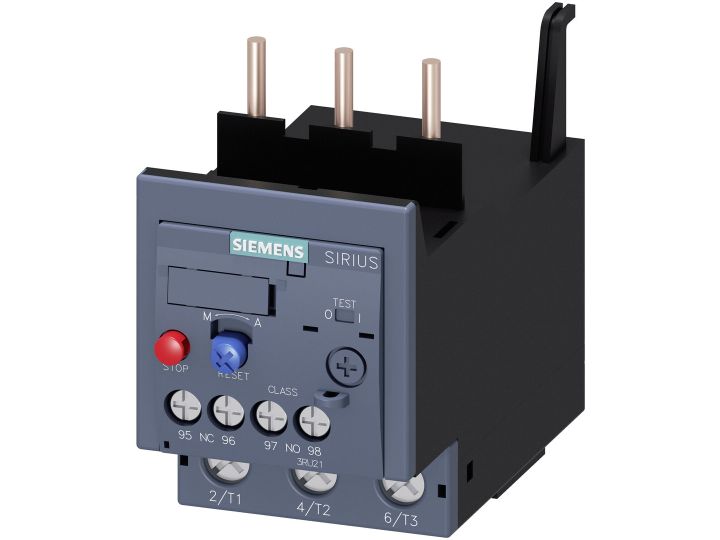

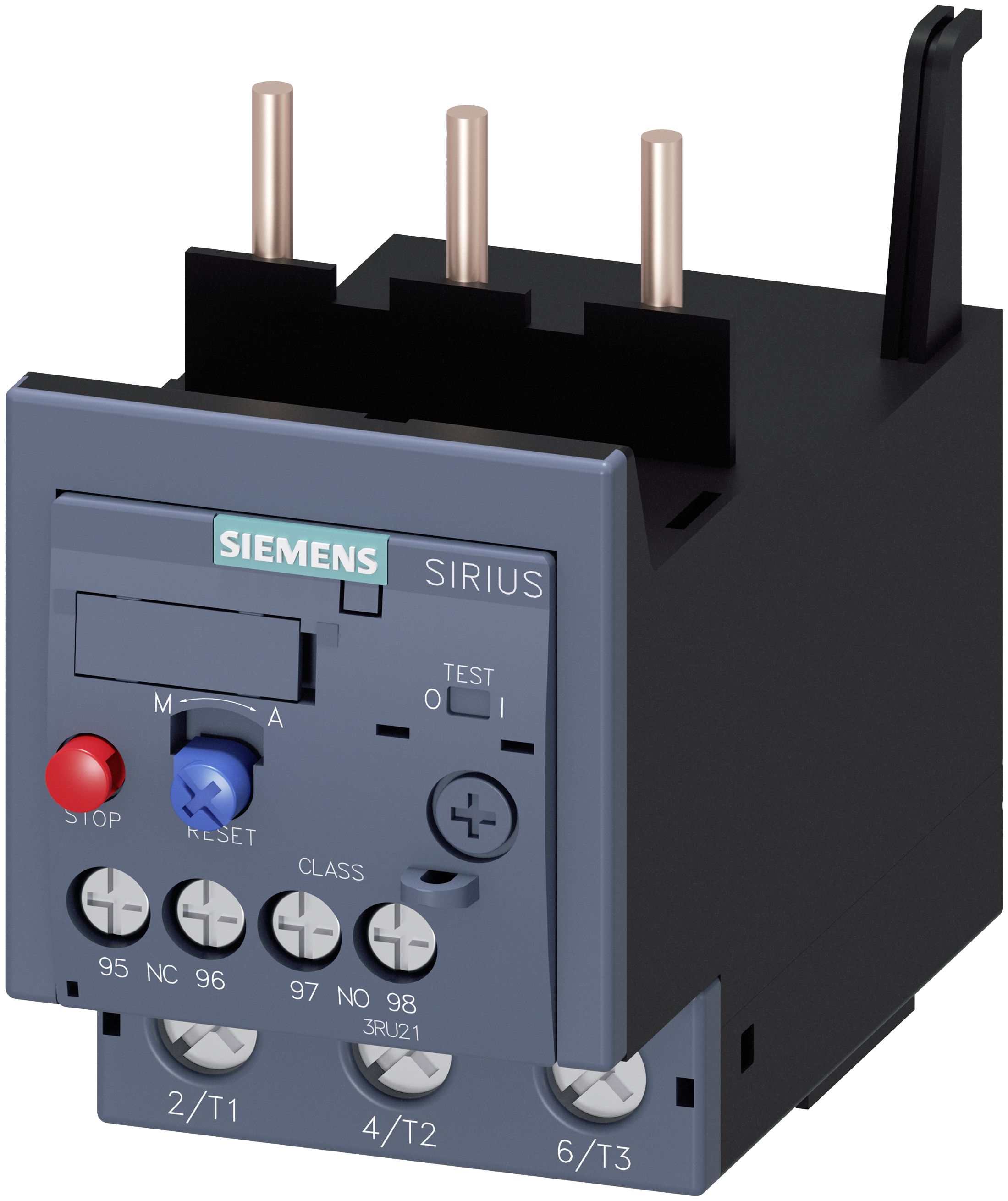

Siemens Therm. overload relay 5.5 - 8 A, 61 mm, 96 mm, 111 mm, 318 g

Item no.: [7192752] | Manufacturer: Siemens | Model no.: 3RU2136-1HB0 | EAN: 4011209916661
out of stock
The item is not in stock. More info

Udsolgt

Varen er ikke på lager.

Brug funktionen ”Giv mig besked..." herunder for opdateringer.

Delivery options  - Select at checkout
Shipping @price - GLS
12,00
EUR 85,39
Incl. VAT 106,74
Total incl. delivery 121,74
Notify me when the item is in stock again
Read further specifications and description
Overload relay 5.5...8 A Thermal For motor protection Size S2 Class 10 Contactor mounting Main circuit: screw terminal Auxiliary circuit: screw terminal Manual-Automatic-Reset thermal overload relay SIRIUS 3RU2 for inverse-time delayed protection of loads with normal starting against excessive temperature rises due to overload or phase failure. This series is particularly flexible and cost-effective. Worldwide approvals (e.g. IEC and UL/CSA) and applications in hazardous areas (ATEX or IEC Ex) are a matter of course. Can be supplied with different setting ranges of the overload release. They are available with screw or spring-type terminals for fast, maintenance-free and vibration-proof connection, as well as for stand-alone installation. The accessories consistently fit all sizes from S00 to S3. Simple, efficient and always up to date - SIRIUS modular system.
