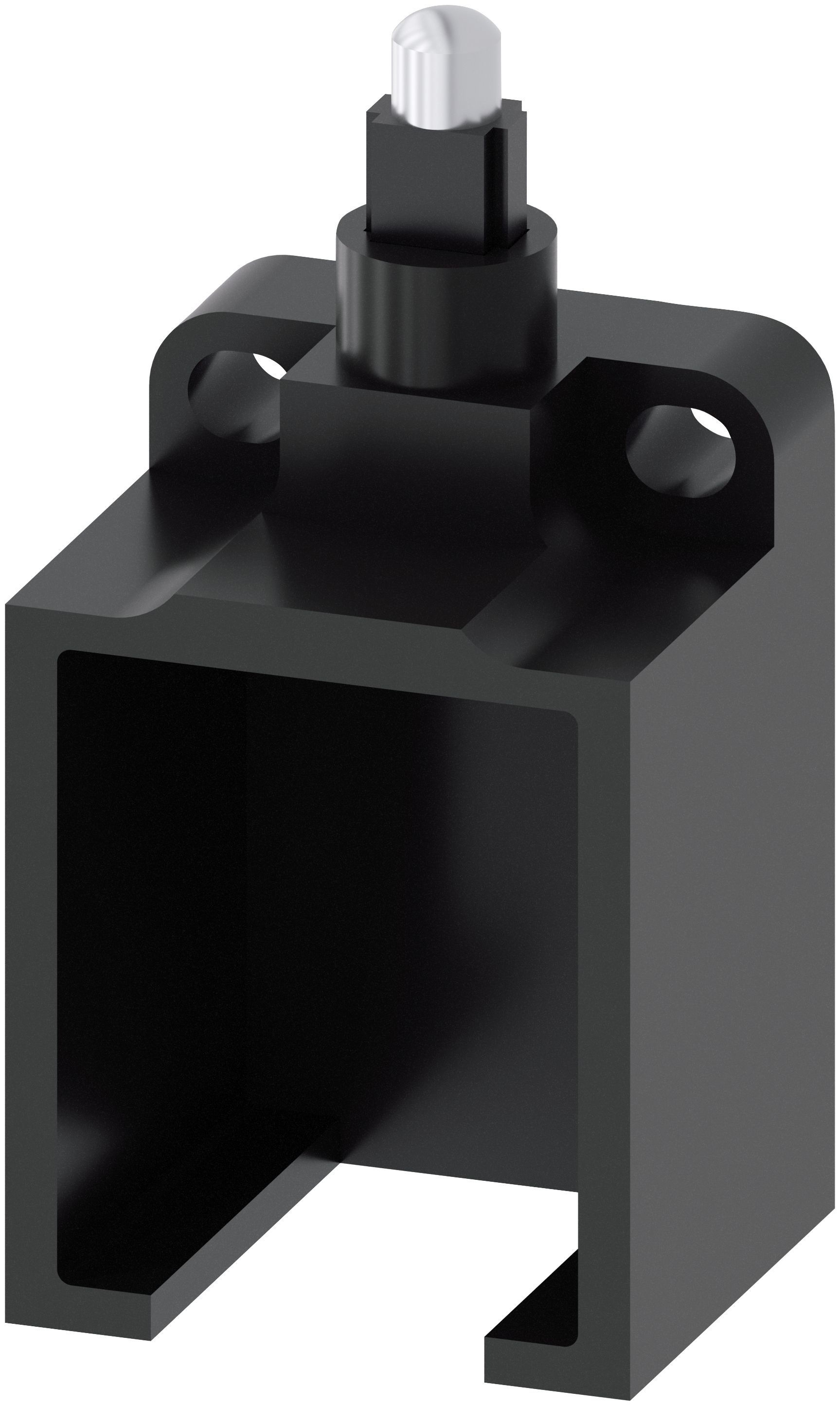

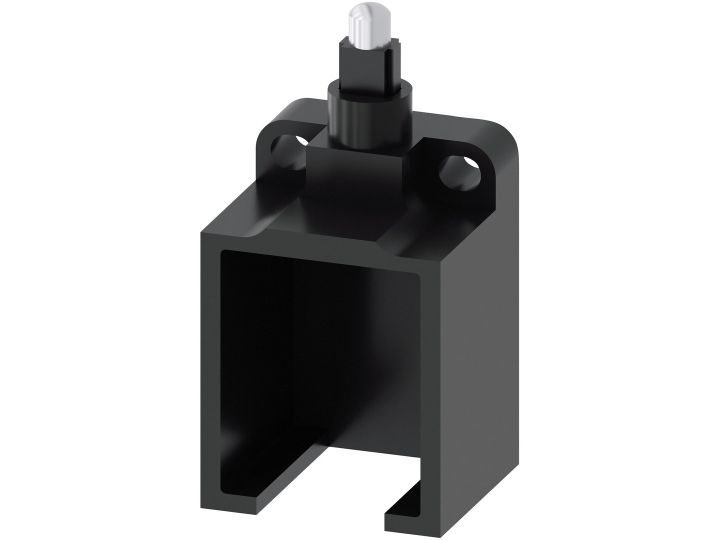

Position switch Plastic enclosure open type 30 mm Metal plunger, can be equipped with all contacts Open-type position switches SIRIUS 3SE5 for use as auxiliary switches in cabinets, particularly for locations unaffected by humidity and dust. Their compact construction makes the switches particularly suitable for use in confined conditions. Thanks to the robust metal plunger, they have greater abrasion resistance. Mounting and operating points according to EN 50047 The devices have worldwide approval (IEC, UL). Versions are available with various contacts in snap-action, slow-action or slow-action with make-before-break versions. Safety is a SIRIUS business.
Housing material
Plastic
Package width
45 mm
Package depth
42 mm
Package height
97 mm
Package weight
26 g
Compliance certificates
CE, RoHS
Control element type
Plunger
Ambient temperature range
25 - 85 °C
Sensor length
5.92 cm
Sensor width
3 cm
Sensor height
2.7 cm
Battery included
No
Latching switching function
No
Status indication
No
Minimum order quantity
1 pc(s)
Maximum order quantity
1 pc(s)
Explosion safety category for dust
None
Explosion safety category for gas
None
The item is known under the following item numbers in our system
EAN:
4011209725041
SKU:
3SE52500AC05
