Fractal Design Ion+ 750W Gold, 750 W, 100 - 240 V, 50 - 60 Hz, 10 A, 120 W, 22 A

Item no.: [7269174] | Manufacturer: Fractal Design | Model no.: FD-P-IA2G-750-EU | EAN: 7340172702795

Remote stock (14-21 days)

The item is in a remote warehouse, delivery time is 14-21 business days. More info

Shipping @price - GLS

12,00

EUR 110,18

Incl. VAT 137,73

Total incl. delivery 152,73

Read further specifications and description

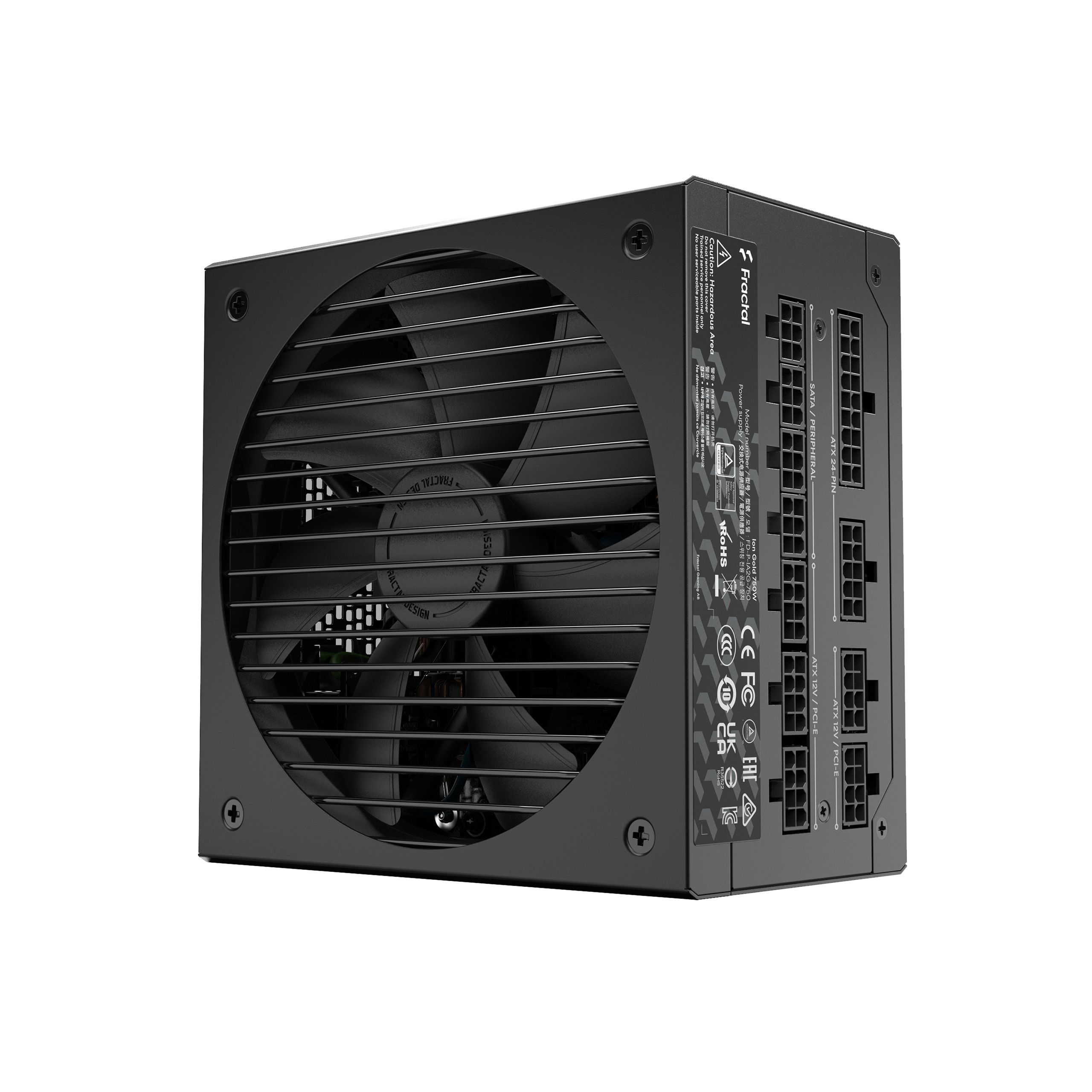

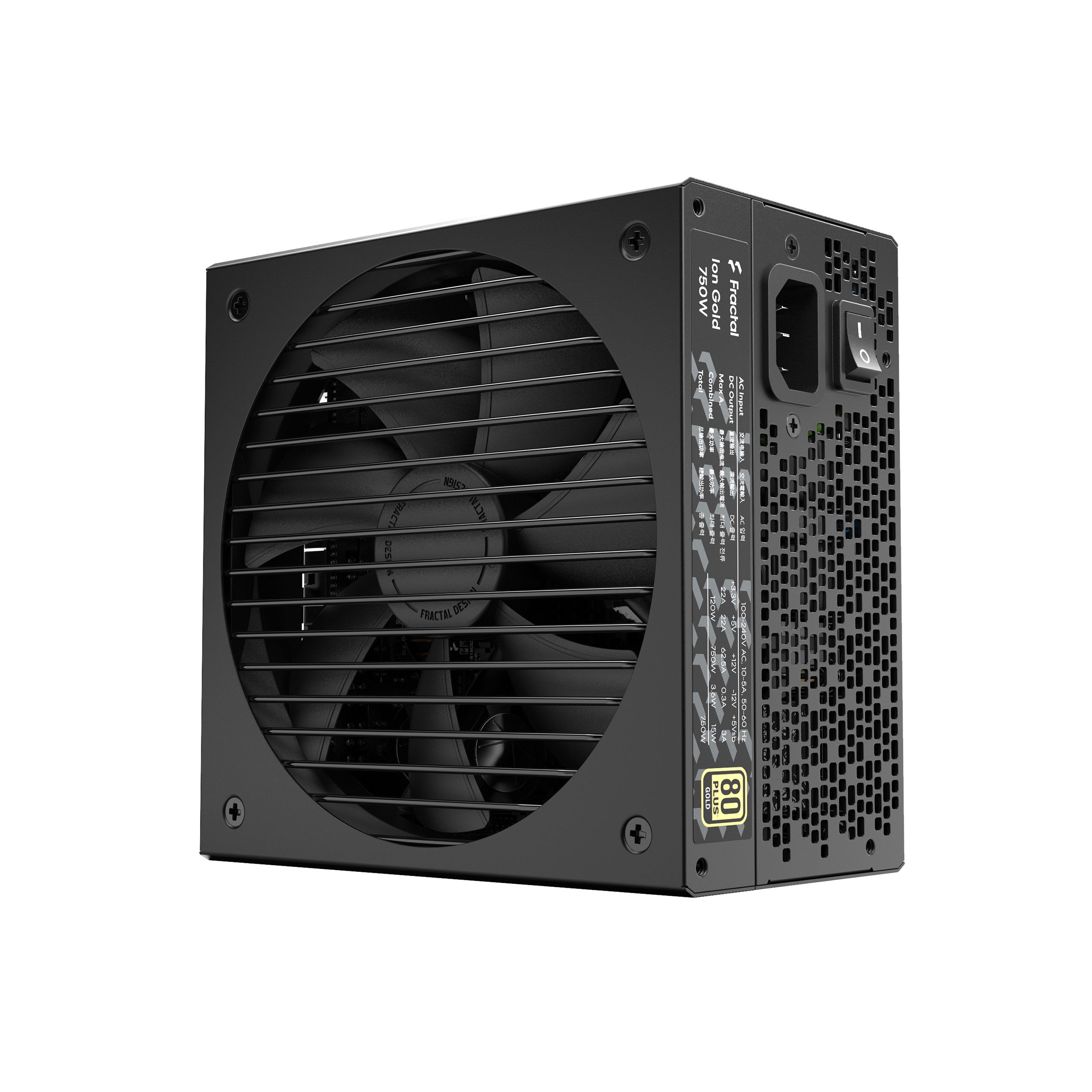

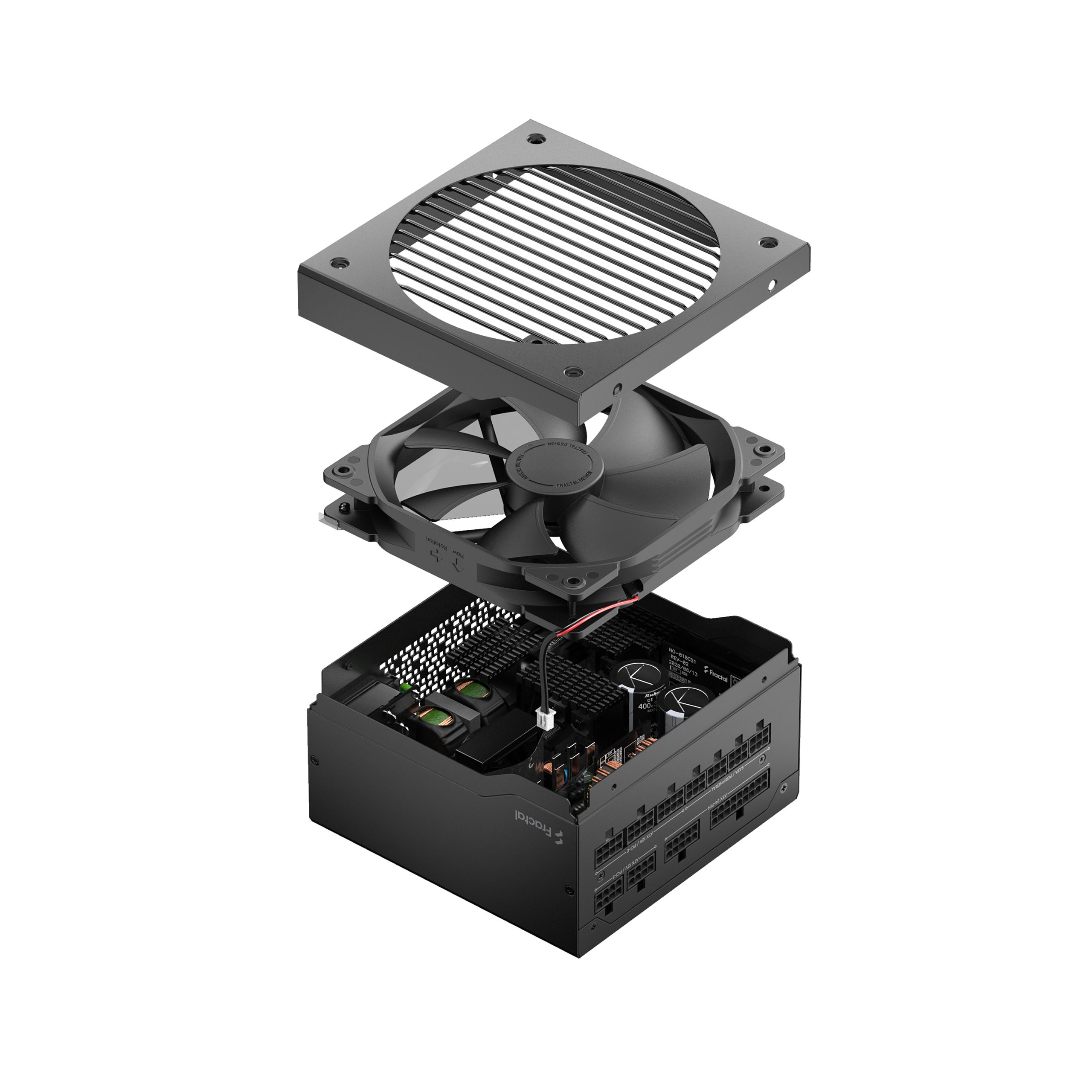

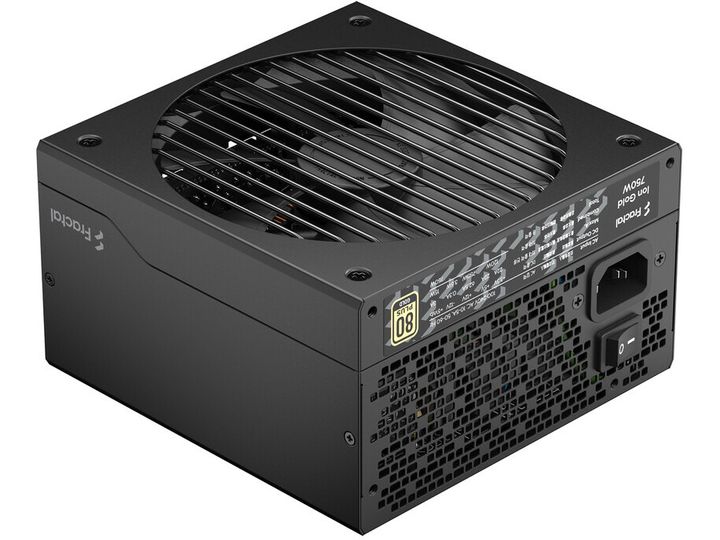

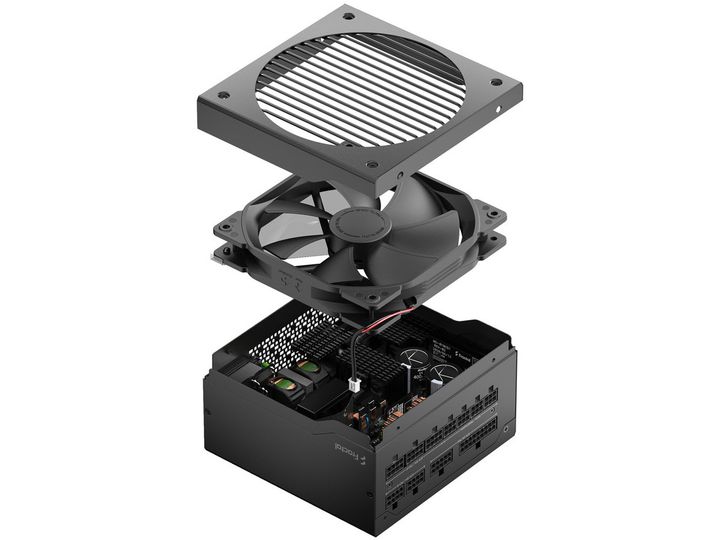

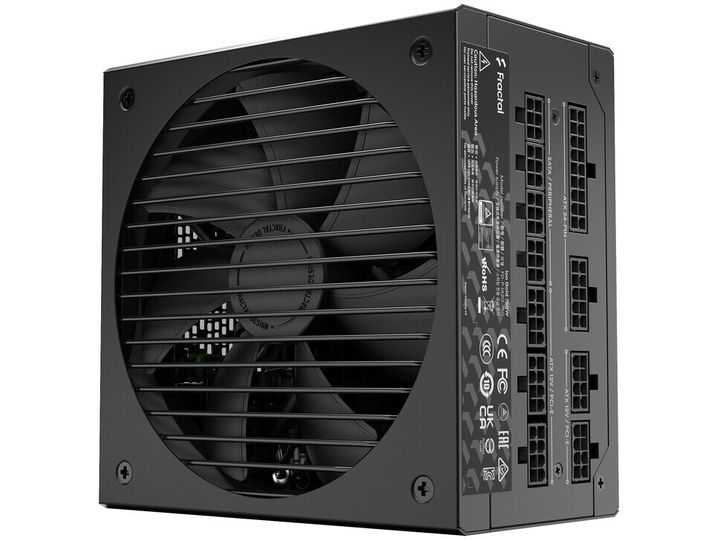

The Ion Gold ATX is a high-performance power supply, featuring great electrical performance, quiet operation with a big 140 mm Dynamic series fan, and an attractive design. Tailored specifically for anyone looking for a high-quality power supply at a competitive price, the Ion Gold comes packed with capability. It is fully modular for reduced clutter, installs easily thanks to its 150 mm depth.

Produktbeskrivelse	Fractal Design Ion Gold - strømforsyning - 750 Watt
Enhedstype	Strømforsyning - intern
Specifikationsoverensstemmelse	ATX12V 2.52/ EPS12V 2.92
80 PLUS certificering	80 PLUS Gold
Vægt	2.31 kg
Lokalisering	Europa
Indgangspænding	AC 100-240 V
Udgangspænding	+3.3, +5, ±12 V
Strømkapacitet	750 Watt

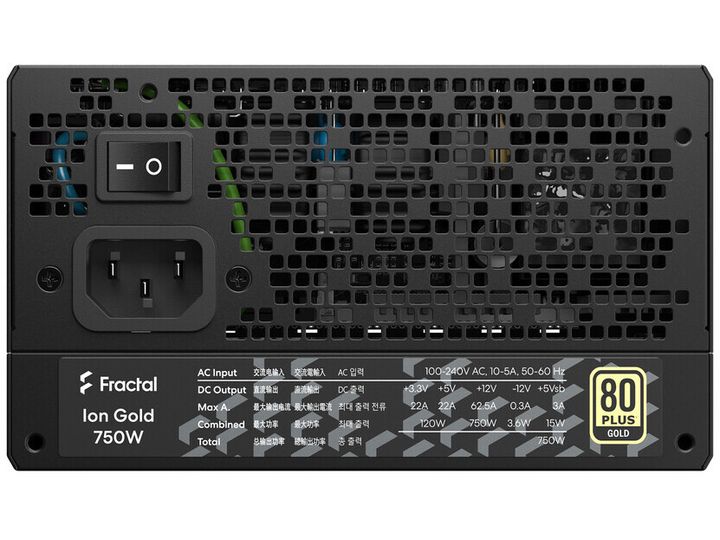

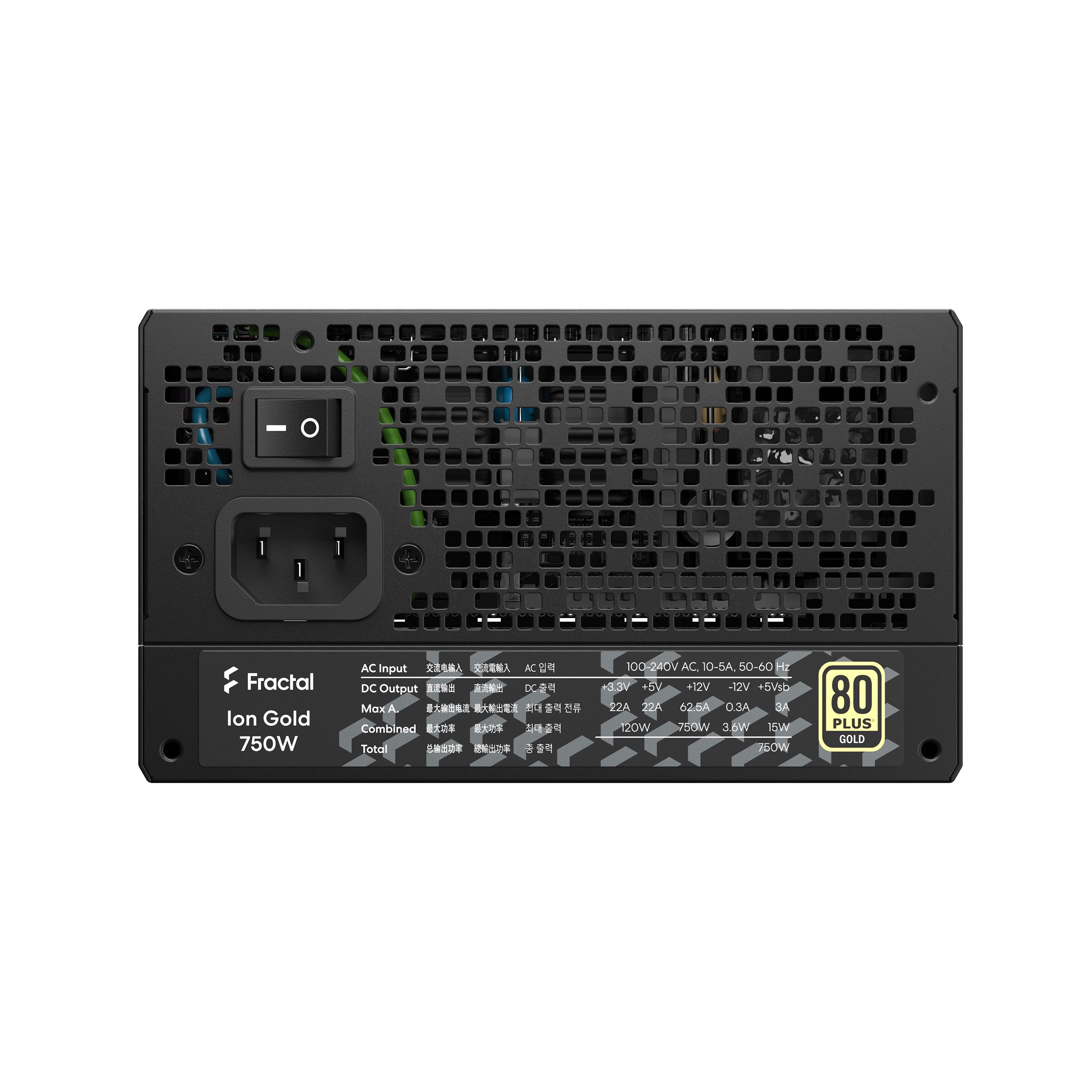

Output Current	+3.3V - 22 A +5V - 22 A +12V - 62.5 A -12V - 0.3 A +5VSB - 3 A

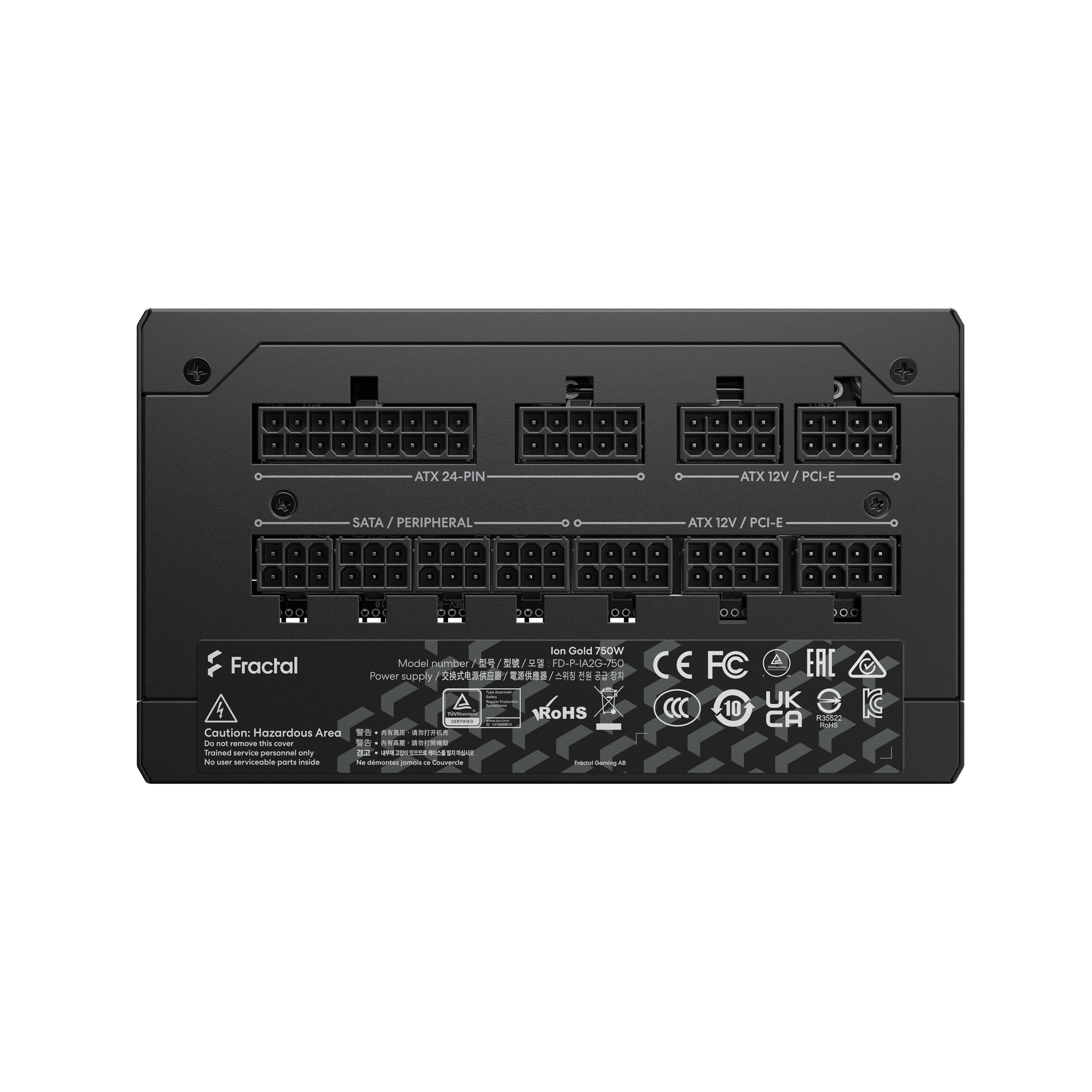

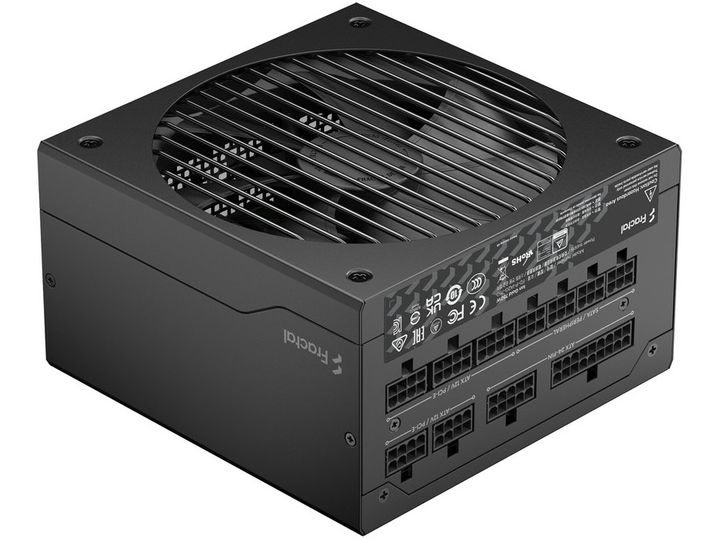

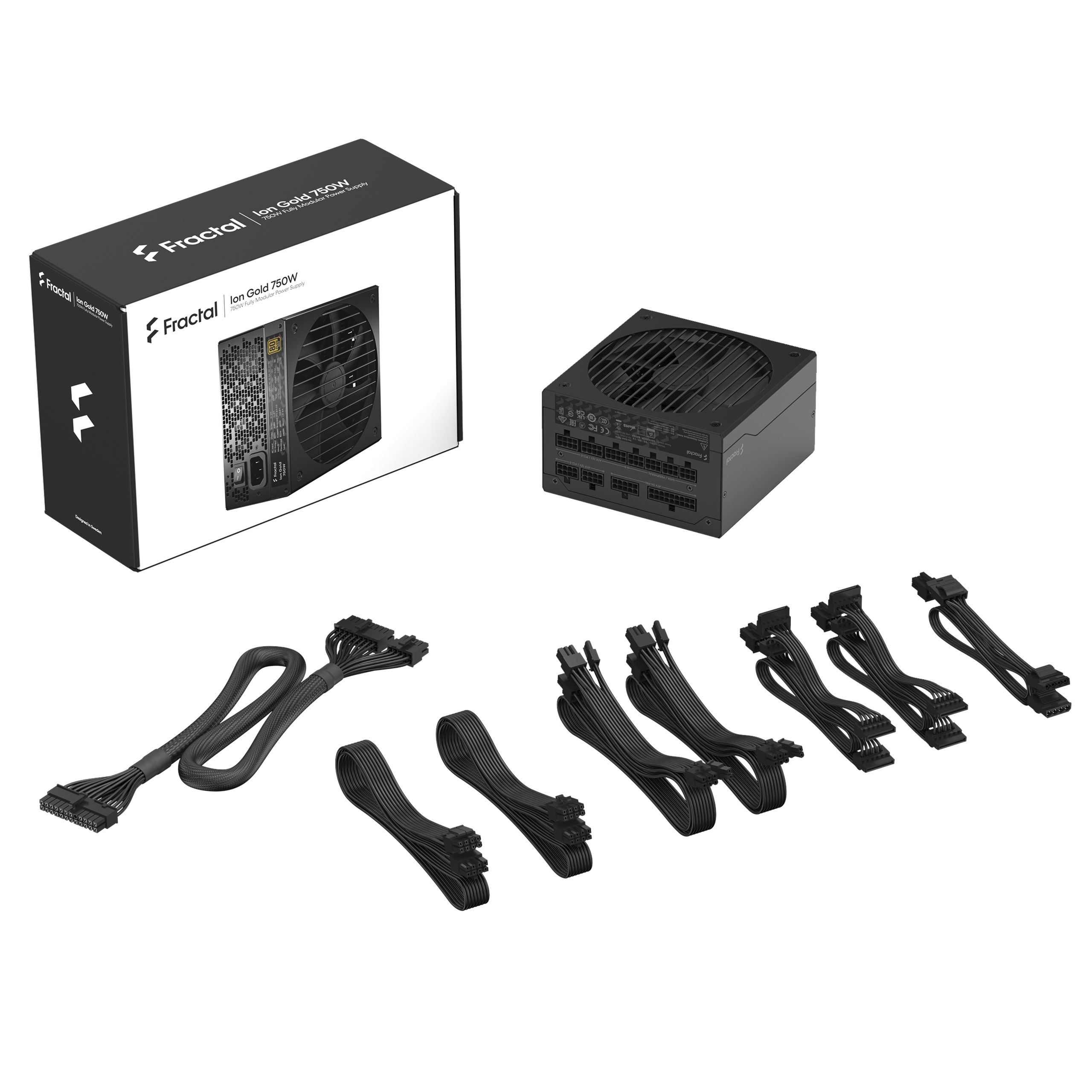

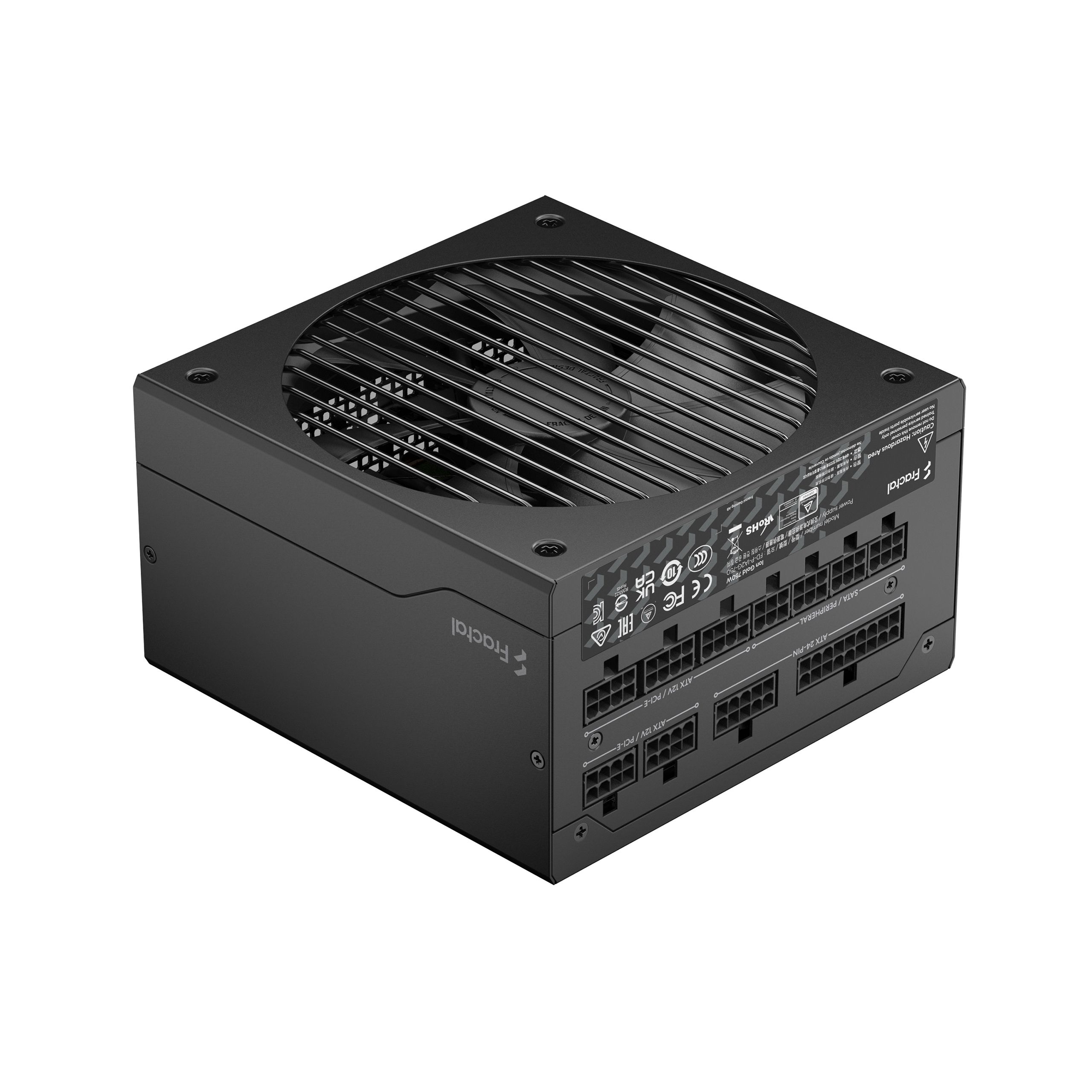

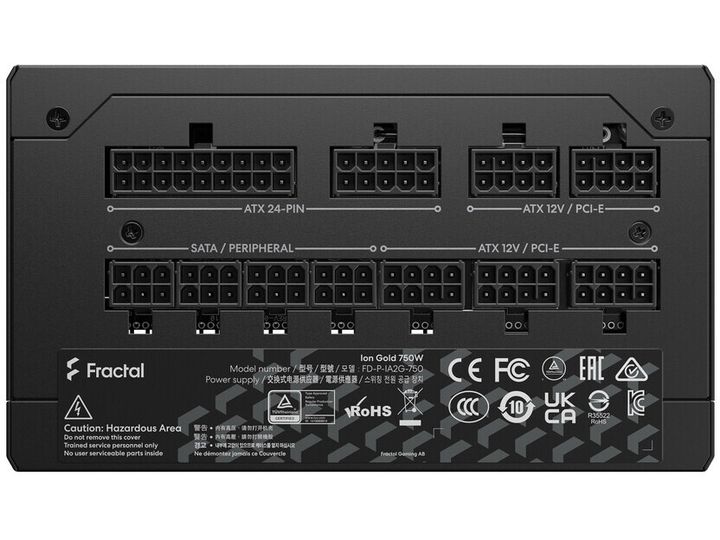

Output-stikforbindelser	1 x strøm 24 pin ATX 2 x strøm 8 pin EPS12 V med aftagelig 4 pin ATX12V sektion 4 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion 8 x 15 pin Serial ATA strøm 3 x 4-PIN intern strøm
Modulær Kabel Administration	Ja

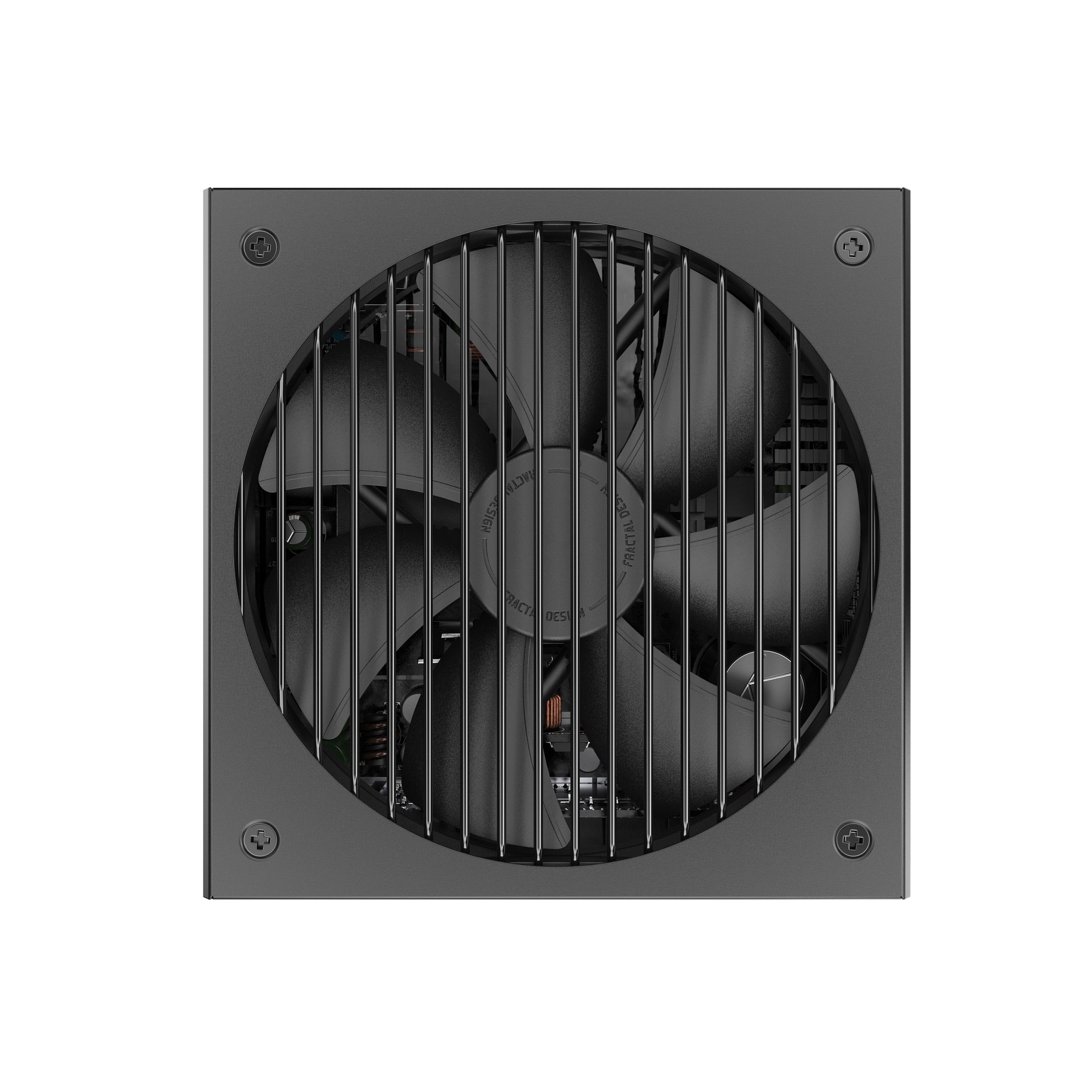

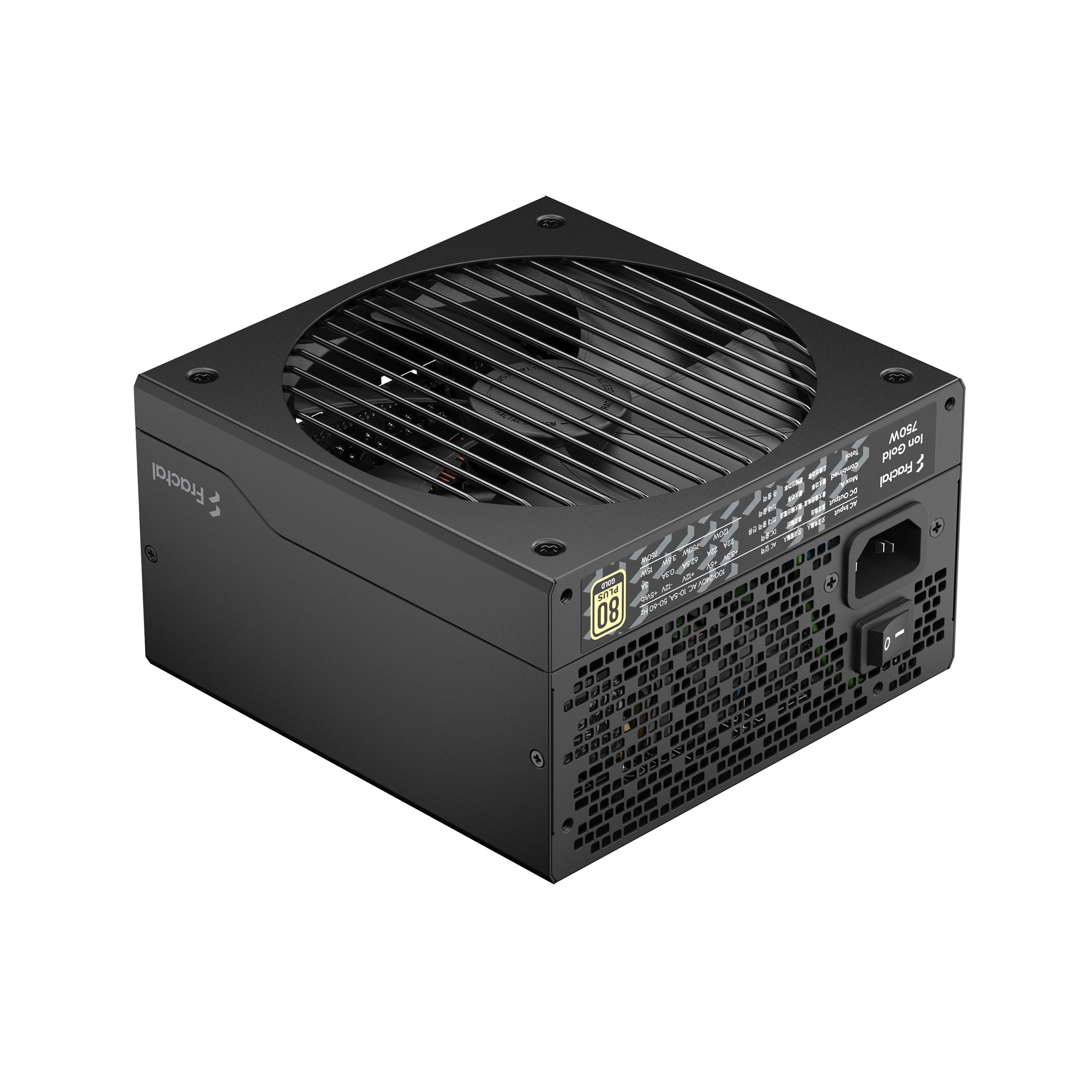

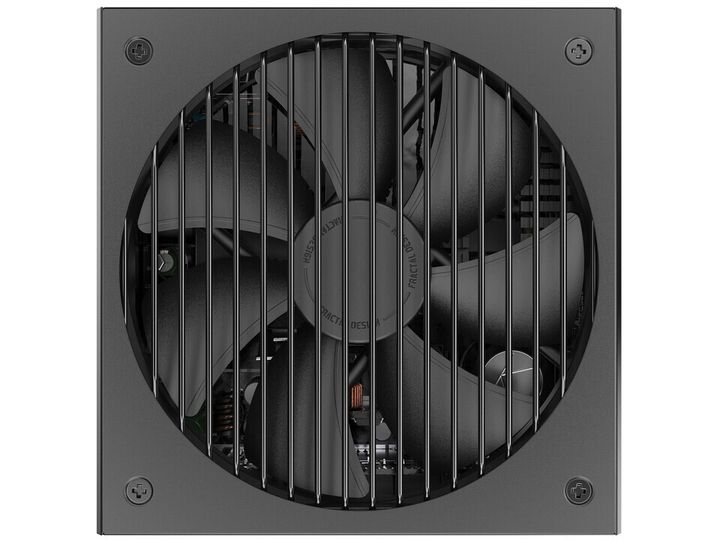

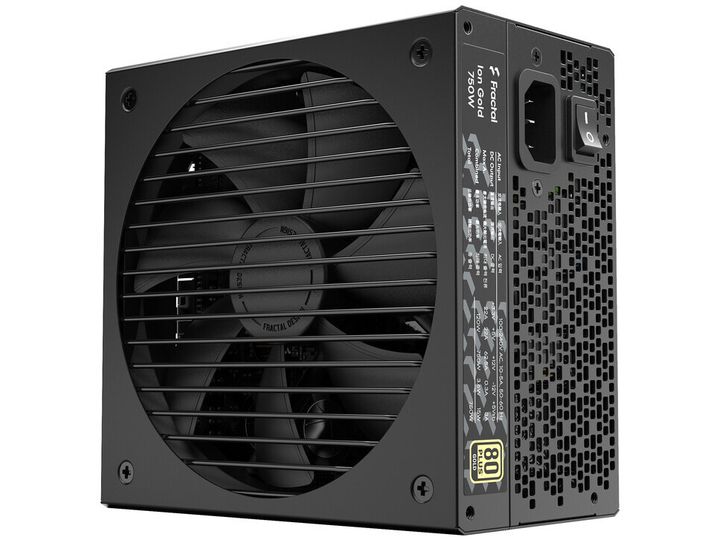

Kølesystem	140 mm ventilator

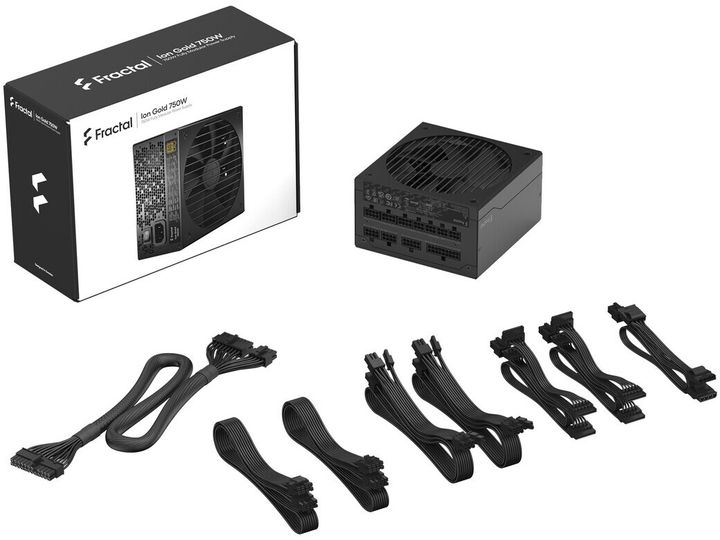

Udstyr inkluderet	Skruer, kabelbånd
Farve	Sort
Dimensioner (B x D x H)	15 cm x 15 cm x 8.6 cm
Producentgaranti	7 års garanti

Generelt
Enhedstype	Strømforsyning - intern
Specifikationsoverensstemmelse	ATX12V 2.52/ EPS12V 2.92
PSU formfaktor	ATX
Farve	Sort
Lokalisering	Europa
Strømenhed
Indgangspænding	AC 100-240 V
Nødvendig frekvens	50 - 60 Hz
Detaljer om strømudgangskonnektorer	1 x strøm 24 pin ATX 2 x strøm 8 pin EPS12 V med aftagelig 4 pin ATX12V sektion 4 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion 8 x 15 pin Serial ATA strøm 3 x 4-PIN intern strøm
Udgangspænding	+3.3, +5, ±12 V
Strømkapacitet	750 Watt
Output Current	+3.3V - 22 A +5V - 22 A +12V - 62.5 A -12V - 0.3 A +5VSB - 3 A
Modulær Kabel Administration	Ja
80 PLUS certificering	80 PLUS Gold
Diverse
Udstyr inkluderet	Skruer, kabelbånd
MTBF (forventet tid mellem fejl)	100,000 timer
Kølesystem	140 mm ventilator
Egenskaber	Beskyttelse mod overophedning, beskyttelse mod overstrøm, overspændingsbeskyttelse, overbelastningsbeskyttelse, beskyttelse mod underspænding, kortslutnings beskyttelse, DC-DC teknologi, fuld modulær
Overensstemmelsesstandarder	TUV, BSMI, CB, CCC, FCC, RoHS, KCC, WEEE, cTUVus, EAC, ErP 2013, RCM
Producentgaranti
Service & Support	Begrænset garanti - 7 år
Miljømæssige parametre
Maks. driftstemperatur	50 °C
Mål og vægt
Bredde	15 cm
Dybde	15 cm
Højde	8.6 cm
Vægt	2.31 kg
Mål & vægt (forsendelse)
Bredde ved forsendelse	30 cm
Dybde ved forsendelse	21 cm
Højde ved forsendelse	11 cm
Vægt ved forsendelse	2.69 kg
