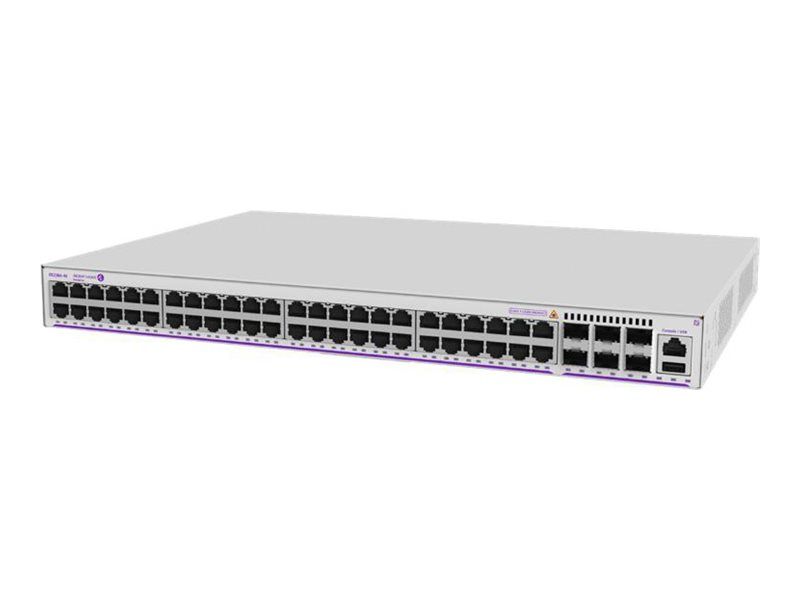

Alcatel-Lucent Enterprise OS2260-10-EU, Managed, L2+, Gigabit Ethernet (10/100/1000), Full duplex, Rack mounting, 1U

Item no.: [7587713] | Manufacturer: Alcatel-Lucent | Model no.: OS2260-24-EU | EAN: 3326744978663

out of stock

The item is not in stock. More info

Varen er ikke på lager.

Brug funktionen ”Giv mig besked..." herunder for opdateringer.

Shipping @price - GLS

12,00

EUR 305,25

Incl. VAT 381,56

Total incl. delivery 396,56

Notify me when the item is in stock again

Read further specifications and description

The OmniSwitch 2260 allows you to achieve reliable business class network performance, including security, without paying for advanced network management features. The switches are a lower price alternative compared to managed switches for wired connectivity, while maintaining performance, Quality of Service (QoS), and scalability, using a simplified web management interface.

Deployments that benefit from the OmniSwitch 2260 family include; small and medium-sized business network solutions, high-speed desktop connectivity, secure wireless connectivity and unified communications connectivity (IP telephony, video, and converged solutions).

Produktbeskrivelse	Alcatel-Lucent OmniSwitch OS2260-24 - switch - 24 porte - Administreret - monterbar på stativ
Enhedstype	Switch - 24 porte - Administreret
Pakningstype	Monterbar på stativ 1U
Undertype	Gigabit Ethernet
Porte	24 x 10/100/1000 + 4 x Gigabit SFP (uplink)
Præstation	Forsinkelse: 4 µs Skiftende ASIC-kapacitet: 128 Gbps Skiftekapacitet (fuld duplex): 56 Gbps Billedrate: 41.7 Mpps Pakkebufferstørrelse: 16 Mbps
Protokol til fjernadministration	HTTP, CLI, Telnet, SSH-2, SNMP 1, SNMP 2, SFTP, TFTP, RMON, LDAP, HTTPS
Egenskaber	ACL support, QoS, DoS protection, SNMP-support, Advanced QoS, IPv4 support, IPv6 understøttet, DHCP-understøttelse, port mapping, VoIP support, blæserløs, TFTP support, LLDP support, LLDP-MED, NTP, NTP support, sFlow v5, auto-negotiation, auto-uplink (auto MDI/MDI-X), understøttet af BOOTP, DHCP videresendelse, DHCP server, DDM, UDLD, Zero Touch Auto Provisioning, MVRP, Virtuel Chassis teknologi, MSTP support, RSTP support, STP support, LACP, MAC-adresse-filtrering, understøttet af LDAP, LPS, SPQ, WRR, Jumbo Frames support, CoS, datatransport, Link Aggregation, MRP, VLAN Tagging, understøttet af ARP, VLAN-understøttet, Syslog understøttet, portspejling, IP-adresse filtrering, Port Security, DHCP klient, Energy Efficient Ethernet, 802.1x autentificering, ICMP
Overensstemmelsesstandarder	IEEE 802.1x, IEEE 802.1ab (LLDP), IEEE 802.1Q, IEEE 802.1s, IEEE 802.1D, IEEE 802.1w, IEEE 802.1AX, IEEE 802.3ad (LACP), IEEE 802.3, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ak, IEEE 802.3ax, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Dimensioner (B x D x H)	44 cm x 30 cm x 4.4 cm
Vægt	3.39 kg
Lokalisering	Europa
Producentgaranti	Begrænset livtidsgaranti

Generelt
Enhedstype	Switch - 24 porte - Administreret
Pakningstype	Monterbar på stativ 1U
Undertype	Gigabit Ethernet
Porte	24 x 10/100/1000 + 4 x Gigabit SFP (uplink)
Præstation	Forsinkelse: 4 µs Skiftende ASIC-kapacitet: 128 Gbps Skiftekapacitet (fuld duplex): 56 Gbps Billedrate: 41.7 Mpps Pakkebufferstørrelse: 16 Mbps
Protokol til fjernadministration	HTTP, CLI, Telnet, SSH-2, SNMP 1, SNMP 2, SFTP, TFTP, RMON, LDAP, HTTPS
Krypterings algoritme	MD5, PKI, ESP, HMAC
Autentificeringsmetode	Secure Shell v.2 (SSH2), TACACS+, RADIUS, LDAP, Extensible Authentication Protocol (EAP)
Egenskaber	ACL support, QoS, DoS protection, SNMP-support, Advanced QoS, IPv4 support, IPv6 understøttet, DHCP-understøttelse, port mapping, VoIP support, blæserløs, TFTP support, LLDP support, LLDP-MED, NTP, NTP support, sFlow v5, auto-negotiation, auto-uplink (auto MDI/MDI-X), understøttet af BOOTP, DHCP videresendelse, DHCP server, DDM, UDLD, Zero Touch Auto Provisioning, MVRP, Virtuel Chassis teknologi, MSTP support, RSTP support, STP support, LACP, MAC-adresse-filtrering, understøttet af LDAP, LPS, SPQ, WRR, Jumbo Frames support, CoS, datatransport, Link Aggregation, MRP, VLAN Tagging, understøttet af ARP, VLAN-understøttet, Syslog understøttet, portspejling, IP-adresse filtrering, Port Security, DHCP klient, Energy Efficient Ethernet, 802.1x autentificering, ICMP
Overensstemmelsesstandarder	IEEE 802.1x, IEEE 802.1ab (LLDP), IEEE 802.1Q, IEEE 802.1s, IEEE 802.1D, IEEE 802.1w, IEEE 802.1AX, IEEE 802.3ad (LACP), IEEE 802.3, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ak, IEEE 802.3ax, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Processor	1 x MIPS: 1 GHz
RAM	512 MB
Flashhukommelse	512 MB
Statusindikatorer	System, strøm, virtuelt chassis, link/aktivitet, SFP
Ekspansion / Konnektivitet
Interface	24 x 1000Base-T RJ-45 4 x Gigabit LAN SFP uplink 1 x konsol RJ-45 1 x USB Type A administration
Effekt
Strømenhed	Intern strømforsyning
Strømforbrug ved drift	29.5 Watt
Diverse
MTBF (forventet tid mellem fejl)	1,632,000 timer
Overensstemmelsesstandarder	IEEE 802.1x, EMC, EMI, FCC CFR47 Part 15 B Class A 2015, AS/NZS 3548 Klasse A, C-Tick, EN 50581, EN 55024:2010, EN 61000-3-2, EN55022, ICES-003:2012 Issue 5 Class A, VCCI Class A, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11, IEEE 802.3, ANATEL, AS/NZ TS-001, AS/NZS 60950, CAN/CSA-C22.2 No. 60950-1-07 Second Edition, CCC, CDRH, EN 60825-1, EN 60825-2, IEC 60950-1, IEC 62368-1, NOM-019-SCFI, RETIE, RoHS, SNI, UL 60950-1 Second Edition, UL-GS, WEEE
Lokalisering	Europa
Mål og vægt
Bredde	44 cm
Dybde	30 cm
Højde	4.4 cm
Vægt	3.39 kg
Producentgaranti
Service & Support	Begrænset garanti - livstid
Miljømæssige parametre
Min. driftstemperatur	0 °C
Maks. driftstemperatur	45 °C
Fugtighedsgrad ved brug	5 - 95 % (ikke-kondenserende)
Min. lagertemperatur	-20 °C
Maks. Opbevaringstemperatur	60 °C

The item is known under the following item numbers in our system

EAN:	3326744978663
SKU:	OS2260-24-EU

Why do I find that the same product is available on different item numbers?

Manufacturers often release the same product with different item numbers, typically just different versions of the packaging. For example, the packaging may be targeted at different countries. We try our best to unify the products, but it can happen that the same product appears on different item numbers in our system.
