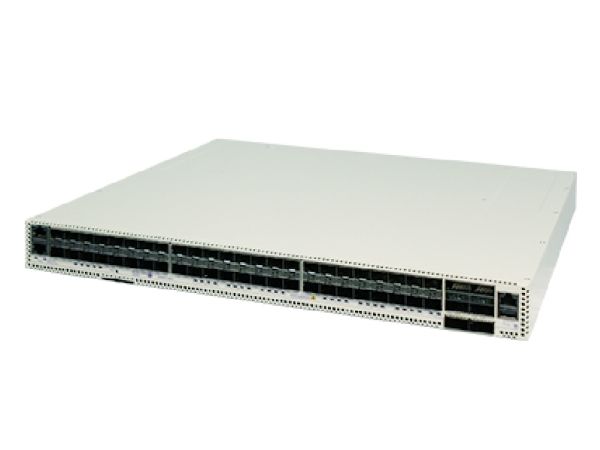

Alcatel-Lucent Enterprise OS6900X48-F-EU, Managed, L2/L3, Rack mounting, 1U

Item no.: [7587715] | Manufacturer: Alcatel-Lucent | Model no.: OS2260-P10-EU | EAN: 3326744978625

Remote stock (14-21 days)

The item is in a remote warehouse, delivery time is 14-21 business days. More info

Shipping @price - GLS

12,00

EUR 284,36

Incl. VAT 355,45

Total incl. delivery 370,45

Read further specifications and description

The Alcatel-Lucent OmniSwitch 2260 Gigabit WebSmart family of switches provides a simple, secure, and smart business network at affordable prices. The Alcatel-Lucent OmniSwitch 2260 operates on the field-proven Alcatel-Lucent Operating System (AOS) software supporting simple device management using the in-box web browser graphical user interface (GUI), as well as a subset of the most critical command-line interface (CLI) management commands. The OmniSwitch 2260 allows you to achieve reliable businessclass network performance, including security, without paying for advanced network management features. The switches are a lower price alternative compared to managed switches for wired connectivity, while maintaining performance, Quality of Service (QoS), and scalability, using a simplified web management interface.

Produktbeskrivelse	Alcatel-Lucent OmniSwitch OS2260-P10 - switch - 8 porte - Administreret - monterbar på stativ
Enhedstype	Switch - 8 porte - Administreret
Pakningstype	Monterbar på stativ 1U
Undertype	Gigabit Ethernet
Porte	8 x 10/100/1000 (PoE+) + 4 x Gigabit SFP (uplink)
Power Over Ethernet (PoE)	PoE+
PoE-budget	75 W
Præstation	Forsinkelse: 4 µs Skiftende ASIC-kapacitet: 128 Gbps Skiftekapacitet (fuld duplex): 24 Gbps Frame rate (64 byte pakke): 17,9 Mpps Pakkebufferstørrelse: 12 Mbps
Protokol til fjernadministration	HTTP, CLI, Telnet, SSH-2, SNMP 1, SNMP 2, SFTP, TFTP, RMON, LDAP, HTTPS
Egenskaber	ACL support, QoS, DoS protection, SNMP-support, Advanced QoS, IPv4 support, IPv6 understøttet, DHCP-understøttelse, port mapping, VoIP support, TFTP support, LLDP support, LLDP-MED, NTP, NTP support, sFlow v5, auto-negotiation, auto-uplink (auto MDI/MDI-X), understøttet af BOOTP, DHCP videresendelse, DHCP server, DDM, UDLD, Zero Touch Auto Provisioning, MVRP, Virtuel Chassis teknologi, MSTP support, RSTP support, STP support, LACP, MAC-adresse-filtrering, understøttet af LDAP, LPS, SPQ, WRR, Jumbo Frames support, CoS, datatransport, Link Aggregation, MRP, VLAN Tagging, understøttet af ARP, VLAN-understøttet, Syslog understøttet, portspejling, IP-adresse filtrering, Port Security, DHCP klient, Energy Efficient Ethernet, 802.1x autentificering, ICMP, blæserløs
Overensstemmelsesstandarder	IEEE 802.1x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1ab (LLDP), IEEE 802.1Q, IEEE 802.1s, IEEE 802.1D, IEEE 802.1w, IEEE 802.1AX, IEEE 802.3ad (LACP), IEEE 802.3, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ak, IEEE 802.3ax, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Dimensioner (B x D x H)	21.7 cm x 28 cm x 4.4 cm
Vægt	1.9 kg
Lokalisering	Europa
Producentgaranti	Begrænset livtidsgaranti

Generelt
Enhedstype	Switch - 8 porte - Administreret
Pakningstype	Monterbar på stativ 1U
Undertype	Gigabit Ethernet
Porte	8 x 10/100/1000 (PoE+) + 4 x Gigabit SFP (uplink)
Power Over Ethernet (PoE)	PoE+
PoE-budget	75 W
Præstation	Forsinkelse: 4 µs Skiftende ASIC-kapacitet: 128 Gbps Skiftekapacitet (fuld duplex): 24 Gbps Frame rate (64 byte pakke): 17,9 Mpps Pakkebufferstørrelse: 12 Mbps
Protokol til fjernadministration	HTTP, CLI, Telnet, SSH-2, SNMP 1, SNMP 2, SFTP, TFTP, RMON, LDAP, HTTPS
Krypterings algoritme	MD5, PKI, ESP, HMAC
Autentificeringsmetode	Secure Shell v.2 (SSH2), TACACS+, RADIUS, LDAP, Extensible Authentication Protocol (EAP)
Egenskaber	ACL support, QoS, DoS protection, SNMP-support, Advanced QoS, IPv4 support, IPv6 understøttet, DHCP-understøttelse, port mapping, VoIP support, TFTP support, LLDP support, LLDP-MED, NTP, NTP support, sFlow v5, auto-negotiation, auto-uplink (auto MDI/MDI-X), understøttet af BOOTP, DHCP videresendelse, DHCP server, DDM, UDLD, Zero Touch Auto Provisioning, MVRP, Virtuel Chassis teknologi, MSTP support, RSTP support, STP support, LACP, MAC-adresse-filtrering, understøttet af LDAP, LPS, SPQ, WRR, Jumbo Frames support, CoS, datatransport, Link Aggregation, MRP, VLAN Tagging, understøttet af ARP, VLAN-understøttet, Syslog understøttet, portspejling, IP-adresse filtrering, Port Security, DHCP klient, Energy Efficient Ethernet, 802.1x autentificering, ICMP, blæserløs
Overensstemmelsesstandarder	IEEE 802.1x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1ab (LLDP), IEEE 802.1Q, IEEE 802.1s, IEEE 802.1D, IEEE 802.1w, IEEE 802.1AX, IEEE 802.3ad (LACP), IEEE 802.3, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ak, IEEE 802.3ax, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Processor	1 x MIPS: 800 MHz
RAM	512 MB
Flashhukommelse	512 MB
Statusindikatorer	System, strøm, virtuelt chassis, link/aktivitet, SFP
Ekspansion / Konnektivitet
Interface	8 x 1000Base-T RJ-45 PoE+ 4 x Gigabit LAN SFP uplink 1 x konsol RJ-45 1 x USB Type A administration
Effekt
Strømenhed	Intern strømforsyning
Strømforbrug ved drift	17 Watt
Diverse
MTBF (forventet tid mellem fejl)	1,042,000 timer
Overensstemmelsesstandarder	IEEE 802.1x, EMC, EMI, FCC CFR47 Part 15 B Class A 2015, AS/NZS 3548 Klasse A, C-Tick, EN 50581, EN 55024:2010, EN 61000-3-2, EN55022, ICES-003:2012 Issue 5 Class A, VCCI Class A, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11, IEEE 802.3, ANATEL, AS/NZ TS-001, AS/NZS 60950, CAN/CSA-C22.2 No. 60950-1-07 Second Edition, CCC, CDRH, EN 60825-1, EN 60825-2, IEC 60950-1, IEC 62368-1, NOM-019-SCFI, RETIE, RoHS, SNI, UL 60950-1 Second Edition, UL-GS, WEEE
Lokalisering	Europa
Mål og vægt
Bredde	21.7 cm
Dybde	28 cm
Højde	4.4 cm
Vægt	1.9 kg
Producentgaranti
Service & Support	Begrænset garanti - livstid
Miljømæssige parametre
Min. driftstemperatur	0 °C
Maks. driftstemperatur	45 °C
Fugtighedsgrad ved brug	5 - 95 % (ikke-kondenserende)
Min. lagertemperatur	-20 °C
Maks. Opbevaringstemperatur	60 °C
