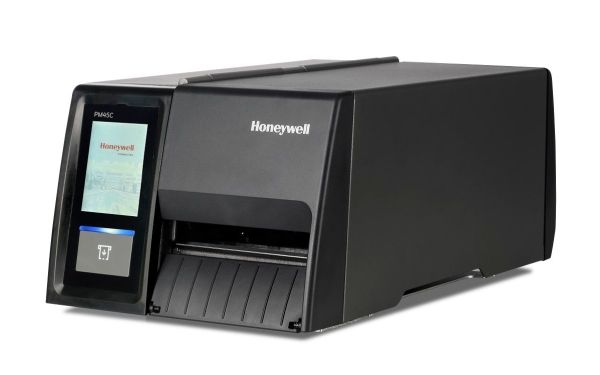

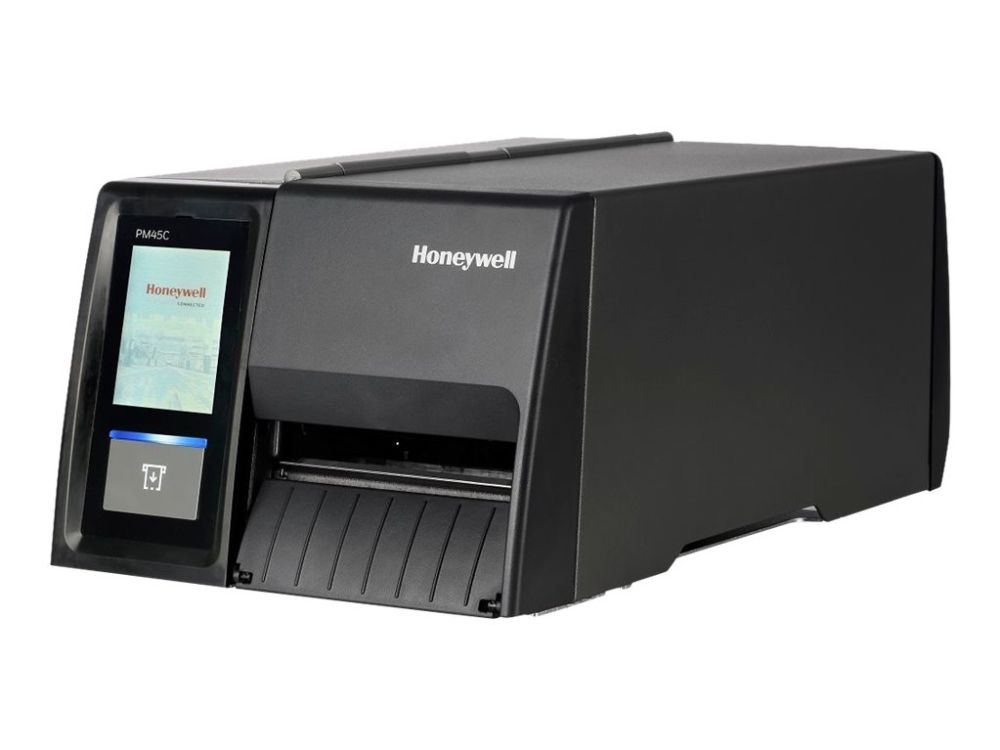

The Honeywell PM45 is built for smart label solutions that help enterprises enhance automation and intelligence in manufacturing and supply chain management for high operating efficiency.
Enterprises today are facing increasing challenges on production flexibility, inventory turnover, and cost control. The Honeywell PM45 industrial printer is designed to give businesses the flexibility and precision for high-volume printing. The PM45 printer’s track-and-trace functionality is aimed at improving print efficiency and supply chain transparency within a variety of industries, including food and beverage, pharmaceuticals, manufacturing, warehouse, and distribution center management.
Built on the Honeywell print platform, the durable PM45 printer offers print speeds of up to 14 ips. With print registration of up to +/-0.5 mm, the PM45 printer can ensure high-quality prints for barcodes, texts, and images, even on small electronic components and medical device labels.
As a highly connected industrial printer, the PM45 is packed with enhanced WWAN connectivity to enable deployment with minimal limitation from site network topology. The PM45 printer’s versatility allows the user to incorporate RFID, parallel, industrial, and applicator interfaces to address unpredictable future business needs. To help your transformation to intelligent manufacturing and supply chain management, the PM45 printer supports variable network protocols and multiple print languages to enable easy integration into your system, whether it is cloud-based or on a local server.
Embedded with Honeywell’s Smart Parse software, the PM45 allows for quick position changes, sizing of objects and barcodes, or font type on labels, without the need for backend system changes or programming skills. With Honeywell’s Operational Intelligence software, users can remotely manage and monitor the PM45 printer’s diagnostics and output performance. The PM45 supports a wide range of media – including ink-in and ink-out ribbons with a 1-inch core size – enhancing the time between media resupplies.
The PM45 printer is an ideal replacement for existing Honeywell or mixed printers, especially with Honeywell’s firmware platform supporting multiple print languages. A rugged, all-metal print mechanism, easy printhead, and tool-free platen roller replacement helps minimize downtime and maintenance needs.
Produktbeskrivelse
Honeywell PM45c - etiketprinter - S/H - termo transfer
Printertype
Etiketprinter - termo transfer - S/H
Vægt
12.6 kg
Maks. mediestørrelse
Rulle (11,4 cm)
Minimum Medie Størrelse (Almindelig)
19 mm
Max. mediestørelse (brugerdefineret)
114 mm
Printerhastighed
Op til 350 mm/sek - maks. hastighed
Maks. opløsning (S og H)
203 dpi
Grænseflade
USB 2.0, Gigabit LAN, USB 2.0 vært, seriel
RAM installeret (maks.)
256 MB SDRAM
Flash Hukommelse Installeret (Max)
512 MB
Sprogsimulering
Intermec Printer Language (IPL), Intermec Fingerprint, Intermec Direct Protocol, DPL, ZSim2, Extensible Mark-up Language (XML), PDF
Stregkoder
EAN/JAN, Kode 93, Matrix 2 af 5, Industribrug 2 af 5, Kode 39, UCC/EAN-128, Kode 49, ISBT 128, GS1 DataBar, QR-kode, MaxiCode, Aztec-kode, HIBCC, LOGMARS, MicroPDF417, Coadabar, Code 128, Kode 11, Kode 16 K, UPC, 2 af 5 interfolieret, Postnet, PDF417, MSI-Plessey, Data Matrix, PLANET, Plessey, AIAG, Standard 2 of 5, Grid Matrix Code
Medietype
Etiketter, etiketter uden bagpapir, listepapir, lagerkort, billetter
Egenskaber
Black Mark-sensor, mellemrumssensor, haksensor, papir lav-sensor, båndendesensor, Label Taken Sensor (LTS), tilbagespoler
Netværk
Udskriftsserver
Effekt
AC 100-240 V
Producentgaranti
1 års garanti
Dimensioner (B x D x H)
25.3 cm x 43.2 cm x 18.1 cm
Generelt
Printertype
Etiketprinter - termo transfer - monokrom
Printer
Printerhastighed
Op til 350 mm/sek - maks. hastighed - 203 dpi
Indbyggede enheder
LCD-berøringsskærm
Forbindelsesteknologi
Kablet
Grænseflade
USB 2.0, Gigabit LAN, USB 2.0 vært, seriel
Maks. opløsning (S og H)
203 dpi
Sprogsimulering
Intermec Printer Language (IPL), Intermec Fingerprint, Intermec Direct Protocol, DPL, ZSim2, Extensible Mark-up Language (XML), PDF
Egenskaber
Black Mark-sensor, mellemrumssensor, haksensor, papir lav-sensor, båndendesensor, Label Taken Sensor (LTS), tilbagespoler
Stregkoder
EAN/JAN, Kode 93, Matrix 2 af 5, Industribrug 2 af 5, Kode 39, UCC/EAN-128, Kode 49, ISBT 128, GS1 DataBar, QR-kode, MaxiCode, Aztec-kode, HIBCC, LOGMARS, MicroPDF417, Coadabar, Code 128, Kode 11, Kode 16 K, UPC, 2 af 5 interfolieret, Postnet, PDF417, MSI-Plessey, Data Matrix, PLANET, Plessey, AIAG, Standard 2 of 5, Grid Matrix Code
RAM
RAM installeret (maks.)
256 MB
Teknologi / Model
SDRAM
Flashhukommelse
Flashhukommelse
512 MB
Mediebehandling
Medietype
Etiketter, etiketter uden bagpapir, listepapir, lagerkort, billetter
1 x Gigabit LAN - RJ-45 1 x RS-232 - 9-pin D-Sub (DB-9) 1 x USB 2.0 - 4 pin USB Type B 1 x USB 2.0 host - 4 pin USB Type A
Diverse
Udstyr inkluderet
Fikseret mediebøjle
Medfølgende ledninger
Strømkabel ikke inkluderet
Overensstemmelsesstandarder
FCC Klasse B-certificeret, RoHS
Effekt
Strømenhed
Strømforsyningsadapter - ekstern
Nødvendig spænding
AC 100-240 V
Nødvendig frekvens
50/60 Hz
Strømforbrug ved drift
270 Watt
Strømforbrugs-stand by
9.6 Watt
Miljømæssige standarder
ENERGY STAR
Ja
Producentgaranti
Service & Support
Begrænset garanti - 1 år
Miljømæssige parametre
Min. driftstemperatur
5 °C
Maks. driftstemperatur
40 °C
Fugtighedsgrad ved brug
20 - 80 % (ikke-kondenserende)
Mål og vægt
Bredde
25.3 cm
Dybde
43.2 cm
Højde
18.1 cm
Vægt
12.6 kg
