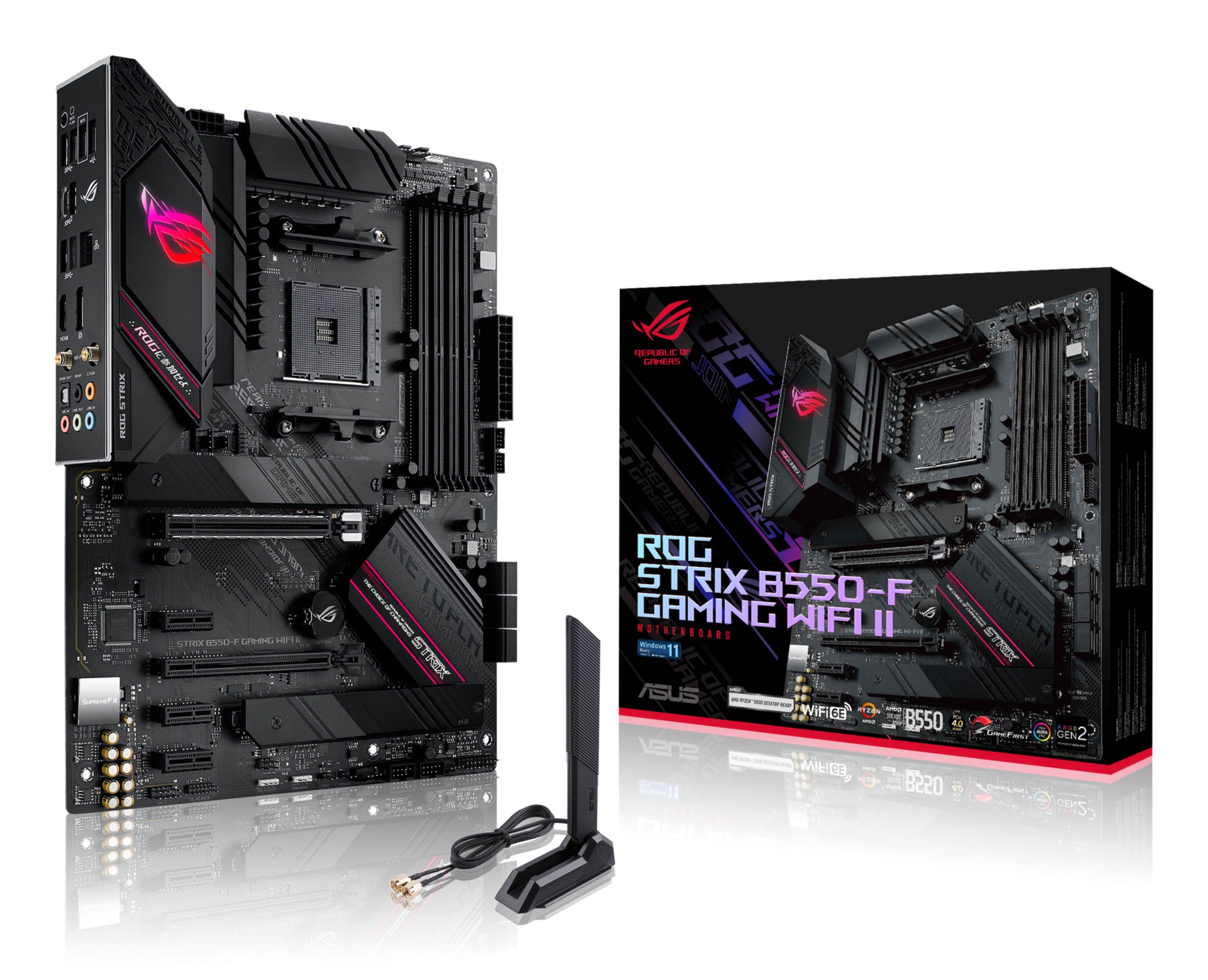

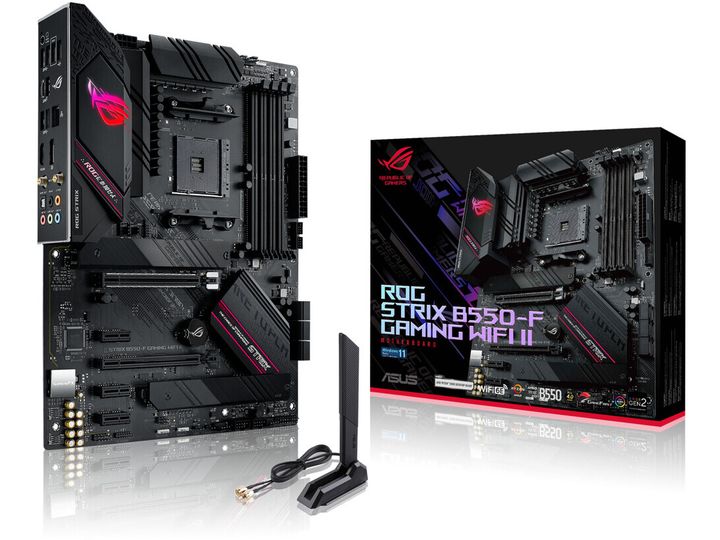

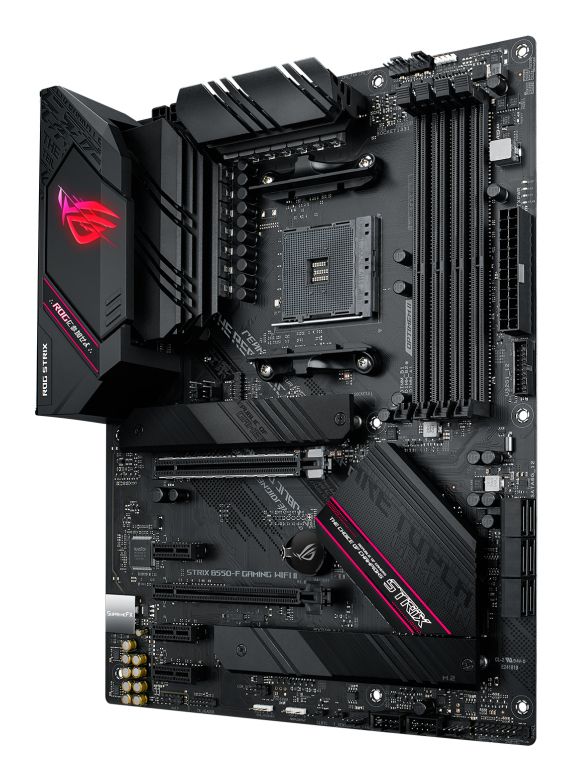

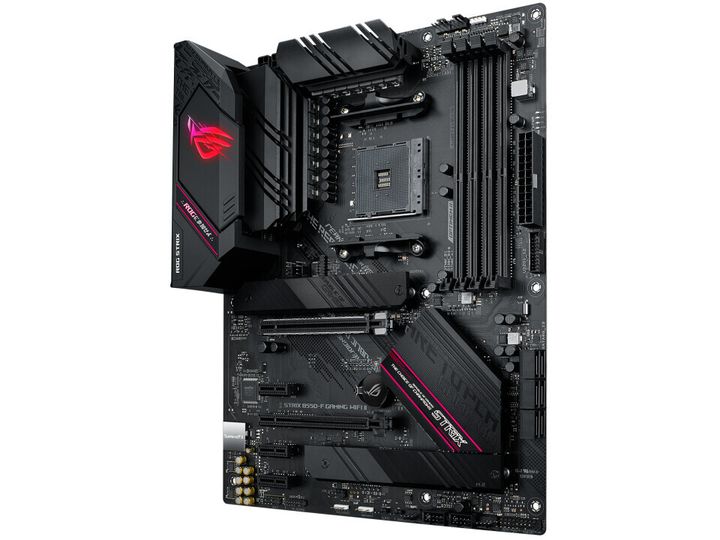

ASUS motherboard ROG STRIX B550-F GAMING WIFI II AM4 ATX DDR4

Item no.: [7762394] | Manufacturer: ASUS | Model no.: 90MB19V0-M0EAY0 | EAN: 4711081453314

Remote stock (2-3 days)

The item is in a remote warehouse, delivery time is 2-3 business days. More info

Shipping @price - GLS

12,00

EUR 149,61

Incl. VAT 187,01

Total incl. delivery 202,01

Read further specifications and description

ROG Strix B550 Gaming series motherboards offer a feature-set usually found in the higher-end ROG Strix X570 Gaming series, including PCIe 4.0. With robust power delivery and effective cooling, ROG Strix B550 Gaming is well-equipped to handle Zen 3 architecture AMD Ryzen CPUs. Boasting futuristic aesthetics and intuitive ROG software, ROG Strix B550-F Gaming Wi-Fi II gives you a head start on your dream build.

Produktbeskrivelse	ASUS ROG STRIX B550-F GAMING WIFI II - bundkort - ATX - Socket AM4 - AMD B550
Produkttype	Bundkort - ATX
Chipsættype	AMD B550
Processor-socket	1 x Socket AM4
Kompatible processorer	Ryzen (understøtter Ryzen 3000 Series/ 4000 G-Series/ 5000 Series/ 5000 G-Series)
Max RAM-størrelse	128 GB
RAM understøttet	4 DIMM åbninger - DDR4, ECC, ikke-ECC, ikke bufferet
Lagringsporte	6 x SATA-600 (RAID), 2 x M.2
USB / FireWire porte	1 x USB-C Gen 2 + 1 x USB 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + 2 x USB 2.0 + (2 x USB 3.2 Gen 1 + 4 x USB 2.0 via samlekasser)
Audio	HD Audio (8-kanaler)
LAN	2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2

Generelt
Produkttype	Bundkort - ATX
Chipsættype	AMD B550
Processor-socket	Socket AM4
Max antal processorer	1
Kompatible processorer	Ryzen (understøtter Ryzen 3000 Series/ 4000 G-Series/ 5000 Series/ 5000 G-Series)
Understøttet RAM
Maks. størrelse	128 GB
Teknologi	DDR4
Bus Clock	2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 3200 MHz, 3400 MHz (O.C.), 3466 MHz (O.C.), 3600 MHz (O.C.), 3733 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4266 MHz (O.C.), 4400 MHz (O.C.), 4600 MHz (O.C.), 4666 MHz (O.C.), 4800 MHz (O.C.), 4866 MHz (O.C.), 5100 MHz (O.C.)
Understøttet RAM-integritetskon	ECC, ikke-ECC
Registreret eller buffer	Ikke bufferet
Egenskaber	Dobbelt kanal hukommelses arkitektur
Audio
Type	HD Audio (8-kanaler)
Audio codec	SupremeFX (S1220A)
Overensstemmelsesstandarder	High Definition Audio, DTS Sound Unbound
LAN
Netværk controller	Intel I255-V
Netværks interfaces	2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2
Ekspansion / Konnektivitet
Ekspansionsåbninger	1 x CPU 4 x DIMM 288-pins 1 x PCIe 4.0 x16 1 x PCIe 3.0 x16 (x4-modus) 3 x PCIe 3.0 x1
Grænseflade (lagring)	SATA-600 -stikforbindelser: 6 x 7-pin Seriel ATA - RAID 0 / RAID 1 / RAID 10 SATA-600 / PCIe 3.0 -stikforbindelser: 2 x M.2
Interface	1 x LAN (2.5Gigabit Ethernet) 4 x USB 3.2 Gen 1 1 x audio linje-ind - mini-jack 1 x audio linje-ud - mini-jack 1 x mikrofon - mini-jack 1 x USB-C Gen2 1 x USB 3.2 Gen 2 1 x TOSLINK 1 x audio linje-ud (centrum/subwoofer) - mini-jack 1 x audio linje-ud (bagtil) - mini-jack 2 x USB 2.0 1 x DisplayPort 1 x HDMI
Interne interfaces	4 x USB 2.0 - intern stik 2 x USB 3.2 Gen 1 - intern stik 1 x Thunderbolt - intern stik 1 x audio - intern stik
Strømkontakter	4-pin ATX12V konnektor, 24-pin hovedstrøm-konnektor, 8-pin ATX12V-kontakt
Egenskaber
BIOS-type (Basic Input/Output System)	AMI
BIOS-egenskaber	BIOS FlashBack, UEFI BIOS
Sov/ Vågn	Aktivering af LAN (wake on LAN = WOL), vågn på PME
Hardware egenskaber	Preboot eXecution Environment (PXE), CrashFree BIOS 3, ASUS TurboV EVO, ASUS Fan Xpert 4, ASUS EPU (Energy Processing Unit), ASUS DIGI+ VRM, ASUS Aura Sync, Sonic Radar III, Sonic Studio III, GameFirst VI, ASUS SafeSlot, præmonteret I/O-skjold, ASUS ProCool, M.2 kølelegeme, ASUS Q-Design, Q-DIMM, Q-LED, Q-Slot, jack retasking, audio jack detektions teknologi, 12+2 Phase Power Design, SupremeFX Shielding teknologi, ASUS EZ DIY
Diverse
Udstyr inkluderet	Ekstern antenne, kabelbånd, 1 x M.2 skrue, ROG-blæsermærkater, ROG-takkekort, gummipude, RGB Addressable LED-forlængerkabel, ROG-nøglekæde
Medfølgende ledninger	4 x Seriel ATA kabel
Med software	ASUS AI Suite III, WinRAR, DAEMON Tools, Norton AntiVirus (Trial), ASUS EZ Update, ASUS EZ Flash 3, AIDA64 Extreme (60 dages prøvetid), Overwolf, Antivirus, Sonic Studio Virtual Mixer, ROG CPU-Z, ASUS ROG RAMCache III
Bredde	30.5 cm
Dybde	24.4 cm

The item is known under the following item numbers in our system

EAN:	4711081453314
SKU:	AC90MB19V0-M0EAY0

Why do I find that the same product is available on different item numbers?

Manufacturers often release the same product with different item numbers, typically just different versions of the packaging. For example, the packaging may be targeted at different countries. We try our best to unify the products, but it can happen that the same product appears on different item numbers in our system.
