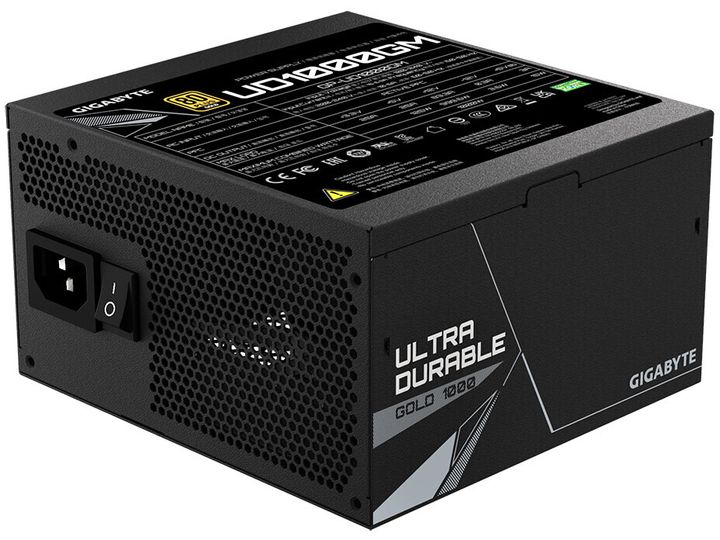

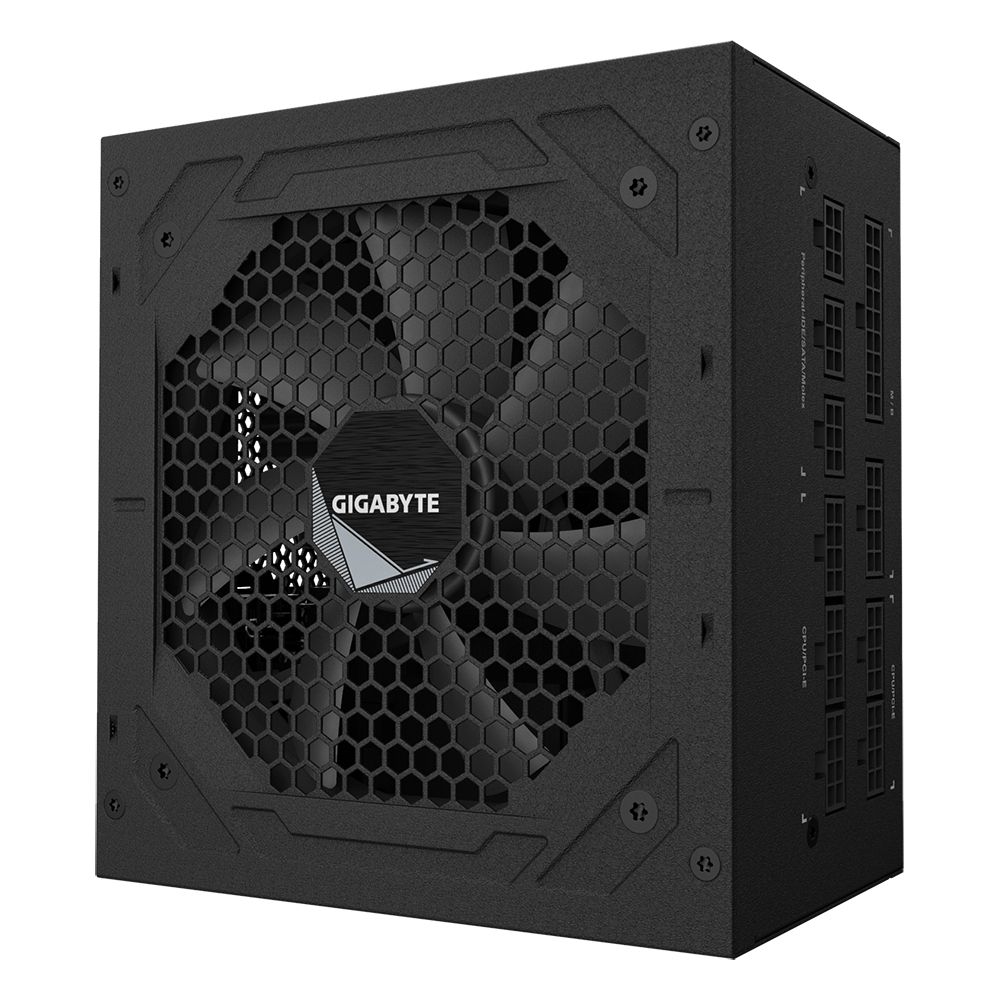

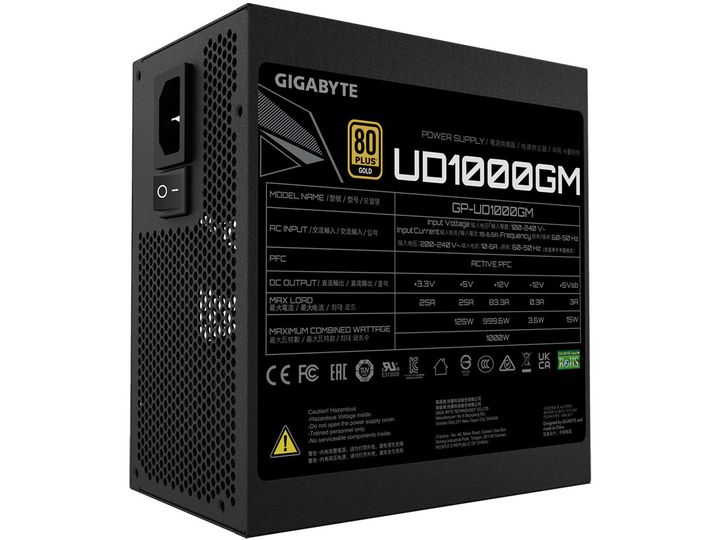

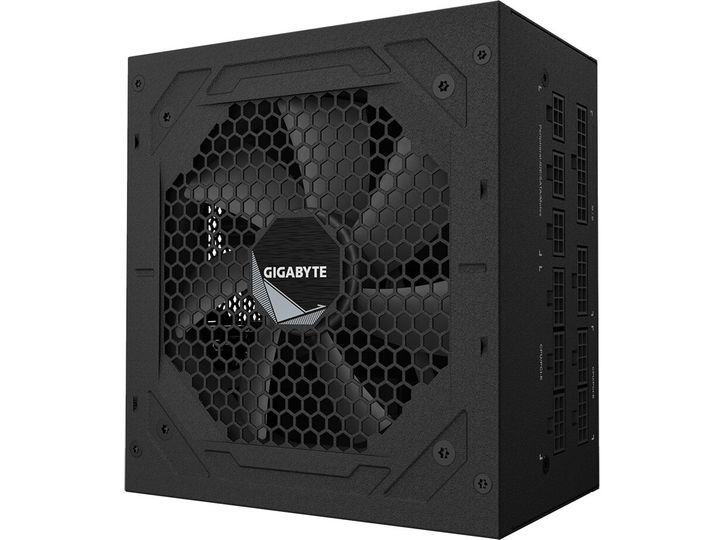

Inherit the product design spirit of GIGABYTE Ultra Durable, thus introducing a variety of high-quality materials and designs. Ultra Durable combines high-quality main Japanese capacitors, enhanced thermal solution, 120mm smart hydraulic bearing (HYB) fan, and six circuit protection designs. It provides consumers with a high-quality and stable power supply, and can be used for a long time.
ENHANCED THERMAL SOLUTION Compared with the standard thermal solution, we have enlarged the heatsink by about 200% or more, and optimized the airflow. The heat dissipation performance is increased by more than 10%, thus prolonging the service life of the components.

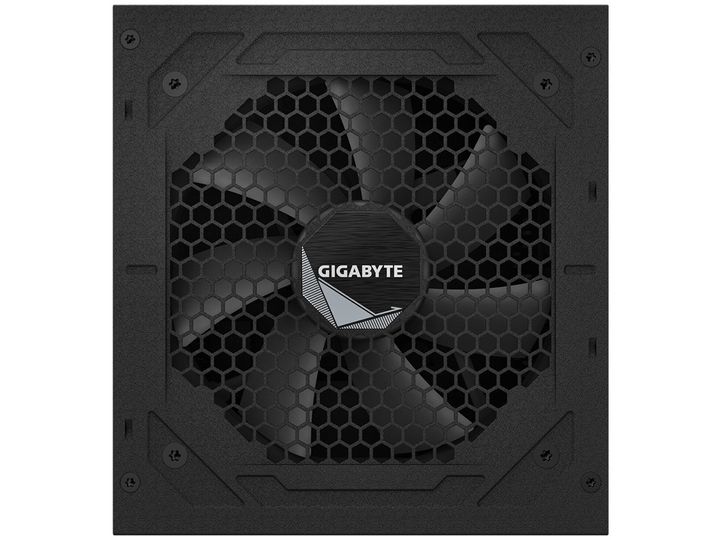

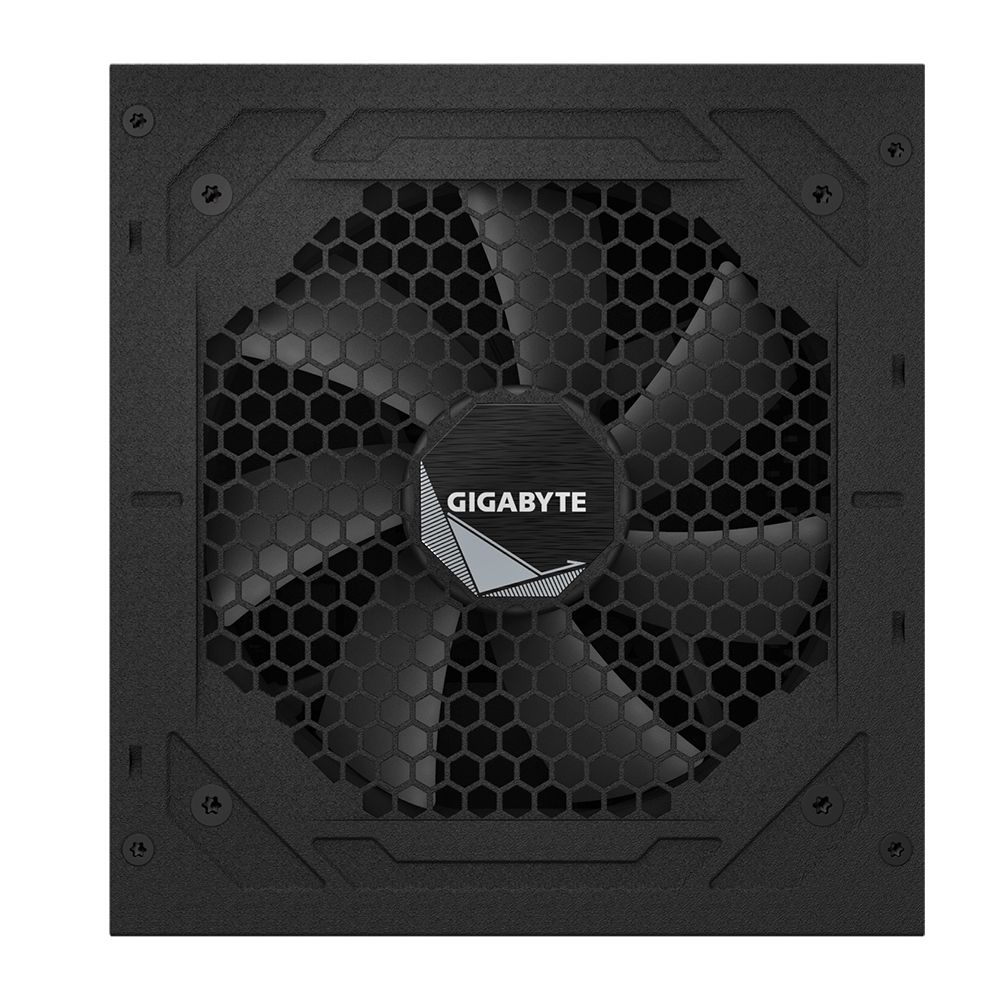

120MM SMART HYDRAULIC BEARING (HYB) FAN The fan speed is adjusted according to the automatic power detection and stops when the system is idle or under low load (less than 20% load). The hydraulic bearing fan provides longer and more stable life time.
PROTECTION In order to make sure the entire computer system to operate stably under any conditions, we not only added protection designs such as OCP, OTP, OVP, OPP, UVP and SCP, but also ensured the stable operation of your system through the safety certification of various countries.

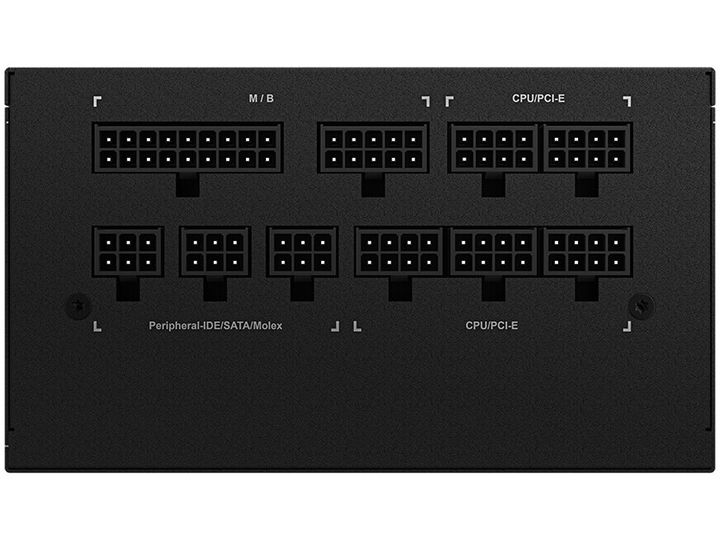

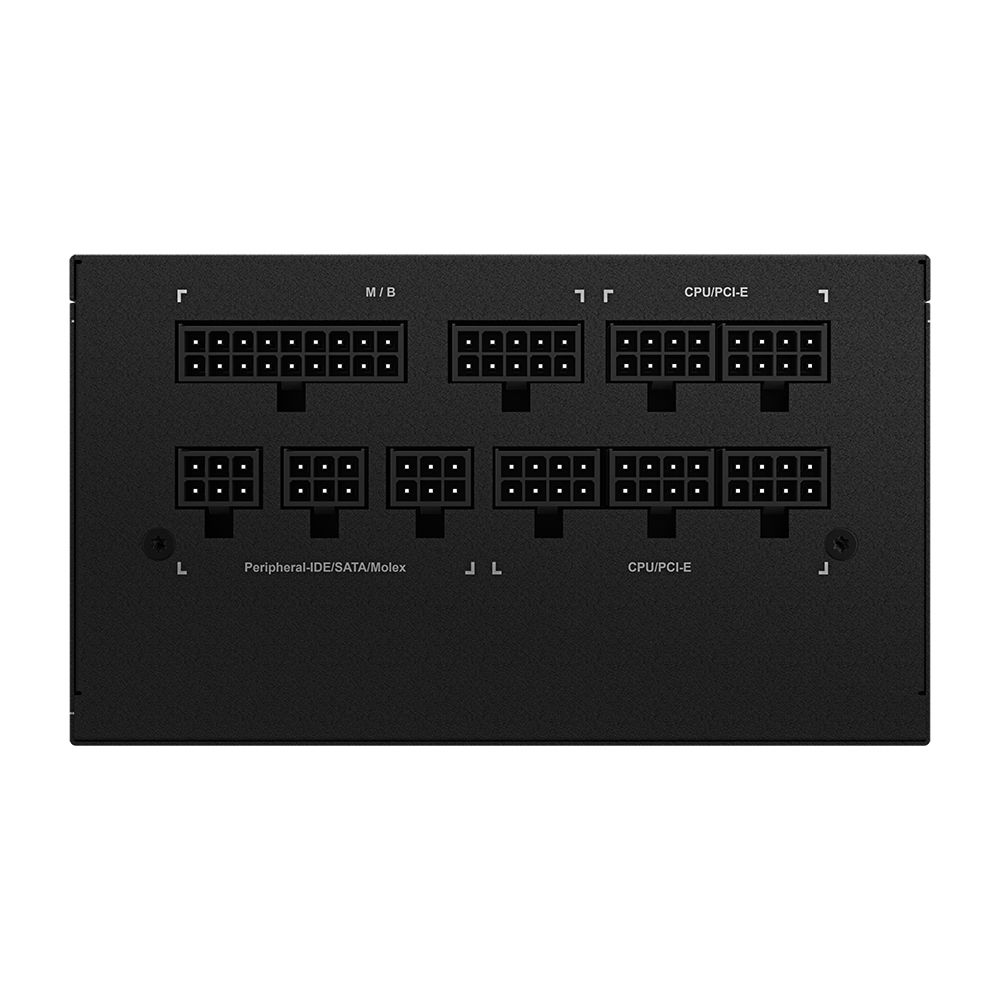

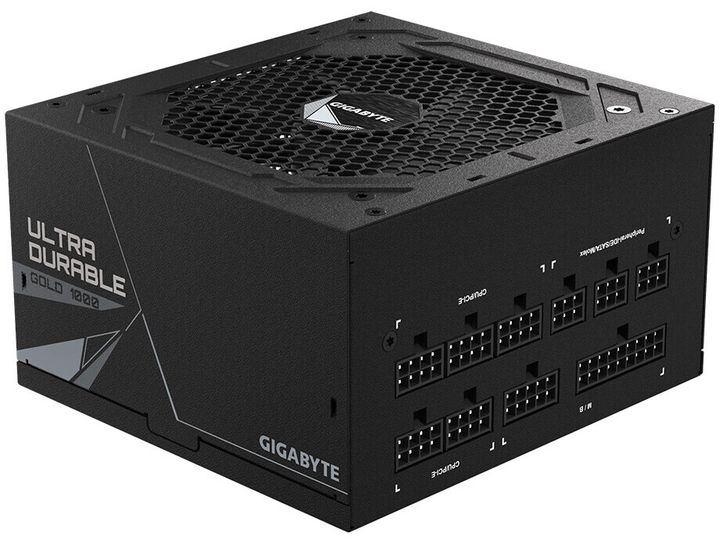

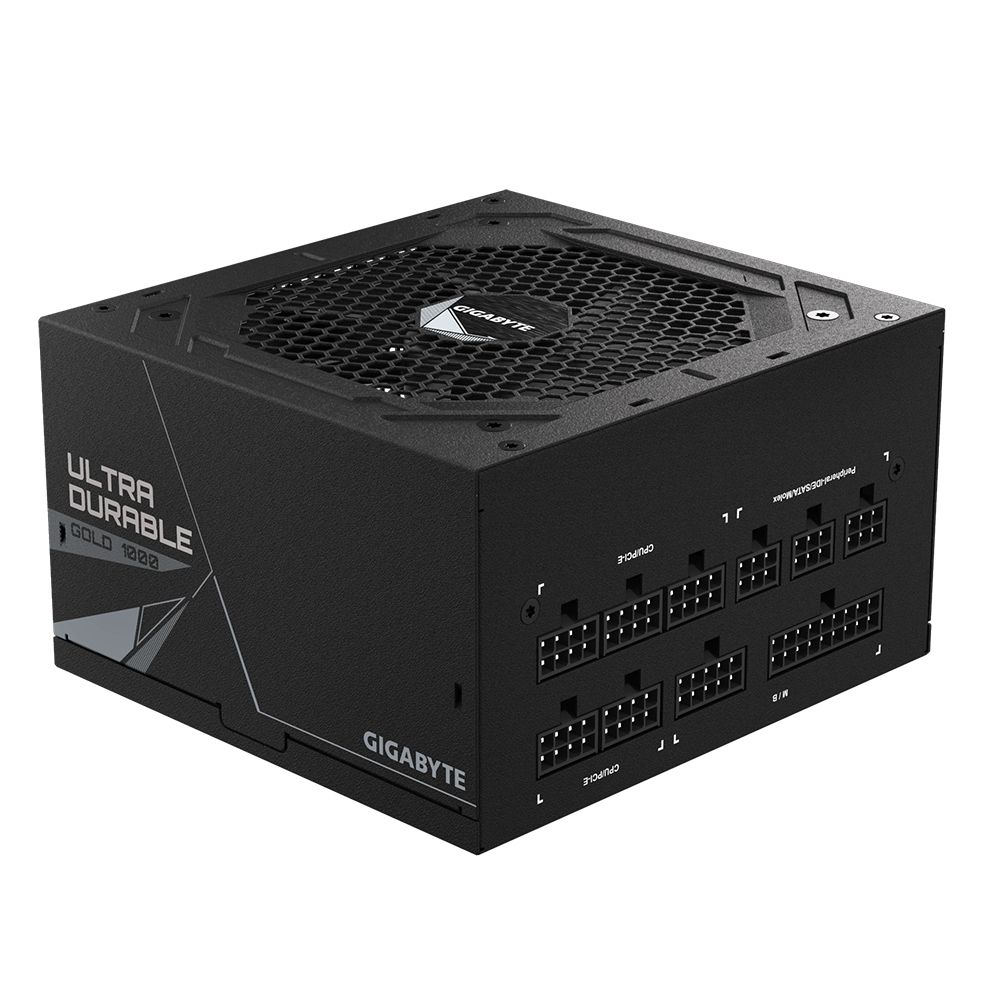

FULLY MODULAR DESIGN All the black flat cables are modular design. Installing only the cables you need to reduce clutter, to increase the airflow and to improve the chassis thermal performance.
Produktbeskrivelse

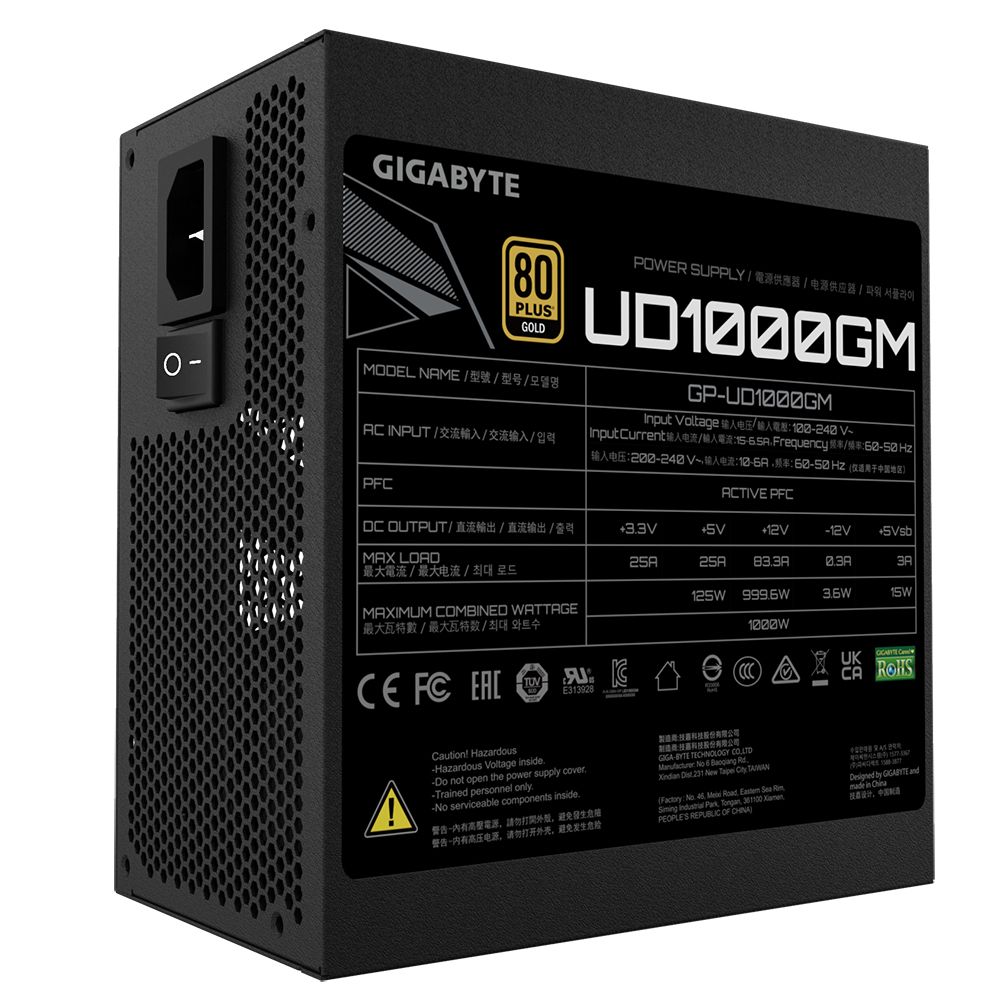

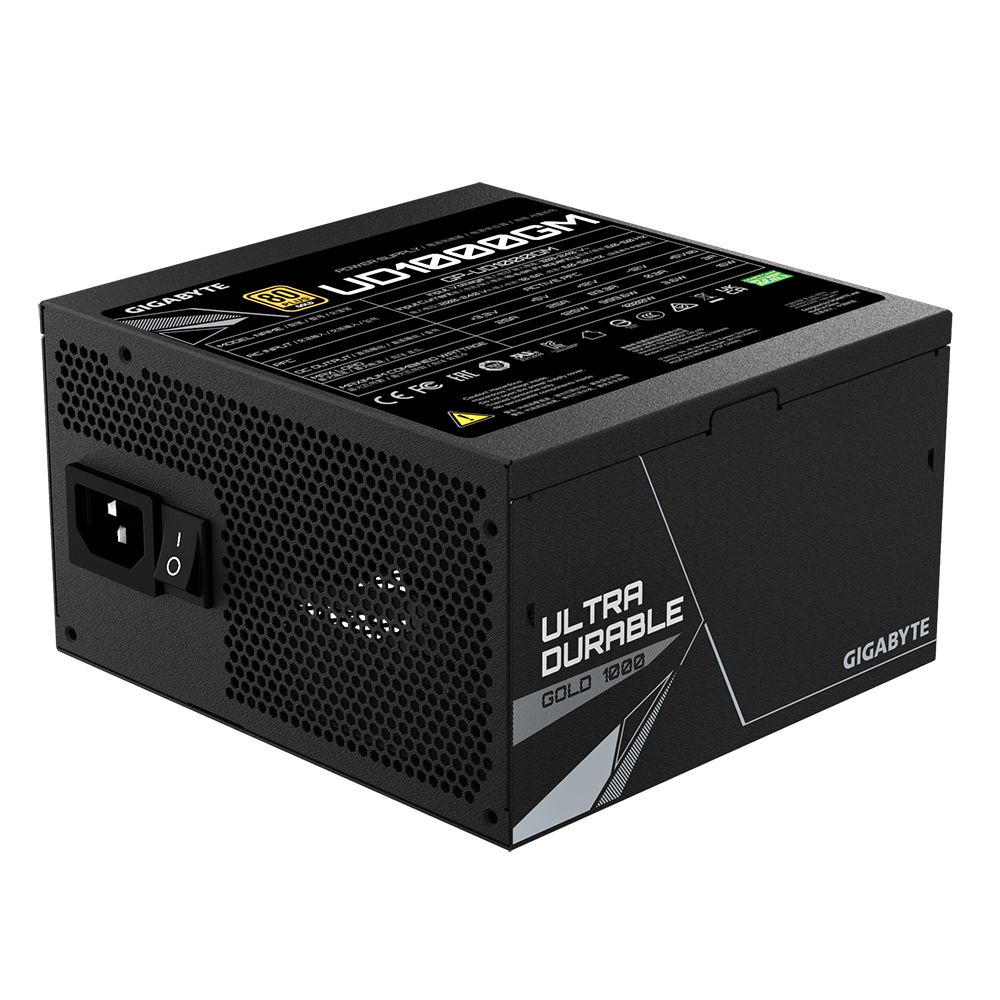

Gigabyte UD1000GM - strømforsyning - 1000 watt
Enhedstype
Strømforsyning - aktiv Power Factor Correction (PFC) - intern
Specifikationsoverensstemmelse
ATX12V 2.31/ EPS12V
80 PLUS certificering
80 PLUS Gold
Indgangspænding
AC 100-240 V
Udgangspænding
+3.3, +5, ±12 V
Strømkapacitet
1000 watt
Output Current
+3.3V - 25 A +5V - 25 A +12V - 83.3 A -12V - 0.3 A
Output-stikforbindelser
1 x strøm 24 pin ATX med aftagelig 4 pin sektion 2 x strøm 8 pin EPS12 V med aftagelig 4 pin ATX12V sektion 6 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion 8 x 15 pin Serial ATA strøm 3 x 4-PIN intern strøm 1 x 4-PIN mini-strømforsyningsforbinder
Modulær Kabel Administration
Ja
Kølesystem
120 mm ventilator
Dimensioner (B x D x H)
15 cm x 14 cm x 8.6 cm
Producentgaranti
10-års garanti
Generelt
Enhedstype
Strømforsyning - aktiv Power Factor Correction (PFC) - intern
Specifikationsoverensstemmelse
ATX12V 2.31/ EPS12V
PSU formfaktor
ATX
Strømenhed
Indgangspænding
AC 100-240 V
Nødvendig frekvens
50 - 60 Hz
Detaljer om strømudgangskonnektorer
1 x strøm 24 pin ATX med aftagelig 4 pin sektion 2 x strøm 8 pin EPS12 V med aftagelig 4 pin ATX12V sektion 6 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion 8 x 15 pin Serial ATA strøm 3 x 4-PIN intern strøm 1 x 4-PIN mini-strømforsyningsforbinder
Udgangspænding
+3.3, +5, ±12 V
Strømkapacitet
1000 watt
Output Current
+3.3V - 25 A +5V - 25 A +12V - 83.3 A -12V - 0.3 A
Effektivitet
90%
Strømfaktor (PF)
0.9
Modulær Kabel Administration
Ja
80 PLUS certificering
80 PLUS Gold
Diverse
MTBF (forventet tid mellem fejl)
100,000 timer
Kølesystem
120 mm ventilator
Egenskaber
Hydraulisk lejekøleblæser, overspændingsbeskyttelse, overbelastningsbeskyttelse, kortslutnings beskyttelse, beskyttelse mod underspænding, beskyttelse mod overstrøm, beskyttelse mod overophedning, fuld modulær, Smart Fan Control Quiet teknologi, enkelt 12V skinne
Producentgaranti
Service & Support
Begrænset garanti - 10 år
Mål og vægt
Bredde
15 cm
Dybde
14 cm
Højde
8.6 cm
