Supermicro MBD-H12SSL-C, AMD, Socket SP3, AMD EPYC, DDR4-SDRAM, 2 TB, DIMM

Item no.: [7897765] | Manufacturer: SUPER MICRO Computer | Model no.: MBD-H12SSL-C-B | EAN: 0672042423330

out of stock

The item is not in stock. More info

Varen er ikke på lager.

Brug funktionen ”Giv mig besked..." herunder for opdateringer.

Shipping @price - GLS

12,00

EUR 856,66

Incl. VAT 1.070,83

Total incl. delivery 1.085,83

Notify me when the item is in stock again

Read further specifications and description

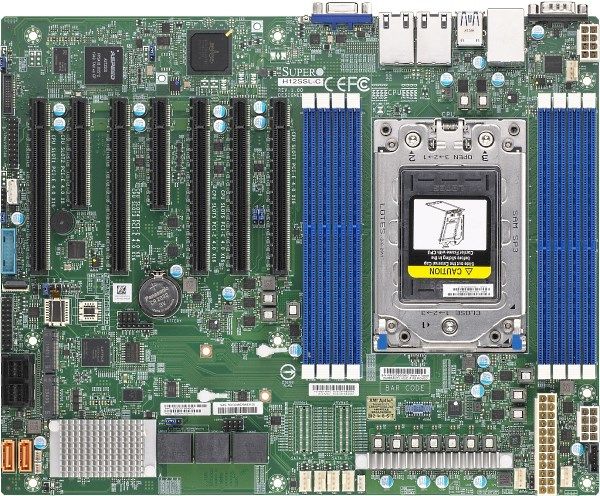

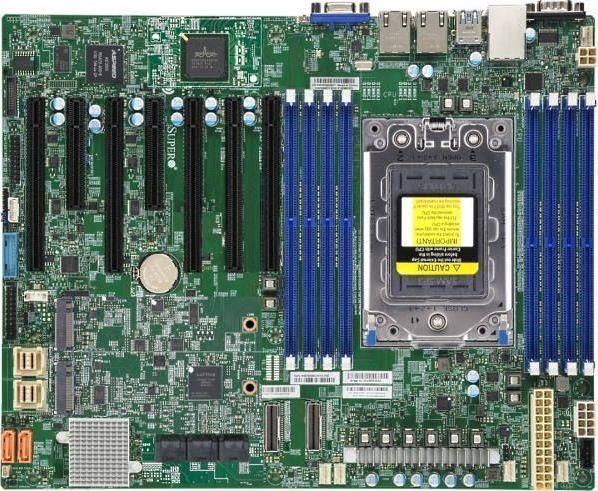

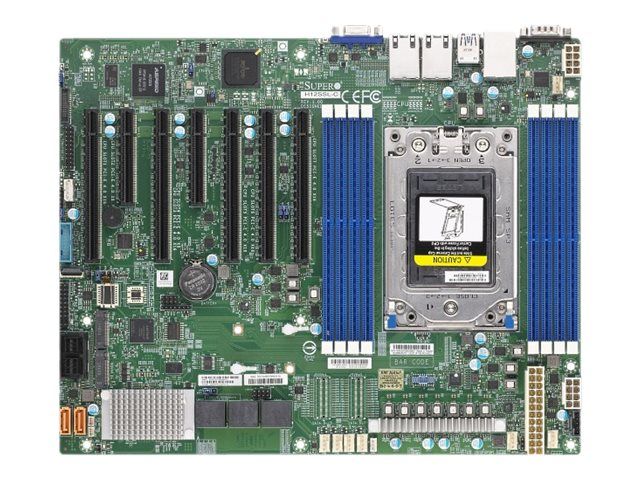

SuperMicro motherboard H12SSL-C bulk socket SP3

Produktbeskrivelse	SUPERMICRO H12SSL-C - bundkort - ATX - Socket SP3
Produkttype	Bundkort - ATX
Processor-socket	1 x Socket SP3
Kompatible processorer	EPYC 7002 series
Max RAM-størrelse	2 TB
RAM understøttet	8 DIMM åbninger - DDR4, ECC, registreret
Lagringsporte	8 x SAS3 (RAID), 8 x SATA-600, 2 x M.2
USB / FireWire porte	4 x USB 3.0 + (2 x USB 3.0 via samlekasser)
Grafik	ASPEED AST2500
LAN	2 x Gigabit Ethernet
Producentgaranti	3 års garanti

Generelt
Produkttype	Bundkort - ATX
Processor-socket	Socket SP3
Max antal processorer	1
Kompatible processorer	EPYC 7002 series
Understøttet RAM
Maks. størrelse	2 TB
Teknologi	DDR4
Bus Clock	3200 MHz
Understøttet RAM-integritetskon	ECC
Registreret eller buffer	Registreret
Egenskaber	8-kanals hukommelsesarkitektur
Grafik
Grafik controller	ASPEED AST2500
LAN
Netværk controller	Broadcom BCM5720
Netværks interfaces	2 x Gigabit Ethernet
Ekspansion / Konnektivitet
Ekspansionsåbninger	1 x CPU 8 x DIMM 288-pins (1.2 V) 5 x PCIe 4.0 x16 2 x PCIe 4.0 x8
Grænseflade (lagring)	SATA-600 -stikforbindelser: 8 x 7-pin Seriel ATA PCIe 4.0 -stikforbindelser: 2 x M.2 SAS 3 - 8 enheder - RAID 0 / RAID 1 / RAID 10
Interface	2 x LAN (Gigabit Ethernet) 1 x VGA 4 x USB 3.0 1 x seriel 1 x administration
Interne interfaces	2 x USB 3.0 - intern stik
Egenskaber
BIOS-type (Basic Input/Output System)	AMI
BIOS-egenskaber	Genoprettelse af strømafbrud (genoprettelse af AC-tab), med DMI 2.3 understøttelse, IPMI 2.0 support, ACPI 5,1 support, SMBIOS 3.1.1 understøttet
Hardwareovervågning	CPU kernetemperatur, chassis temperatur, takometer til chassis-blæser, systemspænding, CPU kerne-spænding
Hardware egenskaber	Diagnose LED's, chassis intrusion styring
Diverse
Udstyr inkluderet	I/O-bagdække
Medfølgende ledninger	2 x Seriel ATA kabel
Overensstemmelsesstandarder	Plug and Play
Bredde	30.5 cm
Dybde	24.4 cm
Pakketype	En gros
Producentgaranti
Service & Support	Begrænset garanti - reservedele - 1 år Begrænset garanti - arbejde - 3 år
